Shacman X6000 Aluminum Alloy Fuel Tank Assembly

The Shacman X6000 Aluminum Alloy Fuel Tank Assembly is designed for high performance and reliability in demanding transport environments. This assembly combines various components that ensure effective fuel storage, secure mounting, and optimal operation of the vehicle’s fuel system.

Shacman X6000 Aluminum Alloy Fuel Tank Assembly
Shacman X6000 Aluminum Alloy Fuel Tank Assembly
Download Catalog
Get Quotation
Whatsapp

Product Parameters of Shacman X6000 Aluminum Alloy Fuel Tank Assembly

  • Shacman X6000 Aluminum Alloy Fuel Tank Assembly

  • Key Components
  • At the core of the assembly is the Aluminum Alloy Fuel Tank, known for its lightweight yet sturdy construction. This tank is protected and supported by a series of essential components, enhancing both durability and functionality.
  • Fastening Elements
  • The assembly utilizes multiple Bolts and Nuts to secure the fuel tank firmly to the vehicle’s chassis. These fastening elements are crucial for maintaining stability, even under high-stress conditions. The inclusion of Washers ensures that the bolts and nuts create a snug fit, preventing loosening over time.

  • Shacman X6000 Aluminum Alloy Fuel Tank Assembly

  • Support Structures
  • The Backing Board and Transition Support provide additional structural integrity to the assembly. The backing board distributes stress evenly across the tank, while the transition support aligns the fuel tank with the vehicle’s frame, reducing the risk of vibrations and potential damage.
  • Fluid Management Components
  • To facilitate efficient fuel flow, the assembly includes various components such as Hose Joints, Pipe, and Fuel Filter. The hose joints connect tubing seamlessly, while the pipe ensures fuel is delivered efficiently to the engine. The Fuel Filter is essential for removing impurities, ensuring clean fuel delivery for optimal engine performance.

  • Shacman X6000 Aluminum Alloy Fuel Tank Assembly

  • Sensor and Monitoring
  • Integrated within the assembly are Sensors that monitor fuel levels and system performance. These sensors provide real-time data, allowing for proactive maintenance and ensuring that the fuel system operates efficiently.
  • Additional Features
  • The Cushion Belts are strategically placed to absorb vibrations and shocks, protecting the tank and associated components from damage. The Plastic Fastening Tape and various Tubing Brackets secure the tubing in place, ensuring a neat and organized setup that minimizes potential leaks and failures.

  • Shacman X6000 Aluminum Alloy Fuel Tank Assembly

  • Connections and Joints
  • The Bracket of Fuel Filter and Transition Joint facilitate smooth connections between different parts of the fuel system. The assembly’s comprehensive design includes multiple tubing brackets that ensure all components are securely fastened and properly aligned, contributing to the overall functionality of the assembly.
  • Conclusion
  • The Shacman X6000 Aluminum Alloy Fuel Tank Assembly showcases a well-thought-out integration of components including Bolts, Nuts, Cushion Belts, Sensors, Fuel Filter, and various joints and brackets. Each element plays a critical role in ensuring efficient fuel management, stability, and reliability, highlighting Shacman’s commitment to excellence in vehicle design and performance.
NO Part.No Name Quantity
1 Q1811440TF3 Bolt 9
2 06.11251.2005 Nut 23
3 Q1811450TF3 Bolt 12
4 DZ9X259551004 Backing Board 6
5 DZ9X259555103 Transition Support 3
6 Q5004020 Splitpin 3
7 Q5101280 Pin Shaft 3
8 DZ9X259551012 Tank Bracket 3
9 DZ9X259552001 Cushion Belt 3
10 Q33208T2F3 Nut 3
11 DZ9X259552301 Connecting Plate 1
12 Q402B08 Washer 3
13 Q150B0825T1F3 Bolt 3
14 06.11251.2003 Nut 3
15 DZ9X259558004 Cushion Belt 3
16 DZ9X259559001 Fastening Tape 3

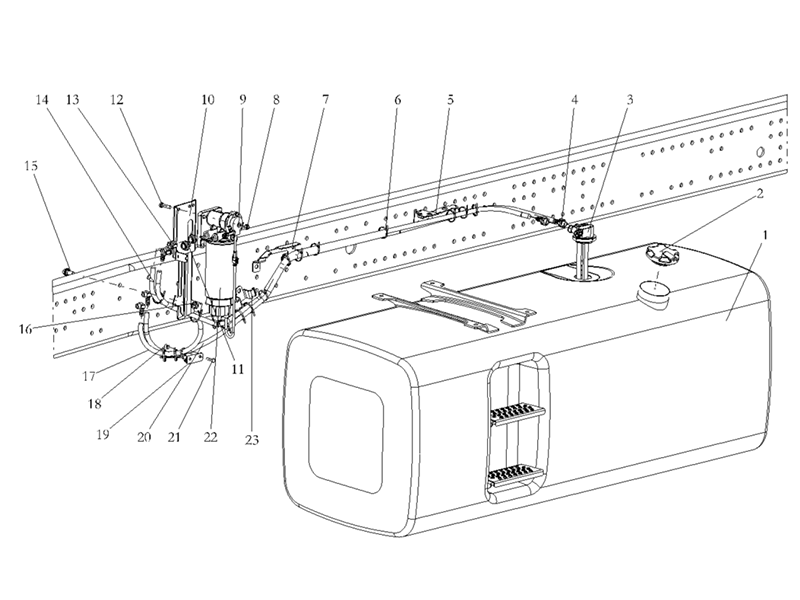

NO Part.No Name Quantity Suited type
1 DZ9X259550800 Fuel Tank 1
2 DZ97189550023 Cover 1
3 DZ9X259555006 Sensor 1 Used for WP models
DZ9X259555007 Sensor 1 Used for ISM models
4 DZ97189550603 Hose Joint 2
5 DZ9L149559110 Tubing Bracket 1
6 1.90003E+11 Plastic Fastening Tape 18
7 DZ9X259559109 Tubing Bracket 1
8 Q33210T2F3 Nut 2
9 Q40010 Washer 2
10 DZ9X259554020 Bracket Of Fuel Filter 1
11 DZ97189550607 Transition Joint 2
12 Q150B1040T1F3Q Bolt 2
13 DZ97189550604 Hose Joint 4
14 DZ91189556001 Pipe 2m
15 Q1811430TF3 Bolt 4
16 06.11251.2005 Nut 2
17 DZ91189556001 Q33208T2F3 Pipe 0.8m
18 DZ9X259559107 Nut 2
19 DZ91189556001 Tubing Bracket 1
20 Pipe 2.2m
21 Q150B0830T1F3 Bolt 2
22 DZ61129010018 Fuel Filter 1 Used for WP models
DZ91189550148 Fuel Filter 1 Used for ISM models
23 DZ9X259559106 Tubing Bracket 1
