Shacman Refrigerated Truck

What is Shacman Refrigerated Truck?

**Shacman Refrigerated Truck** offers reliable cold chain solutions with versatile configurations. The **Shacman 4×2 Refrigerated Truck** is ideal for urban delivery and light cargo, providing excellent fuel efficiency and maneuverability. For heavier loads and long-haul applications, the **Shacman 6×4 Refrigerated Truck** delivers superior stability and power. When maximum payload capacity and robust performance are required, the Shaanxi Automobile 8×4 refrigerated truck can easily handle the transport of bulk frozen goods. All models feature high-quality insulation, precise temperature control (-20°C to +20°C), and durable Shacman chassis, ensuring fresh or frozen goods reach destinations safely. Perfect for meat, seafood, dairy, pharmaceuticals, and produce logistics. Boost your fleet efficiency with Shacman’s trusted refrigerated trucks

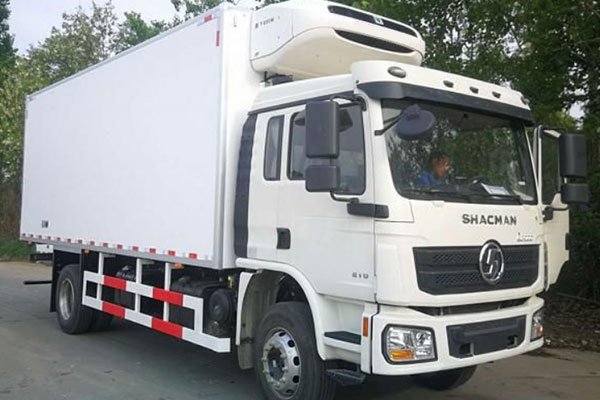

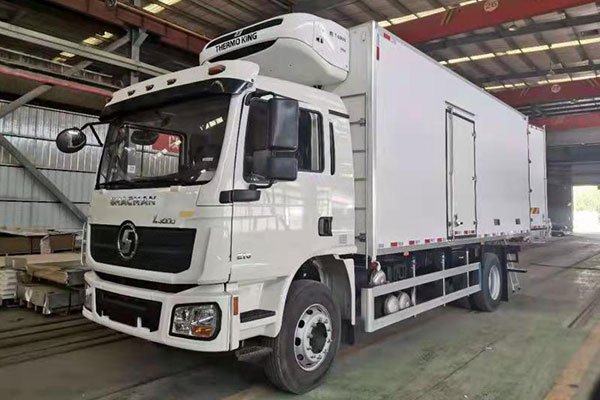

Product Parameter of Shacman 4x2 Refrigerated Truck

Shacman 4×2 refrigerated truck is a closed-body transport vehicle designed to maintain the temperature of frozen or perishable goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane-insulated compartment, ensuring excellent sealing performance. The cargo compartment is tightly sealed to minimize heat exchange with the outside environment, thereby ensuring that the temperature inside the compartment remains at a low level.
The Shacman 4×2 refrigerated truck offers excellent refrigeration performance. The auxiliary refrigeration equipment is connected to the cargo compartment, providing continuous cooling to ensure the internal temperature remains within the range permitted for the cargo at all times. It also boasts good mobility. Typically, the goods transported by refrigerated trucks are items that cannot be stored for long periods. Although equipped with refrigeration equipment, they still require rapid delivery to their destination. The refrigerated truck has excellent thermal insulation, constructed from materials with high insulation properties, effectively reducing heat exchange.

SPECIFICATION
Dimension(Lx W xH)（unloaded（mm）			8995×2550×3450
Body volume (m3)			36
Refrigerator Model			THERMO KING T-600M (Independent)
Refrigerated Cargo Body Size:			6800mm×2330mm×2400mm, with one bulkhead
Panel Thickness(mm)		Roof and Floor panel	105 mm
		Side panels	85 mm
Approaching angle/Departure angle（°）			September 17th
Overhang(front/rear) (mm)			1935/1800
Wheel base (mm)			5000
Max speed（km/h）			100
Curb weight（kg）			9400
Engine	Model		ISDe21030
	Fuel type		Diesel
	Power, max（kw/rpm）		210HP
	Emission		EURO 3
Fuel tanker capacity（L）			200L iron oil tank
Transmission			Model	8JS85T
Brake system			Service brake	Dual circuit compressed air brake
			Parking brake	spring energy, compressed air operating on rear wheels
Front axle			4.8T
Rear axle			10T
Tire			295/80R22.5
Electrical system			Battery	2X12V/165Ah
			Alternator	28V-1500kw
			Starter	7.5Kw/24V
Cab			L3000 CAB

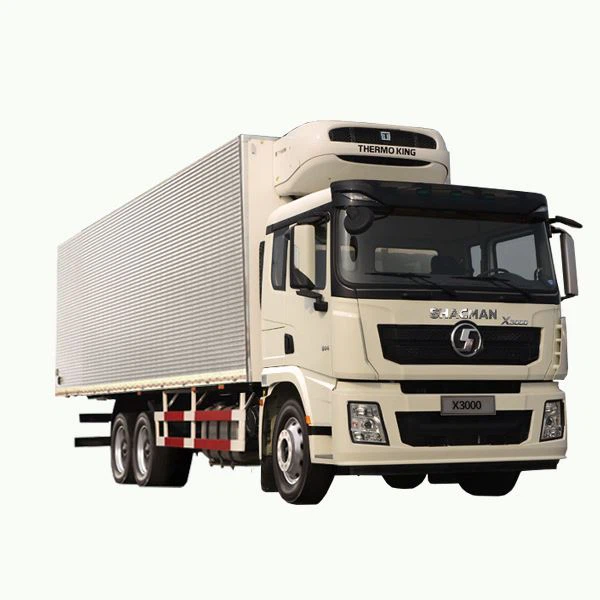

Product Parameter of Shacman 6x4 Refrigerated Truck

The Shacman 6×4 refrigerated truck is equipped with a positioning management system that effectively tracks and manages refrigerated truck resources while integrating location data with the company’s business operations. This system enables precise, real-time management of product freshness and quality, providing a simple and efficient solution to quality control issues in the food distribution process.
The Shacman 6×4 refrigerated truck is specifically designed for transporting temperature-sensitive products, making temperature control its most critical feature. The system continuously records temperature data with precise timestamps, facilitating clear accountability and enabling traceability. It allows for rapid monitoring of key temperature conditions during transportation, thereby enhancing freshness management throughout the distribution process.

Platform	X3000
Drive type	6X4
Vehicle Weight	GVW：8.5 tons
	GCW：40 tons
Frame	850×300(8+5)mm
Wheelbase	4375+1400mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 7.5 ton
	Rear axle: MAN 13 ton single or double reduction
	Gear ratio: 3.364 –4.769
Suspension	Multi leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 – 700 liter aluminum or steel tank
Cab	Standard
	Lengthend flat roof

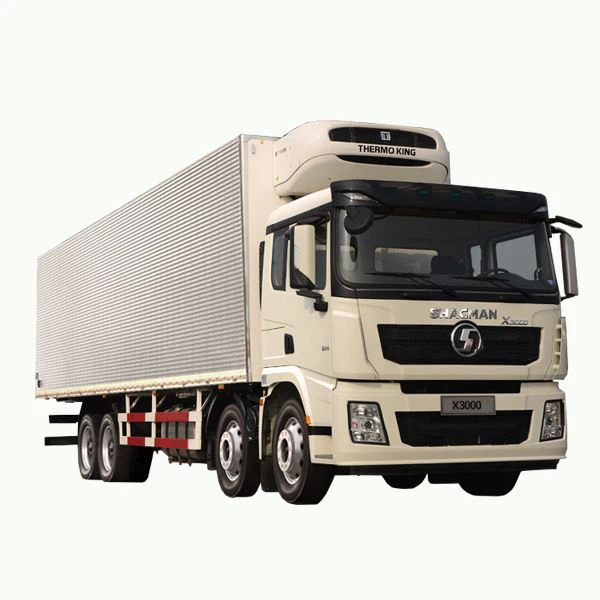

Product Parameter of Shacman 8x4 Refrigerated Truck

The Shacman 8×4 refrigerated truck features excellent ventilation, with unobstructed airflow on all six sides of the cargo. Good air circulation ensures that cargo is transported under appropriate temperature conditions. The cold (or hot) air blown by the refrigeration unit enters the cargo compartment, creating a barrier between the cargo and external temperatures, thereby protecting the cargo. The cargo compartment of a refrigerated truck differs from that of a standard box truck. The 8×4 refrigerated truck offers superior sealing performance and thermal insulation.
The design of refrigerated trucks focuses primarily on airtightness and thermal insulation. Generally, refrigerated trucks feature a three-layer structure, with both inner and outer panels made of composite materials. The material of the inner panel varies depending on the cargo being transported; the most expensive option is stainless steel. The middle layer consists of insulation material, primarily polyurethane foam. On all four sides, high-strength adhesive bonds fiberglass-reinforced plastic and polyurethane foam together to form a sealed panel.

Platform	X3000
Drive type	8X4
Vehicle Weight	GVW：10 tons
	GCW：60 tons
Frame	850×300(8+5)mm
Wheelbase	1800+4575+1400mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 7.5 ton
	Rear axle: MAN 13 ton single or double reduction
	Gear ratio: 3.7 –5.262
Suspension	Multi leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 – 700 liter aluminum or steel tank
Cab	Standard
	Lengthend flat roof

Product Feature And Application of Shacman Refrigerated Truck

Easy to operate and maintain, with exceptional reliability and outstanding load-bearing capacity, it can be configured to transport a wide variety of cargo, meeting the diverse needs of all users.

Shipping Methods of Shacman Refrigerated Truck

By Ro-Ro

Shipping Shacman refrigerated trucks by Roll-on/Roll-off (Ro-Ro) is a popular method due to its convenience and efficiency. The refrigerated trucks are driven onto a specialized vessel at the port of departure, and then driven off at the destination port. This method ensures a smooth and secure transport, as the trucks are securely held in place during the entire journey. Ro-Ro shipping is suitable for both short and long-haul distances, offering a reliable and time-efficient solution for transporting Shacman refrigerated trucks.

By Frame & Container

For customers who require added protection and flexibility, shipping Shacman refrigerated trucks by frame and container is an excellent choice. In this method, the refrigerated trucks are securely loaded onto flat-rack frames, which are then placed inside a container. This ensures that the trucks are well-protected from external factors such as weather conditions and road debris during transportation. Moreover, using containers allows for easy handling and efficient stacking of multiple trucks, optimizing the use of space and reducing transportation costs.

By Bulk

When shipping a large number of Shacman refrigerated trucks, the bulk shipping method becomes a viable option. In this method, the trucks are loaded directly onto specialized bulk carriers without the need for individual packaging or containers. Bulk shipping is cost-effective and efficient, as it allows for the transportation of a significant number of trucks in a single shipment. However, it is important to ensure proper securing and protection of the trucks to prevent damage during loading, unloading, and transit.

Conclusion

In conclusion, Shacman refrigerated trucks can be shipped using various methods, each with its own advantages. Whether it is through the convenient Ro-Ro method, the protected frame and container option, or the efficient bulk shipping method, customers can choose the shipping method that best suits their needs and requirements.

Success Stories of Shacman Refrigerated Truck

Ghana:
In Ghana, Shacman refrigerated trucks have become an integral part of the cold chain logistics industry. These trucks have played a crucial role in the transportation of perishable goods, such as fruits, vegetables, and dairy products, from rural areas to urban markets. The robust design and excellent cooling capabilities of Shacman refrigerated trucks have ensured that the goods are delivered fresh and in optimal condition, thereby reducing food wastage and increasing profitability for farmers and retailers alike.
Mozambique:
Shacman refrigerated trucks have made a significant impact on the agricultural sector in Mozambique. These trucks have enabled farmers to transport their produce to different regions of the country efficiently and safely. By maintaining a consistent temperature inside the truck, Shacman refrigerated trucks have helped to preserve the quality and freshness of perishable goods, including seafood, meat, and agricultural products. This has opened up new market opportunities for farmers and contributed to the overall growth of the agricultural industry in Mozambique.
Zambia:
In Zambia, Shacman refrigerated trucks have revolutionized the transportation of vaccines and medicines across the country. With their advanced refrigeration systems and reliable performance, these trucks have ensured that temperature-sensitive medical supplies are kept at the required temperature throughout the journey. As a result, healthcare providers have been able to reach remote and underserved areas with life-saving vaccines and medicines, significantly improving the healthcare delivery system in Zambia.
Philippines:
Shacman refrigerated trucks have played a pivotal role in the seafood industry of the Philippines. Due to the country’s vast coastline and rich marine resources, the demand for reliable and efficient transportation of seafood is high. Shacman refrigerated trucks have met this demand by providing a reliable cold chain solution for transporting seafood from coastal areas to processing plants and markets. The precise temperature control and durable construction of these trucks have helped to preserve the freshness and quality of seafood, leading to increased exports and economic growth in the Philippines.
Pakistan:
Shacman refrigerated trucks have brought positive changes to the dairy industry in Pakistan. With their efficient cooling systems and spacious interiors, these trucks have facilitated the collection and transport of fresh milk from rural areas to processing facilities. By maintaining the required temperature during transit, Shacman refrigerated trucks have helped to preserve the nutritional value and quality of milk, ensuring that consumers have access to safe and fresh dairy products. This has enhanced the livelihoods of dairy farmers and contributed to the overall development of the dairy industry in Pakistan.
