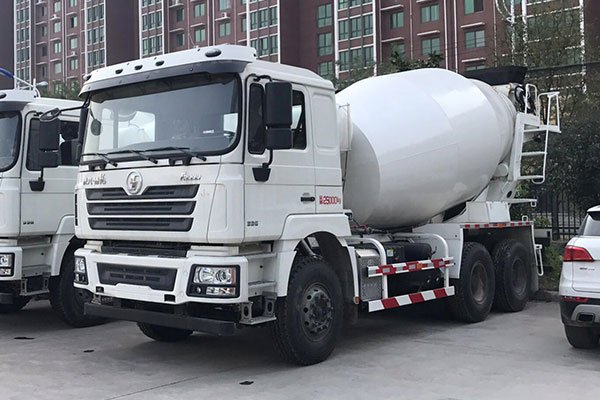

Shacman Mixer Truck

What is Shacman Mixer Truck?

The Shacman Mixer Truck is a cornerstone of heavy-duty concrete transportation, engineered to deliver exceptional reliability, durability, and efficiency on demanding construction sites worldwide. As a flagship product of Shaanxi Automobile Group, the Shacman mixer series combines robust military-grade chassis engineering with advanced European technology to ensure stable performance under the most rigorous operating conditions.
The Shacman concrete mixer truck series comprises three core models: the F3000, which emphasizes economy, durability, and heavy-duty reliability; the X3000, which balances high-efficiency transport with driving comfort; and the H3000, a high-end, intelligent model equipped with a high-horsepower engine and lightweight technology to optimize both fuel efficiency and operational uptime. Together, these three models provide a comprehensive concrete transport solution that meets all requirements across the full spectrum of engineering and infrastructure projects.

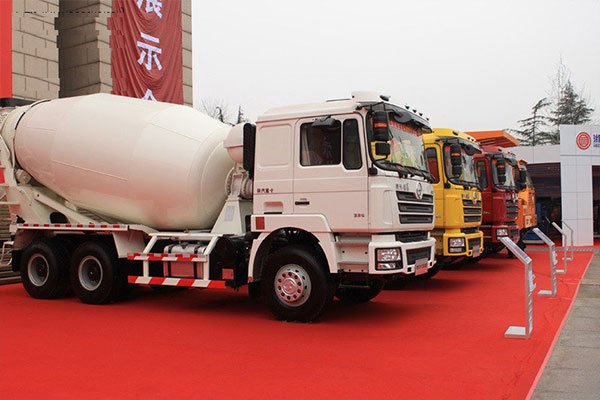

Shacman F3000 Series Mixer Truck: Heavy Duty Solutions For Concrete Transport

The Shacman F3000 concrete mixer truck is a specialized engineering vehicle designed for concrete mixing and transport, capable of delivering fresh concrete from mixing plants to construction sites. Built on Shaanxi Automobile’s rugged and durable F3000 chassis, it features a rotating drum, a hydraulic mixing system, and a high-powered engine, making it an ideal choice for infrastructure projects, high-rise construction, and road building in markets such as Southeast Asia, Africa, and the Middle East.

Shacman F3000 concrete mixer trucks can be classified by drive type as follows: Shacman F3000 6×4 Concrete Mixer Truck,Shacman F3000 8×4 Concrete Mixer Truck.

SHACMAN F3000 CEMENT MIXER TRUCK
Max. running speed(km/h)		85
Drive System		6× 4
Kerb weight(kg)		14500
Total mass(kg)		25000
Overall dimensions (mm)	Length	10450
	Width	2500
	Height	3950
	Capability (CBM)	14
Tank material		Q345/520JJ
Wheel base (mm)		1800+2975+1400
Engine		WP10.380E22+PTO, Weichai engine Euro 2
Rated output horsepower		380 hp
Cab		F3000 lengthened Cabin with A/C
Gearbox		RTD11509C
Reducer		TOPUIONP68 Italy
Oil Pump		EATON
Motor		EATON
Feeding Speed (m3/min)		≥3
Discharge Rate (m3/min)		≥2.5
Discharge Residual Rate (%)		≤1
Water Supply System		Air pressure water supply
Water Tank Volume (L)		450
Axle		16 Ton double reduction-gear axle, ratio 5.92
Tyre(RADIAL TYRE)		12.00R20

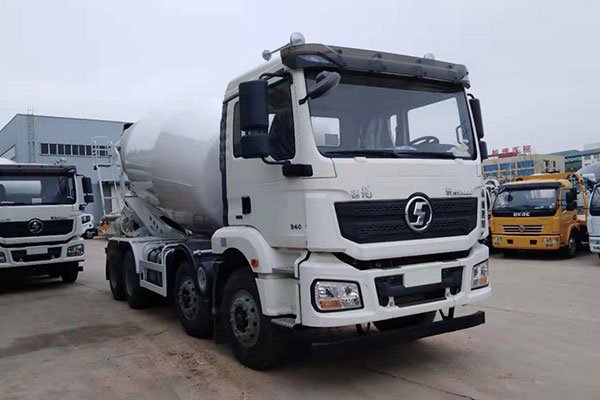

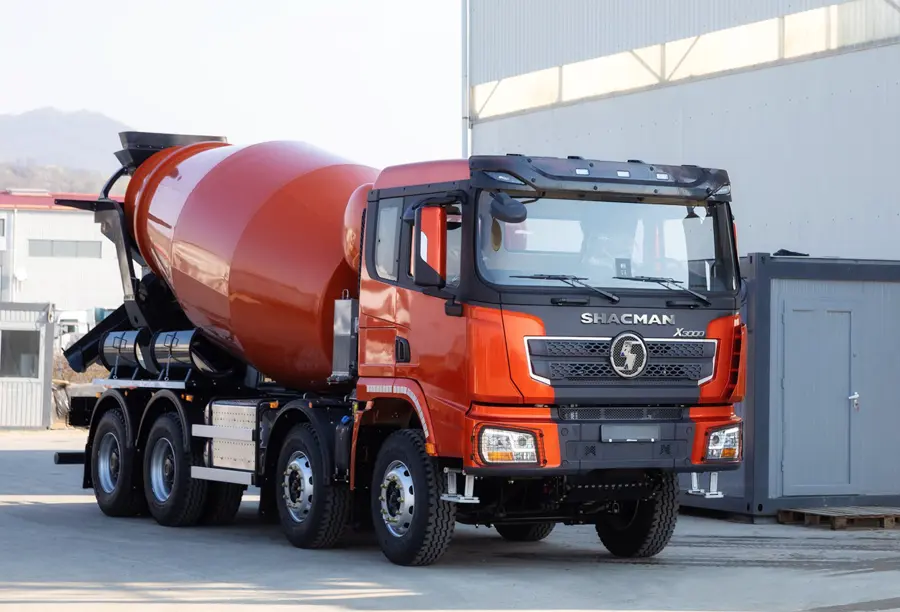

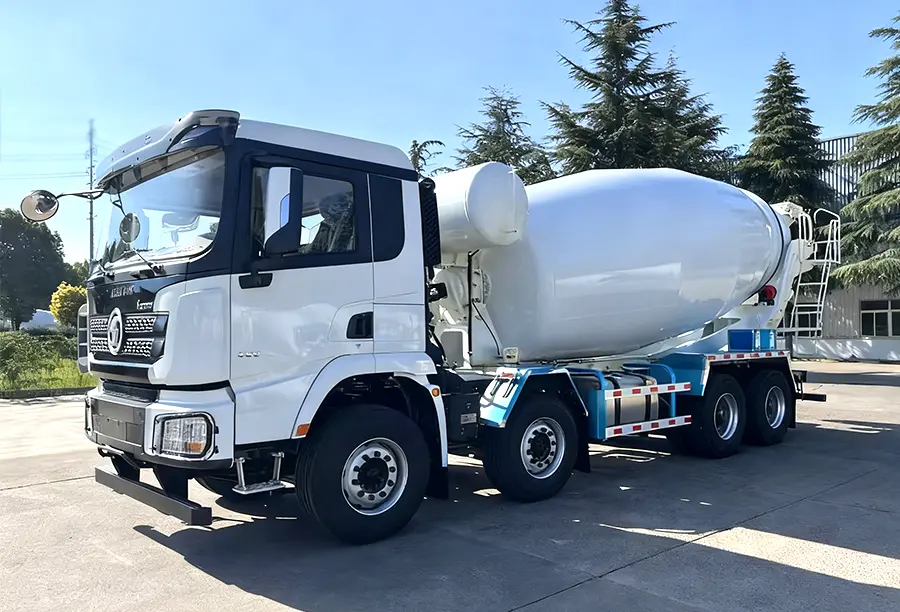

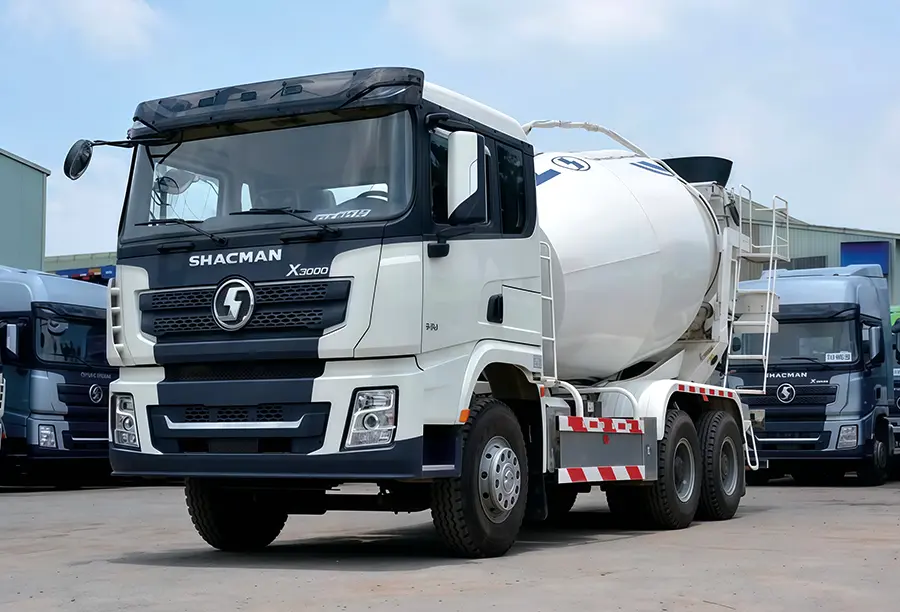

Shacman X3000 Series Mixer Truck: A Heavy-Duty Solution for Large-Scale Concrete Transport

The Shacan X3000 concrete mixer truck is a high-performance heavy-duty concrete transport vehicle built on Shaanxi Automobile’s premium X3000 chassis and designed specifically for demanding construction projects, mining sites, and long-distance concrete transport. Combining a robust payload capacity, advanced mixing technology, and exceptional off-road performance, it targets markets with significant infrastructure development needs, including China, the Middle East, and Latin America.

Shacman X3000 concrete mixer trucks can be classified by drive type as follows: Shacman X3000 6×4 Concrete Mixer Truck,Shacman X3000 8×4 Concrete Mixer Truck.

SHACMAN X3000 CEMENT MIXER TRUCK
Drive			6×4	8×4
GCW(t)			35	50
Main configuration	Cab	Type	Medium-length flat roof
		Suspension	Air suspension/Hydraulic suspension
		Seat	Air/Hydraulic main seat
		Air conditioner	Electric automatic constant temperature AC
	Engine	Model	WP10/WP12/M10/ISM11
		Emmission standard	EURO II-EURO V
		Rated power(hp)	340/385/400	400/430/460
	Transmission	Model	FAST MT(10/12/16)
	Axle	Front axle	9.5t
		Rear axle	16t
		Ratio	5.262
	Chassis	Dimension (mm)	850×300(8+7)
		Wheel base (mm)	3775+1400	1800+2975+1400
		Wheel overhang(mm)	1500	1700
		Fuel tank	300L aluminum alloy
		Tire	12.00R20
		Suspension	Front and rear multi-leaf springs
	Mixer (m³)		10	12
Applicable condition	Applicable road condition		Highways,paved roads	Highways,paved roads
	Economic/Max speed (km/h)		40-60/70	45-60/85
Basic equipment			Electric window lifter, metal bumper, daytime running lights, hingedboarding pedal, spare tire carrier, electronically controlled engine

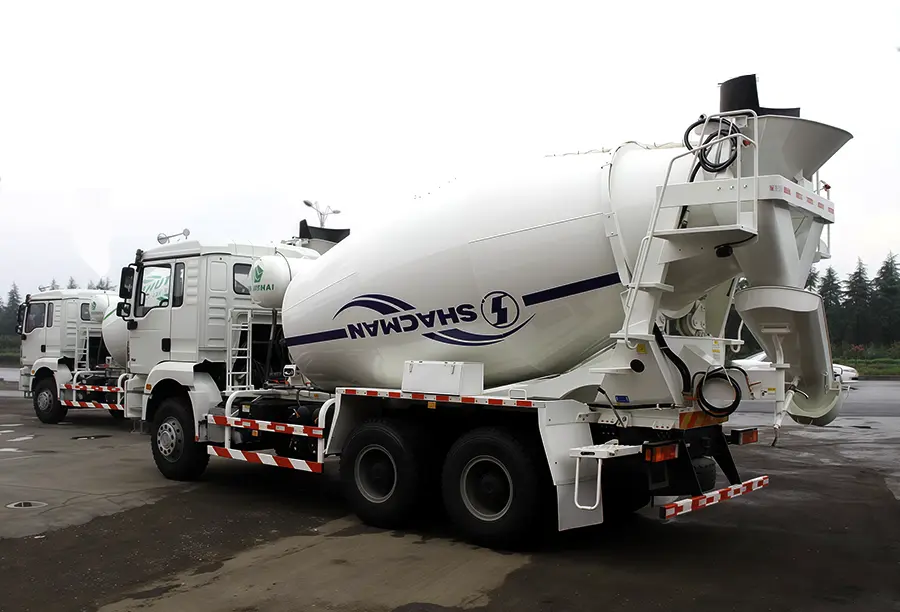

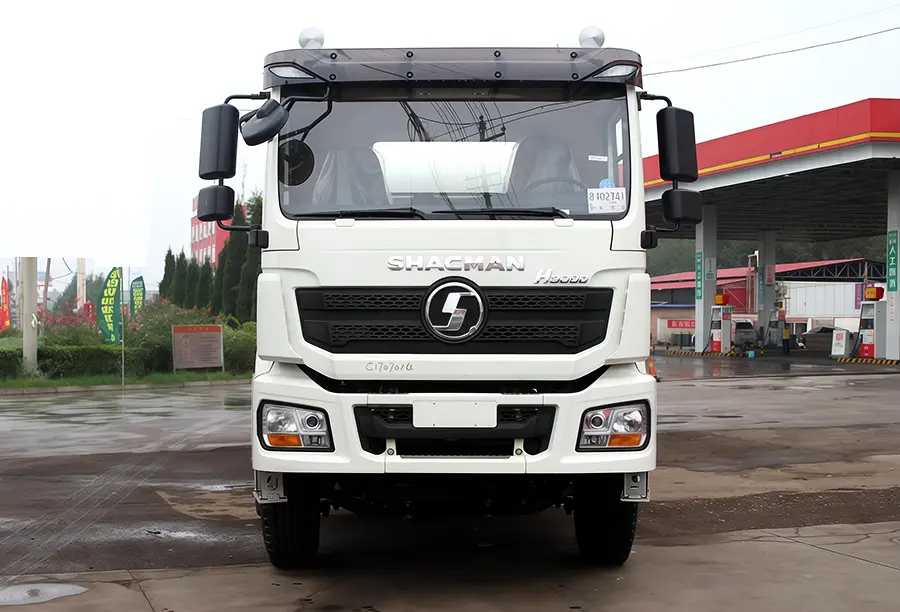

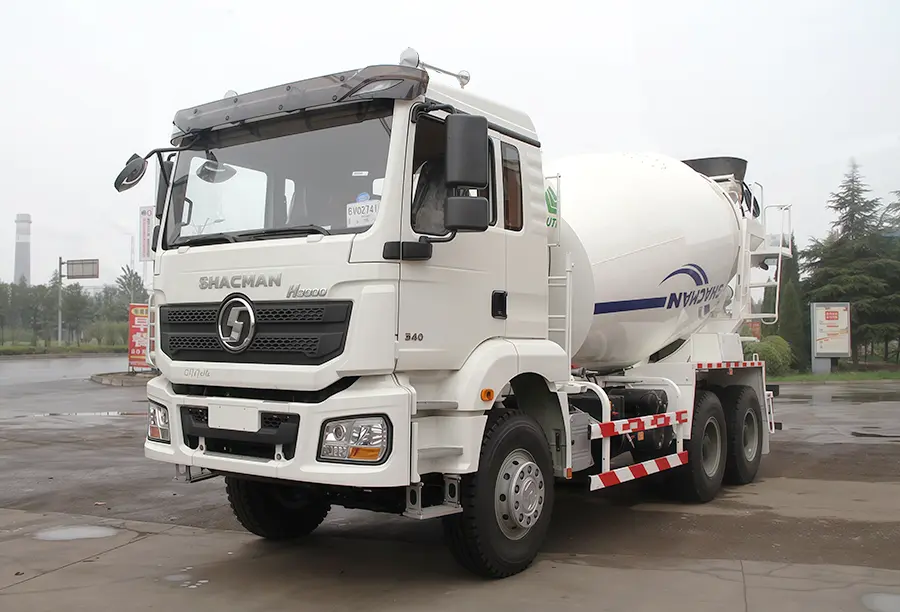

Shacman H3000 Series Mixer Truck: Efficient concrete transport solutions for the construction industry

The Shacman H3000 concrete mixer truck is a medium-to-heavy-duty concrete transport vehicle built on Shaanxi Automobile’s reliable H3000 chassis and designed specifically for urban construction sites, highway projects, and infrastructure development. It balances payload capacity, maneuverability, and durability, making it ideal for emerging markets such as Southeast Asia, Africa, and the Middle East.

SHACMAN H3000 CEMENT MIXER TRUCK
Drive type	6×4
Vehicle model	SX5255GJBHR384
Vehicle Weight	GVW：15 tons
	GCW：35 tons
Frame	850×300(8+7)
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 300 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
Transmission	RTD11509C
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	315 / 80R22.5
	12R22.5
	12.00R20
Fuel tank	400 – 700 liter aluminum or steel tank
Dimensions(LxWxH)	8575x2495x3774
Volume(m³)	3775+1400
Wheelbase	9
Approach/Departure angle(°)	20/18
Max.gradeability(%)	34
Cab	Type	MAN H3000, lengthened flat roof
	Equipments	Rear window Manual sunroof Hydraulic driver seat with seatbelts Hydraulic suspension of cab Automated air conditioning Electric window Radio with MP3 piayer
	Optional	Air cushioned drivers seate Full vehicle WABCO valve Central locking

Product Details of Shacman Mixer Truck

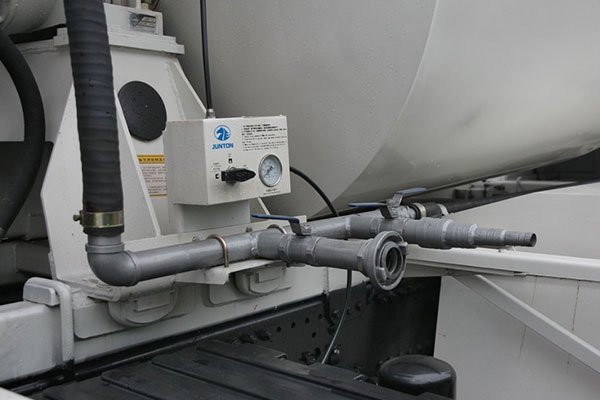

Air Control:
The Shacman Mixer Truck is equipped with an advanced air control system that ensures smooth and precise operation. This system allows the driver to control various functions of the mixer, such as adjusting the speed, controlling the drum rotation, and activating the water spray system. The air control system not only enhances the efficiency of the mixing process but also provides convenience and ease of operation for the driver.

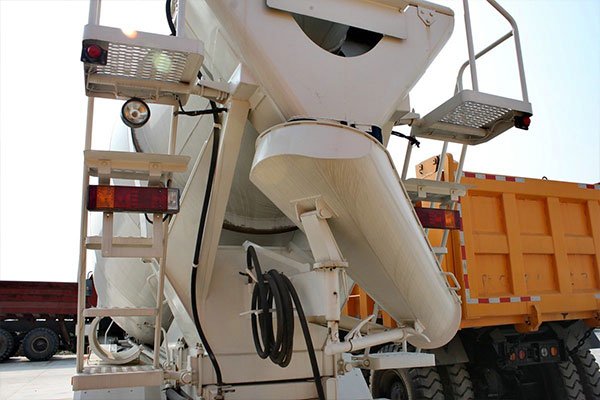

Discharge Hole:
The discharge hole of the Shacman Mixer Truck is strategically positioned for efficient and controlled discharge of concrete. It is designed to minimize the loss of concrete during the discharge process, ensuring the maximum utilization of the mixed concrete. The size and shape of the discharge hole are optimized to allow for smooth and consistent pouring of concrete at the desired location, reducing waste and improving productivity on construction sites.

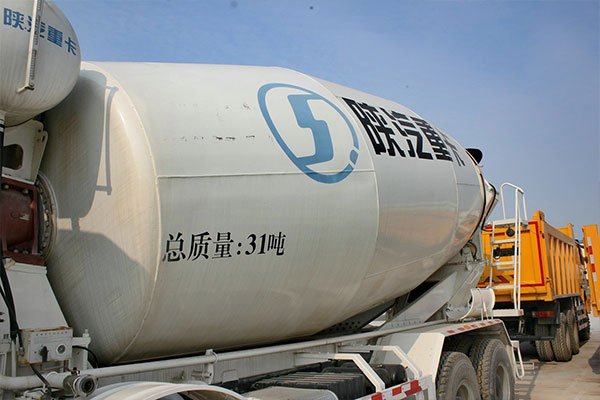

Mixer Body:
The mixer body of the Shacman Mixer Truck is robustly constructed to withstand the demands of heavy-duty concrete mixing and transportation. It is made of high-quality materials that offer durability and resistance to wear and tear. The mixer body is engineered to provide optimal mixing performance, ensuring thorough blending of concrete ingredients for consistent and high-quality results. With its sturdy construction and reliable design, the mixer body of this truck guarantees long-lasting performance in various construction projects.

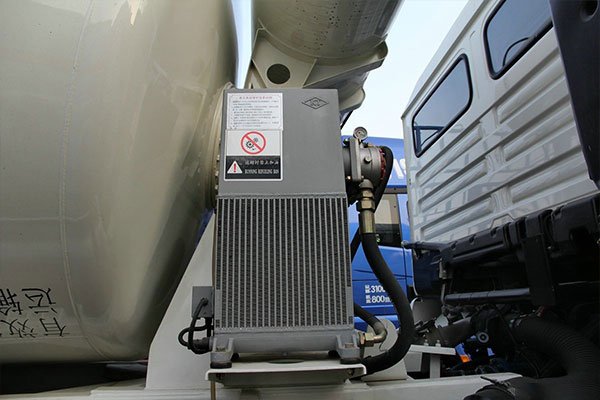

Radiator:
The radiator in the Shacman Mixer Truck plays a crucial role in maintaining the optimal operating temperature of the engine. It efficiently dissipates heat generated during the operation, preventing overheating and ensuring the engine’s performance and durability. The radiator is designed to provide effective cooling even under demanding working conditions. With its excellent heat dissipation capabilities, the radiator contributes to the efficient and reliable performance of the mixer truck, reducing the risk of engine damage and extending its lifespan.

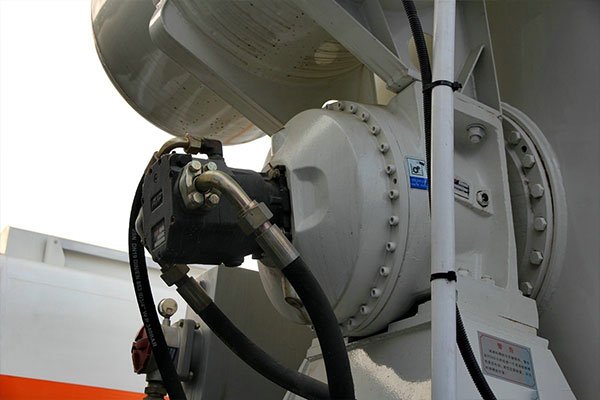

Reducer:
The Shacman Mixer Truck is equipped with a high-quality reducer that enhances the power transmission efficiency in the mixing system. The reducer is designed to handle heavy loads and provide the necessary torque to rotate the mixing drum effectively. It ensures smooth and consistent rotation of the drum, promoting thorough mixing of concrete ingredients. The reducer’s robust construction and reliable performance contribute to the overall efficiency and productivity of the mixer truck.
Water Tank:
The Shacman Mixer Truck features a dedicated water tank designed to supply water for the mixing process. The water tank has a substantial capacity, allowing for continuous and uninterrupted water supply during concrete mixing. It is equipped with a pump system that efficiently delivers water to the mixing drum, ensuring optimal moisture content in the concrete mixture. The water tank is designed for easy filling and cleaning, providing convenience and reliability in the mixing operation.

Key Advantages of Shacman Mixer Truck

Advantages of the Shacman F3000 Concrete Mixer Truck

Key Advantages of the Shacman X3000 Concrete Mixer Truck

Key Advantages of the Shacman H3000 Concrete Mixer Truck

Advantages of the Shacman F3000 Concrete Mixer Truck

Key Advantages of the Shacman X3000 Concrete Mixer Truck

Key Advantages of the Shacman H3000 Concrete Mixer Truck

Application of Shacman Mixer Truck

Urban Development: Transporting ready-mix concrete for high-rise buildings, bridges, and residential projects.
Highways and Infrastructure: Supplying concrete for road pavements, tunnels, and airport runways.
Rural Development: Supporting small- and medium-sized construction projects in remote areas where stationary concrete mixers are unavailable.
Construction Sites: Providing ready-mix concrete for foundations, columns, and floor slabs in residential or commercial projects.
Large-Scale Construction Projects: Projects such as high-rise buildings, dams, and bridges requiring more than 10,000 cubic meters of concrete.
Mining Areas and Remote Regions: Transporting concrete to off-road mining sites or infrastructure projects in mountainous areas.
Long-Distance Transport: Providing intercity concrete supply for highway networks and industrial parks.

Shipping Methods of Shacman Mixer Truck

By Ro-Ro

One of the common shipping methods for Shacman mixer trucks is through Roll-on/Roll-off (Ro-Ro) vessels. Ro-Ro shipping involves driving the trucks onto a specialized ship using ramps. This method is suitable for transporting individual mixer trucks or a small number of vehicles at a time. Ro-Ro vessels are designed to accommodate vehicles of different sizes and weights. They provide a secure and efficient way to transport Shacman mixer trucks, ensuring minimal handling and reducing the risk of damage during transit.

By Frame & Container

Another shipping method for Shacman mixer trucks is by using frame and container. In this method, the mixer trucks are securely loaded onto flatbed frames or placed inside containers for transportation. Loading the trucks onto flatbed frames allows for easy handling and securing of the vehicles using straps or chains. Additionally, trucks can be loaded into containers, either by driving them inside or using cranes for larger vehicles. This method provides protection from external elements, ensuring the trucks reach their destination in optimal condition. It is ideal for shipping multiple mixer trucks in a single shipment, maximizing efficiency and reducing handling costs.

By Bulk

For larger-scale transportation of Shacman mixer trucks, the bulk shipping method can be utilized. This method involves loading the trucks onto a specialized bulk carrier vessel. The trucks are driven onto the vessel’s deck or loaded using cranes. The bulk shipping method is suitable for shipping a large number of vehicles in a single shipment, making it a cost-effective option for bulk orders or for transporting vehicles over long distances. However, it is important to ensure proper securing and stowage of the trucks to prevent any damage or shifting during transit.

Conclusion

In summary, Shacman mixer trucks can be shipped using various methods depending on the requirements and scale of transportation. Roll-on/Roll-off vessels offer a convenient and secure option for individual or small batch shipments, while frame and container shipping allows for efficient handling and protection when shipping multiple trucks. For larger orders or long-distance transportation, bulk shipping provides a cost-effective solution. By considering these different shipping methods, Shacman mixer trucks can be transported safely and efficiently to their intended destinations.

Success Stories of Shacman Mixer Truck

Ghana:
Shacman mixer trucks have achieved great success in Ghana’s construction industry. With their robust design and reliable performance, these trucks have played a crucial role in the completion of numerous infrastructure projects, such as road construction, building projects, and concrete production. The advanced features of Shacman mixer trucks, including their powerful engines and efficient mixing systems, have enabled contractors in Ghana to enhance productivity, reduce project timelines, and deliver high-quality results. The versatility and durability of Shacman mixer trucks have made them a preferred choice among construction companies in Ghana.
Mozambique:
Shacman mixer trucks have made significant contributions to the construction sector in Mozambique. These trucks have been instrumental in the development of the country’s infrastructure, including the construction of highways, bridges, and commercial buildings. The superior performance of Shacman mixer trucks, combined with their excellent maneuverability and stability, has allowed contractors in Mozambique to overcome various challenges in remote or rugged terrains. The reliability and longevity of Shacman mixer trucks have helped contractors in Mozambique execute their projects efficiently, leading to successful outcomes and long-term growth.
Zambia:
Shacman mixer trucks have revolutionized the construction industry in Zambia. These trucks have proven their worth in a wide range of construction projects, such as the construction of residential buildings, commercial complexes, and irrigation systems. The exceptional mixing capabilities of Shacman mixer trucks, coupled with their fuel efficiency and low maintenance requirements, have boosted productivity and profitability for contractors in Zambia. The ability of Shacman mixer trucks to withstand harsh working conditions, including extreme temperatures and rough terrains, has made them a reliable and popular choice among construction professionals throughout Zambia.
Philippines:
In the Philippines, Shacman mixer trucks have gained a favorable reputation for their exceptional performance and versatility. These trucks have been instrumental in the completion of various infrastructure projects, including the construction of roads, bridges, and public utility facilities. The advanced features of Shacman mixer trucks, such as their precise control systems and high-capacity mixing drums, have enabled contractors in the Philippines to achieve efficient concrete production and consistent quality outputs. The durability and reliability of Shacman mixer trucks have helped contractors meet project deadlines and deliver superior results, contributing to the growth and development of the construction industry in the Philippines.
Pakistan:
Shacman mixer trucks have left an indelible mark on the construction industry in Pakistan. These trucks have played a vital role in the development of essential infrastructure, such as highways, airports, and industrial parks. With their powerful engines and robust chassis, Shacman mixer trucks have demonstrated excellent performance in demanding construction applications. They have proven to be reliable, efficient, and cost-effective solutions for concrete production and delivery. The success stories of Shacman mixer trucks in Pakistan highlight their ability to meet the diverse needs of the construction industry, leading to improved project outcomes and customer satisfaction.
