Shacman F2000&F3000 Balanced SuspensionⅠ

  • Discover the robust efficiency and structural reliability of the F2000 & F3000 Balanced SuspensionⅠ, an essential component engineered for superior stability and handling in heavy-duty applications. This stabilizer bar is meticulously crafted to enhance vehicle dynamics, ensuring optimal balance and control across diverse terrain and operational conditions.
Balanced SuspensionⅠ
Download Catalog
Get Quotation
Whatsapp

Product Parameters of Shacman F2000&F3000 Balanced SuspensionⅠ

  • Engineering Excellence and Components Overview
  • Bolt: Integral to the assembly, bolts secure components in place, ensuring steadfast performance under rigorous conditions.
  • Hex Bolt: Known for its strength and durability, the hex bolt reinforces structural integrity, critical for withstanding mechanical stress.
  • Balancing Shaft Assembly: Central to the stabilizer system, this assembly minimizes vibrations and enhances stability, promoting smoother operation.
  • Seal-Ring: Seals are meticulously engineered to prevent fluid leakage and maintain optimal performance over extended use.
  • Ring: A pivotal component for load distribution, optimizing weight balance and ensuring uniform stress distribution across the stabilizer assembly.
  • Seal-Ring (Second Mention): Redundancy in seal rings ensures double protection against leaks, crucial for long-term operational reliability.
  • Bearing Seal Cover: Shields bearings from contaminants, extending their lifespan and maintaining operational efficiency.
  • Bearing: Precision-engineered bearings facilitate smooth articulation of the stabilizer bar, crucial for responsive handling and maneuverability.
  • Leaf Spring Rear: Provides supplemental suspension support, enhancing load-bearing capacity and ride comfort in challenging environments.
  • Axle Housing: Forms the backbone of the axle assembly, housing critical components and ensuring structural rigidity under load.
  • Gasket: Seals critical joints, preventing fluid seepage and maintaining optimal lubrication within the assembly.
  • Self-Lock Nut: Enhances safety and reliability by securing bolts and preventing loosening due to vibrations or operational stresses.
  • Seal-Ring (Third Mention): Ensures a tight seal, safeguarding internal components from dust, moisture, and contaminants.
  • Bushing: Reduces friction and wear between moving parts, promoting longevity and smooth operation of the stabilizer assembly.
  • Adjust the Gasket: Allows for precise alignment and adjustment, optimizing the stabilizer bar’s performance to specific vehicle requirements.
  • Plate: Reinforces structural integrity and load distribution, essential for withstanding heavy-duty operational demands.
  • Stop Washer: Prevents over-compression of components, maintaining optimal tension and operational reliability.
  • Hex Bolt (Second Mention): Secures covers and housings, ensuring robust assembly integrity and resistance to external forces.
  • Lift Cover: Facilitates access for maintenance and inspection, enhancing serviceability and uptime efficiency.
  • Right Cover: Completes the housing assembly, safeguarding internal components from environmental factors and mechanical stress.
  • Superior Performance and Operational Benefits
  • The F2000 & F3000 Balanced SuspensionⅠ integrates cutting-edge engineering with premium materials, delivering unparalleled performance and reliability in heavy-duty operations. Designed for seamless compatibility and ease of installation, it empowers vehicles with enhanced stability, reduced body roll, and superior handling characteristics.
  • Application and Market Accessibility
  • Ideal for agricultural, construction, and industrial sectors, the stabilizer bar ensures consistent performance across diverse applications. Available through authorized distributors and OEM channels, customers benefit from comprehensive support and access to genuine parts, ensuring compatibility and operational reliability.

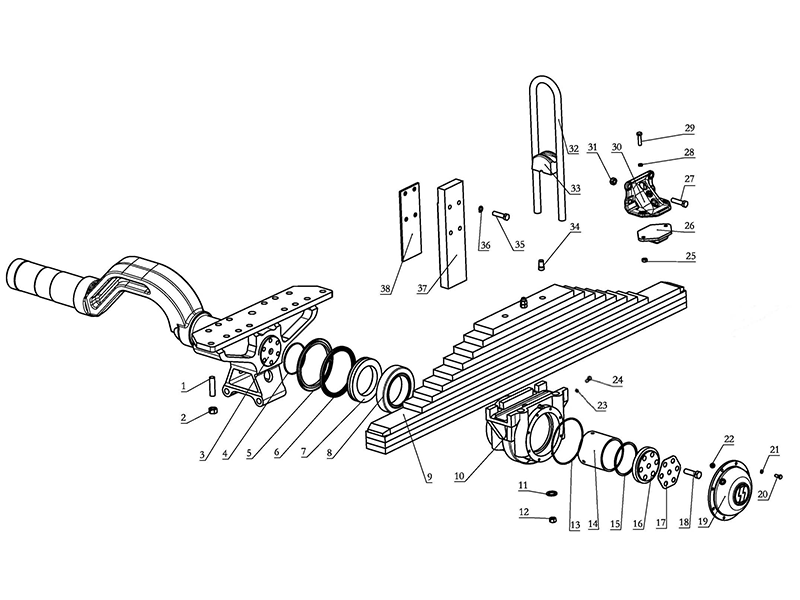

NO Part.No DesignationNameQuantityRemark
1199014520227Double Head BoltBolt28
2190003871353Type 1 hexagon nuts-fine thread-A-nut GB6171-86-M18*1.5-10-ZnDHex bolt28
3DZ91319523215Balance shaft assemblyBalancing shaft assy1
4161400130062Seal ringSeal-ring2
5DZ91259520222Type ringRing2
6AZ9114520223Shaft sealing ringSeal-ring2
7199114520136Bearing oil seal capsBearing seal cover2
8199114520042Spherical BearingBearing4
9DZ9114520240Rear plate spring assemblyLeaf spring rear2
10DZ91259525035Balance shaft housingAxle housing2
11188000340022WashersGasket16
12190003888749Self-locking thin nutsSelf-locl nut16
13DZ91259520036O-ringSeal-ring2
14199014520191Spacer BushingBushing2
15199014520192Adjustment shimsAbjust the gasket2on demand
199014520193Adjustment ShimsAbjust the gasket2on demand
199014520194Adjustment GasketAbjust the gasket2on demand
199014520303Adjustment GasketAbjust the gasket2on demand
199014520306Adjusting ShimsAbjust the gasket2on demand
199114520059Adjustment shimsAbjust the gasket2on demand
AZ9114520188Bearing pressure blockPalte2on demand
16DZ91259520265Stop washersStop washer2
17Q151B1655TF2Hexagon head boltsHex bolt2
18DZ91259520211Shell cover (left)Lift cover12
19DZ91259520212Shell cover (right)Right cover1
Q150B0820Hexagon head boltsHex bolt1
2016
21Q40308Spring washersSpring washer16
22190003962021Taper Thread Hexagonal PlugsHexagonal screw2
23Q72308Sealing washersSeal-ring2
24Q150B0810Hexagon head boltsHex bolt2
25Q340B10Type 1 hexagon nuts1 type hex nut8
26SZ952000730Buffer block assemblyCushion4
27Q151B1455TF2Hexagon head boltsHex bolt16
28Q40310Spring washersSeal-ring8
29Q150B1040Hexagon head boltsHex bolt8
30DZ9114521011Buffer block bracketCushion holder4
31190003888458Self-Locking NutsLocking nut16
32DZ9118520124Rear Spring Jockey BoltsSpring clip8
33199000520021Riding Bolt HolderSpring clip seat4
34199000520006Guide PinsPlate4
35Q40314Spring washersSpring washer16
36Q151B1455Hexagon head bolts-fine threadHex bolt16
37DZ9114520259Guide PlatePlate4
38DZ9114520248Balance PlatePlate4on demand
DZ9114520249Balance PlatePlate4on demand
DZ9114520250Balance PlatePlate4on demand

  • Conclusion
  • In conclusion, the F2000 & F3000 Balanced SuspensionⅠ stands as a testament to innovation and reliability in heavy-duty vehicle components. Engineered to exceed industry standards and customer expectations, it embodies precision, durability, and performance, making it the preferred choice for demanding environments worldwide.
  • By choosing the F2000 & F3000 Front Stabilizer Bar Tractor, operators and fleet managers invest in long-term reliability and operational efficiency, backed by a legacy of engineering excellence and uncompromising quality.
