Steering Wheel Lock Wiring Harness
Жгут Проводов Замка Рулевого Колеса
Arnés de Cableado Candado Volante
This OEM steering wheel lock wiring harness (part DZ97189460202) is precision-engineered for the Shacman X5000. It provides electrical connections between the steering lock, ignition switch, and vehicle security systems.
Manufactured with high-quality copper conductors and durable insulation, this wiring harness withstands constant flexing, temperature changes, and electrical loads during heavy-duty commercial vehicle operation.
Replacing damaged or worn wiring harnesses with this genuine component restores proper electrical function for steering lock and security systems. The OEM number guarantees exact fitment and connector compatibility.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ97189460202 |
| Product Name | Steering Wheel Lock Wiring Harness |
| Brand / Model | Shacman X5000 |
| Material | Copper Conductors / PVC Insulation |
| Manufacturing Process | Precision Crimping with Molded Connectors |
| Function | Electrical Connection for Steering Lock and Security Systems |
| Connector Types | OEM-Specific Molded Plugs |
| Wire Gauge | OEM Standard (0.5mm² – 1.5mm²) |
| Packaging | Protective Wrapping with OEM Labeling |
This steering wheel lock wiring harness is a critical electrical component that connects the steering lock mechanism to the vehicle’s ignition system and security module.
The harness carries signals for key insertion detection, lock position sensing, and immobilizer communication, enabling secure vehicle start authorization.
By providing reliable electrical connections, this harness ensures that the steering lock and security systems function correctly, preventing unauthorized vehicle operation.
This wiring harness is manufactured with high-quality copper conductors and durable PVC or cross-linked polyethylene insulation, providing excellent electrical conductivity and resistance to abrasion.
Precision-crimped terminals and molded connectors ensure secure connections that resist vibration and corrosion, maintaining signal integrity over the vehicle’s service life.
This harness installs within the steering column area, connecting the steering lock mechanism to the main vehicle wiring harness at designated connector points.
Proper routing and securing of the harness are essential to prevent chafing, pinching, or interference with moving steering column components.
Each wiring harness undergoes continuity testing, insulation resistance verification, and connector fitment checks to ensure reliable electrical performance.
Terminal pull-force testing and dimensional inspection are performed on every production batch to comply with Shacman engineering specifications.
Visible damage to insulation, such as cracking, melting, or chafing, indicates wear that can lead to short circuits or open circuits, requiring replacement.
Intermittent or complete loss of steering lock electrical function suggests internal wiring failure or connector damage, necessitating harness replacement.
Corrosion within connectors or damaged terminals also warrants replacement of the wiring harness to ensure reliable electrical connections.
Aftermarket wiring harnesses with incorrect connector types or substandard conductors can cause electrical failures and security system malfunctions. We supply only authentic components built to exact OEM specifications.
Each harness is individually packaged with protective wrapping. The part number DZ97189460202 is clearly marked for immediate identification and verification.
Our international logistics network ensures prompt dispatch to dealerships and fleet maintenance facilities worldwide, with full certification provided for every shipment.

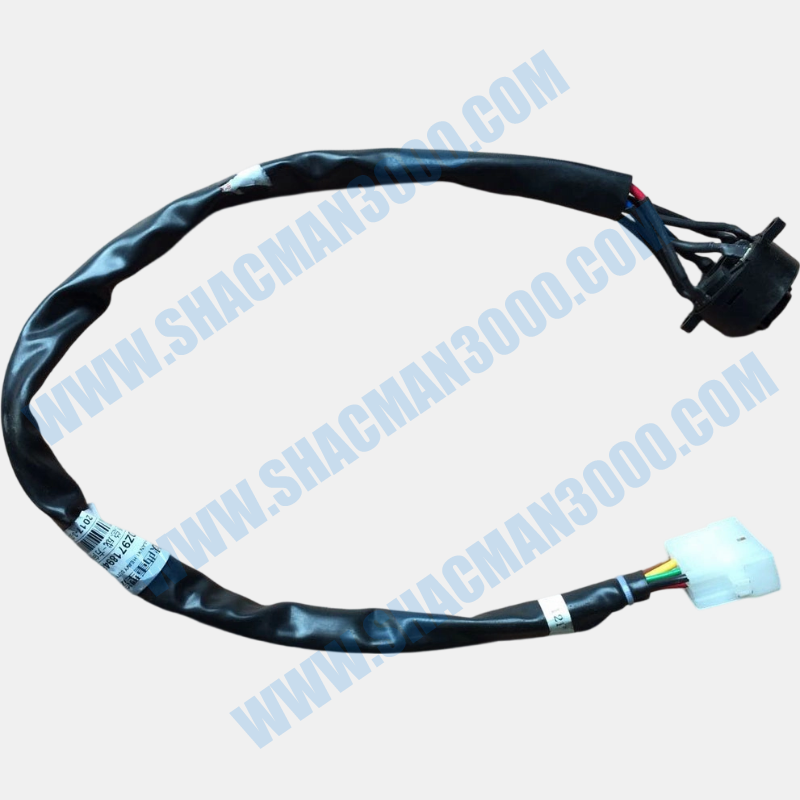

Complete steering wheel lock wiring harness with molded connectors and terminated leads. Ready for installation with plug-and-play connector attachment.
Expert guidance on wiring harness installation and electrical testing is available. We help ensure proper electrical function for your Shacman X5000.
For current stock availability on this genuine steering wheel lock wiring harness, please use the contact buttons above.
