Welcome to the pinnacle of heavy-duty hauling. The Shacman 10 wheeler dump truck represents a brilliant fusion of raw power, intelligent engineering, and unwavering reliability. Designed to conquer the most challenging terrains, from deep mines to vast construction sites, this truck is your trusted partner for maximizing productivity and profit.
Engineered with a robust 6×4 drive configuration, it delivers exceptional traction and stability under immense loads, typically ranging from 30 to 40 tons. Experience the perfect balance of formidable performance and operational economy that has made Shacman a global leader in commercial vehicles.
Every component, from the high-torque engine to the reinforced chassis, is built for endurance, ensuring your projects stay on schedule and within budget.
| Parameter | Specification |
|---|---|
| Drive Configuration | 6×4 (10 Wheels) |
| Engine Options | Weichai WP Series / Cummins, 350 – 430 HP |
| Transmission | FAST 10-speed or 12-speed Manual Gearbox |
| Rated Payload Capacity | 30 – 40 Tons |
| Cargo Box Dimensions (L) | 5.3m to 6.2m (Customizable) |
| Cargo Box Steel Thickness | Bottom 8mm / Side 6mm (Standard) |
| Front Axle | 7.5-ton or 9.5-ton MAN Technology Axle |
| Rear Drive Axle | 16-ton MAN Double Reduction Axle |
| Lifting System | Middle or Front Mounted Hydraulic Cylinder |
Shacman offers a diversified range of 10-wheeler dump trucks, each series engineered with a specific focus to meet unique operational demands. Choose the perfect match for your business needs.

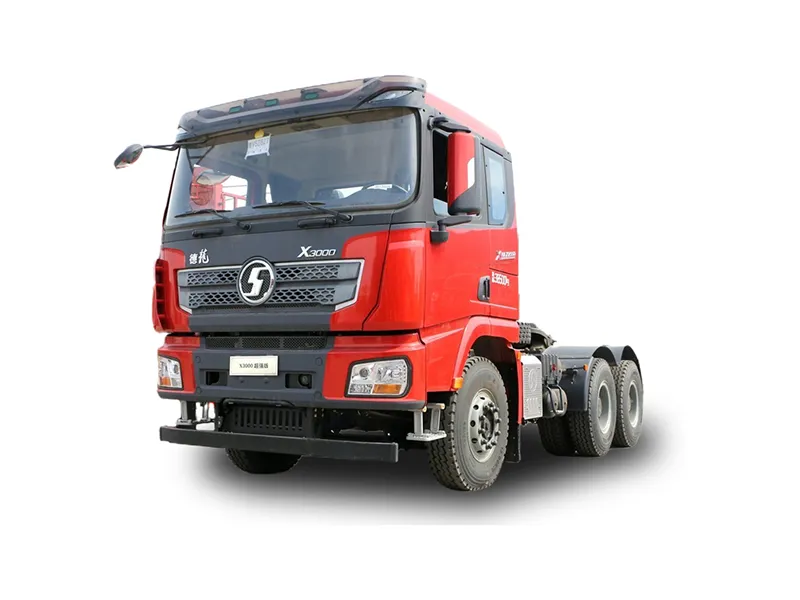

The legendary flagship. Renowned for supreme reliability and brute power with a reinforced high-strength steel frame. Ideal for extreme conditions and heavy loads.
European-inspired lightweight design. Focuses on exceptional driver comfort and fuel efficiency, perfect for medium-haul transport requiring a smoother ride.

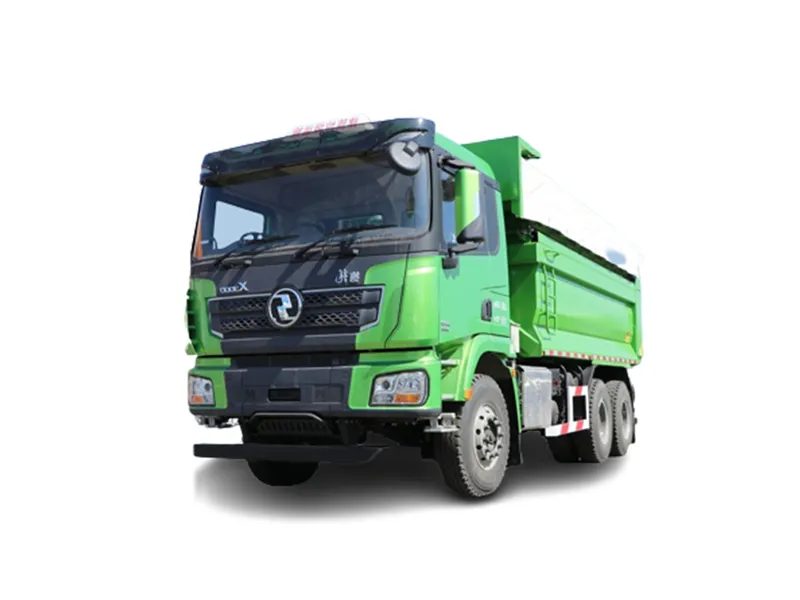

The high-end intelligent choice. Delivers peak performance, advanced safety (ABS), and superior off-road capability for mining and harsh environments.
The versatile performer. Balances robust capability with operational efficiency, offering multiple configurations including new energy options for modern fleets.
| Model Series | Engine Power (HP) | Payload (Approx.) | Primary Strength | Best For |
|---|---|---|---|---|
| F3000 | 371-380 | 30-40 Tons | Durability & Power | Heavy Mining, Quarries |
| H3000 | ~380 | ~30 Tons | Comfort & Efficiency | Urban Construction, Medium Haul |
| X3000 | 385-430 | 25-40 Tons | High-End Performance & Safety | Large-scale Earthworks, Rugged Sites |
| M3000 | 350-400 | 30-38 Tons | Versatility & Value | General Construction, Multi-Purpose Use |
Equipped with top-tier Weichai or Cummins engines paired with reliable FAST transmissions for unstoppable pulling power and smooth gear shifts under load.
The high-strength frame and MAN-technology axles provide incredible structural integrity and load-bearing capacity, ensuring longevity in tough conditions.
Advanced engine tuning and aerodynamic designs in series like the H3000 help lower operational costs, boosting your bottom line.
Spacious, ergonomic cabs with air suspension seats, excellent soundproofing, and modern controls reduce driver fatigue and increase safety.
Simplified service points and widespread availability of parts minimize downtime, keeping your fleet running and revenue flowing.
Options like ABS, ESC, and robust brake systems provide critical control and stability, protecting both your asset and your personnel.
Haul overburden, ore, and minerals with confidence. The X3000 and F3000 series excel in these punishing environments.

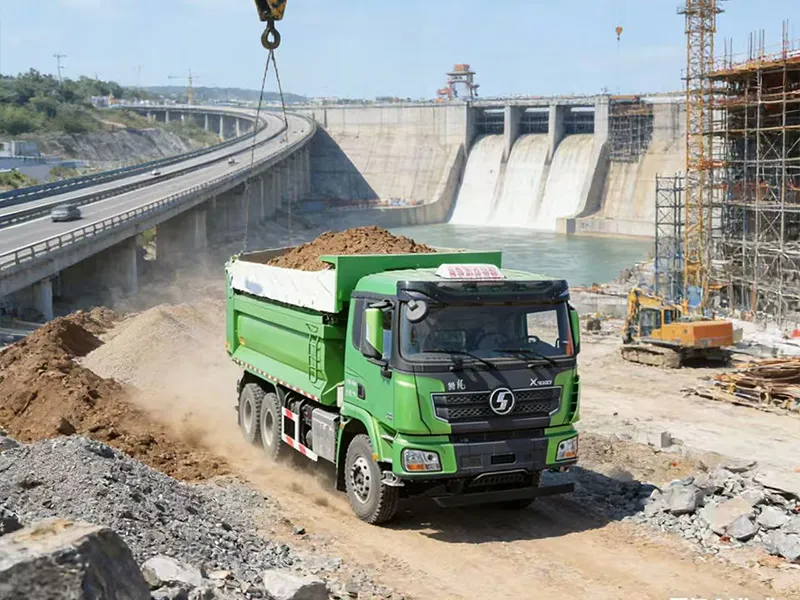

Transport soil, gravel, sand, and demolition debris for highway, dam, and building projects efficiently.

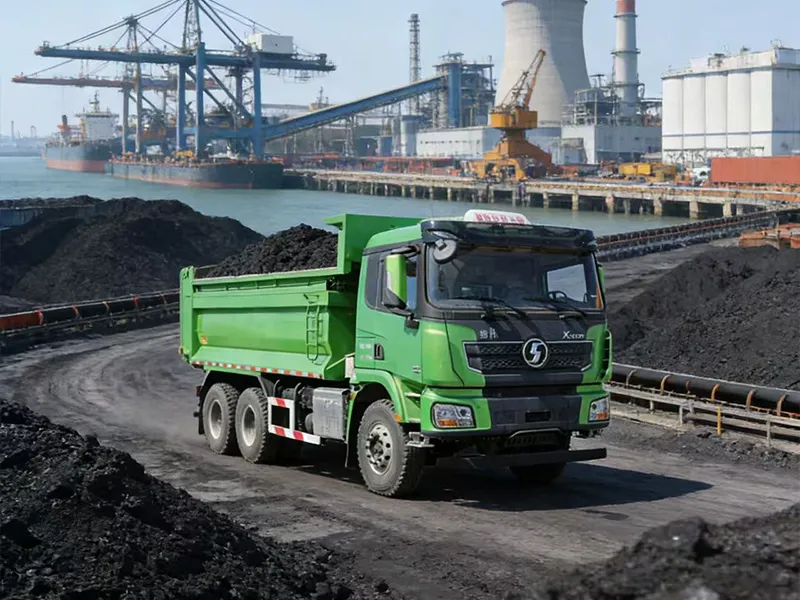

Move high-volume materials from ports, stockyards, and power plants with reliable, high-capacity hauling.
Selecting the ideal model depends on your specific operational profile. Consider these key factors:
Explore our full range of products to see detailed specifications and find the model that perfectly aligns with your business goals.
Proper maintenance is essential to maximize the lifespan, performance, and reliability of your Shacman dump truck. Follow these recommended practices to ensure optimal operation and minimize downtime.
Regular engine oil changes are crucial for the longevity of your Weichai or Cummins engine. Replace engine oil and filters every 15,000 km or 250 operating hours (whichever comes first) under normal conditions. For severe duty cycles, reduce this interval by 30%.
Check tire pressure daily before operation to ensure optimal fuel efficiency and tire life. Inspect tires for cuts, bulges, and abnormal wear patterns. Rotate tires every 25,000 km and maintain proper wheel alignment. Regularly tighten wheel nuts to specified torque settings.
Inspect brake pads and linings every 10,000 km. Check brake fluid level and condition monthly. For air brake systems, drain air tanks daily to remove moisture. Test parking brake effectiveness regularly. Adjust automatic slack adjusters as needed to maintain proper stroke.
Check hydraulic oil level in the tipping system reservoir weekly. Inspect hydraulic hoses and connections for leaks, cracks, or wear every 250 hours. Replace hydraulic filters according to manufacturer’s schedule. Ensure the PTO (power take-off) and pump are properly lubricated and functioning.
| Interval | Service Items | Check Points |
|---|---|---|
| Daily (Pre-Trip) | Visual Inspection | Tire pressure, fluid levels, lights, brakes, leaks |
| Weekly | System Checks | Battery, belts, hydraulic system, air tanks |
| Monthly | Detailed Inspection | Suspension, steering, exhaust, chassis bolts |
| 15,000 km / 250 hrs | Oil & Filter Change | Engine oil, fuel filter, air filter |
| 50,000 km | Major Service | Transmission fluid, coolant, wheel bearing grease |
Hear from satisfied owners and operators worldwide who trust Shacman 10 wheeler dump trucks for their demanding operations. Their experiences highlight the quality and performance of our vehicles.
“Our fleet of three Shacman X3000 trucks has been operating in a copper mine for over two years with zero major breakdowns. The fuel efficiency is better than expected, and our drivers love the comfortable cabin. These trucks handle the rough terrain effortlessly.”
“We purchased five H3000 series trucks for our construction business. The fuel savings compared to our old trucks are substantial. Maintenance is straightforward, and parts availability has been excellent. Our productivity has increased by at least 15%.”
“The F3000 is a true workhorse. We operate in remote quarry sites with harsh conditions, and these trucks just keep going. The powerful engine and sturdy frame can handle anything we throw at them. After three years, they’re still our most reliable assets.”
“We run a mixed fleet, but our Shacman M3000 trucks consistently have the lowest operating costs. The versatility is perfect for our diverse projects – from road construction to material delivery. Great value for money and excellent dealer support.”
Thousands of businesses worldwide trust Shacman for their heavy-duty transportation needs. Experience the same reliability and performance that our customers rave about.
Explore Our ModelsThe payload capacity typically ranges from 30 to 40 metric tons, depending on the specific model (F3000, X3000, etc.) and configuration.
Shacman primarily uses powerful and reliable Weichai WP series engines. Cummins engines are also available in certain models for specific market demands.
These heavy-duty dump trucks are predominantly equipped with robust manual transmissions, like the FAST 10 or 12-speed gearbox, for optimal control and durability under load.
The F3000 is a classic, ultra-durable workhorse. The X3000 is a more advanced, intelligent series with higher horsepower options, enhanced safety features, and improved comfort for extreme operations.
Yes. The length of the cargo box can be tailored from 5.3m to 6.2m. Steel thickness and other specifications can also be adjusted to suit your material type (e.g., rocks, sand).
Standard models are for surface operations. For underground mining, specially designed low-profile or modified dump trucks are required, which can be discussed based on project needs.
Shacman has a global network of dealers and service centers providing parts supply, technical support, and maintenance services to ensure your truck’s uptime.
With proper maintenance and operation within design limits, a Shacman dump truck can deliver many years of reliable service, often exceeding a decade in demanding industries.
Many authorized Shacman dealers collaborate with financial institutions to offer various purchase and lease plans. Please inquire with your local dealer for specific options.
Always source parts through official Shacman distributors or authorized dealers to guarantee quality, compatibility, and warranty coverage for your vehicle.
