Engineered for heavy-duty earthmoving and aggregate hauling, the Shacman 340HP Dump Truck pairs a potent 340-horsepower WEICHAI engine with a reinforced chassis and a high-strength dump body. Its synchronized FAST transmission and durable HANDE drive axles deliver dependable off-road traction, while the rapid hydraulic tipping system enables fast, clean unloading on the toughest job sites.

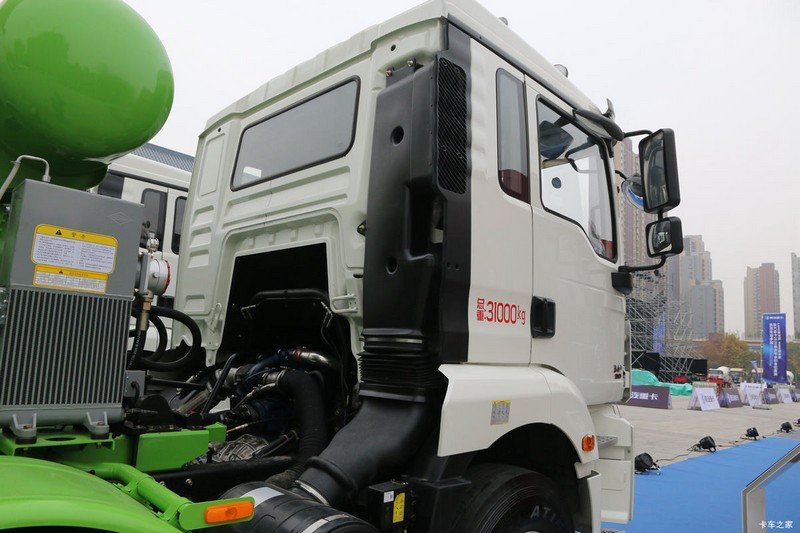

Purpose-built for consistent ready-mix delivery, the Shacman 340HP Concrete Mixer Truck features a fuel-efficient 340-horsepower WEICHAI engine driving a high-capacity rotating drum on a rugged, stable chassis. Its continuous mixing action keeps concrete homogenous from batch plant to discharge, while the reliable hydraulic system and low-maintenance driveline help reduce downtime and protect slump quality on every pour.

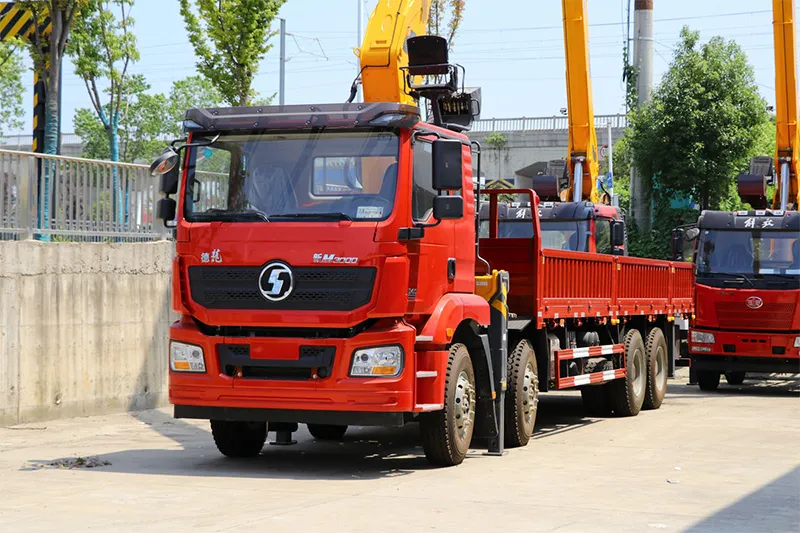

Delivering mobile lifting power exactly where you need it, the Shacman 340HP Truck-Mounted Crane combines a robust 340-horsepower WEICHAI engine with a fully integrated telescopic boom and a heavy-duty carrier chassis. Hydraulically actuated outriggers provide exceptional stability during hoisting, while the smooth, precise control system enables fast loading, unloading, and positioning of materials — all from a single, self-contained unit.
|
Truck Name |
Shacman 340hp Dump Truck |
| Transport type | Mining engineering |
| Logistics type | Ore / sand / gravel / coal |
| Distance(km) | ≤200 |
| Road type | Offroad |
| Drive | 6×4 |
| Max weight(t) | ≤50 |
| Max speed | 75 |
| Loaded speed(km) | 40~60 |
| Vehicle model | SX3255MN324 |

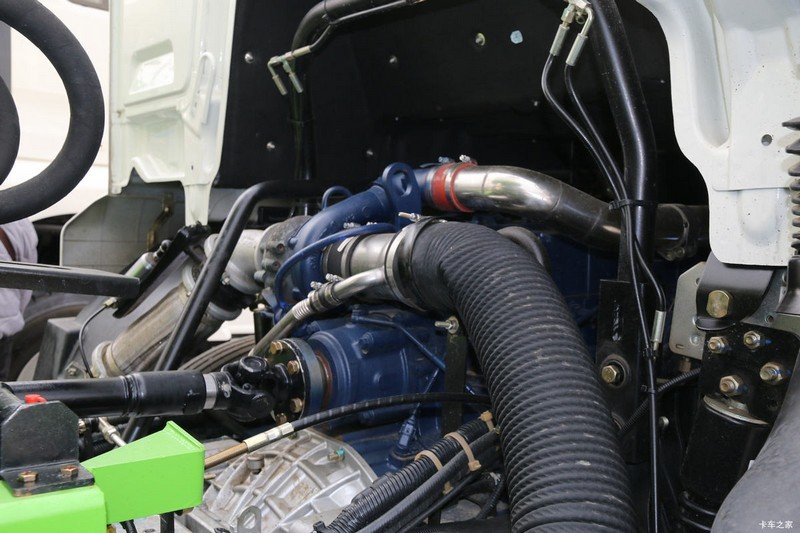

| Engine | WP12.375N |
| Emission standard | Euro Ⅱ |
| Displacement | 9.726L |
| Rated output | 220kw |
| Max.torque | 1390N•m |

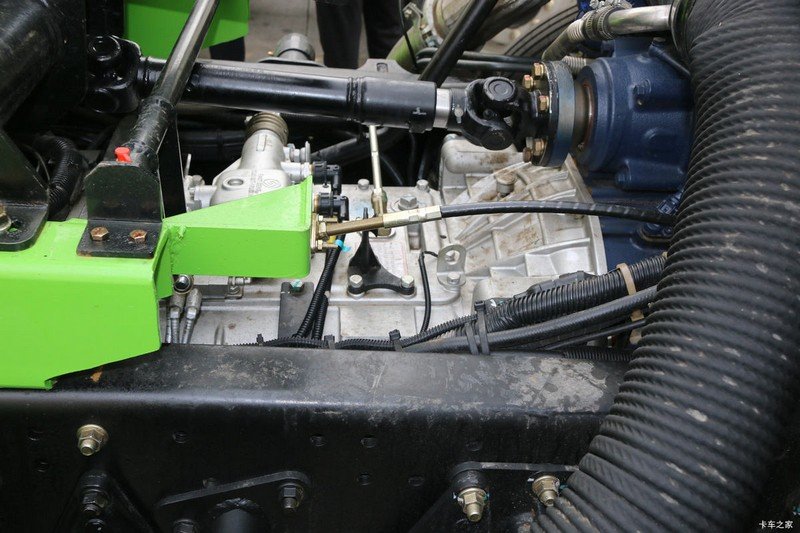

| Transmission | 10JSD180+QH50 |
| Clutch | 430 |
| Frame | 850×300(8+7) |

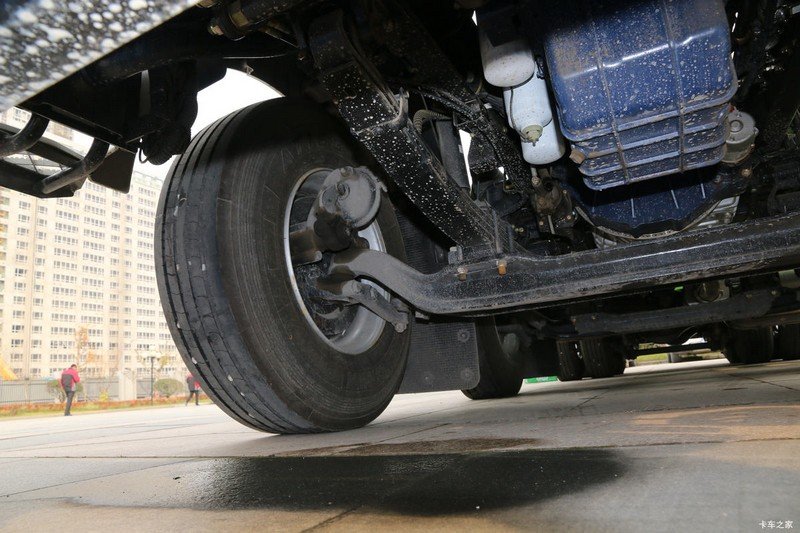

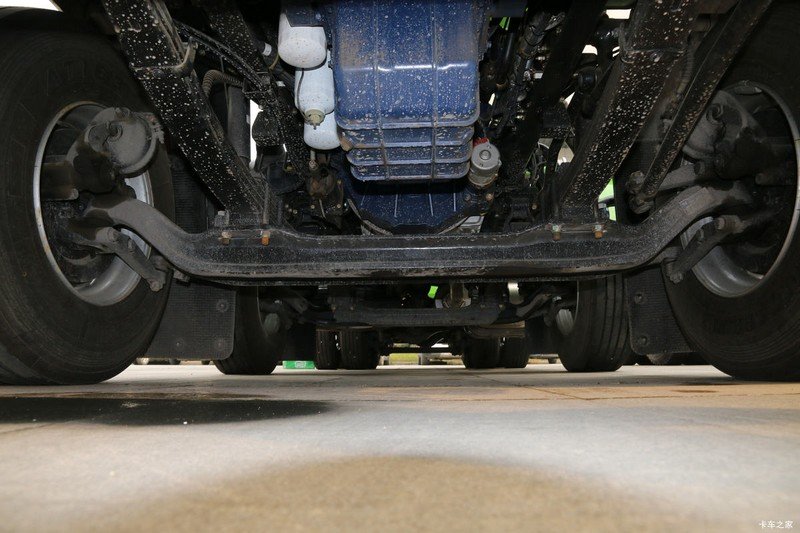

| Front axle | MAN 9.5T |
| Rear axle | 16T MAN double reduction 5.92 |

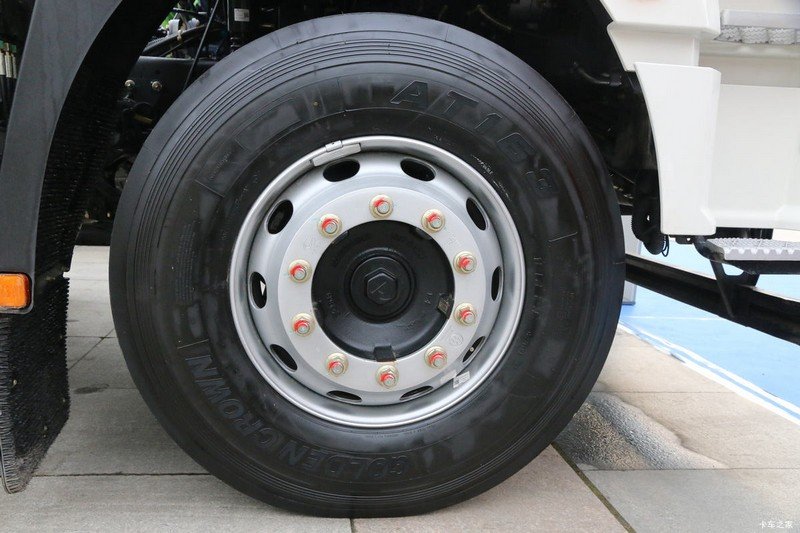

| Tire | 12.00R20 |

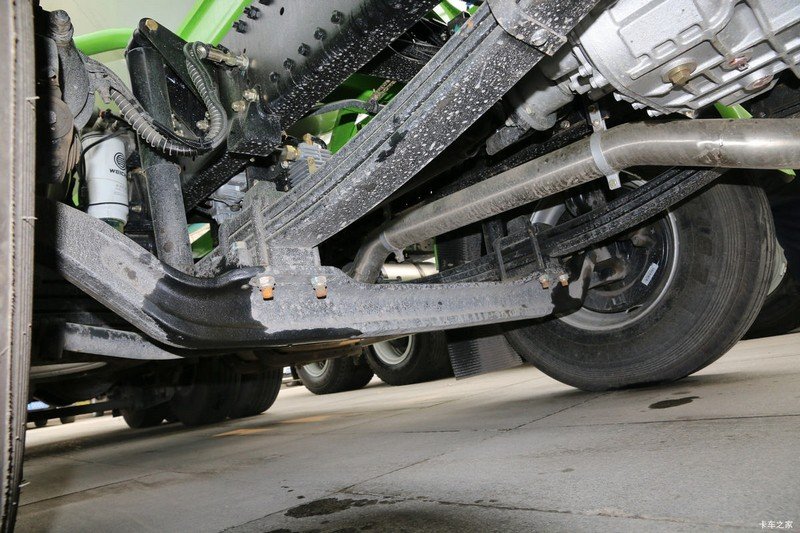

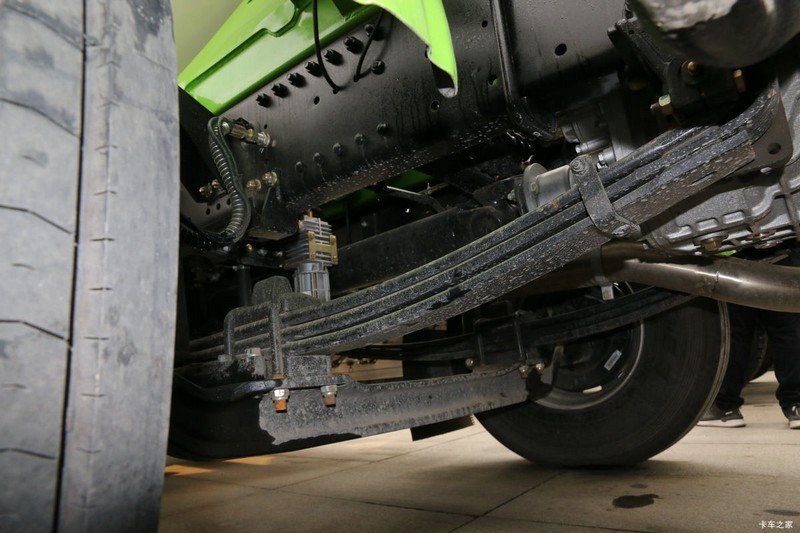

| Front Suspension | Multi leaf springs |

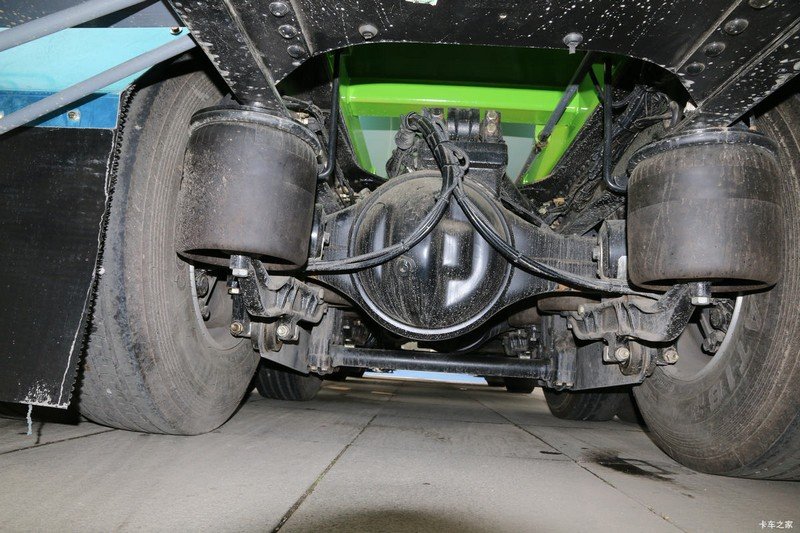

| Rear Suspension | Multi leaf springs |
| Fuel | Diesel |

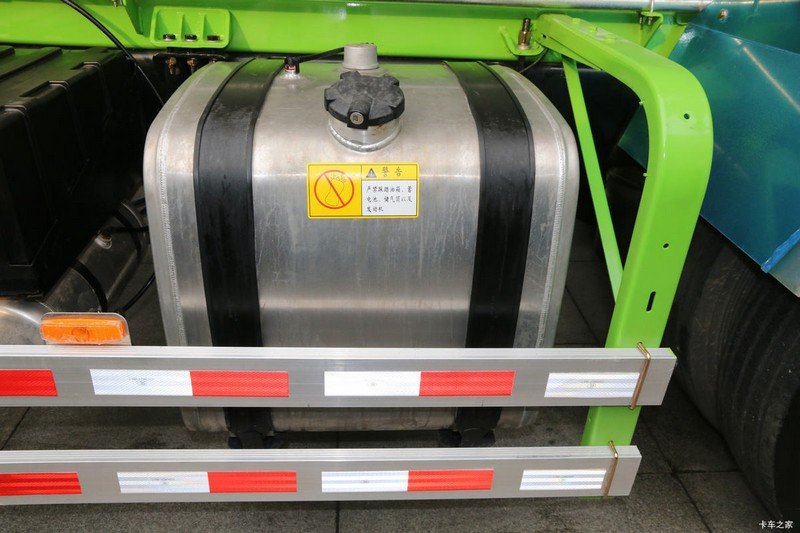

| Capacity of the fuel tank | 400L ( Aluminum shell ) |

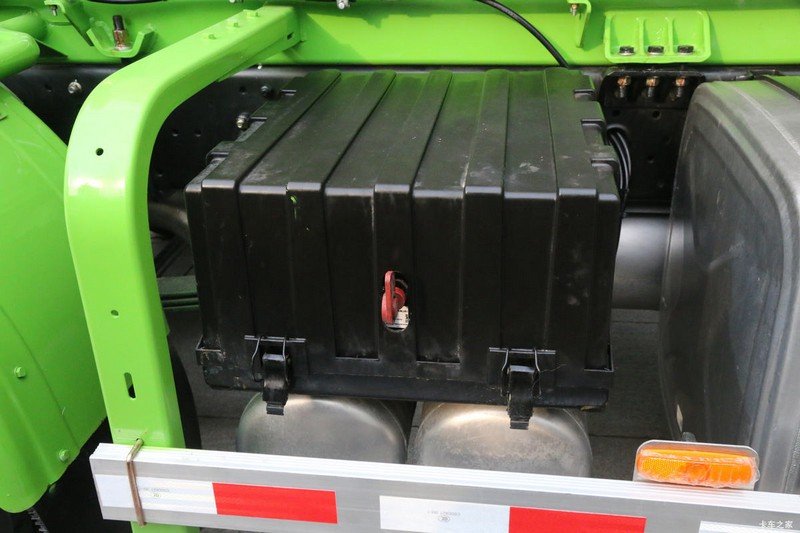

| Battery | 165Ah |
| Dimensions(L×W×H) | 7950x2490x3270 |
| Wheelbase | 3175+1400 |
| Truck(L×W×H) | 5400x2300x1500 |
A: It’s powered by the WEICHAI WP10 series engine, a well-proven 340-horsepower diesel built for heavy-duty cycles. Known for durability and fuel efficiency, it meets demanding emission standards and delivers consistent torque across mining, construction, and long-haul applications.
A: We offer three fully engineered configurations: the **Shacman 340HP Dump Truck** for earth and aggregate hauling, the **Shacman 340HP Concrete Mixer Truck** for ready-mix delivery, and the **Shacman 340HP Truck-Mounted Crane** for integrated mobile lifting. Each is optimized at the factory, not an aftermarket compromise.
A: Customers consistently report competitive fuel consumption thanks to the WEICHAI engine’s intelligent high-pressure common-rail injection and the perfectly matched FAST gearbox ratios. Actual economy depends on load and terrain, but the powertrain is deliberately tuned to lower your cost per kilometer.

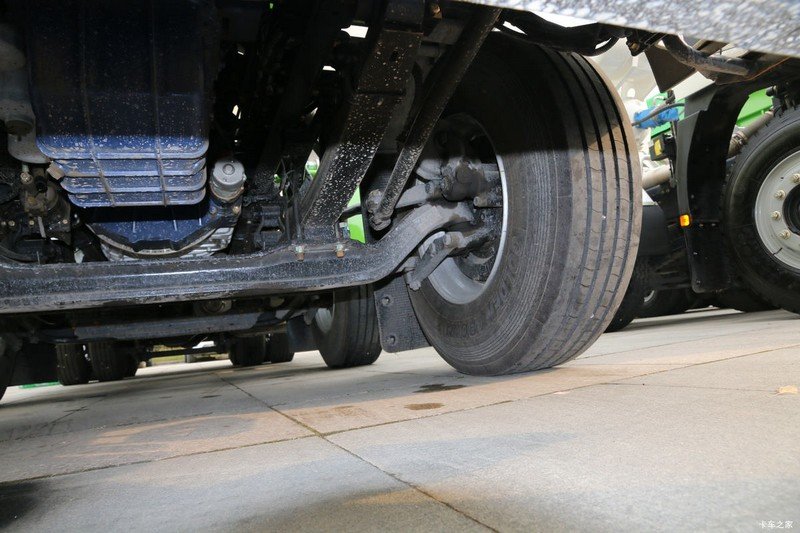

A: Absolutely. The frame uses high-strength, fatigue-resistant steel with reinforced cross-members. Whether it’s twisted on a mine road as a Dump Truck or stabilizing a crane boom, the chassis is built to take punishment without cracking or deforming.

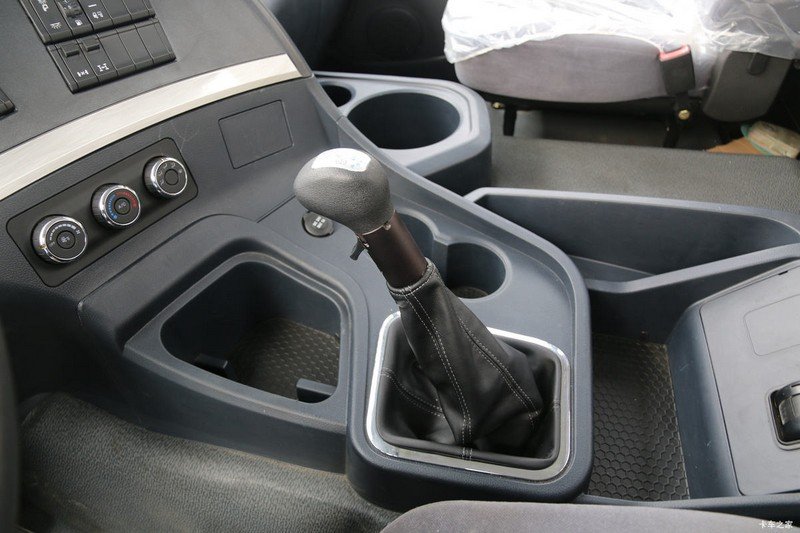

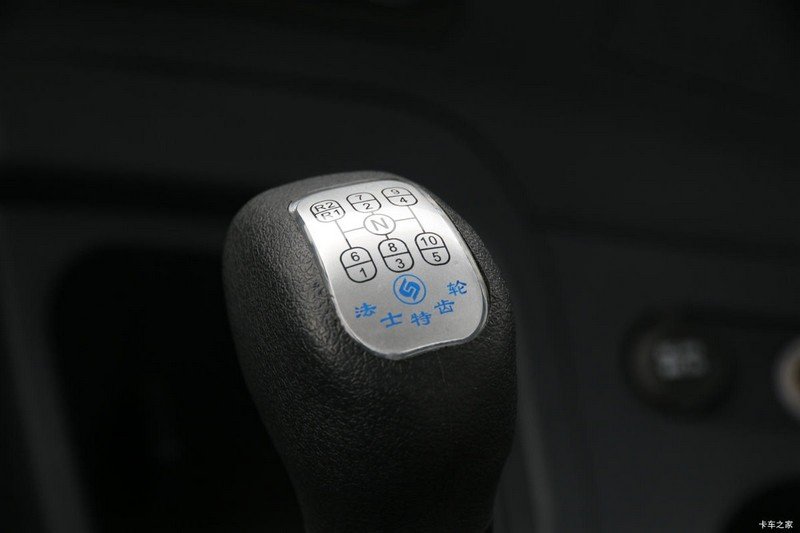

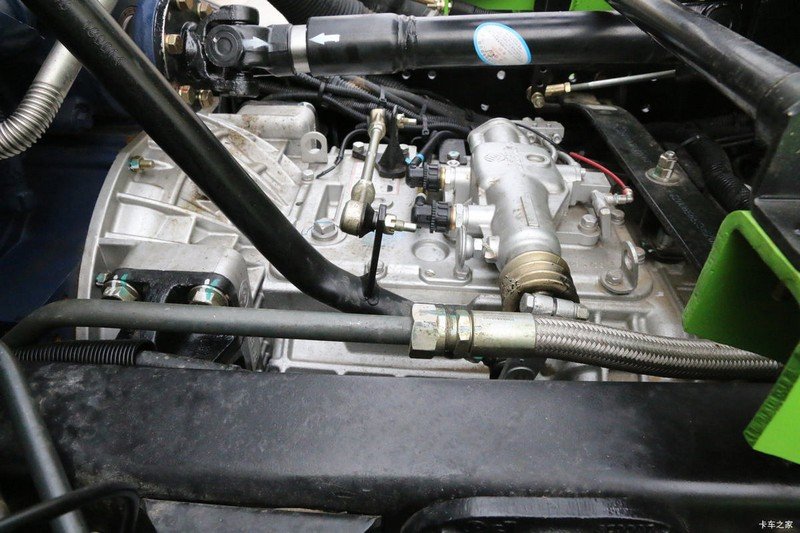

A: The driveline pairs a FAST manual gearbox (typically 9-speed or 10-speed, application-matched) with HANDE heavy-duty drive axles. This combination is widely recognized for its robustness, smooth shifting, and excellent parts availability worldwide.
A: Its HYVA-style hydraulic lifting system, combined with a heavy-duty, high-strength steel dump body, enables rapid, clean unloading. The design resists sticking and completes full-tip cycles fast, minimizing turnaround time at stockpiles or construction sites.
A: The **Shacman 340HP Concrete Mixer Truck** features a continuous-rotation drum driven by a reliable hydraulic motor, keeping concrete homogenous from batching to discharge. The stable chassis also reduces sloshing and segregation during transit, preserving the required slump.
A: The **Shacman 340HP Truck-Mounted Crane** is fitted with hydraulically deployed outriggers for a wide, stable footprint, a rated capacity limiter, and a precise multi-valve control system. The carrier’s rigid frame and low center of gravity further ensure safe, controlled lifting operations.
A: Yes. The WEICHAI engine, FAST gearbox, and HANDE axles are among the most widely available commercial vehicle components globally. Our network supports you with genuine spare parts, extended service intervals to reduce downtime, and accessible maintenance points throughout the truck’s design.
A: Delivery times vary by configuration and order volume, but our strong inventory management and efficient production scheduling often enable faster turnaround than competitors. Contact our sales team with your specification, and we’ll provide a confirmed lead time immediately.
