Shacman Air Conditioning System

SHACMAN X3000，X5000，X6000，F2000，F3000，H3000，M3000 Shacman Air Conditioning System Parts.

Shacman Air Conditioning System Parts

Looking for parts for the shacman air conditioning system parts? Contact us now, whether it’s shacman x3000, x5000, x6000 or f2000, f3000, h3000, m3000, We offers you high-quality air conditioning system parts!

The air conditioning system of Shaanxi Automobile Commercial Vehicles (including heavy trucks, tractor trucks, engineering vehicles, etc.) is an important component that ensures driver comfort and driving safety. An efficient and reliable air conditioning system relies on the coordinated work of many precision parts. These key parts include: air conditioning unit assembly, defrost damper motor, blower motor assembly, air conditioning drain pipe assembly, compressor assembly, condenser assembly, etc.

If you want to buy shacman air conditioning system parts, please contact us now for the latest shacman air conditioning system parts list and price list!

Shacman Air Conditioning System Parts For Shacman X3000&X6000 Truck

**Condenser Assembly:** The Shacman Condenser Assembly acts as the system’s radiator. Mounted typically at the front of the truck, it efficiently releases heat absorbed from the cabin. High-pressure refrigerant gas from the compressor cools and condenses here, transforming into a liquid before continuing the cooling cycle, crucial for optimal system performance.
**Air Conditioner Body Assembly:** Serving as the core climate control unit inside the Shacman cabin, the Air Conditioner Body Assembly houses the evaporator, blower fan, air mix doors, and controls. It’s responsible for cooling, heating, dehumidifying, and distributing conditioned air throughout the driver’s compartment for comfort.
**Compressor Assembly:** Functioning as the heart of the Shacman A/C system, the Compressor Assembly pressurizes the refrigerant gas. Driven by the engine via a belt, it circulates the refrigerant through the entire system, enabling the heat exchange process essential for cooling the cabin air.
**Air Conditioner Warm Air Electric Water Valve:** This Shacman-specific valve precisely controls hot coolant flow from the engine into the heater core. Electrically operated, it regulates the amount of heat transferred to the cabin air, enabling accurate temperature control during heating or defrosting modes.

5. **Air Conditioner Warm Air Outlet Water Pipe Assembly:** This Shacman pipe assembly carries hot coolant *away* from the heater core after it has transferred its heat. It ensures the efficient return of coolant back to the engine cooling system, maintaining proper flow and temperature regulation for the heating function.
6. **Air Conditioner Warm Air Intake Hose:** Connecting the engine’s coolant system to the heater core, the Shacman Warm Air Intake Hose supplies hot engine coolant *to* the heater core. Constructed for durability under high temperatures and pressure, it’s vital for enabling cabin heating.
7. **Hose Clamp:** Essential for secure connections throughout the Shacman A/C system (refrigerant lines, coolant hoses), Hose Clamps provide reliable, leak-proof sealing. They maintain system pressure integrity and prevent fluid loss, ensuring efficient and safe operation of both cooling and heating circuits.
8. **Air Conditioning Pipe Bracket:** Shacman Air Conditioning Pipe Brackets provide secure mounting and routing for refrigerant lines and coolant hoses. These brackets prevent vibration damage, chafing, and ensure pipes/hoses are correctly positioned away from heat sources or moving parts, enhancing system longevity and reliability.

Shacman Air Conditioning System Parts For Shacman F2000 & F3000 Truck

**Automatic Air Conditioning Body Assembly:** This core Shacman component integrates the evaporator, air ducts, and blending doors. It physically processes and directs cooled or heated air throughout the cabin, forming the central housing for climate control operations in automatic systems.

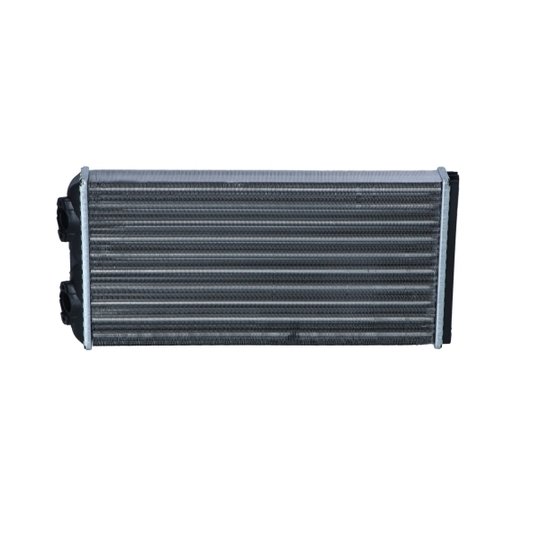

**Heat Exchanger (Heater Core):** Essential for cabin warmth, the Shacman Heat Exchanger utilizes hot engine coolant. Air blown across its fins transfers heat into the ventilation system, providing comfortable heating and critical defrosting capabilities during colder conditions.

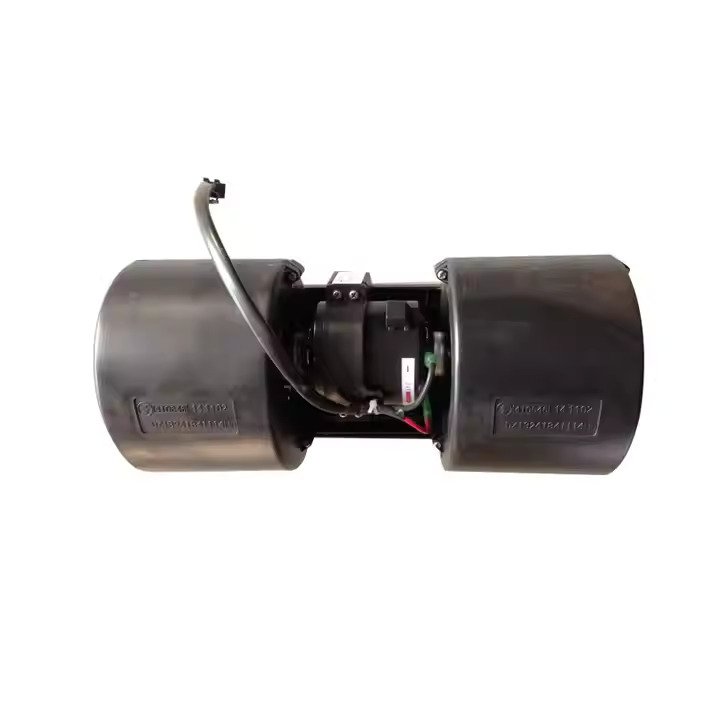

**Blower Motor Assembly:** Responsible for cabin airflow, the Shacman Blower Motor Assembly forces air through the system. It consists of the motor and fan, drawing in fresh or recirculated air and pushing it over the evaporator or heater core for temperature adjustment.
**Defrost Wind Door Electromotor:** This Shacman electric motor precisely controls the defrost/vent air blend door. It directs airflow specifically to the windshield and side windows, ensuring rapid defogging and defrosting for optimal driver visibility and safety.

5. **Warm Air Pipe:** Shacman Warm Air Pipes are dedicated conduits for transporting heated air. They efficiently route warm air from the heater core assembly to designated cabin vents and the critical defrost outlets at the base of the windshield.
6. **Mounting Clamp:** Vital for system integrity, Shacman Mounting Clamps provide secure, vibration-resistant fastening. They firmly hold refrigerant lines, coolant hoses, and various AC components in place, preventing damage from movement and ensuring reliable long-term operation.
7. **Interior Blower Electric Motor:** The power source within the Blower Motor Assembly, this Shacman electric motor drives the fan blades. Its variable speed capability, often controlled by the AC unit, directly determines the volume of air circulated inside the truck cabin.
8. **Air Conditioning Control Unit:** Acting as the system’s brain, the Shacman A/C Control Unit (automatic or manual) processes driver inputs and sensor data. It electronically manages compressor engagement, blower speed, blend door positions, and mode selection to achieve the desired cabin climate.

Application Models of Shacman Air Conditioning System Parts

Shaanxi Automobile Group, as a leading manufacturer of heavy-duty commercial vehicles in China, equips its flagship truck series with high-quality air conditioning system components, providing drivers with essential driving comfort and safety visibility in demanding conditions such as long-haul transportation and construction operations.
Core components (such as air conditioning units, compressors, condensers, blower motors, damper motors, piping, and related brackets and clamps) are rigorously designed and tested for compatibility to ensure seamless integration with the following flagship models:
Shacman X3000 Series: As a representative of economical and efficient long-haul transportation, all models in the X3000 series are compatible with Shaanxi Automobile’s original factory air conditioning system components, ensuring driver comfort in trunk logistics operations.
Shacman X5000 Series: Positioned for efficient logistics and mixed operating conditions, the X5000 series has higher requirements for air conditioning performance in the cab. The corresponding components provide powerful cooling/heating capabilities and reliable defrosting and demisting functions.
Shacman X6000 Series: As the flagship premium heavy-duty truck, the X6000 series pursues an ultimate driving experience. Its air conditioning system is more advanced and complex, with components meeting higher standards in performance, noise reduction, and intelligent control.
Shacman F2000 Series: This classic series is widely used in engineering, dump trucks, and other fields. Its air conditioning system components must adapt to more severe operating conditions (such as high dust levels and strong vibrations). Shaanxi Automobile components meet these demands with their durability and reliability.
Shacman F3000 Series: As a mature and reliable medium-to-heavy-duty truck platform, the F3000 series offers a stable supply of air conditioning system components, covering various vehicle models such as tractors, cargo trucks, and engineering vehicles, providing a crucial foundation for the aftermarket.

Maintenance And Upkeep of Shacman Air Conditioning System Parts

1. **Compressor Assembly**

– **Monthly Check:** Inspect drive belt tension/cracks; ensure clutch engagement noise-free.
– **Annual Service:** Replace compressor oil (Use **Shacman SHC-100** spec oil only).

2. **Condenser Assembly**

– **Bi-weekly Cleaning:** Flush fins with low-pressure water or compressed air (especially for X3000/F3000 models in dusty environments).
– **Damage Alert:** Straighten bent fins immediately to prevent 20%+ efficiency loss.

3. **Blower Motor & Resistor**

– **Quarterly Test:** Run blower at all speeds; humming/noise indicates bearing wear.
– **Filter Dependency:** Always replace cabin air filters (blocked filters overload motors).

4. **Evaporator & Drainage**

– **Seasonal Clearance:** Unclog drain tubes with compressed air before summer/winter.
– **Mold Prevention:** Run “vent mode” 5 mins after AC shutdown to dry coils.

5. **Electrical Components**

– **Defrost Door Motors:** Lubricate linkages with silicone spray during winter prep.
– **Pressure Sensors:** Scan for fault codes (e.g., S-P052/S-P053) biannually.

6. **Refrigerant Circuit**

– **Leak Test:** Annual UV dye inspection (Focus on **aluminum pipe joints**).
– **Recharge Rule:** Only use **R134a** (X6000) or **R290** (New F-series) per manual.

Most Concerned Questions About Shacman Air Conditioning System Parts

Q: Are Shaanxi Automobile air conditioning parts compatible with all Delong series models?

A: Yes. Shaanxi Automobile original factory air conditioning parts (such as compressor assemblies, condensers, blower motors, etc.) are specifically designed for DeLong main models, including the **X3000, X5000, X6000, F2000, and F3000 series**, ensuring precise installation and performance compatibility. Non-original parts may cause compatibility issues; it is recommended to purchase through authorized Shaanxi Automobile channels.

Q: What are the common causes of compressor assembly failures? How can their lifespan be extended?

A: Common causes include refrigerant leaks, overly tight/loose belts, and poor heat dissipation. To extend lifespan:
– Regularly inspect refrigerant pressure and pipe seals
– Ensure condenser fins are clean (especially for engineering vehicles in high-dust environments)
– Use Shaanxi Automobile-specified compressor oil

Q: What components may be causing poor air conditioning cooling performance?

A: Check the following components in order:
✅ **Condenser assembly**: Fins blocked or damaged (accounting for over 40% of failures)
✅ **Refrigerant piping**: Leaks or blockages
✅ **Compressor assembly**: Internal wear causing insufficient pressure
✅ **Expansion valve/drier bottle**: Malfunction affecting refrigerant circulation

Q: What are the key differences between original Shacman parts and aftermarket parts?

A: The key differences are:

Project	Shacman Original Factory Parts	Ordinary Aftermarket Parts
Material and Craftsmanship	Heavy truck-grade high temperature/vibration resistant materials	Civilian standard materials
Fit Precision	100% vehicle model data match	Generalized design, modification required
Life Cycle	Average 2-3 years (over 300,000 km)	Usually <1.5 years
After-sales Support	Shacman national service station joint warranty	No system technical support

Q: What safety hazards can a defrost damper motor failure cause?

A: Direct threats to driving safety:

Frost on the windshield cannot be quickly removed in winter, obstructing visibility.
The air conditioning automatically switching to defrost mode fails, requiring manual operation that distracts the driver.
Recommendation: Check the damper motor’s operating status before winter each year and replace any stuck parts in a timely manner.

Q: How can the maintenance costs of the Shaanxi Automobile air conditioning system be reduced?

A: Core strategies:
• Preventive maintenance: Clean the condenser and inspect pipe seals quarterly
• Use genuine consumables: Substandard refrigerants can corrode the compressor
• Choose integrated components: For example, replace individual flaps/evaporators with an “air conditioning unit assembly” to save 30% on labor costs
• Stay updated on Shaanxi Automobile technical upgrades: For example, the new variable-frequency compressor in the X6000 series reduces energy consumption by 25%

Packaging Methods of Shacman Air Conditioning System Parts

To ensure maximum protection during global logistics, Shacman employs two specialized packaging systems for air conditioning components, tailored to part size, weight, and fragility:

Heavy-Duty Carton Packaging (For Standard Parts)
– **Applicable Parts:** Blower motors, sensors, valve assemblies, hose clamps, brackets.
– **Structure:** 7-layer corrugated cardboard (Burst strength ≥1,400 kPa) with edge guards.
Reinforced Wooden Crate Packaging (For Bulky/Delicate Units)
– **Applicable Parts:** Compressor assemblies, condenser coils, AC body units.
– **Structure:** ISPM 15-certified fumigated timber (15mm plywood base + 12mm frame).

Shipping Methods of Shacman Air Conditioning System Parts

Carton Packaging
• Applicable components: Blowers, sensors, brackets, and other small to medium-sized accessories
• Protective design: 7 layers of high-strength corrugated cardboard + custom EPS foam lining + anti-static bag
• Environmental friendliness: 100% recyclable materials, built-in desiccant for moisture protection.
Wooden Box Packaging
• Applicable components: Compressors, condensers, air conditioner units, and other large precision components
• Protective design: ISPM 15-certified fumigated wooden boxes + steel band reinforcement + 3D laser-scanned foam fixation
• Logistics optimization: Forklift slots + anti-tilt indicators.
