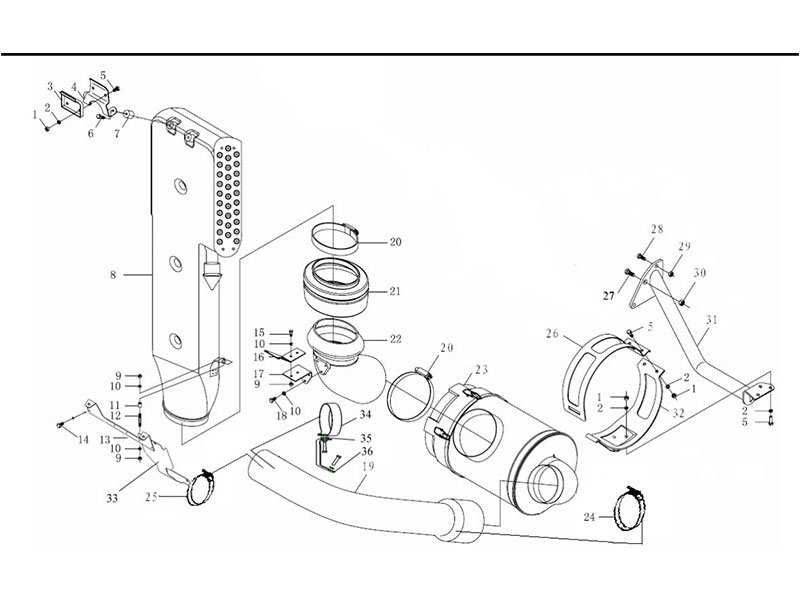

| NO | Part.No | Name | Quantity |
| 1 | Q150B1025 | Hex screw | 3 |
| 2 | Q33210 | Hex. nut | 10 |
| 3 | 128000550027 | Inside screw thread dowel | 2 |
| 4 | 128000550029 | Strain screw | 2 |
| 5 | 128000550028 | Inside screw thread dowel | 2 |
| 6 | 199012190130 | Close strip | 2 |
| 7 | DZ9112190204 | Air cleaner | 1 |
| 8 | DZ93259190139 | Fix plate | 1 |
| 9 | DZ91259955111 | Stopper | 4 |
| 10 | Q150B1060 | Hex screw | 4 |
| 11 | Q150B10100 | Hex screw | 4 |
| 12 | Q150B1085 | Hex screw | 3 |
| 13 | DZ93259190138 | Brace | 2 |
| 14 | DZ93259190158 | Brace | 2 |
| 15 | Q33214 | Hex. nut | 13 |
| 16 | Q150B1455 | Hex screw | 4 |
| 17 | DZ93259190128 | Bracket | 1 |
| 18 | Q33212 | Hex. nut | 4 |
| 19 | Q150B1265 | Hex screw | 4 |
| 20 | Q33208 | Hex. nut | 1 |
| 21 | Q150B0830 | Hex screw | 1 |
| 22 | DZ9112190168 | Triangle bracket | 1 |
| 23 | DZ9003532122 | Clip | 2 |
| NO | Part.No | Name | Quantity |
| 24 | DZ1560110168 | Air intake pipe | 1 |
| 25 | DZ93259190132 | Pull pole | 1 |
| 26 | DZ9112190082 | Hose | 1 |
| 27 | 161200190040 | Stopper switch | 1 |
| 28 | 169100770028 | Protect cover | 1 |

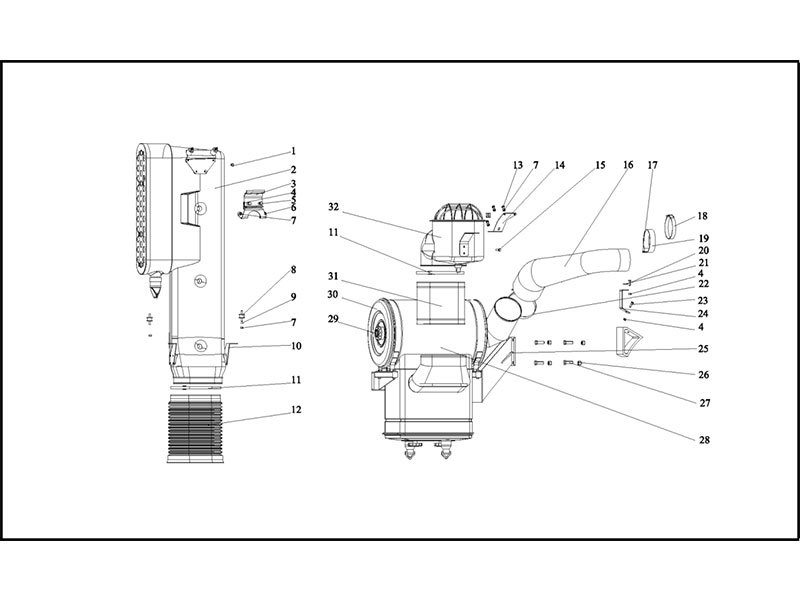

| NO | Part. No | Name | Quantity |
| 1 | Q2610816 | Screw | 2 |
| 2 | DZ93259190005 | Intake pipe assembly | 7 |
| 3 | 81.62940.5011 | Bracket | 1 |
| 4 | Q33210 | Hex. nut | 10 |
| 5 | Q150B1030 | Hex screw | 2 |
| 6 | DZ9112196038 | Bracket | 1 |
| 7 | Q340B08 | Hex nut | 11 |
| 8 | 81.96210.0289 | Cushion block | 1 |
| 9 | Q40308 | Spring washer | 13 |
| 10 | DZ9112196034 | Bracket | 2 |
| 11 | DZ9114190934 | Clip | 2 |
| 12 | DZ93259190006 | Screw pipe | 1 |
| 13 | Q150B0820 | Hex screw | 7 |
| 14 | DZ9112190134 | Bracket | 1 |
| 15 | Q2610860 | Screw | 2 |
| 16 | DZ9112190079 | Hose | 1 |
| 17 | 199100360135 | Partition ring | 1 |
| 18 | DZ9003532122 | Clip | 1 |
| 19 | 199112190065 | Tube clip | 1 |
| 20 | Q150B1020 | Hex screw | 1 |
| 21 | Q40310 | Spring washer | 7 |
| 22 | DZ9003532166 | Clip | 1 |
| 23 | Q150B1025 | Hex screw | 1 |
| 24 | DZ9112190055 | Plywood | 1 |
| 25 | DZ9112196033 | Plate | 1 |
| NO | Part. No |
Name | Quantity |
| 26 | Q33214 | Hex. nut | 4 |
| 27 | Q150B1430 | Hex screw | 4 |
| 28 | DZ93259190040 | Air cleaner | 1 |
| 28 | DZ93259190285 | Air cleaner | 1 |
| 29 | DZ93319190001 | Air cleaner | 1 |
| 29 | 161200190040 | Stopper switch | 1 |
| 30 | 169100770028 | Protect cover | 1 |
| 31 | DZ93259190010 | Hose | 1 |
| 32 | DZ93259190009 | Pedestal assembly | 1 |

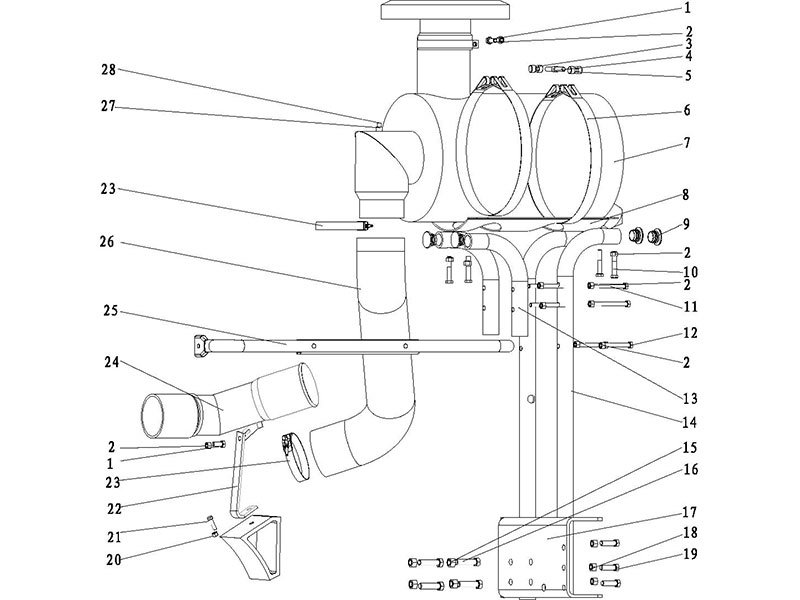

| NO | Part.No | Name |
Quantity |
| 1 | Q340B10 | Hex nut | 7 |
| 2 | Q40310 | Spring washer | 7 |
| 3 | DZ9112196033 | Up plate | 1 |
| 4 | 81.08240.5201 | Braclcet | 1 |
| 5 | Q150B1025 | Hex screw | 7 |
| 6 | Q2610830 | Locking screw | 2 |
| 7 | 384D0410007 | Pad | 2 |
| 8 | 81.08201.6053 | Intake pipe assembly | 1 |
| 9 | Q340B08 | Hex nut | 11 |
| 10 | Q40308 | Spring washer | 2 |
| 11 | 81.93030.0141 | Cushion block | 2 |
| 12 | Q1290850 | Stud | 2 |
| 13 | 81.08240.0215 | Bracket | 1 |
| 14 | Q2610810 | Screw | 3 |
| 15 | Q150B0820 | Hex screw | 7 |
| 16 | 81.08240.0213 | Bracket（Four） | 1 |
| 17 | 81.08240.0214 | Bracket（Five） | 1 |
| 18 | Q2610816 | Screw | 3 |
| 19 | DZ9112190079 | Air hose pipe | 1 |
| 20 | DZ9003980001 | Clip | 2 |
| NO | Part.No |
Name | Quantity |
| 21 | DZ9118190191 | Screw pipe | 1 |
| 22 | DZ93259190111 | Hose | 1 |
| 23 | DZ9118190230 | Air cleaner | 1 |
| 24 | DZ9003532166 | Clip | 1 |
| 25 | DZ9003532122 | Clip | 1 |
| 26 | DZ9118190231 | Bracket (upper) | 1 |
| 27 | Q150B1630 | Hex screw | 1 |
| 28 | Q150B1430 | Hex screw | 3 |
| 29 | Q33214 | Hex. nut | 3 |
| 30 | Q33216 | Hex. nut | 1 |
| 31 | DZ9112190175 | Bracket | 1 |
| 32 | DZ9118190232 | Bracket(lower) | 1 |
| 33 | 81.08203.0007 | Bracket | 1 |
| 34 | 190003989365 | Clip | 1 |
| 35 | 199100360135 | Plate | 1 |
| 36 | DZ9112190055 | Bracket | 1 |
