Shacman F2000&F3000 Air Tank Fixing

  • The Shacman F2000 & F3000 Air Tank Fixing system is comprised of several crucial components, including valves, seal rings, air tanks, fastening straps, ball washers, spring washers, nuts, screw bolts, screws, 20L air tanks, support assemblies, washers, hex screws, spring nuts, distance plates, taper rings, drainage valves, brackets, and air tanks of various capacities (9/15L and 25L).
  • These components work together to securely mount and stabilize the air tanks within the vehicle’s chassis.

Product Parameters of Shacman F2000&F3000 Air Tank Fixing

Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Shacman F2000&F3000 Air Tank Fixing
Download Catalog
Get Quotation
Whatsapp
  • With precision-engineered parts and robust construction, this fixing system ensures reliable performance and safety, providing essential support for the air brake system in Shacman F2000 & F3000 trucks.
  • Whether it’s securing smaller air tanks or larger ones, each component plays a vital role in maintaining optimal functionality and safety standards on the road.
NOPart.NoNameQuantity
1AZ9100368155Valve 2
2199100360319Seal ring2
4199100360173Fasterming strap 2
590003961510Ball washer 2
6Q40310Spring washer 4
7Q340B10Nut 4
8AZ9100369097Air tank 2
19Q150B0616Spring nut 4
20Q40506Nut4
21Q340B06Distance plate 4
2299100360101Hex screw 2
23Q150B1025Air tank 2
24AZ9100367002Washer1
25Q40010 3
NOPart.NoName Quantity
1AZ9100368155Valve4
2199100360319Seal ring4
3AZ9100369094Air tank2
4199100360173Fasterming strap2
5190003961510Ball washer2
6Q40310Spring washer4
7Q340B10Nut4
8AZ9100369097Air tank2
9280 550027Screw bolt4
10280 550029Screw4
11280 550028Screw bolt4
12199112270012Fasterning strap2
13AZ910036908720L air tank1
14Q340B08Nut
15Q40308Spring washer7
16DZ91189360100Support assembly7
17199100360196Washer1
18Q150B0830Hex.screw1
19Q150B0616Hex.screw7
20Q40506Spring nut4
21Q340B06Nut4
22199100360101Distance plate4
23Q150B1025Hex screw2
24AZ9100367002Air tank2
25Q40010Washer1
3
NOPart.NoNameQuantity
1190003962038Hex.screw1
2199100360319Taper ring4
3168000250092Seal ring4
4AZ9100368155Drainage valve3
5SZ905000009Air tank(9/15L)1
681.15502.5141Bracket1
7Q150B0885Hex.screw4
881.97460.6037Fasterming strap4
9Q33208Nut4
10SZ905000008Air tank(25L)1
NOPart.NoNameQuantity
1Q150B0860Hex.screw6
281.51701.5345Bracket2
3Q33208Nut6
481.97460.6037Fasterming strap4
5SZ90500007Air tank(30L)1
606.08099.0015Jam3
781.98181.6115fitting3
8Q150B0885Hex.screw4
981.51260.6054Drainage valve2
NOPart.NoNameQuantity
1Q150B0860Hex.screw6
2DZ95259362701Bracket1
DZ95259362701Bracket1
3Q33208Nu Brackett6
481.97460.6037Fasterming strap4
5SZ90500007Nut2
606.08099.0015Jam3
781.98181.6115fitting3
8Q150B0885Hex.screw4
981.51260.6054Drainage valve2
NOPart.NoNameQuantity
1190003962038Hex.screw1
2199100360319Taper ring4
3168000250092Seal ring4
4AZ9100368155Drainage valve3
5DZ93189360226Air tank(9/15L)1
6SZ905000738Bracket1
7Q150B0885Hex.screw4
881.97460.6037Fasterming strap4
9Q33208Nut4
10DZ93189360210Air tank(25L)1
11DZ93189360212Air tank(30L)2

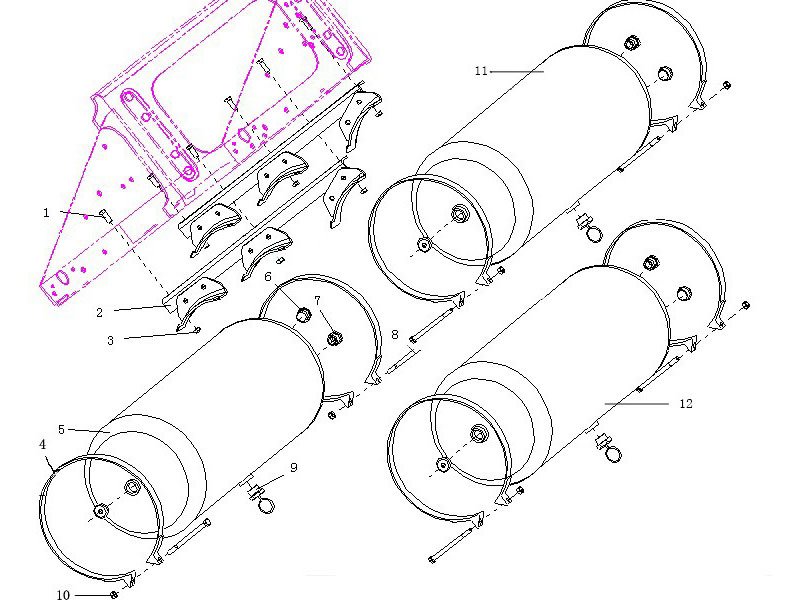

NOPart.NoNameQuantity
1168000250092Seal ring2
2199100360319Taper ring2
3AZ9100368155Drainage valve2
4SZ905000009Air tank(15+9L)1
DZ93189360226Air tank(15+9L)1
SZ905000008Air tank(25L)1
DZ93189360210Air tank(15+9L)2
5190003962038Hex.screw4
6199100360319Taper ring4
7168000250092Seal ring4
8DZ93189360090Bracket1
981.97460.6037Fasterming strap4
10Q150B0885Hex.screw4
11Q33208Nut4
NOPart.NoNameQuantity
1168000250092Seal ring2
2199100360319Taper ring2
3AZ9100368155Drainage valve2
4AZ9100369097Air tank(40L)2
5190003962038Hex.screw1
6199100360319Taper ring2
7168000250092Seal ring4
8DZ93189360094Bracket4
981.97460.6037Fasterming strap1
10Q150B0885Hex.screw4
11Q33208Nut4
4
NOPart.NoNameQuantity
1168000250092Seal ring2
2199100360319Taper ring2
381.51260.6054Drainage valve2
4DZ93189360226Air tank(9+15L)1
DZ93189360210Air tank(25L)1
DZ93189360212Air tank(30L)1
5190003962038Hex.screw2
6199100360319Taper ring4
7168000250092Seal ring4
8DZ93259360091Bracket1
981.97460.6037Fasterming strap4
10Q150B0885Hex.screw4
11Q33208Nut4

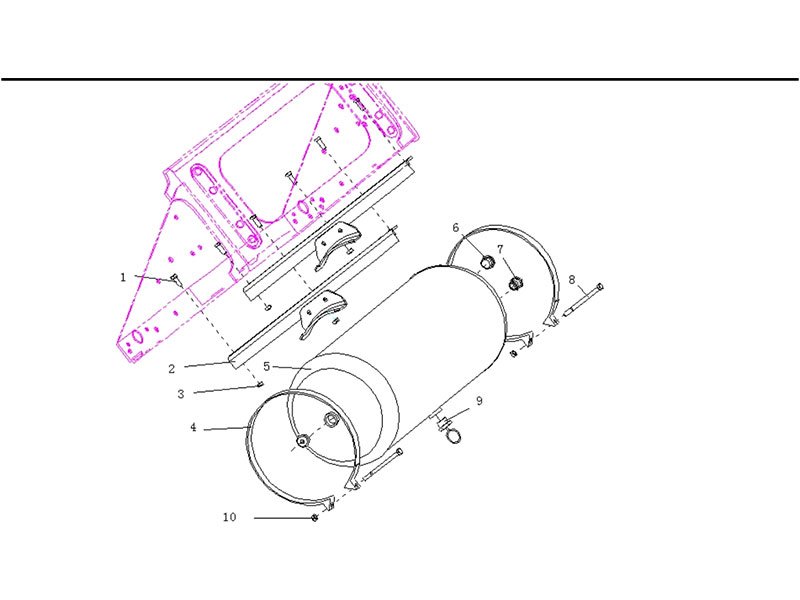

NOPart.NoNameQuantity
1168000250092Seal ring2
2199100360319Taper ring2
3AZ9100368155Drainage valve2
481.51401.0226Air tank(9+15L)1
81.51401.0210Air tank(25L)1
5190003962038Hex.screw4
6199100360319Taper ring4
7168000250092Seal ring4
8DZ93189360090Bracket1
981.97460.6037Fasterming strap4
10Q150B0885Hex.screw4
11Q33208Nut4
NOPart.NoNameQuantity
1Q150B0860Hex.screw6
281.51701.5332Bracket2
3Q33208Nut6
481.97460.6037Fasterming strap4
5DZ93189360212Nut2
606.08099.0015Jam3
781.98181.6115fitting3
8Q150B0885Hex.screw4
981.51260.6054Drainage valve2
NOPart.NoNameQuantity
1Q150B0880 Hex.screw 4
2Q40108  Washer 4
3Q40308 Spring washer 4
4Q340B08 Nut 4
581.51401.0212 30L air tank 2
681.97460.6037 Fasterming strap 4
7DZ93189360036 Support assembly 2
8Q40112 Nut 8
9Q40312  Spring washer 8
10Q40112 Washer 8
11DZ93189360030 Right support 1
12Q150B1235 Hex.screw 4
13DZ93189360029 Left support 1
14Q150B1240 Hex.screw4
