Shacman F2000&F3000 Pull Clutch Control Device
  • Introducing the Shacman F2000&F3000 Pull Clutch Control Device, a finely crafted mechanism designed for optimal performance and durability. This innovative system comprises several essential components meticulously engineered to ensure smooth clutch operation and longevity.
  • At its core lies the clutch main cylinder, supported by a network of interconnected parts. The hollow bolt serves as a structural backbone, providing stability and support to the assembly. Gaskets and seals, strategically placed throughout, prevent leakage and maintain fluid integrity.

Product Parameters of Shacman F2000&F3000 Pull Clutch Control Device

Shacman F2000&F3000 Pull Clutch Control Device
Shacman F2000&F3000 Push Clutch Control Device
Download Catalog
Get Quotation
Whatsapp
  • A robust hose system facilitates fluid transfer, with hose plugs ensuring secure connections. Hexagonal screws, reinforced by spring washers, offer reliable fastening, enhancing the device’s overall stability. The operating cylinder, equipped with a spring mechanism, delivers precise control over clutch engagement.
  • Ensuring fluid containment is the liquid container, complemented by a lock cover assembly for added security. Seal rings and plugs guarantee airtight seals, preventing any leakage or contamination. Lock washers and washers, paired with hexagonal screws, reinforce structural integrity, securing the device in place.
  • The pressure spring, housed within a spring seat, exerts the necessary force for clutch engagement. Tappets and circlips contribute to the system’s functionality, facilitating smooth movement and precise operation.
  • In essence, the Shacman F2000&F3000 Pull Clutch Control Device embodies excellence in engineering, offering a seamless fusion of precision, reliability, and durability. Trust in its design to deliver unparalleled performance, ensuring optimal functionality in every driving scenario.

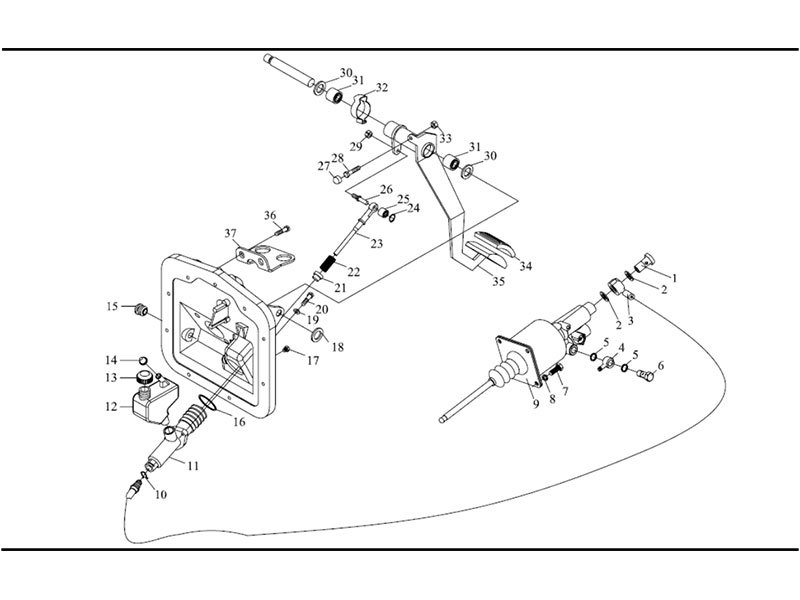

NO Part.No Name Quantity
1 190003962621 Hollow bolt 1
2 Q72314 T5F Gasket 2
3 DZ93259230420 Hose 1
4 199100270119 Hose plug 1
5 Q72316 T5F Gasket 2
6 190003962627 Hollow bolt 1
7 Q150B1020 Hex. Screw 4
8 Q40310 Spring washer 4
9 DZ9112230178 Operating cylinder 1
10 DZ9112230212 Spring 2
11 DZ9114230022 Clutch main cylinder 1
12 DZ9114230021 Liquid container 1
13 DZ93189230010 Lock cover assembly 1
14 81.96410.0197 Sealring 1
15 81.96002.0130 Plug 2
16 06.56930.1973 Toric seal 1
17 81.96002.0384 Plug 1
18 06.29050.0116 Lock washer 1
19 06.15013.0411 Washer 2
20 06.01283.3113 Hex. screw 2
21 81.97680.0019 Spring seat 1
22 06.46081.6338 Pressure spring 1
23 81.91020.0686 Tappet 1
24 06.29050.0111 Circlip 1
NO Part.No Name Quantity
25 06.33719.0018 Needle bearing 1
26 81.91020.0611 Threadedpin 1
27 81.96020.0369 Rubber pad 1
28 06.01283.3115 Hex. screw 1
29 06.11240.0406 Hex lock nut 1
30 06.15114.0418 Adjusting washer 2
31 06.33719.0005 Needle bearing 2
32 81.97640.0273 Spring clamp 3
33 06.11064.2114 Hex. nut 1
34 81.48227.0006 Pedal covering 1
35 81.48225.5119 Clutch pedal assembly 1
36 06.07069.0007 Hex. lock screw 2
37 81.48240.0327 Sensor bracket 1
NOPart.NoNameQuantity
1DZ9112230020Release arm1
2Q33210Nut6
3Q40314Spring washer2
4Q151B1435Hex. screw2
5DZ9112230029Bracket1
6DZ9112230166Operating cylinder1
7Q150B1045Hex. screw4
8Q72314 T5FGasket4
9199100270118Hose plug1
10SXQ84310Hollow bolt2
11DZ93259230300Hose1
12DZ9112230212Spring2
13DZ9114230022Clutch main cylinder1
14DZ9114230021Ciquid container1
1581.90310.6001Lock couer assembly1
1681.96410.0197Seal ring1
1781.96002.0131Plug2
1806.56930.1973Toric seal1
1981.96002.0384Plug1
2006.29050.0116Lock washer1
2106.15013.0411Washer2
2206.01283.3113Hex. screw2
2381.97680.0072Spring seat1
2406.46080.0422Pressure spring1
2581.91020.0686Tappet1
NOPart.No



Name

Quantity
2606.29050.0111Circlip1
2706.33719.0018Needle bearing1
2881.91020.0611Threaded pin1
2981.96020.0369Rubber pad1
3006.01283.3115Hex. screw1
3106.11240.0406Hex lock nut1
3206.15114.0418Adjusting washer2
3306.33719.0005Needle bearing2
3481.97640.0273Spring clamp3
3506.11064.2114Hex. nut1
3681.48227.0006Pedal covering1
3781.48225.5119Clutch pedal assembly1
3806.07069.0007Hex. lock screw2
3981.48240.0327Sensor bracket1
