The Shacman F3000 Air Condition Pipes are integral components of the vehicle’s advanced air conditioning system, designed to ensure efficient heat exchange and optimal cooling performance. This sophisticated system includes a range of meticulously engineered parts that work in harmony to deliver consistent and effective climate control.
| NO | Part.No | Designation | Quantity |
| 1 | DZ13241841078 | Condenser-evaporator connecting tube | 1 |
| DZ13241841083 | Condenser-evaporator connecting tube (three-state switch) | 1 | |
| 2 | DZ13241845122 | Tube bracket (three) | 1 |
| 3 | DZ13241824370 | Subcooled condenser assembly (integrated drying tank) | 1 |
| 4 | DZ13241845138 | Evaporator-compressor connection tube II (WP12) | 1 |
| DZ13241845134 | Evaporator-compressor connection tube (II) | 1 | |
| 5 | DZ14251845008 | Piping bracket (II) | 1 |
| 6 | DZ14251845013 | Compressor outlet tube (HX/WP12) | 1 |
| DZ14251845005 | Compressor-condenser connection tube (HX/WP10) | 1 | |
| 7 | DZ13241824112 | Compressor Assembly (Inclined Platen Type, Multi-Wedge Groove) | 1 |
| DZ95189154010 | Variable Displacement Compressor Assembly | 1 | |
| DZ95189154012 | Variable Displacement Compressor Assembly (Multi-Wedge, ISM, National III) | 1 | |
| 8 | DZ13241824602 | Belt | 1 |
| SZ915000001 | Belt | 1 | |
| DZ13241824603 | Multi-Wedge Belts | 1 | |
| DZ13241824601 | Belt | 1 | |
| 9 | DZ14251845011 | Pipe Clamp (I) | 1 |
| 10 | DZ14251845009 | Pipe holder (III) | 1 |
| 11 | DZ13241821204 | Drying tank holder assembly | 1 |
| 12 | DZ13241821501 | Fixed clamp (I) | 1 |
| 13 | DZ13241821502 | Fixed clamp (II) | 1 |
| 14 | DZ13241841043 | Evaporator-compressor connecting tube (I) | 1 |

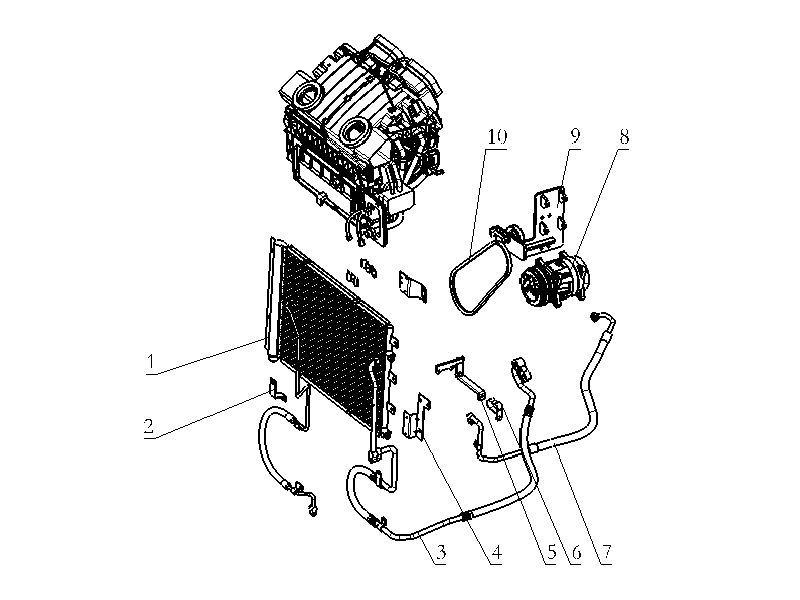

| NO | Part.No | Name | Quantity |
| 1 | DZ13241824370 | Subcooled condenser assembly (integrated drying tank) | 1 |
| 2 | DZ13241845122 | Piping support (iii) | 1 |
| 3 | DZ13241845134 | Evaporator-compressor connecting tube (II) | 1 |
| 4 | DZ14251845008 | Piping bracket (II) | 1 |
| 5 | DZ14251845009 | Piping bracket (iii) | 1 |
| 6 | DZ14251845011 | Tube clamp (I) | 1 |
| 7 | DZ14251845005 | Compressor-condenser connecting tube | 1 |
| (HX/WP10) | 1 | ||
| 8 | DZ95189154010 | Variable Displacement Compressor Assembly | 1 |
| 9 | SZ915000703 | Compressor bracket assembly | 1 |
| 10 | DZ13241824601 | Belt | 1 |
