Shacman F3000 Connecting Parts,Line & Nipple Joint

The Shacman F3000 is celebrated for its robust design and exceptional performance in various heavy-duty applications. A critical aspect contributing to its reliability is the comprehensive range of connecting parts that ensure seamless integration and efficient operation. This detailed overview highlights the essential components, including Nozzles, Tee Joints, L-Joints, T-Joints, Inline Fitting Body, Straight Fitting Body, Ferrules Straight Fitting Body, Cone Ring, Sealing Ring, Nut, Cutting Ring, and Seal Ring.

Product Parameters of Shacman F3000 Connecting Parts,Line & Nipple Joint

Shacman F3000 Connecting Parts,Line & Nipple Joint
Shacman F3000 Connecting Parts,Line & Nipple Joint
Shacman F3000 Connecting Parts,Line & Nipple Joint
Download Catalog
Get Quotation
Whatsapp

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • Connecting Parts
  • The Connecting Parts of the Shacman F3000 are meticulously engineered to provide a secure and reliable connection between various hydraulic system components. These parts are designed to withstand high pressures and demanding conditions, ensuring long-term durability and performance.
  • Nozzles

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • The Shacman F3000 features multiple Nozzles, which are crucial for the precise flow of fluids within the system. These nozzles are constructed from high-quality materials to ensure leak-free connections and optimal fluid dynamics.
  • Tee Joints
  • Tee Joints are essential for branching off fluid lines in the hydraulic system. The Shacman F3000 utilizes multiple tee joints to facilitate complex fluid routing, ensuring that the hydraulic system operates efficiently and effectively.

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • L-Joints and T-Joints
  • L-Joints and T-Joints are designed to provide angled and cross connections, respectively, within the hydraulic lines. These joints enhance the flexibility and versatility of the system, allowing for various configurations based on specific application needs.
  • Inline Fitting Body
  • The Inline Fitting Body is a critical component that ensures a smooth and uninterrupted flow of fluids within the hydraulic system. Its streamlined design minimizes pressure drops and enhances overall system efficiency.

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • Straight Fitting Body
  • The Straight Fitting Body provides a direct pathway for fluid flow, reducing turbulence and ensuring optimal performance. Its straightforward design simplifies installation and maintenance, contributing to the reliability of the Shacman F3000.
  • Ferrules Straight Fitting Body
  • Ferrules Straight Fitting Body components are designed to provide additional strength and security to hydraulic connections. These ferrules are made from hardened steel, ensuring a robust and leak-free connection under high-pressure conditions.

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • Cone Ring and Sealing Ring
  • Cone Ring and Sealing Ring components are integral to maintaining the integrity of hydraulic connections. The cone ring provides a tapered surface for secure coupling, while the sealing ring ensures a tight and leak-proof seal, preventing fluid leakage and maintaining system pressure.

  • Shacman F3000 Connecting Parts,Line & Nipple Joint

  • Nut, Cutting Ring, and Seal Ring
  • Nut, Cutting Ring, and Seal Ring components are essential for securing and sealing various hydraulic connections. The nuts provide a strong and stable fastening, the cutting rings ensure a precise fit, and the seal rings prevent leaks, ensuring the hydraulic system operates efficiently.
  • In conclusion, the connecting parts of the Shacman F3000, including Nozzles, Tee Joints, L-Joints, T-Joints, Inline Fitting Body, Straight Fitting Body, Ferrules Straight Fitting Body, Cone Ring, Sealing Ring, Nut, Cutting Ring, and Seal Ring, exemplify precision engineering and reliability. These components are designed to withstand the rigors of heavy-duty use, ensuring that the Shacman F3000 delivers unmatched performance and durability in various industrial applications. Whether for construction, mining, or any other demanding sector, the Shacman F3000’s connecting parts are built to perform and endure.

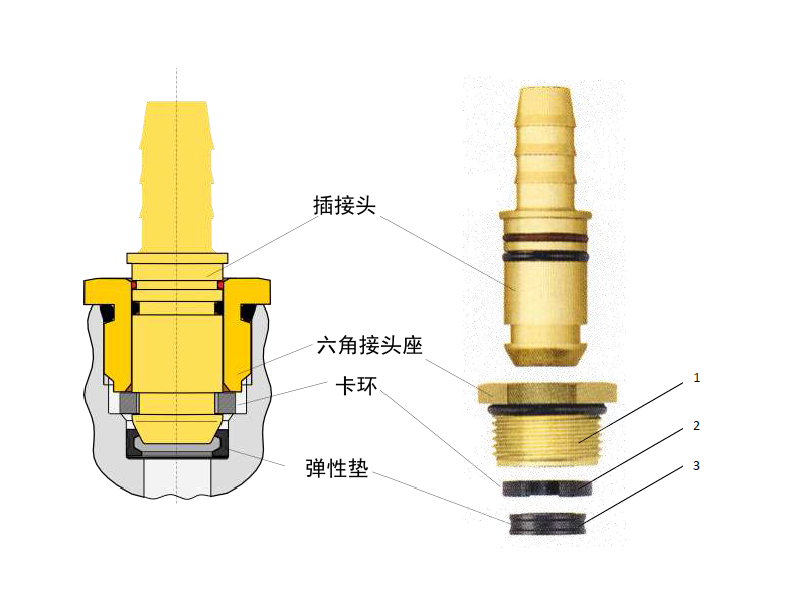

NO Part.No Designation Quantity Suited type
1 DZ9100360437 Inline Fitting Body 1 M26×1.5-M27×1.5
DZ9100360437 Straight Fitting Body 1 M22×1.5-M27×1.5
190003559386 Ferrules Straight Fitting Body 1 M22×1.5-M26×1.5
Q80320 Ferrules Straight Fitting Body 1 M27×1.5-M27×1.5
2 199100360319 Cone Ring 1 M22×1.5
199000360292 Cone Ring 1 M16×1.5
3 190003098031 Sealing Ring 1 20
140600070015 Sealing Ring 1 15.3
NO Part.No Designation Remark
A Conneting parts
1 81.98181.6081 Nozzle NG8，Ф8
81.98181.6082 Nozzle NG12，Ф8
81.98181.6083 Nozzle NG12，Ф12
81.98181.6201 Nozzle NG12，Ф14
2 81.98181.6084 Nozzle NG8，Ф8
81.98181.6085 Nozzle NG12，Ф8
81.98181.6086 Nozzle NG12，Ф12
81.98181.6143 Nozzle NG12，Ф12
81.98181.6202 Nozzle NG12，Ф14
3 81.98181.6236 Nozzle M12，Ф8
4 81.98181.6088 Tee joint NG12，Ф12，Ф8
81.98181.6122 Tee joint NG12，Ф12，Ф12
5 81.98181.0191 Tee joint Ф8，Ф8，Ф8
6 DZ92189366296 L-Joint NG12，Ф12
7 DZ92189366297 T-Joint NG12，Ф12
8 81.98181.6065 Tee joint Ф6，Ф6，Ф6
NO Part.No Designation Remark
1 81.98181.6346 Nut NG6
81.98181.6114 Nut NG8
81.98181.6115 Nut NG12
2 81.98181.0216 Cutting ring NG6
81.98181.0178 Cutting ring NG8
81.98181.0179 Cutting ring NG12
3 81.98181.0217 Seal ring NG6
81.98181.0176 Seal ring NG8
81.98181.0177 Seal ring NG12
