Shacman F3000 Pipe Connectors, Pipe Fittings

The Shacman F3000 Pipe Connectors and Fittings are integral parts designed to ensure efficient fluid transport and management in heavy-duty vehicles. These connectors and fittings are crafted with precision to deliver durability and reliability, making them essential for maintaining optimal performance in various applications.

Product Parameters of Shacman F3000 Pipe Connectors, Pipe Fittings

Shacman F3000 Pipe Connectors, Pipe Fittings
Shacman F3000 Pipe Connectors, Pipe Fittings
Shacman F3000 Pipe Connectors, Pipe Fittings
Download Catalog
Get Quotation
Whatsapp

  • Shacman F3000 Pipe Connectors, Pipe Fittings

  • Key Components
  • Connecting Parts: The connecting parts form the backbone of the piping system, providing secure links between different sections of pipes and ensuring seamless fluid flow.
  • Nozzle: Multiple nozzles are strategically designed to facilitate the directional flow of liquids, allowing for effective discharge and distribution. The versatility of the nozzle design accommodates various flow rates and pressures.
  • Tee Joints: The tee joints offer versatile connection points, enabling branching of pipelines. Multiple tee joints can be used to create complex systems, providing flexibility in routing fluids efficiently.

  • Shacman F3000 Pipe Connectors, Pipe Fittings

  • L-Joint and T-Joint: The L-joint is perfect for connecting pipes at right angles, while the T-joint allows for the intersection of three piping sections, ensuring easy integration into existing systems.
  • Nut: The nuts are essential for securing connections, ensuring that all fitting components remain tightly fastened even under high pressure.
  • Cutting Ring: The use of cutting rings ensures a leak-proof seal when connecting pipes, providing a reliable and secure fit that withstands varying operational conditions.
  • Seal Ring: Multiple seal rings are included to provide extra security against leaks, ensuring that the integrity of the fluid transport system is maintained.
  • Pipe Specifications

  • Shacman F3000 Pipe Connectors, Pipe Fittings

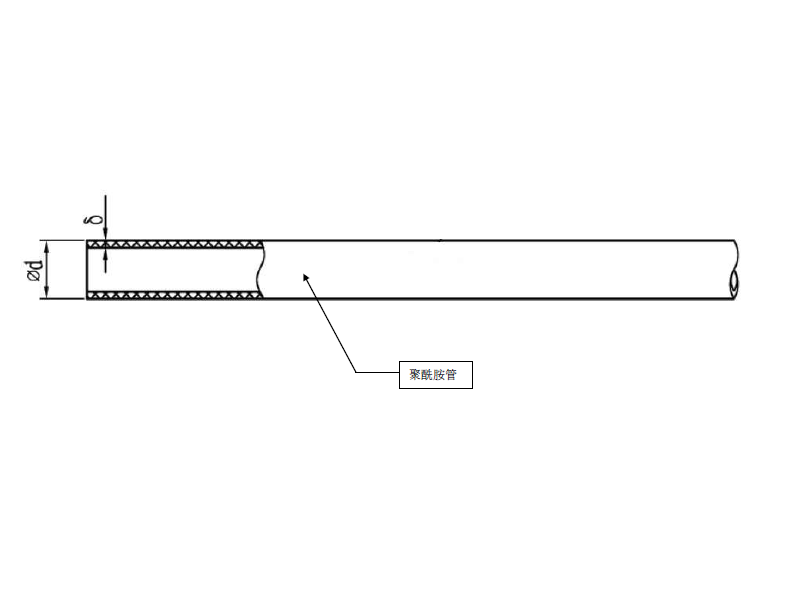

  • The Shacman F3000 system supports various pipes, available in different dimensions to suit specific needs:
  • Pipe φ6×1
  • Pipe φ8×1
  • Pipe φ12×1.5
  • Pipe φ14×2
  • Pipe φ14×2.5
  • Pipe φ16×2
  • Conclusion

  • Shacman F3000 Pipe Connectors, Pipe Fittings

  • Incorporating the Shacman F3000 Pipe Connectors and Fittings into your vehicle’s fluid management system enhances performance and reliability. From nozzles and tee joints to nuts and seal rings, each component plays a pivotal role in ensuring a robust and efficient fluid transport system. With various pipe specifications available, Shacman provides versatile solutions tailored to meet the demands of heavy-duty applications, ensuring optimal performance and longevity.

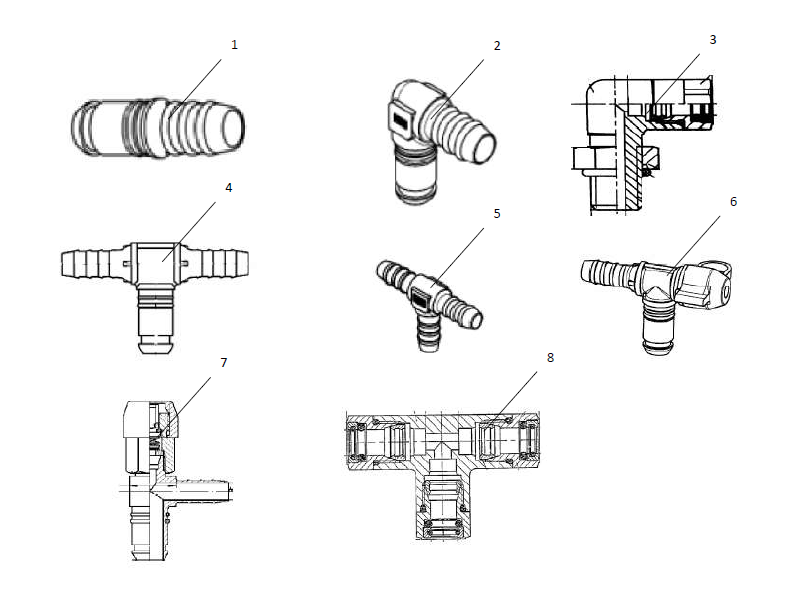

Part.No Part.No Name Remark
A Conneting parts
1 81.98181.6081 Nozzle NG8，Ф8
81.98181.6082 Nozzle NG12，Ф8
81.98181.6083 Nozzle NG12，Ф12
81.98181.6201 Nozzle NG12，Ф14
2 81.98181.6084 Nozzle NG8，Ф8
81.98181.6085 Nozzle NG12，Ф8
81.98181.6086 Nozzle NG12，Ф12
81.98181.6143 Nozzle NG12，Ф12
81.98181.6202 Nozzle NG12，Ф14
3 81.98181.6236 Nozzle M12，Ф8
4 81.98181.6088 Tee joint NG12，Ф12，Ф8
81.98181.6122 Tee joint NG12，Ф12，Ф12
5 81.98181.0191 Tee joint Ф8，Ф8，Ф8
6 DZ92189366296 L-Joint NG12，Ф12
7 DZ92189366297 T-Joint NG12，Ф12
8 81.98181.6065 Tee joint Ф6，Ф6，Ф6
Part.No Part.No Name Remark
1 81.98181.6346 Nut NG6
81.98181.6114 Nut NG8
81.98181.6115 Nut NG12
2 81.98181.0216 Cutting ring NG6
81.98181.0178 Cutting ring NG8
81.98181.0179 Cutting ring NG12
3 81.98181.0217 Seal ring NG6
81.98181.0176 Seal ring NG8
81.98181.0177 Seal ring NG12
Part.No Part.No Name Suited type
190003179782 Pipeφ6×1 All Models
190003179781 Pipeφ8×1 All Models
190003179785 Pipeφ12×1.5 All Models
04.35160.9714 Pipeφ14×2 All models
04.35160.9414 Pipeφ14×2.5 All models
DZ95189360101 Pipeφ16×2 All models
Part.No Part.No Name Remark
A Conneting parts
1 81.98181.6081 Nozzle NG8，Ф8
81.98181.6082 Nozzle NG12，Ф8
81.98181.6083 Nozzle NG12，Ф12
81.98181.6201 Nozzle NG12，Ф14
2 81.98181.6084 Nozzle NG8，Ф8
81.98181.6085 Nozzle NG12，Ф8
81.98181.6086 Nozzle NG12，Ф12
81.98181.6143 Nozzle NG12，Ф12
81.98181.6202 Nozzle NG12，Ф14
3 81.98181.6236 Nozzle M12，Ф8
4 81.98181.6088 Tee joint NG12，Ф12，Ф8
81.98181.6122 Tee joint NG12，Ф12，Ф12
5 81.98181.0191 Tee joint Ф8，Ф8，Ф8
6 DZ92189366296 L-Joint NG12，Ф12
7 DZ92189366297 T-Joint NG12，Ф12
8 81.98181.6065 Tee joint Ф6，Ф6，Ф6
DZ97259360177 Seal ring NG12
Part.No Part.No Name Remark
1 81.98181.6346 Nut NG6
81.98181.6114 Nut NG8
81.98181.6115 Nut NG12
2 81.98181.0216 Cutting ring NG6
81.98181.0178 Cutting ring NG8
81.98181.0179 Cutting ring NG12
3 81.98181.0217 Seal ring NG6
81.98181.0176 Seal ring NG8
81.98181.0177 Seal ring NG12
