Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

The Shacman F3000 model integrates a variety of high-quality pipe connectors and pipe fittings designed for efficient and reliable fluid transfer systems. Essential for the operational integrity of any heavy-duty vehicle, these components ensure seamless connections and ease of maintenance.

Product Parameters of Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)
Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)
Download Catalog
Get Quotation
Whatsapp

  • Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

  • Key Components
  • Connecting Parts: At the heart of the system are multiple connecting parts that facilitate secure and reliable junctions between various piping elements. These components are designed for durability and efficiency, which are crucial for demanding applications.
  • Nozzles: The system features numerous nozzles, each carefully crafted to ensure optimal flow and pressure management. These nozzles enhance the overall functionality of the fluid delivery system and are essential for maintaining performance in the field.

  • Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

  • Tee Joints: With several Tee Joints incorporated into the setup, these fittings allow for versatile branching of pipes within the system. The strategically placed tee joints ensure that fluid can be redirected easily and efficiently, accommodating various operational needs without compromising pressure stability.
  • L-Joint and T-Joint: The inclusion of L-Joints and multiple T-Joints provides further options for connection configurations, enabling customized layouts that can be modified depending on the specific requirements of the job. These joints are a testament to the flexibility of the Shacman F3000’s design.

  • Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

  • Nuts and Cutting Rings: Reliable fastening is guaranteed through the use of multiple nuts and cutting rings. These components secure the connections firmly, preventing leaks and ensuring that the system maintains its integrity under pressure. The cutting rings also play a vital role in enhancing the sealing capabilities of the connections, offering a robust solution for liquid transfer.
  • Seal Rings: To further ensure leak-proof connections, the system is equipped with numerous seal rings. These components are essential for creating airtight seals at junction points, providing an additional layer of protection against potential leaks or fluid loss.

  • Shacman F3000 Pipe Connectors, Pipe Fittings (Quick-Connect)

  • Conclusion
  • The Shacman F3000 Pipe Connectors and Pipe Fittings (Quick-Connect) system exemplifies precision engineering and reliability. With its array of nozzles, tee joints, L-joints, nuts, cutting rings, and seal rings, this system offers a comprehensive solution for fluid management in heavy-duty applications. The thoughtful design and high-quality materials used in these connectors and fittings promise long-lasting performance, ensuring that the Shacman F3000 continues to operate efficiently in the most challenging conditions. For those seeking dependable solutions in fluid transfer, the Shacman F3000’s quick-connect fittings stand out as a premier choice.

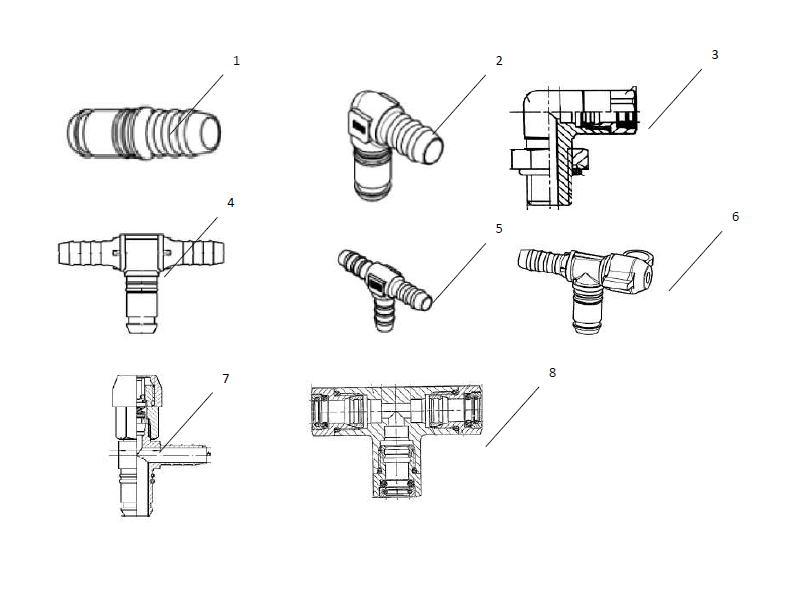

Part.NoPart.NoNameRemark
Conneting parts
181.98181.6081NozzleNG8，Ф8
DZ97259366081NozzleNG8，Ф8
81.98181.6082NozzleNG12，Ф8
DZ97259366082NozzleNG12，Ф8
81.98181.6083NozzleNG12，Ф12
DZ97259366083NozzleNG12，Ф12
81.98181.6201NozzleNG12，Ф14
DZ97259366201NozzleNG12，Ф14
281.98181.6084NozzleNG8，Ф8
DZ97259366084NozzleNG8，Ф8
81.98181.6085NozzleNG12，Ф8
DZ97259366085NozzleNG12，Ф8
81.98181.6086NozzleNG12，Ф12
DZ97259366086NozzleNG12，Ф12
81.98181.6143NozzleNG12，Ф14
DZ97259366143NozzleNG12，Ф14
381.98181.6202NozzleM12，Ф8
DZ97259366202NozzleM12，Ф8
481.98181.6236Tee jointNG12，Ф12，Ф8
DZ97259366326Tee jointNG12，Ф12，Ф8
81.98181.6088Tee jointNG12，Ф12，Ф12
DZ97259366088Tee jointNG12，Ф12，Ф12
581.98181.6122Tee jointФ8，Ф8，Ф8
DZ97259366122Tee jointФ8，Ф8，Ф8
681.98181.0191Tee jointNG12，Ф12
DZ97259360191Tee jointNG12，Ф12
AConneting parts
7DZ92189366296L-JointNG12，Ф12
8DZ92189366297T-JointNG12，Ф12
DZ97259366297T-JointNG12，Ф12
81.98181.6065T-JointФ6，Ф6，Ф6
DZ97259366065T-JointФ6，Ф6，Ф6
Part.NoPart.NoNameRemark
181.98181.6346NutNG6
DZ97259366346NutNG6
81.98181.6114NutNG8
DZ97259366114NutNG8
81.98181.6115NutNG12
DZ97259366115NutNG12
281.98181.0216Cutting ringNG6
DZ97259360216Cutting ringNG6
81.98181.0178Cutting ringNG8
DZ97259360178Cutting ringNG8
81.98181.0179Cutting ringNG12
DZ97259360179Cutting ringNG12
381.98181.0217Seal ringNG6
DZ97259360217Seal ringNG6
81.98181.0176Seal ringNG8
DZ97259360176Seal ringNG8
81.98181.0177Seal ringNG12
DZ97259360177Seal ringNG12
