Shacman F3000 Steering Hydraulic Device

The Shacman F3000 Steering Hydraulic Device is a vital component that enhances steering control, providing a smooth and responsive driving experience. This hydraulic system is designed to assist drivers in maneuvering with minimal effort, making it essential for both urban and off-road driving scenarios.

Product Parameters of Shacman F3000 Steering Hydraulic Device

Shacman F3000 Steering Hydraulic Device
Download Catalog
Get Quotation
Whatsapp

  • Shacman F3000 Steering Hydraulic Device

  • Key Components of the Hydraulic Steering System
  • At the core of this advanced system is the hydraulic pump, which generates the hydraulic pressure needed for steering assistance. Connected to the pump are several crucial elements, including hollow screws and seal-washers, which ensure a leak-proof connection. The delivery line and relief line are essential for transporting hydraulic fluid throughout the system, allowing for efficient operation and responsiveness.

  • Shacman F3000 Steering Hydraulic Device

  • Durability and Structural Reliability
  • The oil container assembly serves as the reservoir for the hydraulic fluid, ensuring that there is always sufficient fluid for optimal performance. This assembly is mounted securely using the oil container bracket and is held in place with hex screws and locking nuts. Structural support is further provided by multiple brackets, which help maintain the integrity of the system under various driving conditions.

  • Shacman F3000 Steering Hydraulic Device

  • Flexible Connections and Fluid Management
  • To facilitate fluid transfer, the system utilizes rubber hoses and pipes, which are resistant to wear and high pressure. Multiple pipes connect various components, with pipe clamps securing them in place to prevent leaks. The use of clips further aids in organizing these connections, resulting in a tidy and reliable assembly.

  • Shacman F3000 Steering Hydraulic Device

  • Assembly and Maintenance Features
  • For ease of maintenance and assembly, various nuts, washers, and hex screws are strategically used throughout the hydraulic device. This modular approach allows for straightforward replacement of parts, ensuring that any servicing can be completed efficiently. Additionally, the spring jacket provides extra protection for the rubber hoses, maintaining their integrity over time.

  • Shacman F3000 Steering Hydraulic Device

  • Conclusion
  • In summary, the Shacman F3000 Steering Hydraulic Device is expertly designed to provide enhanced steering control while ensuring long-lasting performance. With its array of high-quality components, such as the hydraulic pump, delivery lines, and oil container assembly, this system plays a crucial role in the vehicle’s overall functionality. Investing in this advanced steering hydraulic device ensures that drivers experience exceptional handling and comfort on every journey, making it an indispensable feature of the Shacman F3000.

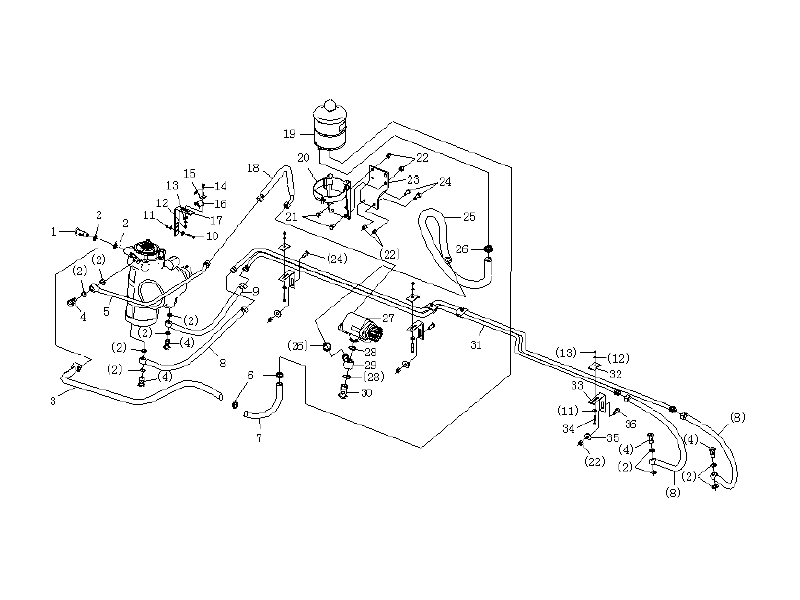

NO Part.No Name Quantity
1 190003962632 Hollow screw 1
2 DZ91189470114 Seal-washer 12
3 DZ95319470313 Relivery line 1
4 190003962632 Hollow screw 5
5 DZ95319470130 Delivery line 1
6 190003989336 Clip 2
7 DZ95189470012 Rubber hose 1
8 DZ91189470003 Pipe 2
DZ96319470035 Pipe 1
9 DZ91189470004 Pipe 1
10 Q150B1030T1F3 Hex screw 1
11 Q33210T2F3 Nut 1
12 Q340B06 Nut 4
13 Q40206 Washer 4
14 Q150B0620 Hex screw 1
15 159000360205 Clip 2
16 161000060211 Rubber hose 1
17 DZ95319470317 Bracket 1
DZ9118470031 Bracket 1
18 DZ91189470004 Pipe 1
19 DZ95319470013 Oil container assy 1
20 DZ9100470040 Oil container bracket 1
21 Q150B1020T1F3 Hex screw 2
22 Q33210T2F3 Locking nut 4
23 DZ95259470023 Bracket 1
24 Q150B1030T1F3 Hex screw 2
25 169100470020 Hose 1
DZ9100470039 Spring jacket 1
26 190003989301 Clip 2
27 DZ9100130008 Hydraulic pump 1
28 190003098031 Seal-washer 2
29 199100470076 Ring-joint 1
30 190003962651 Hollow screw 1
31 SZ947000986 Delivery line 1
32 118800730187 Pipe clamp 4
33 DZ9118470031 Bracket 2
188000360083 Bracket 1
34 Q150B0620 Hex screw 3
35 Q33210T2F3 Washer 3
36 Q151B1030T1F3 Hex screw 3
