Shacman H3000S Truck

Introduce Of Shacman H3000S Truck

  • Discover the ultimate heavy-duty solution with the Shacman H3000S truck series, engineered to conquer the toughest jobsites and highways with relentless power and efficiency.
  • Whether you need the exceptional payload dominance of the **Shacman H3000S 8×4 420hp Dump Truck** for mining, large-scale earthmoving, and construction haulage, or the long-haul muscle of the **SHACMAN H3000S 6×4 tractor truck** for regional and intercity logistics, this lineup sets a new benchmark in durability and cost-effectiveness.
    The 420-horsepower dump variant thrives on brutal terrain with its reinforced bogie suspension and high-strength steel cargo box, while the 6×4 tractor model impresses with its aerodynamic cab, optimized fuel economy, and superior traction control for heavy trailer operations.
  • Both vehicles share a fatigue-resistant ladder frame, a proven Weichai powertrain paired with FAST gearboxes, and a driver-centric cabin featuring climate control, an ergonomic dashboard, and panoramic visibility. Own the road with a Shacman H3000S workhorse that minimizes downtime, maximizes uptime, and keeps your business rolling ahead of the competition.

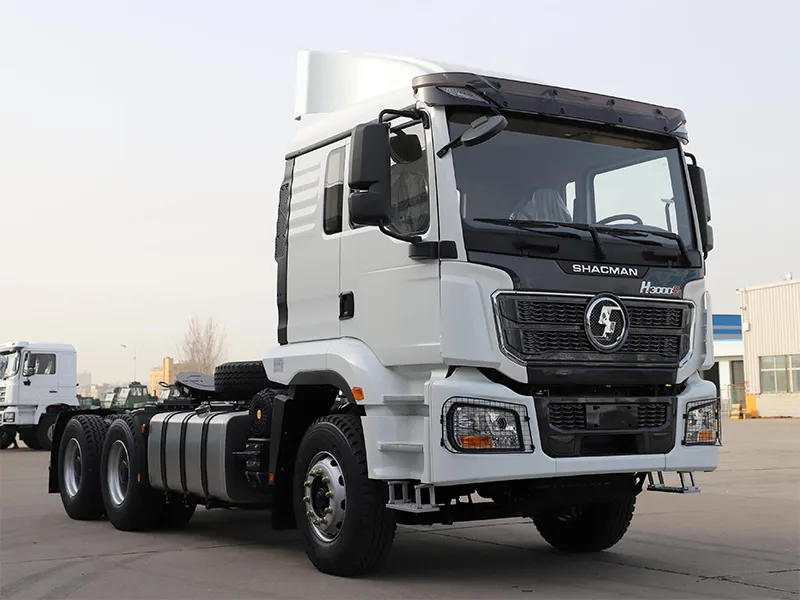

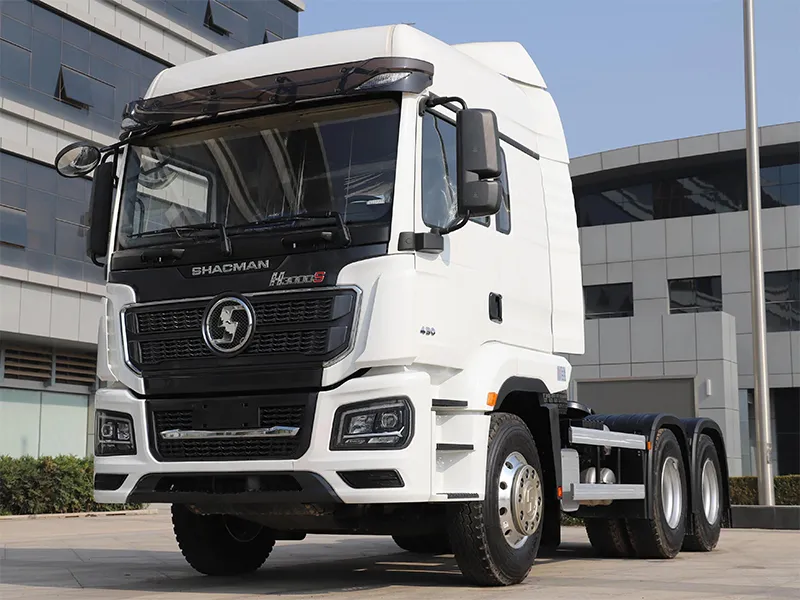

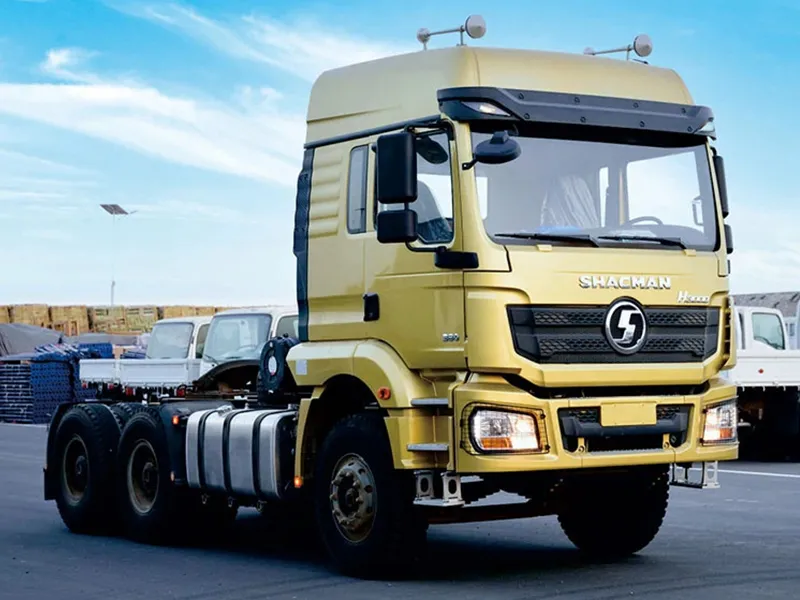

Product Description Of Shacman H3000S 6×4 Tractor Truck

The Shacman H3000S 6×4 Tractor Truck is a long-haul champion built to deliver consistent profitability through brute strength and intelligent efficiency. Its 6×4 axle configuration ensures rock-solid stability and superb traction when hauling fully loaded trailers, while the refined Weichai powerplant coupled with a smooth-shifting FAST transmission slashes fuel costs without sacrificing performance. Inside the wide-body cab, drivers enjoy a quiet, fatigue-fighting environment complete with an intuitively arranged cockpit, advanced climate control, and a suspension seat that absorbs road shocks over thousands of kilometers. Backed by a heavy-duty ladder frame and minimal maintenance needs, this Shacman tractor keeps your fleet earning mile after mile.

Product Specifications Of Shacman H3000S 6×4 Tractor Truck

Transport type Commodity transportation logistics (Standard transport)
Logistics type Food, fruit, wood, household appliances and other department stores
Drive 4X2
Max weight(t) ≤50
Max speed(km/h) 100
Loaded speed 60~75
Vehicle model SX4185HL361
Engine WP7.270E31
Emission standard Euro II
Displacement 7.14L
Rated Output 199KW
Max. torque 1100N.m
Transmission RTD11509C
Clutch 430
Frame 850X270 (8+5)
Front axle MAN 7.5T
Rear axle 13T STR4.266
Tire 12.00R22.5
Front Suspension Little leaf springs
Rear Suspension Little leaf springs
Battery 165Ah
Fuel Diesel
Capacity of the fuel tank 400L
Dimensions 6080X2490X3560
Wheelbase 3600
The fifth wheel 90 type(lightweight)
Approach/departure angle 22/66
Max grad ability 20
Cab Type MAN H3000,Lengthened Flat Roof
Equipment ♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning
Optional ♦ Central locking♦ Full vehicle WABCO valve
Transport type Commodity transportation logistics (Standard transport)
Logistics type Food, fruit, wood, household appliances and other department stores
Drive 6X4 6X4 6X4
Max Weight(t) ≤70 ≤55 ≤90
Max Speed 110 95 95
Loaded speed(km/h) 50~70 50~75 40~60
Vehicle model SX4255HT324 SX4255HT324C SX4255HU324
Engine WP10.380E22 ISM385 WP12.400E201
Emission standard Euro II Euro III Euro II
Displacement 9.726L 10.8L 11.596L
Rated Output 280KW 283KW 294KW
Max. torque 1460N.m 1835N.m 1920N.m
Transmission 12JSD200T-B 12JSD200T-B 12JSD200T-B
Clutch 430 430 430
Frame 850X270 (8+4) 850X270 (8+4) 850X300 (8+5)
Front axle MAN 7.5T MAN 7.5T MAN 7.5T
Rear axle 13T STR3.866 13T STR3.866 13T STR4.266
Tire 12.00R20 12.00R22.5 12.00R20
Front Suspension Little leaf springs
Rear Suspension Little leaf springs
Battery 165Ah 180Ah 165Ah
Fuel Diesel
Capacity of the fuel tank 400L 400L 600L
Dimensions 6860X2490X3710
Wheelbase 3175+1350 3175+1350 3175+1400
The fifth wheel 90 type(lightweight)
Approach/departure angle 22/66
Max grad ability 20
Cab Type MAN H3000,Lengthened Flat Roof
Equipment ♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning
Optional ♦ Central locking♦ Full vehicle WABCO valve

Product Details Of Shacman H3000S 6×4 Tractor Truck

440HP Of Robust Power

The H3000 is powered by engines from WEICHAI and CUMMINS, renowned global leaders in diesel engine manufacturing, offering up to 440HP of robust power.

FAST Gearbox

FAST gearbox, provided by the world’s preeminent transmission supplier, ensures an optimal balance between economic fuel consumption and dependable performance.

HANDE Axle

HANDE axle incorporates state-of-the-art technology, boasting exceptional load-bearing capabilities and high-torque output, underpinning the vehicle’s strong performance.

Cab Frame

The integration of stamping and forming processes for the cab frame, coupled with advanced robotic welding technology, significantly improves the structure’s load-bearing capabilities and overall stability.

Flat Chassis

The vehicle’s flat chassis layout is strategically designed to provide a minimum ground clearance of 560mm. This design, coupled with approach and departure angles exceeding 28 degrees, significantly enhances the vehicle’s trafficability, allowing for superior ease of movement across diverse terrains.

Paint Coating

The vehicle’s paint coating, encompassing the cab, frame, and chassis, has undergone a comprehensive upgrade. Enhancements have been made to augment the gloss finish, alongside a substantial increase in weather resistance, ensuring prolonged durability and aesthetic appeal.

Comprehensive Upgrade

Equipped with 700-liter aluminum alloy fuel tank, the H3000S not only hauls more but goes further. The vehicle is equipped with side panel protection, water tank protection and oil pan protection. A fuel filter element is added to effectively protect the key assemblies of the vehicle.

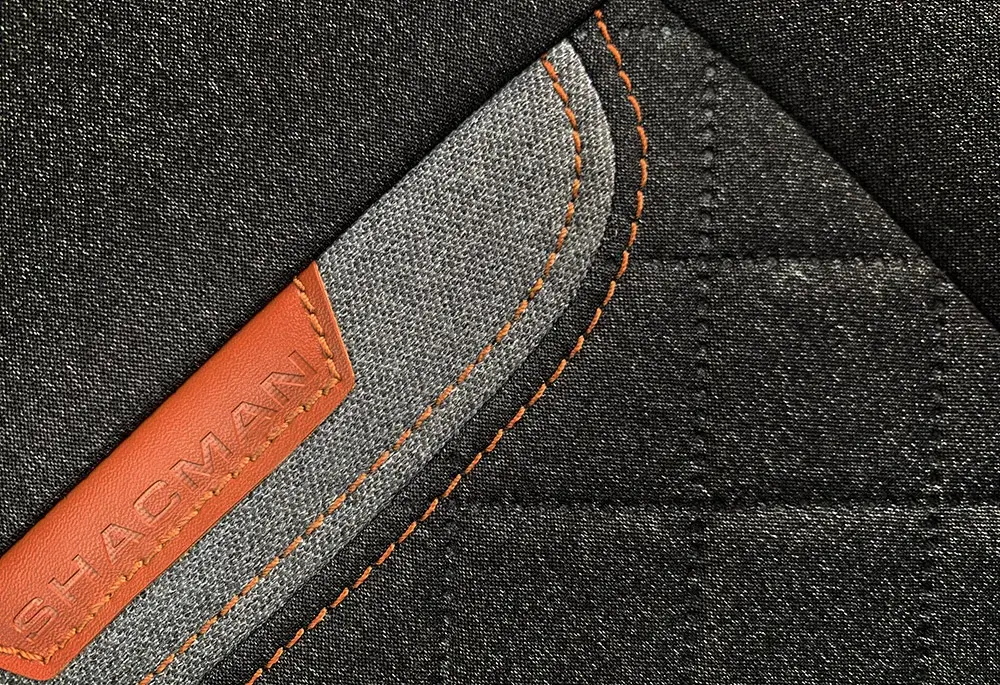

Premium Materials

The vehicle’s interior is outfitted with premium natural negative ion fiber fabric, fostering an ambiance of comfort. It features a sleeper compartment lined with an 840mm wide, warm-toned material, designed to enhance the ergonomics and comfort for the user.

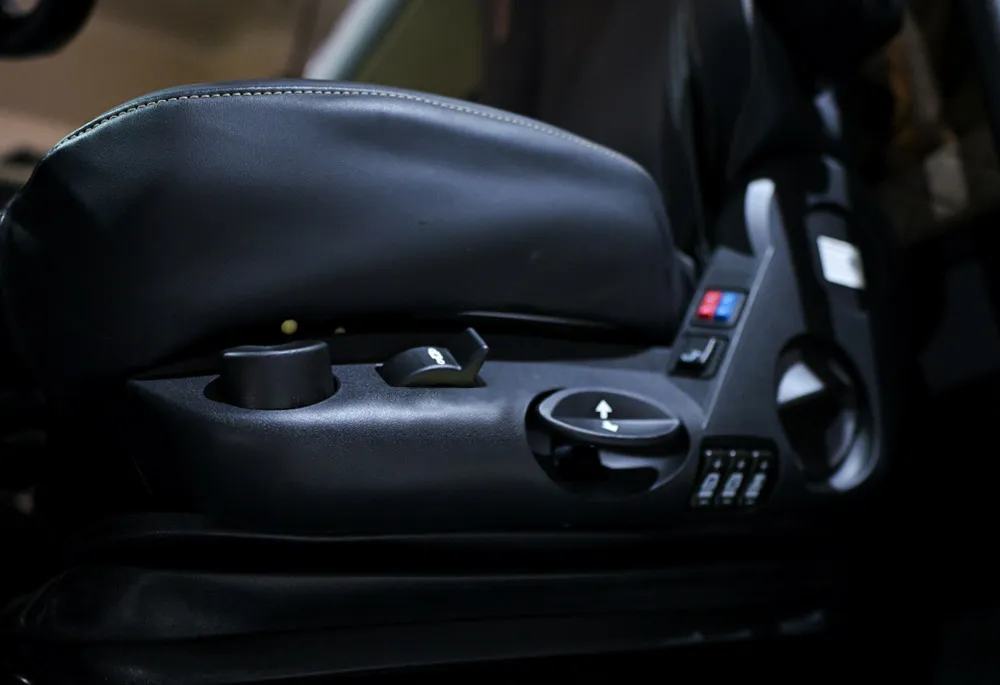

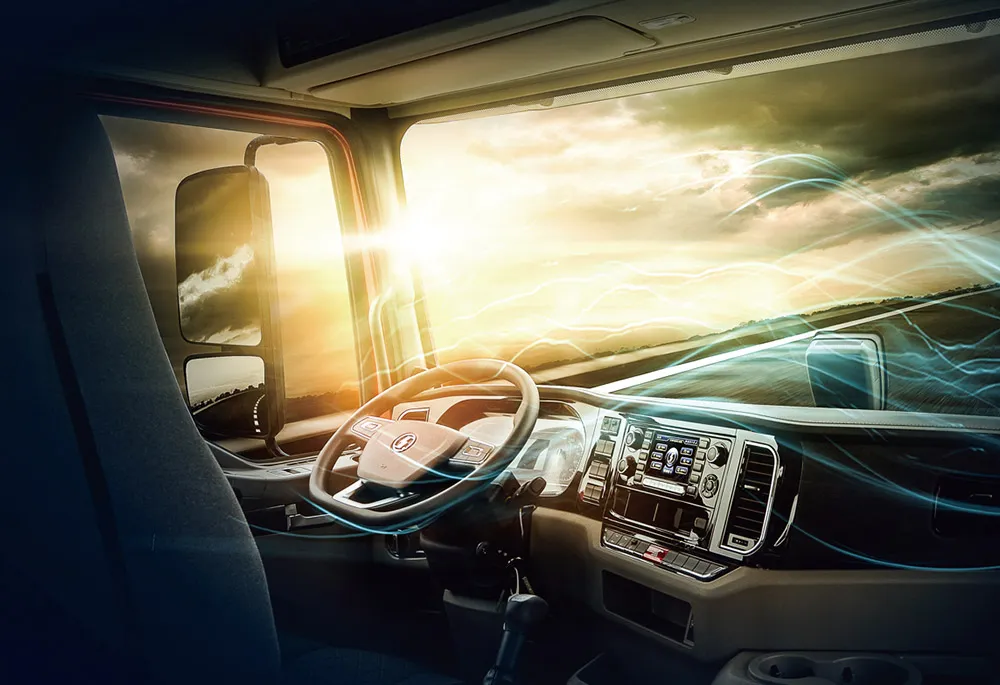

Enhanced Driving Dynamics

The cab is available with optional hydraulic or pneumatic seating, which, when paired with the four-point air suspension shock absorbers, markedly enhances the vehicle’s driving dynamics and passenger comfort.

Focused On The Job

The cabin’s design incorporates polyester-based soundproofing materials and a 30mm thick integrated foam floor mat, delivering superior Noise, Vibration, and Harshness (NVH) isolation. This enhancement contributes to a more focused driving experience.

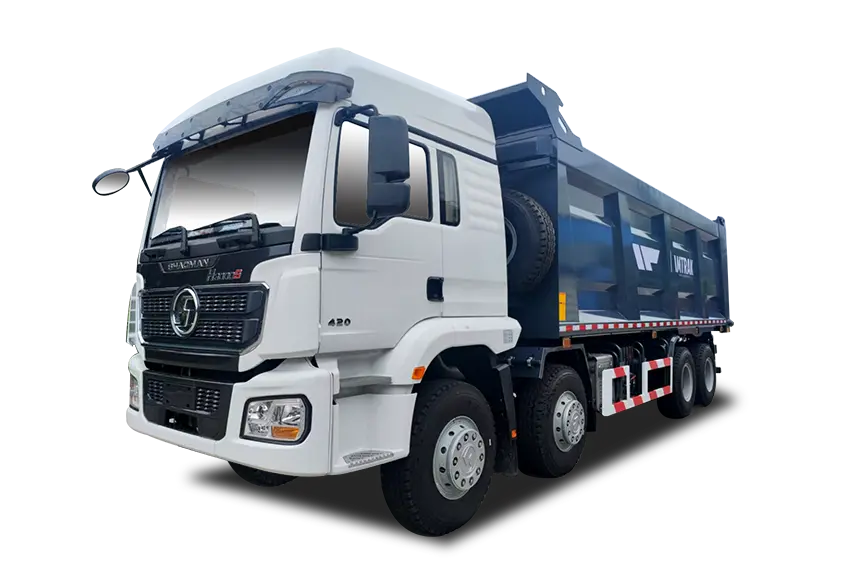

Product Description Of Shacman H3000S 8x4 420hp Dump Truck

As a leader in the engineering transportation sector, the Shaanxi Automobile H3000S 8×4 420-horsepower dump truck stands out for its exceptional load-carrying capacity and power performance, making it the ideal choice for heavy-duty operations in mining, infrastructure construction, and other demanding environments. The Shaanxi Automobile H3000S 8×4 420-horsepower dump truck is equipped with a Weichai WP12.420E50 high-pressure common-rail engine, delivering 420 horsepower of robust power, and is paired with a Fast 12-speed transmission. It maintains stable power output even when climbing a 30% gradient.

Shacman H3000S Truck

Product Specifications Of Shacman H3000S 8x4 420hp Dump Truck

Truck Name Shacman H3000S 8×4 420hp Dump Truck
Transport type Highway transport
Logistics type Ore / sand / gravel / coal
Distance(km) ≤200
Road type Offroad/Paved roads
Drive 8×4
Max weight(t) ≤90
Max speed(km/h) 80
Loaded speed(km) 45~60
Vehicle model SX3315DV366C
Engine ISME420 30
Emission standard Euro Ⅲ
Displacement 10.8L
Rated output 306kw
Max.torque 2010N·m
Transmission 12JSD200T-B+QH50
Clutch 430
Frame 850×320(8+7+8)
Front axle MAN 9.5T
Rear axle 16T MAN double reduction 4.769
Tire 12.00R20
Front Suspension Multi leaf springs
Rear Suspension Multi leaf springs
Fuel Diesel
Capacity of the fuel tank 400L
Battery 180Ah
Dimensions(L×W×H) 9300×2490×3250
Trunk(LxWxH) 7400×2300×1500
Wheelbase 1800+3575+1400
Approach/Departure angle(°) 23/44
Max.gradeability(%) 40

Core Advantages Of Shacman H3000S 8x4 420hp Dump Truck

  1. Fuel efficiency is 8% higher than comparable models; thanks to the intelligent fuel-saving system, combined fuel consumption is only 35 liters per 100 kilometers;
  2. Equipped as standard with a German-engineered hydraulic lifting system, it takes only 18 seconds to unload a fully loaded truck;
  3. The cab of the Shaanxi Automobile H3000S 8×4 420-horsepower dump truck complies with the European ECE R29 rollover protection standard and is equipped with an air-suspension seat and an intelligent temperature control system.

Maintenance and Care Of Shacman H3000S Truck

The Weichai powertrain in your H3000S is built for endurance, but it demands clean lubrication. Always use the manufacturer-approved heavy-duty diesel engine oil and replace both the oil and fuel filters precisely on schedule. If your 8×4 dump truck operates in severe dusty conditions or the 6×4 tractor idles extensively, cut the interval in half to prevent premature wear and fuel system contamination.

Modern Shacman H3000S trucks rely on Selective Catalytic Reduction (SCR) to meet emission standards. Never let the Diesel Exhaust Fluid (DEF/AdBlue) tank run dry, and always use high-quality fluid that meets ISO 22241 standards. Periodically inspect the DEF injector nozzle for crystallization and clean it gently. Ignoring this system can lead to costly sensor failures and forced engine derating.

With the heavy loads handled by the 8×4 dump variant or the constant traction demands on the 6×4 tractor, the chassis grease points are critical. Grease all driveshaft universal joints, kingpins, slack adjusters, and spring pins every 2,000–3,000 km. Pay special attention to the bogie suspension on the 8×4 model and the fifth-wheel coupling plate on the tractor truck—a dry plate causes dangerous trailer-grip issues.

Turbocharged engines hate restrictions. Check the air filter indicator daily and blow out or replace the primary element frequently in dusty job sites. Simultaneously, inspect the charge-air hoses for cracks and tight clamps. For the cooling pack, keep the radiator and intercooler fins clean of mud and debris using a low-pressure wash to prevent overheating, especially when the 420hp engine is working hard.

Before turning the key, spend five minutes on a full walk-around. Look for fluid puddles underneath, check for loose wheel nuts, and verify tire pressures (including the inner duals). On the dump truck, inspect the hydraulic lift cylinder and hoses for leaks. On the tractor, confirm the electrical and air lines are stowed correctly to avoid damage. Catching a small leak or a split hose early can save you from catastrophic roadside breakdowns.

FAQ Of Shacman H3000S Truck

A: The H3000S is equipped with the highly respected Weichai WP-series engine, delivering robust horsepower like the 420hp option found on the 8x4 dump truck. It is paired with a FAST manual gearbox and Hande axles, often referred to as the “golden powertrain” in the trucking industry. This combination is celebrated for its bulletproof reliability, easy access to spare parts, and excellent fuel efficiency across harsh operating environments.

A: Fuel consumption heavily depends on the load, terrain, and driving habits. However, for a standard-loaded 6×4 tractor truck running on highways at cruising speed, operators can expect around 30 to 35 liters per 100km. With smart driving and proper tire inflation, many fleet owners report numbers at the lower end of that range, helping to significantly cut operating costs over the long haul.

A: The engine oil change interval is typically around 20,000 to 30,000 kilometers when using premium synthetic heavy-duty oil, though severe off-road use by the 8x4 dump truck may warrant shorter intervals. Shacman has an extensive global service network, and the shared Weichai/FAST drivetrain means filters, belts, and brake linings are widely available, often off-the-shelf, minimizing workshop downtime.

A: Not if handled correctly. The Selective Catalytic Reduction system on the H3000S is reliable, but it requires strict discipline: always use high-quality AdBlue that meets ISO 22241, never let the tank run dry, and periodically rinse the DEF injector nozzle with distilled water to clear crystallization. Ignoring these basics can lead to false warning lights and derating, but properly cared for, the system runs trouble-free for hundreds of thousands of kilometers.

A: The legal payload depends on the local vehicle registration rules and the weight of the cargo box fitted, typically ranging from 15 to 25 tons for on-road compliance. However, the chassis itself is engineered with a heavy-duty, high-strength steel frame and reinforced bogie suspension, capable of handling much more in off-road mining and construction sites without structural fatigue—though adhering to legal limits preserves long-term drivetrain life and safety.

A: The 6×4 tractor model is built to comfortably handle a fully loaded standard semi-trailer up to a gross combination weight of 49 tons, compliant with most road transport regulations. The 50 or 90-grade fifth-wheel coupling plate and powerful 420+ hp engine provide ample tractive force for starting on grades and maintaining cruise speeds without straining the powertrain.

A: Yes. The H3000S cabin features four-point air suspension and an ergonomic air-suspended driver's seat that absorbs heavy shocks. High-roof versions come with dual sleeper bunks that are wide and well-padded. The climate control system is powerful, the interior is well-sealed against dust and noise, and the steering wheel and dashboard are placed for minimal fatigue, making it a true long-distance home on wheels.

A: Return on investment is one of the strongest selling points. Thanks to low maintenance costs, competitive initial purchase price, and excellent fuel economy, a well-utilized 6×4 tractor often achieves full payback in 18 to 24 months of highway logistics work. For the 8x4 dump truck in constant site duty, the payback can be even faster—often 12 to 18 months—because of its exceptionally high uptime and durability under grueling conditions.

A: This truck has no unique systemic faults, but minor issues usually come from neglect: a) electrical gremlins from aftermarket wiring tampering, b) clutch plate slip from holding the pedal down partially, and c) DPF or SCR clogs from using cheap fuel or AdBlue. Regular professional inspections and using genuine OEM parts will eliminate 95% of potential roadside breakdowns and keep the vehicle running like new.

A: The standard warranty typically covers the entire vehicle for 18 to 24 months or 100,000 to 150,000 kilometers, whichever comes first. Crucially, the core powertrain (engine, gearbox, drive axles) often carries an extended warranty of up to 36 months without mileage limitation, giving operators substantial peace of mind. Exact terms vary by region and dealer, so it is best to confirm locally, but the coverage is among the best in its class.
