The Shacman X6000 Right Door Lock System is a sophisticated system engineered to deliver exceptional ride comfort and stability. Each component of this suspension system plays a critical role in ensuring that the rear cabin performs optimally under various driving conditions. Here’s a closer look at the key parts of this essential system.
| NO | Part.No | Name | Quantity |
| 1 | DZ16231340112 | Door outer handle_ RH | 1 |
| 2 | Q150B0610 | Hex bolt | 2 |
| 3 | DZ16231340119 | Lock catch | 1 |
| 4 | Q2540820S | Screw | 2 |

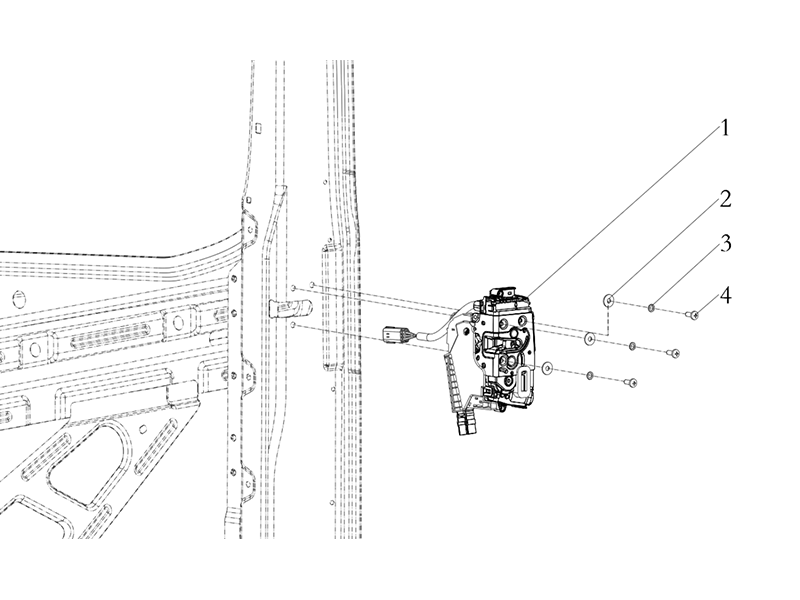

| NO | Part.No | Name | Quantity |
| 1 | DZ16231340116 | Door Lock_ RH | 1 |
| 2 | Q402B06 | Big Washer | 3 |
| 3 | Q41206 | Lock Washer | 3 |
| 4 | Q2140616 | Screw | 3 |

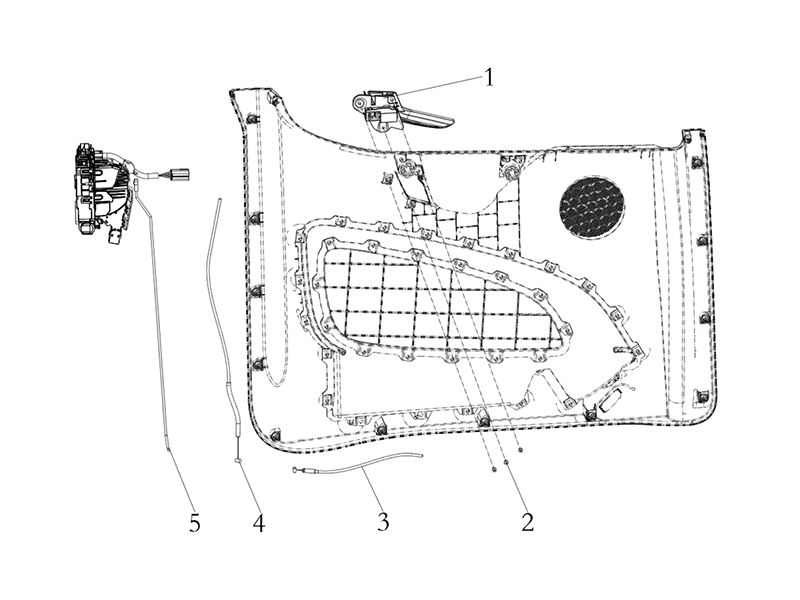

| NO | Part.No | Name | Quantity |
| 1 | DZ16231340114 | Door inner handle_ RH | 1 |
| 2 | Q2714213 | Screw | 3 |
| 3 | DZ16251340123 | Door Inner guide Cable | 1 |
| 4 | DZ16251340121 | Door Out guide Cable | 1 |
| 5 | DZ16251340118 | Door Lock guide Plate_ RH | 1 |
