Shacman F2000&F3000 Single Stage Bridge Middle Bridge Shell
  • The Shacman F2000 & F3000 Single Stage Bridge Middle Bridge Shell is a critical component designed to ensure durability and performance in heavy-duty commercial vehicles.
  • This bridge shell includes essential parts such as the perforation shaft (output), adjusting nut, axle seal ring, space ring, shim, ball bearing, axle case assembly (469), magnetic plug assembly, seal washer, circlip for axle, adjuster shim, nut, plain washer, brake adjusters (right and left), brackets, bolts, studs, bush, brake camshafts (left and right), grease nipple, bracket, sleeve, bolts, spring brake air-chambers, and cotter pins.

Product Parameters of Shacman F2000&F3000 Single Stage Bridge Middle Bridge Shell

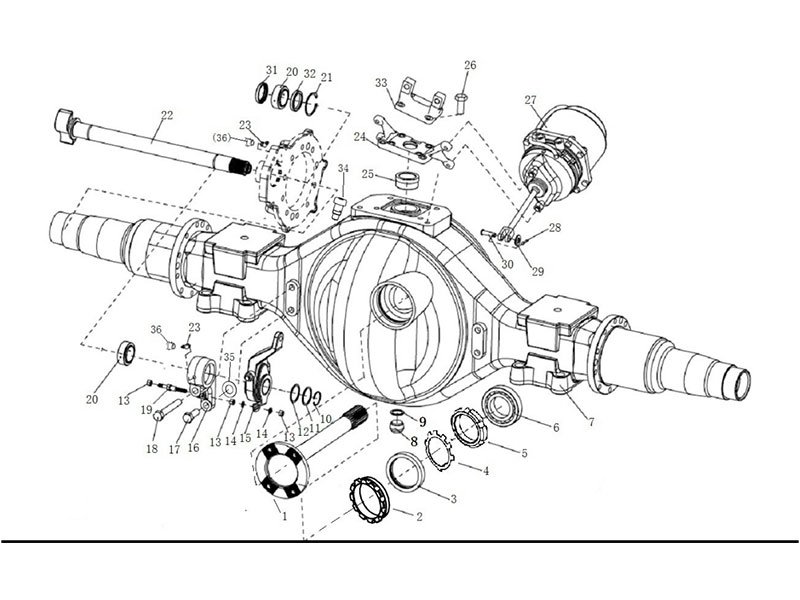

Shacman F2000&F3000 Single Stage Bridge Middle Bridge Shell
Download Catalog
Get Quotation
Whatsapp
  • Each component is meticulously engineered to meet strict quality standards, contributing to the longevity and functionality of the bridge shell. From the axle seal ring ensuring a tight seal to the brake adjusters facilitating precise adjustment, each part plays a crucial role in maintaining optimal performance and safety in heavy-duty vehicles.
  • The Shacman F2000 & F3000 Single Stage Bridge Middle Bridge Shell exemplifies superior design and reliability, making it an indispensable component for ensuring the smooth operation and safety of commercial vehicles under demanding conditions.
NO Part No Name Quantity
1 DZ9114320905 Perforation shaft(output) 1
2 81.90685.0053 Adjusting nut 1
3 HD95129320010 Axle seal ring 1
4 Q41408 Space ring 1
5 DZ95149320053 Shim 1
6 DZ90149326012 Ball bearing 1
7 DZ9114331960 Axle case assembly(469) 1
DZ90129330004 Axle case assembly(469) 1
DZ90129330083 DZ90129330089 Axle case assembly(469) Axle case assembly(469) 1 1
8 158600330015 Magnetic plug assembly 1
9 Q72336 Seal washer 1
10 190003933116 Circlip for axle 2
11 108000320028 Adjuster shim on-demand
108000320029 Adjuster shim on-demand
108000320030 Adjuster shim on-demand
108000320046 Adjuster shim on-demand
12 188000340022 Adjuster shim 2
13 Q340B08 Nut 6
14 Q40108 Plain washer 4
15 DZ9100340046 Brake adjuster (right) 1
DZ9100340045 Brake adjuster (left) 1
NO Part No Name Quantity
15 199000340057 Brake adjuster (right) 1
  199000340056 Brake adjuster (left) 1
16 DZ9112340046 Bracket(right) 2
17 Q151B1640TF2 Bolt 2
18 Q151B16105TF2 Bolt 2
19 81.91020.0318 Stud 2
20 188000340017 Bush 4
21 190003933300 Circlip for axle 2
22 DZ9112340117 Brake camshaft(left) 1
  DZ9112340118 Brake camshaft(right) 1
23 06.38070.0102 Grease nipple 4
24 81.43240.0112 Bracket 1
  DZ9114340179 Bracket 1
  DZ9114340169 Bracket 1
  DZ90129340055 Bracket 1
25 81.93001.0328 Sleeve 1
26 81.90030.0135   Bolt   5
26 06.02812.1115 Bolt 2
  Q1811645TF2 Bolt 2
27 DZ9112360309 Spring brake air-chamber 4
  DZ9112360331 Spring brake air-chamber 1
28 Q5004022 Cotteer pin 1
NOFartNoNameQuantit
29Q40114Plain washer1
30190003903661Pin roll2
31188000340023Grease packing2
32188000440010Grease packing2
33DZ9112330730Bracket for front rear axle1
34DZ90129340051Bracket for front rear axle1
34199000330006Assembly for venthole1
35DZ9112340330Adjuster shimon-demand
35DZ9112340331Adjuster shimon-demand
35DZ9112340332Adjuster shimon-demand
35DZ9112340333Adjuster shimon-demand
35DZ9112340334Adjuster shimon-demand
35DZ9112340335Adjuster shimon-demand
35DZ9112340336Adjuster shimon-demand
3681.96002.0191Dirt guard4
