Shacman F2000&F3000 Steyr 6.5 Ton Steering Axle
  • The Shacman F2000&F3000 Steyr 6.5 Ton Steering Axle is an essential component designed to provide reliable steering control and stability in heavy-duty vehicles.
  • This steering axle assembly consists of various key elements, including hex bolts, spring washers, caps, cotter pins, washers, row-steep roller bearings, wheel nuts, front wheel hubs, wheel bolts, ABS gear rings, packing rings, bushings, O-style packing rings, steering knuckles (left and right), pins, O-style packing rings, bush, bearer (left and right), bolts, taper thread grease nipple, steering knuckle arms, hex bolts, sensor sleeves, and sensors.

Product Parameters of Shacman F2000&F3000 Steyr 6.5 Ton Steering Axle

Shacman F2000&F3000 Steyr 6.5 Ton Steering Axle
Download Catalog
Get Quotation
Whatsapp
  • Each component is carefully engineered and assembled to withstand the demanding conditions of heavy-duty operations, ensuring precise steering performance and enhanced maneuverability.
  • With its sturdy construction and meticulous design, the Shacman F2000&F3000 Steyr 6.5 Ton Steering Axle plays a critical role in providing drivers with smooth and responsive steering capabilities, making it an indispensable part of heavy-duty vehicle systems.

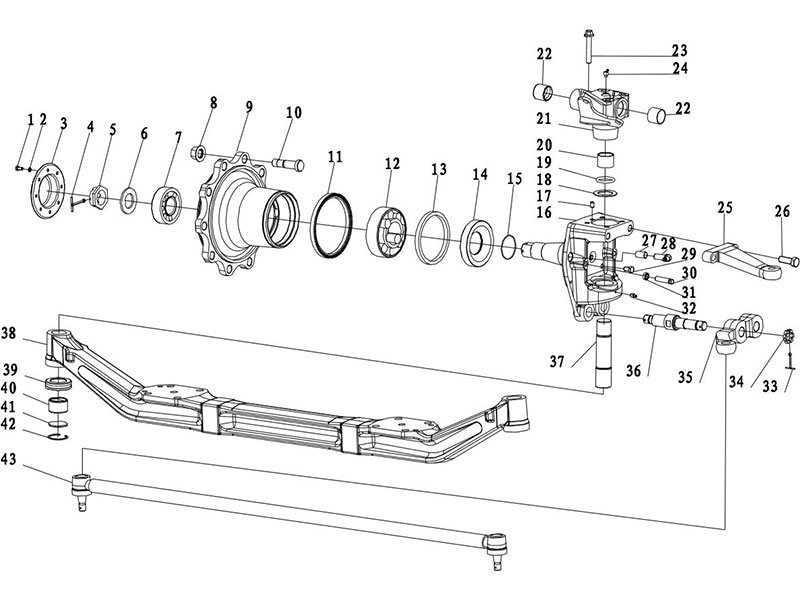

NO Part.No Name Quantity
1 Q150B0816 Hex bolt 16
2 Q40308 Spring washer 16
3 188000410043 Cap 2
4 Q5006375 Cotter pin 2
5 1160-3001141 Hex bolt 2
6 DZ91009410028 Washer 2
7 32310 Row-steep roller bearing 2
8 190003884160 Wheel nut 20
9 199112410009 Front Whee hub 2
10 199000410104 Wheel bolt 20
11 199112410019 ABS gear ring 2
12 32314 Row-steep roller bearing 2
13 190003070044 Packing ring 2
14 199000410114 Bushing 2
15 129500420033 O style packing ring 2
16 199112410055 Steering knuckle (left) 1
16 199112410056 Steering knuckle (right) 1
17 190003901506 Pin 2
18 188000 410104 Washer as needed
18 188000 410105 Washer as needed
18 188000 410106 Washer as needed
18 188000 410107 Washer as needed
18 188000 410108 Washer as needed
18 188000 410094 Washer as needed
18 188000 410095 Washer as needed
NO Part.No Name Quantity
19 188000 410096 Washer as needed
19 188000 410097 Washer as needed
19 DZ91009410019 Washer as needed
19 DZ91009410020 Washer as needed
19 DZ91009410021 Washer as needed
19 DZ91009410022 Washer as needed
19 DZ91009410023 Washer as needed
19 DZ91009410024 Washer as needed
19 DZ91009410025 Washer as needed
19 DZ91009410026 Washer as needed
19 188000410052 O style packing ring 2
20 188000410035 Bush 2
21 AZ9100410033 Bearer(left) 1
AZ9100410037 Bearer(right) 1
22 DZ91009410005 Bush 4
23 DZ9003800004 Bolt 8
24 190003963114 Taper thread grease nipple 2
25 199000410001 Steering knuckle arm 1
199014410001 Steering knuckle arm 1
199000410045 Steering knuckle arm 1
26 Q151B1850TF2 Hex bolt 2
27 DZ9100580215 Sensor sleevr 2
28 DZ9100580214 Sensor 2
81.96002.0368 2
NO Part.No   Name Quantity
29 Q151C1220 Hex bolt 4
30 188000410059 Hex bolt 2
31 Q351B14T15 Hex nut 2
32 190003963112 Taper thread grease nipple 2
33 Q5005050 Cotter pin 4
34 190003872377 Hex nut 4
35 188000410041 Steering cross rod arm 1
  188000410040 Steering cross rod arm(right) 1
  199018410005 Steering cross rod arm 1
  199018410004 Steering cross rod arm(right) 1
36 188000410038 Break hoof pin 4
37 188000410031 Steering knuckle pin 2
38 188000410054 Front axle 1
39 188000410049 Thrust roller bearing 2
40 188000410029 Bush 2
41 188000410100 Cover 2
42 Q43056 Circlip for hole 2
43 199100430018 Steering cross rod 1
  199018430006 Steering cross rod 1
