Shacman F2000&F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ
  • The Shacman F2000 & F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ is a critical component that plays a pivotal role in ensuring efficient power distribution and torque management within the vehicle’s drivetrain system.
  • This sophisticated assembly includes components such as the planet shelf, shelf assembly, planet gear washer, quill roller bearing, washer, planet gear, planet gear axle, steel ball, packing ring, hub reductor case, washer, circlip for axle, end cap pin, end cap, packing ring, square head tapered plug, hex bolt, central gear, central gear washer, pin, hex bolt, gear ring bearer, gear ring bearer assembly, gear ring seat ring, stop washer, circle nut, and silt bolt.

Product Parameters of Shacman F2000&F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ

Shacman F2000&F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ
Download Catalog
Get Quotation
Whatsapp
  • Each element of the Shacman F2000 & F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ is meticulously designed and engineered to ensure optimal performance and durability under demanding operational conditions. From the precise alignment of the planet gears to the secure fastening provided by the hex bolts and circlips, every component serves a specific function in enabling seamless power transfer and reliable operation of the drivetrain system.
  • With its advanced technology and robust construction, the Shacman F2000 & F3000 STR Drive Axle Wheel Planetary Reducer Ⅱ stands as a testament to quality and reliability, making it an indispensable component for heavy-duty commercial vehicles seeking enhanced performance and longevity.

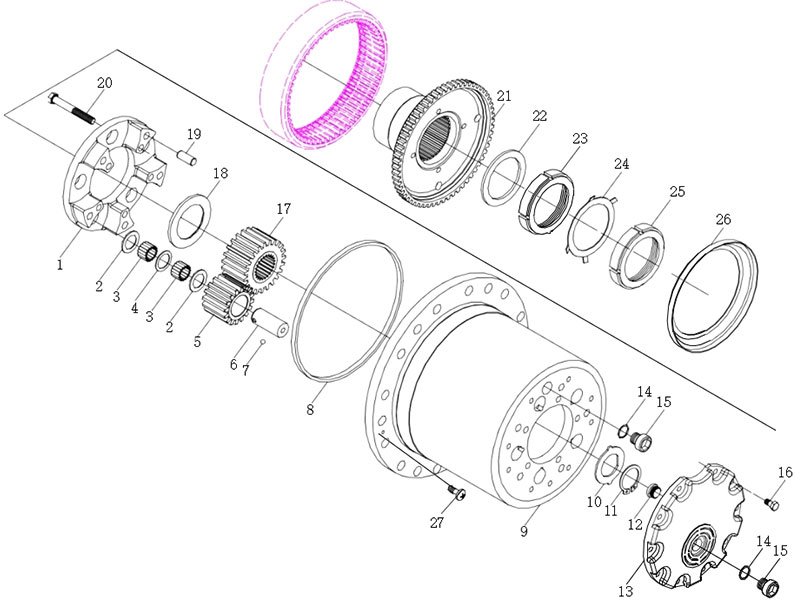

NO Part.No Name Quantity
1 199112340018 Planet shelf 4
199112340029 Planet shelf assy 4
2 199012340075 Planet gear washer 40
3 1-99-934-013 Quill roller bearing 40
4 199012340077 Washer 20
5 199012340122 Planet gear 20
6 199012340004 Planet gear axle 20
7 190003330148 Steel ball 20
8 199012340029 Packing ring 8
9 199012340069 Hub reductor case 4
10 188000410097 Washer 4
11 190003933351 Circlip for axle 4
12 199012340011 End cap pin 4
13 DZ91129340025 End cap 4
14 190003098026 Packing ring 8
15 DZ9112346116 Square head tapered plug 8
16 Q150B1014 Hex bolt 40
17 199012340005 Central gear 4
18 199012340076 Central gear washer 4
19 190003901704 Pin 20
20 190003803671 Hex bolt 20
21 DZ91129340106 Gear ring bearer 4
DZ91129340107 Gear ring bearer assy 4
22 188000420033 Gear ring seat ring 4
NO Part.No   Name Quantity
23 DZ9112340215 Circle nut 4
24 168000340015 Stop washer 4
25 DZ9112340216 Circle nut 4
26 190003825520 Silt bolt 8
