Shacman F2000&F3000 STR Rear Axle Drive Device

  • The Shacman F2000 & F3000 STR Rear Axle Drive Device is a crucial component in the vehicle’s drivetrain system that ensures smooth and efficient power transfer to the wheels.
  • Key components of this assembly include the flange nut, flange assembly, flange, prevented dust cap, ring, axle packing ring, row-steep roller bearing 30312, adjusting washer hex bolt, bearing seat, packing ring, row-steep roller bearing 32316, row-steep roller bearing 32315, bevel drive gear, adjusting washer, main speed reducer case assembly, main speed reducer case, bevel gear, differential housing (left), hex bolt, row-steep roller bearing 32216, fixed engage cowl, washer, circle nut, differential adjusting nut, sliding engage cowl, sliding block, declutch shift, bend plate, slit nut, hex nut, case (right), and adjusting washer.

Product Parameters of Shacman F2000&F3000 STR Rear Axle Drive Device

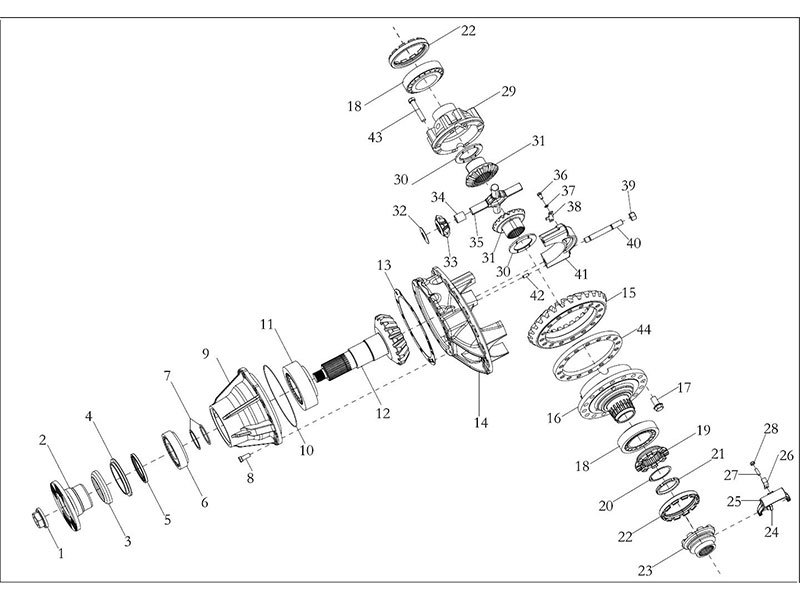

Shacman F2000&F3000 STR Rear Axle Drive Device
Download Catalog
Get Quotation
Whatsapp
  • These components work together to ensure proper alignment and engagement of the rear axle drive mechanism, providing the vehicle with the necessary torque and power distribution for optimal performance. The precision engineering and quality construction of the Shacman F2000 & F3000 STR Rear Axle Drive Device make it a reliable and durable solution for heavy-duty commercial vehicles.
NOPart.NoNameQuantity
1DZ91129320007Flange nut1
2DZ9112320631Flange assembly1
DZ9112320632Flange1
3179000320012Prevented dust cap1
4199012320121Ring1
5DZ9112320920Axle packing ring1
6190003326236Row-steep roller bearing303121
7188000320002Adjusting washeron-demand
188000320003Adjusting washeron-demand
188000320004Adjusting washeron-demand
188000320005Adjusting washeron-demand
188000320006Adjusting washeron-demand
188000320007Adjusting washeron-demand
188000320008Adjusting washeron-demand
188000320009Adjusting washeron-demand
188000320010Adjusting washeron-demand
188000320011Adjusting washeron-demand
188000320012Adjusting washeron-demand
188000320013Adjusting washeron-demand
188000320014Adjusting washeron-demand
188000320015Adjusting washeron-demand
8190003802623Hex bolt12
9199012320131Bearing seat1
199012320103Bearing seat1
10199012320133Packing ring1
NOPart.NoNameQuantity
11190003326546Row-steep roller bearing323161
190003326547Row-steep roller bearing323151
12DZ9112320622Bevel drive gear1
DZ9112320620Bevel drive gear1
DZ9112320621Bevel drive gear1
DZ9112320623Bevel drive gear1
DZ9112320625Bevel drive gear1
DZ9112320626Bevel drive gear1
13199012320173Adjusting washeron-demand
199012320174Adjusting washeron-demand
199012320175Adjusting washeron-demand
199012320176Adjusting washeron-demand
14199012320098Main speed reducer case assy1
199012320097Main speed reducer case1
15199012320125Bevel gear1
199012320035Bevel gear1
199012320037Bevel gear1
199012320006Bevel gear1
199012320013Bevel gear1
199112320001Bevel gear1
16199012320027Differential housing (left)1
199012320197Differential housing (left)1
NOPart.NoNameQuantity
AZ9112320197Differential housing (left)
17DZ9114320013Hex bolt16
DZ9114320011Hex bolt16
DZ9114320012Hex bolt16
18190003326148Row-steeproller bearing322162
19138090320155Fixed engage cowl1
20138090320158Locking washer1
21138090320157Circle nut1
22138090320159Differential adjusting nut2
23138090320156Sliding engage cowl1
24118000320077Sliding block2
25199012320014Declutch shift1
26199012320023Bend plate1
27190003902481Slit nut1
28190003871252Hex nut1
29199012320008Differential case (right)1
30118000320012Adjusting washerselect
118000320131Adjusting washerselect
118000320132Adjusting washerselect
199012320129Adjusting washerselect
138090320169Adjusting washerselect
31199012320009Axle shaft gear2
32DZ90129320082Planet gear washer4
33DZ90129320003Planet gear4
NOPart.No NameQuantity
34DZ90129320001Planet gear bush4
35DZ90129320002cross axle assy1
 DZ90129320000cross axle1
36190003802411Hex bolt4
37190003931102Spring washer4
38DZ9112320083Stop piece2
39190003888459Self-locking nut4
40190003810852Stud4
41DZ9112320002Differential bearing cover2
42190003901420Pin4
43190003803712Hex bolt8
44AZ9112320153Differential case washer1
