Adjusting brake shoes on Shacman trucks is crucial for safe driving and vehicle longevity. This guide covers manual and automatic methods.
Proper adjustment ensures optimal braking performance, reduces wear, and prevents accidents. Follow steps carefully for best results.
Regular maintenance of Shacman brake shoes can save costs and enhance safety on the road. Learn the key steps below.
Adjust Shacman Brake Shoes
Learning how to adjust Shacman brake shoes is essential for truck owners and mechanics. This process involves precise steps to ensure safety.
Shacman trucks like the F3000 or X3000 use drum brakes with slack adjusters. These adjusters regulate the gap between the brake lining and drum.
In the first 100 words, it’s vital to understand that adjusting Shacman brake shoes requires caution and proper tools. Always start with safety checks.
If your Shacman has manual slack adjusters, follow these steps. First, locate the adjuster bolt on the slack adjuster body.
Use a wrench to turn the bolt clockwise until the brake shoes are tight against the drum. The wheel should not move at this point.
Then, back off the bolt counter-clockwise by about 1/4 to 1/2 turn. This creates a small, even gap for free drum rotation.
Verify the pushrod stroke is within specs, typically 1–2 inches based on chamber size. This ensures proper adjustment of Shacman brake shoes.

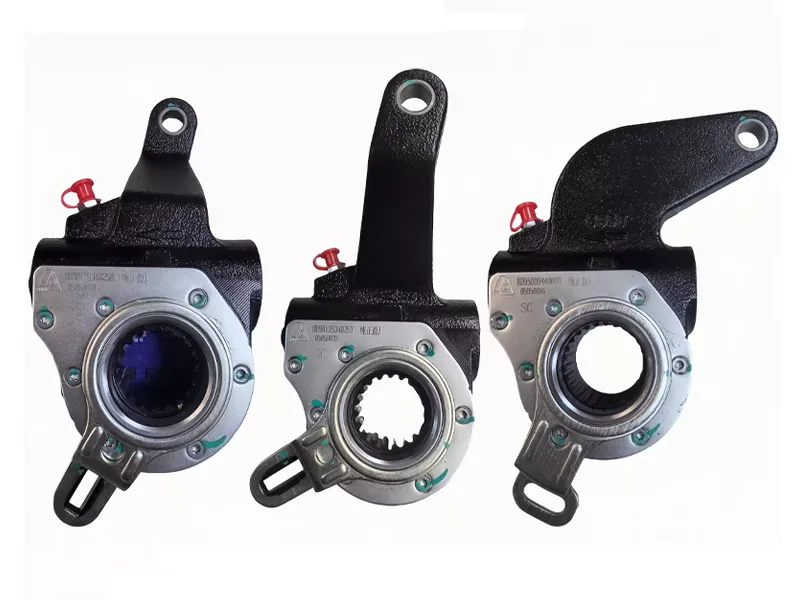

Modern Shacman models often use automatic slack adjusters like HD95009440009. These self-adjust during normal operation.
For manual override after a brake job, depress the release sleeve or pawl before turning the adjustment bolt. This prevents damage.
After adjusting Shacman brake shoes, pump the brakes several times to let the automatic mechanism set properly.
Regular checks ensure the automatic adjusters function well, maintaining optimal brake performance for Shacman trucks.
Safety is paramount when you adjust Shacman brake shoes. Always start by chocking the wheels on level ground.
Release the parking brake before adjusting rear brakes, as spring brakes can interfere. Check brake lining wear regularly.
If the lining is less than 1/4 inch (6mm) thick, replace the shoes instead of adjusting. This prevents brake failure.
Wear protective gear and use proper tools. Following this checklist ensures safe adjustment of Shacman brake shoes.
Regular inspections can catch issues early, saving time and money. Always test brakes after adjustment.
Regularly adjusting Shacman brake shoes enhances braking efficiency and safety. It reduces stopping distances.
Worn brakes can lead to accidents, so timely adjustment is key. This maintenance extends the lifespan of brake components.
Properly adjusted Shacman brake shoes improve fuel economy by reducing drag. They also prevent overheating and brake fade.
For commercial trucks, this means lower operational costs and compliance with safety regulations. Learn more about benefits below.
Experts recommend checking brakes every 10,000 miles. This habit ensures your Shacman truck runs smoothly.
Avoid over-tightening when you adjust Shacman brake shoes. This causes excessive drag and wear.
Another mistake is ignoring automatic adjuster mechanisms. Forcing them can damage internal parts.
Failing to verify pushrod stroke leads to poor braking. Always measure within manufacturer specs.
Skipping safety checks like chocking wheels is dangerous. Ensure the truck is secure before starting.
Using incorrect tools can strip bolts. Invest in quality wrenches for adjusting Shacman brake shoes.
Wrench set: For turning adjuster bolts.
Measuring tape: To check pushrod stroke.
Wheel chocks: For safety during adjustment.
Having the right tools simplifies the process to adjust Shacman brake shoes. Always keep them handy.
Consider a brake spoon for specific models. It helps access tight spaces in Shacman trucks.
Correctly adjusted Shacman brake shoes ensure reliable braking in all conditions. This boosts driver confidence.
They reduce maintenance costs by preventing premature wear. Brake drums and linings last longer.
Improved safety is a major benefit. Well-adjusted brakes respond quickly in emergencies.
Fuel efficiency increases as drag decreases. This saves money over time for Shacman owners.
Regular adjustment also helps meet legal safety standards. Avoid fines with proper brake care.
Locate Slack Adjuster
Find the adjuster bolt on the Shacman brake assembly. This is the first crucial step to properly adjust Shacman brake shoes and ensure safe maintenance.
Tighten and Back Off
Tighten the bolt clockwise, then loosen it slightly. This creates the correct gap for Shacman brake shoes to function efficiently without excessive drag.
Verify and Test
Check the pushrod stroke and test the brakes. This final step ensures you have successfully adjusted Shacman brake shoes for optimal safety and performance.
Inspect brake shoes every 5,000 miles. Look for cracks or uneven wear on Shacman brake shoes.
Clean brake components regularly to prevent debris buildup. This helps when you adjust Shacman brake shoes.
Lubricate slack adjuster pivots sparingly. Use high-temperature grease for Shacman trucks.
Monitor brake fluid levels. Low fluid can affect adjustment of Shacman brake shoes.
Keep records of adjustments. This tracks maintenance history for your Shacman vehicle.
Well-adjusted Shacman brake shoes reduce emissions by improving fuel efficiency. This benefits the environment.
Less wear means fewer parts discarded. Properly adjust Shacman brake shoes to minimize waste.
Efficient brakes decrease noise pollution. Shacman trucks run quieter with optimal adjustment.
Regular maintenance aligns with eco-friendly practices. It’s a step towards sustainable trucking.
Follow OEM guidelines when you adjust Shacman brake shoes. Shacman provides specific manuals for models.
DOT regulations require brakes in good condition. Adjust Shacman brake shoes to meet these standards.
ISO certifications ensure quality procedures. Use approved methods for Shacman brake adjustment.
Training programs teach best practices. Learn how to adjust Shacman brake shoes professionally.
Adjusting Shacman brake shoes is a vital skill for safety and performance. This guide covered key steps and tips.
Regular adjustment extends brake life and saves money. Always prioritize safety when working on Shacman trucks.
For more detailed tutorials and resources on how to adjust Shacman brake shoes, learn more by visiting our expert website. Discover advanced techniques and support.
Keep your Shacman truck in top shape with proper brake maintenance. Safe driving starts with well-adjusted brakes.
