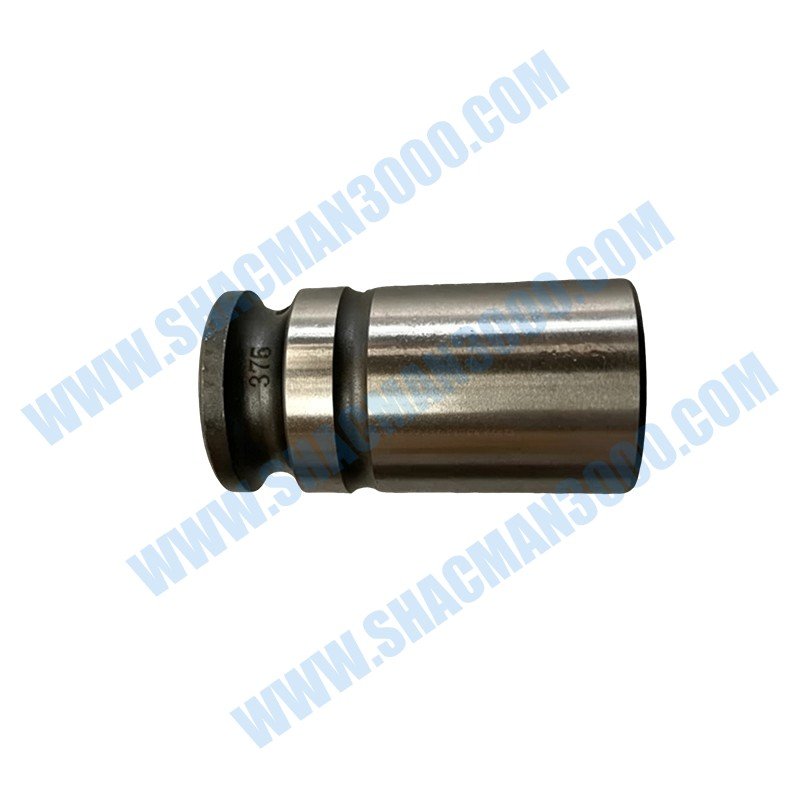

Intake Tappet Assembly
Гидротолкатель впускного
Taqué de admisión
The OEM Intake Tappet Assembly 1001169882 is a precision hydraulic valve lifter engineered specifically for the Shacman X5000 heavy-duty diesel engine. This critical valvetrain component automatically maintains zero valve lash, ensuring silent operation and consistent valve timing throughout the engine’s entire operating temperature range and service life.
Manufactured from high-grade hardened steel with a precision-ground roller and internal hydraulic piston mechanism, the tappet assembly delivers exceptional wear resistance and reliable oil metering. The 1001169882 part features a matched clearance plunger and body that ensure consistent leak-down rates for proper valve actuation under all load conditions.
Selecting genuine OEM hydraulic tappets preserves the designed valvetrain dynamics and prevents camshaft lobe wear. The 1001169882 identifier provides complete traceability to Shacman’s stringent material specifications and precision assembly quality standards for critical engine motion components.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 1001169882 | Unique Shacman X5000 identifier |
| Product Name | Intake Tappet Assembly | Hydraulic roller valve lifter |
| Brand / Engine Model | Shacman X5000 | Heavy-duty diesel engine series |
| Body Material | Hardened Alloy Steel | High wear resistance and durability |
| Roller Type | Needle bearing roller | Reduced friction with camshaft lobe |
| Internal Mechanism | Hydraulic plunger and check valve | Automatic zero lash adjustment |
| Plunger Clearance | Matched selective fit | Precise oil metering control |
| Oil Feed | Pressurized engine oil gallery | Maintains plunger reservoir filled |
| Application | Intake camshaft lobes | Drives intake push rod |
| Packaging | Oil-soaked protective wrap | Shacman genuine labeled box |
The internal hydraulic plunger expands to eliminate any clearance in the valve train. This self-adjusting feature ensures quiet engine operation and eliminates the need for periodic manual valve lash adjustments.
By maintaining zero lash regardless of engine temperature, the 1001169882 tappet ensures that the camshaft’s precisely ground profile is faithfully transmitted to the intake valve at all times, optimizing engine breathing.
The closely matched plunger-to-body clearance controls the leak-down rate. This metered oil flow allows the tappet to adjust rapidly to changing conditions while providing a hydraulic cushion against the camshaft lobe opening flank.
The intake tappet assembly 1001169882 is installed in precision-machined bores within the Shacman X5000 engine block, riding directly on the intake camshaft lobes. Before installation, each tappet must be soaked in clean engine oil and manually pumped to prime the internal hydraulic mechanism. The tappet body is then carefully inserted into its bore, ensuring the roller face aligns correctly with the camshaft lobe. The tappet must slide freely within the bore without any binding. Once installed, the push rod is seated into the tappet’s socket. After initial engine start-up, the tappets will self-adjust to the correct operating height as oil pressure builds and air is purged from the internal chambers.
Each intake tappet assembly manufactured under OEM number 1001169882 begins with certified alloy steel bar stock. The tappet body is precision-machined to achieve the exact outer diameter and internal bore dimensions. The roller is fabricated from bearing-grade steel, fitted with precision needle rollers, and assembled to the tappet body with a hardened axle that is permanently staked in place for security.
The internal hydraulic plunger and check ball assembly are manufactured to micron-level tolerances. Each plunger is selectively fitted to its body to achieve the specified running clearance, which is critical for proper leak-down performance. Completed tappets undergo thorough testing, including roller spin-down time, plunger leak-down rate measurement, and dimensional verification. Each assembly is then preserved in protective oil and individually packaged in a sealed bag placed inside a Shacman branded box displaying the 1001169882 part number.
A failing hydraulic tappet often produces a distinct ticking or tapping noise that does not disappear as the engine warms up. This noise indicates that the internal plunger is no longer maintaining zero lash, either due to internal wear, a sticking check valve, or a blocked oil feed hole. Technicians should inspect the tappet body and roller for pitting, scoring, or excessive wear on the roller surface and axle.
If a tappet is found to be collapsed or excessively worn, it is mandatory to replace it with a new 1001169882 assembly. When replacing one tappet, it is strongly recommended to replace all intake tappets as a set to ensure uniform valvetrain dynamics. After installing new tappets, the engine should be run at a fast idle to allow the tappets to prime and stabilize before the vehicle is returned to service.
Acquiring the authentic intake tappet assembly for your Shacman X5000 engine overhaul is a simple process. Use the inquiry button above to check live inventory and request a tailored quotation. We stock substantial quantities to support both individual engine repairs and large-scale fleet maintenance programs across all international regions.
To guarantee you receive the precise factory-specification component, always reference the OEM part number 1001169882 in your order communication. Our export team supplies full commercial documentation and certificates of origin with every global shipment for efficient customs processing.
Global Stock Ready
Immediate dispatch for Shacman X5000 valvetrain overhauls.
Selecting the genuine Intake Tappet Assembly 1001169882 is a critical investment in the valvetrain reliability and acoustic comfort of your Shacman X5000 engine. Aftermarket tappets that lack the precise plunger clearance or use inferior check ball springs can pump up at high RPM, holding the valve open and causing piston contact. A tappet that collapses under load results in a loud hammering noise and rapid camshaft lobe deterioration.
The OEM tappet’s hydraulic characteristics were developed through extensive dynamic testing on Shacman’s engine dynamometers. Engineers calibrated the leak-down rate and plunger travel to perfectly complement the X5000’s camshaft profiles and valve spring forces. The 1001169882 assembly provides the durability and consistent performance that heavy-duty commercial applications demand, ensuring reliable engine operation across extreme temperature variations.
Professional fleet maintenance teams worldwide rely on the 1001169882 tappet assembly to restore factory valvetrain performance during engine rebuilds. This hydraulic lifter may be compact, but its role in maintaining precise valve control is absolutely fundamental. Trust only the tappet that Shacman engineered, tested, and certified for the uncompromising requirements of the X5000 heavy truck platform.
The intake tappet assembly 1001169882 operates submerged in a continuous supply of pressurized engine oil. This oil not only feeds the internal hydraulic chamber but also lubricates the roller bearing and the tappet body as it reciprocates within its bore. The roller follower design significantly reduces the sliding friction that occurs with flat tappet designs, contributing to improved fuel efficiency and reduced camshaft lobe wear over the engine’s lifetime.
When priming new tappets before installation, it is crucial to submerge them in clean engine oil and gently pump the plunger until resistance is felt. This process fills the internal reservoir and expels any trapped air. Never install a dry tappet, as it may not prime correctly on initial start-up, potentially causing a temporary misfire and excessive valvetrain noise until the air is purged from the system.
For our international clients, we ensure every shipment of 1001169882 tappets is handled with the care these precision components deserve. Each tappet is individually sealed in a VCI bag to prevent corrosion and packed in foam-lined cartons to protect against transit vibration. Partner with us for a reliable supply of genuine Shacman valvetrain components and maintain your fleet’s engines at peak operational efficiency and reliability.
