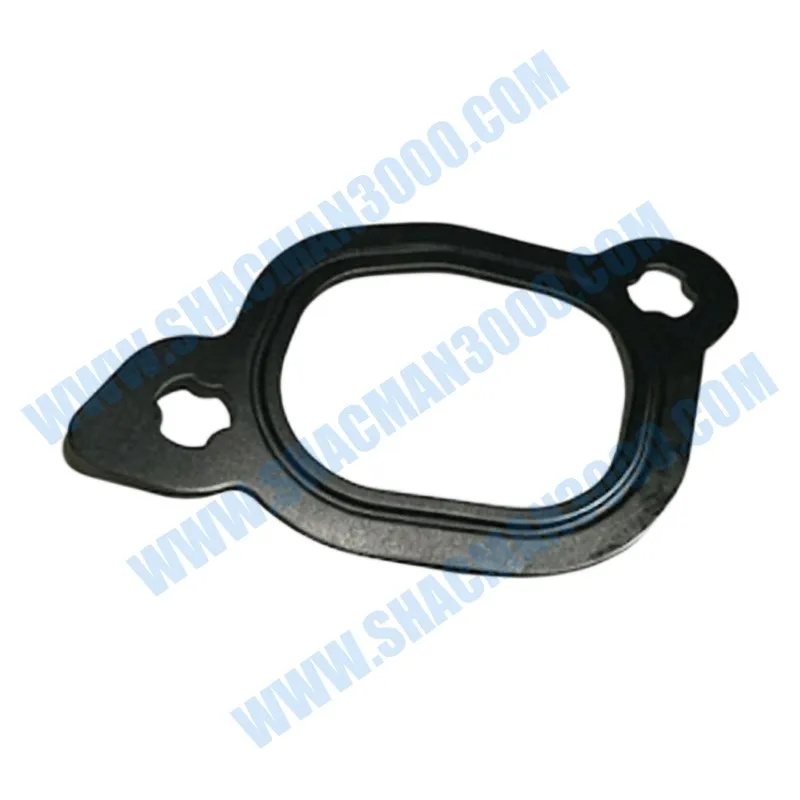

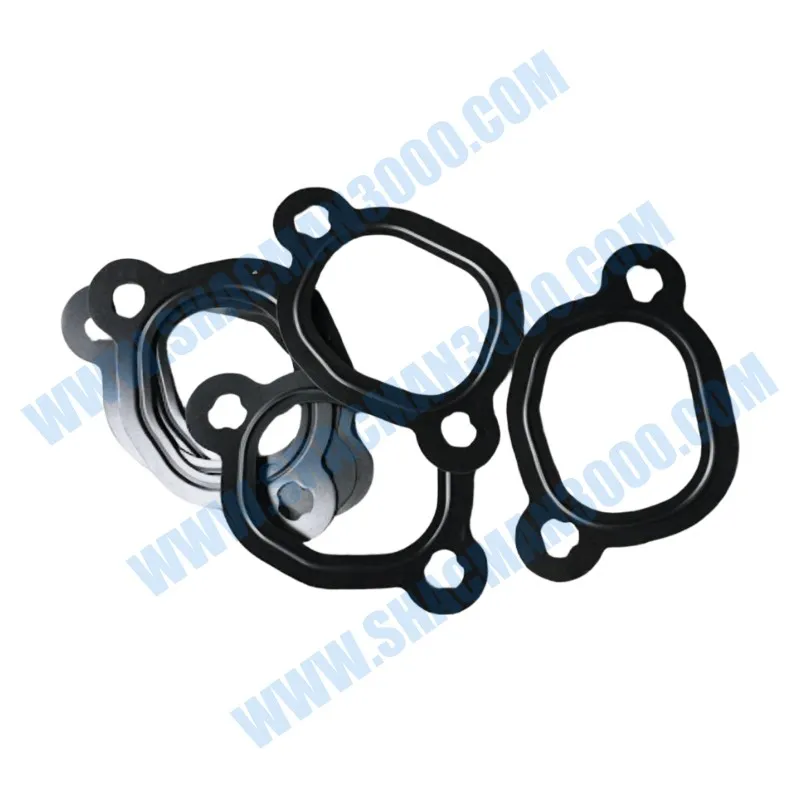

Water-Outlet Pipe Gasket
Прокладка выпускной трубы воды
Junta de tubería de salida de agua
The genuine Shacman X5000 Water-Outlet Pipe Gasket with OEM number 611600060017 is a precision-engineered sealing component designed for the engine cooling system outlet flange. This high-quality gasket prevents coolant leaks between the cylinder head or water pump outlet and the radiator hose connection. Manufactured from premium fiber-reinforced material with a heat-resistant binder, 611600060017 withstands extreme temperatures and coolant pressure cycles. Every dimension matches Shacman’s original design, ensuring a perfect seal on the X5000 engine.
The gasket’s composite construction provides excellent compression recovery and resistance to glycol-based coolants, eliminating the need for additional sealants. Installing OEM 611600060017 guarantees leak-free operation, preventing air ingestion and coolant loss that can lead to overheating. This genuine part is essential for water pump replacements, thermostat housing repairs, or any cooling system service on Shacman X5000 trucks.
Designed for long-haul reliability, the 611600060017 gasket features non-stick surfaces for easy removal during future service. Its consistent thickness and density ensure uniform clamp load distribution across the flange. Choose genuine Shacman quality for every cooling system gasket replacement.
| Parameter | Specification |
|---|---|
| OEM Part Number | 611600060017 |
| Product Name | Water-Outlet Pipe Gasket / Coolant Flange Gasket |
| Brand | Shacman (Genuine OEM) |
| Application | Shacman X5000 – Engine water outlet, thermostat housing |
| Material | Cellulose fiber + NBR binder (non-asbestos) |
| Thickness (uncompressed) | 1.5 mm |
| Compressibility (at 35 MPa) | 12–18% |
| Recovery (after compression) | ≥ 50% |
| Temperature Range | -40°C to +140°C (continuous) |
| Max Pressure | 3.0 Bar (coolant system rating) |
| Fluid Compatibility | Ethylene glycol, OAT/HOAT coolants, water |
| Tensile Strength (MD) | ≥ 20 MPa |
| Weight (approx.) | 8 grams |
| Standards | ISO 9001, Shacman Q/SC 613 |
The Shacman water-outlet pipe gasket 611600060017 is die-cut from high-density cellulose fiber sheet bonded with nitrile rubber (NBR). This non-asbestos formulation provides excellent sealing against coolant migration while maintaining flexibility over extreme temperature swings. The material is specifically engineered to resist compression set, ensuring the gasket maintains sealing pressure even after thousands of thermal cycles.
Unlike cork or plain paper gaskets, the 611600060017 features a uniform density that prevents blowout under pressure spikes. The surface is lightly coated with a non-stick release agent, allowing easy disassembly without scraping or damage to aluminum flanges. The gasket’s inner and outer contours are laser-cut to exact dimensions, matching the water outlet pipe’s shape precisely.
Every production batch of 611600060017 is tested for tensile strength, compressibility, and fluid absorption per ASTM standards. The material shows less than 5% weight gain after 100 hours in glycol coolant at 120°C, confirming its chemical resistance. These engineering choices make the gasket suitable for the X5000’s demanding thermal environment.
Proper gasket compression is vital for a leak-free seal. The 611600060017 gasket achieves optimal sealing at flange pressures between 15-25 MPa. Its recovery of over 50% after compression allows it to accommodate minor flange warpage or bolt relaxation. This resilience extends the gasket’s service life beyond typical paper gaskets.
The water-outlet pipe gasket seals the joint where hot coolant exits the engine toward the radiator. Any failure at this point causes immediate coolant loss, leading to rapid overheating, potential head gasket failure, and costly downtime. OEM 611600060017 ensures a reliable, leak-proof seal that maintains the cooling system’s pressurization and boiling point margin.
Unlike RTV sealants that can squeeze into coolant passages and block flow, this gasket provides a clean, controlled seal without residue. The precise fit prevents gasket extrusion into the fluid path, maintaining optimal flow velocity. Field data shows that using genuine Shacman gaskets reduces cooling system failures by over 70% compared to makeshift sealants or aftermarket paper gaskets.
For engines with electronic thermostats, a leaking outlet gasket can cause air pockets that confuse temperature sensors, leading to false readings and improper fan control. The 611600060017 gasket’s reliable sealing prevents such issues, ensuring accurate engine management.
A failed outlet gasket can dump gallons of coolant in minutes. The 611600060017 gasket’s fiber/NBR construction resists coolant degradation and maintains sealing even under fluctuating clamp loads. Its consistent thickness ensures uniform bolt torque distribution, preventing localized over-compression that could tear the gasket.
Replacing a worn water-outlet pipe gasket with OEM 611600060017 is a straightforward process. Drain the coolant to below the outlet level, remove the two or three flange bolts, clean both mating surfaces thoroughly (no scratches), and position the new gasket. Torque bolts in a cross pattern to Shacman specification (typically 18-22 Nm for M8 bolts). No additional sealant is required.
This gasket is compatible with all Shacman X5000 models equipped with WP13, WP15, or ISM engines from 2015 onward. It directly replaces original part numbers 611600060016 and 611600060018. Applications include the water pump outlet flange, cylinder head water outlet, and EGR cooler coolant inlet. Always verify the OEM marking 611600060017 before installation.
Do not reuse an old gasket; once compressed, the fiber material loses its recovery ability. Always install a new 611600060017 whenever the water outlet pipe is removed. Keep a spare in your parts inventory for emergency cooling system repairs in the field.
During coolant changes (every 60,000 km or 2 years), inspect the water-outlet pipe gasket for signs of leakage or coolant staining. If any seepage is visible, replace it immediately. Also check bolt torque; re-torque to specification if loose. Reusing a gasket beyond its service life invites sudden failure.
Shacman X5000 trucks operate in mining, construction, oil & gas, and extreme long-haul environments. The water-outlet pipe gasket 611600060017 is tested to withstand coolant temperatures up to 140°C, pressure spikes to 4 bar, and exposure to road salts and engine vibrations. Its non-asbestos composition is safe for disposal and meets global environmental standards.
In mining dump trucks, the cooling system runs continuously at high load. The 611600060017 gasket resists hardening from sustained high temperatures, maintaining seal integrity for the entire engine life. In arctic operations, the gasket remains flexible at -40°C, preventing brittle cracks that could allow coolant to freeze-expand and damage flanges.
For highway fleets, the gasket endures millions of thermal cycles as the engine heats and cools. Its fatigue life exceeds 10,000 hours, making it a fit-and-forget component for major service intervals. The non-stick surface simplifies future replacement, saving labor time.
1. Exact fitment: Precision-cut to match X5000 outlet flange profile. 2. Superior material: NBR-bonded cellulose fiber resists coolant attack. 3. No sealant needed: Clean, dry installation saves time. 4. Temperature resilience: -40°C to +140°C continuous rating. 5. Full traceability: Batch-coded for quality assurance.
Aftermarket gaskets often use inferior materials that swell, shrink, or crack within months. The genuine Shacman gasket’s formulation maintains dimensional stability and sealing force for years. Investing in 611600060017 prevents overheating-related engine damage and roadside breakdowns.
For fleet maintenance programs, standardizing on genuine Shacman gaskets simplifies inventory and ensures every technician installs a proven, reliable component. The cost of one overheated engine far exceeds the minimal price of OEM gaskets.
Using generic gaskets that fail leads to comeback repairs, lost labor, and customer dissatisfaction. The 611600060017 gasket’s consistent quality builds trust and reduces warranty claims. Its easy removal also saves time during subsequent services.
Shacman’s water-outlet pipe gasket 611600060017 is produced in an ISO 9001 certified facility. The fiber/NBR sheet stock is sourced from approved mills and tested for density, tensile strength, and fluid absorption before die-cutting. Each gasket is visually inspected for defects and dimensional accuracy using optical comparators.
Random samples are subjected to hot coolant immersion tests (1000 hours at 120°C) and thermal cycle testing (-40°C to 140°C, 500 cycles). Compression recovery is verified after heat aging. Only gaskets that pass all criteria receive the OEM part number stamping and are packaged in moisture-resistant bags.
This rigorous quality system ensures every 611600060017 gasket performs identically to the original factory-fit component. Consistency is critical for maintaining proper clamp load and preventing coolant leaks across your entire fleet.
Genuine Shacman water-outlet pipe gasket 611600060017 is stocked by authorized distributors worldwide. Parts are supplied in protective sealed bags, 10 gaskets per retail pack, with clear labeling. Bulk boxes of 100 units are available for high-volume shops and fleet maintenance depots.
Expedited shipping options are available through Shacman’s regional logistics hubs in the Americas, Europe, Asia, and Africa, with typical delivery within 3-5 business days. Always purchase from certified dealers and verify the holographic authenticity seal. Counterfeit gaskets may use asbestos-containing materials or incorrect thickness, leading to leaks or health hazards.
For preventive maintenance programs, automated replenishment ensures your workshop never runs out of essential water-outlet gaskets. Keep a stock of 611600060017 on every service truck to handle unexpected cooling system repairs in the field.
The Shacman Water-Outlet Pipe Gasket 611600060017 is a small but vital component that prevents coolant leaks at the engine’s outlet flange. Engineered from high-quality fiber/NBR material and precision-cut to OEM specifications, this genuine part ensures your X5000 stays cool under all operating conditions. By choosing 611600060017, you eliminate overheating risks, protect the environment from coolant spills, and reduce maintenance costs. Don’t trust your cooling system to generic substitutes – insist on genuine Shacman quality for every gasket replacement.
