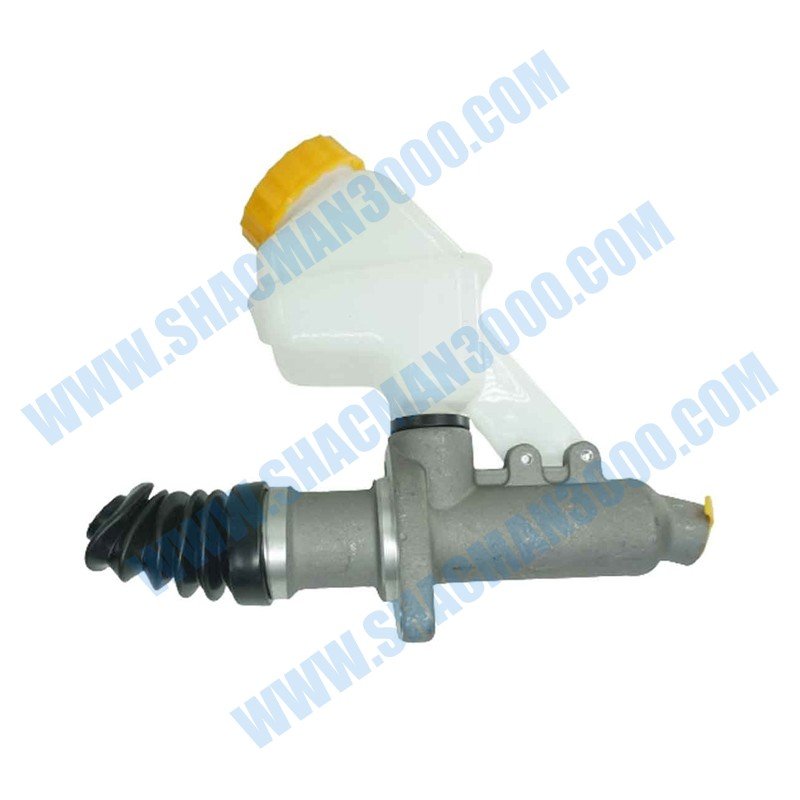

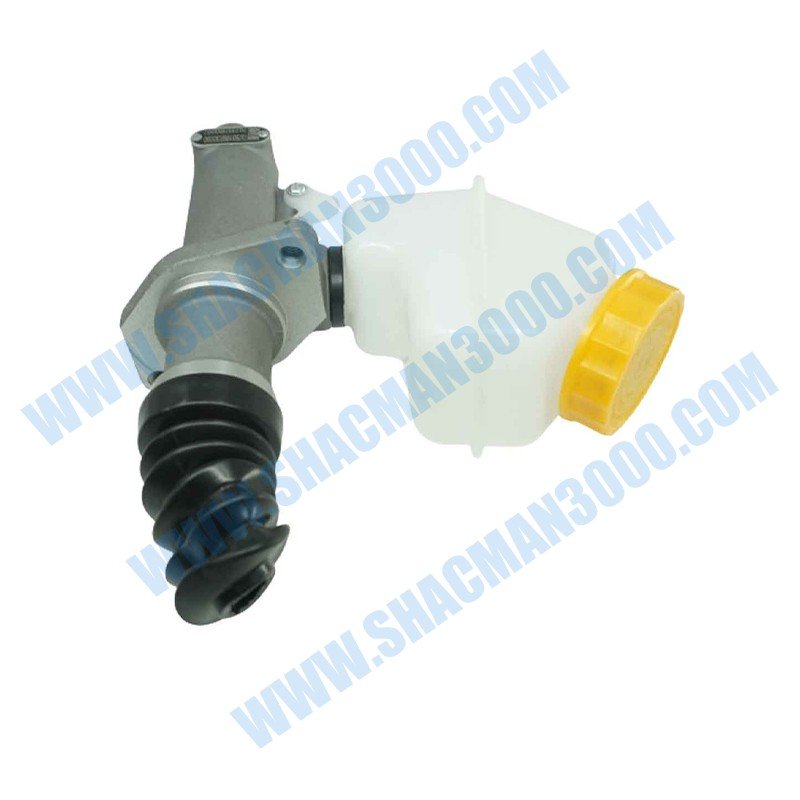

Shacman OEM Clutch Master Cylinder DZ93189230091 for X3000 Clutch System

Clutch Master Cylinder

Главный цилиндр

Cilindro Maestro

Introducing the genuine Shacman Clutch Master Cylinder, identified by the official OEM part number DZ93189230091. This crucial hydraulic component is engineered specifically for the Shacman X3000 truck series and its WP platform, forming the command center of the vehicle’s clutch hydraulic system within the Accelerator Pedal Assembly. The master cylinder, bearing the precise code DZ93189230091, serves as the primary interface between the driver’s foot and the clutch mechanism. It converts mechanical pedal force into hydraulic pressure, initiating the precise sequence that disengages the clutch for smooth gear changes. Manufactured to Shacman’s exacting standards, this component ensures reliable performance under the rigorous conditions of heavy-duty commercial trucking. The DZ93189230091 cylinder is constructed from premium materials that withstand continuous pressure cycles and temperature variations. Its precision engineering guarantees perfect compatibility with the X3000’s pedal assembly and hydraulic circuit. By selecting the genuine OEM part, you maintain the original performance characteristics, safety, and responsiveness of your vehicle. This master cylinder is designed for extended service life, minimizing replacement frequency and associated vehicle downtime. The DZ93189230091 is a direct replacement for the original component, ensuring seamless integration and preserving the vehicle’s warranty. Proper function of this cylinder is fundamental for safe clutch operation and efficient power transfer, making it an essential spare part for any Shacman X3000 operator.

The Clutch Master Cylinder DZ93189230091 operates at the beginning of the hydraulic clutch circuit. When the driver depresses the clutch pedal, the pushrod moves the internal piston within the cylinder. This movement creates hydraulic pressure by compressing the fluid in the reservoir and bore. The pressurized fluid is then transmitted through the hydraulic line to the slave cylinder. The DZ93189230091’s design includes a robust reservoir that maintains an adequate fluid supply. This reservoir is often integrated into the cylinder body or connected via a hose. High-quality seals within the cylinder prevent internal and external fluid leaks. These seals are formulated to resist the corrosive effects of modern brake fluids. The cylinder body is typically manufactured from cast aluminum or durable composite materials. This ensures lightweight construction and corrosion resistance in demanding environments. The piston and internal components are precision-machined from hardened steel alloys. This guarantees smooth operation and resistance to wear over millions of cycles. The DZ93189230091 is designed for straightforward installation, often including the necessary pushrod and mounting hardware. Its design incorporates a bleeder valve or a self-bleeding mechanism to simplify system maintenance. This feature is crucial for removing air from the hydraulic system after installation or service.

Regular inspection and timely replacement of the clutch master cylinder are critical maintenance practices. A failing cylinder can lead to complete clutch hydraulic failure, rendering the vehicle immobile. Common symptoms include fluid leaks at the pedal area, a spongy pedal feel, or fluid loss in the reservoir. The genuine Shacman part DZ93189230091 is rigorously tested to endure the stress of millions of actuations. It is compatible with standard DOT 3, DOT 4, or mineral-based hydraulic fluids as specified for the vehicle. The cylinder’s mounting configuration and pushrod length are specifically tailored to the X3000’s cab and pedal assembly geometry. This ensures correct pedal travel and leverage for optimal driver comfort and control. Investing in the OEM part DZ93189230091 protects your vehicle’s drivetrain and ensures consistent clutch performance. Its reliable operation contributes to overall driving safety by enabling precise clutch modulation. Fleet managers can standardize their maintenance inventory with this trusted Shacman component, ensuring uniformity across their X3000 trucks.

The Shacman Clutch Master Cylinder DZ93189230091 showcases meticulous engineering. Its aluminum housing is lightweight yet provides exceptional durability and heat dissipation. The bore is precision-honed to a mirror finish, ensuring minimal friction for the piston. This results in smooth pedal action and reduced wear on internal seals. The cylinder employs a tandem piston design in many configurations. This design features primary and secondary pistons for consistent pressure generation. The primary piston is actuated directly by the clutch pedal pushrod. The secondary piston ensures pressure maintenance and can provide a fail-safe function.

The reservoir is designed with adequate fluid capacity and a secure sealing diaphragm or cap. This prevents moisture contamination and fluid oxidation during operation. The fluid ports are strategically positioned and threaded for secure hydraulic line attachment. The pushrod connection is designed for easy linkage to the clutch pedal assembly. An adjustable pushrod allows for precise setting of the pedal free-play. This adjustment is crucial for proper clutch engagement and disengagement points. The cylinder often includes an integrated bleeder valve for system maintenance. Some designs feature a quick-connect fitting for the reservoir hose. All internal seals are strategically placed to prevent both internal and external leaks. The DZ93189230091 is designed as a sealed, maintenance-free unit for its service life. Its robust construction ensures reliable performance throughout the demanding lifecycle of a commercial truck.

The master cylinder is the initiator and pressure generator for the entire clutch hydraulic system. Its primary function is to convert the driver’s mechanical input into hydraulic force. When the clutch pedal is pressed, it moves the pushrod into the cylinder. The pushrod moves the primary piston, which displaces fluid in the bore. This displacement creates immediate hydraulic pressure within the sealed system. The pressure is transmitted instantaneously through the hydraulic line to the slave cylinder.

The bore diameter of the DZ93189230091 is carefully calculated relative to the slave cylinder. This bore ratio determines the mechanical advantage and pedal feel experienced by the driver. A properly sized master cylinder provides balanced pedal effort and sufficient fluid displacement. It ensures the slave cylinder moves enough to fully disengage the clutch. The reservoir replenishes fluid as needed and compensates for temperature-related expansion and contraction. The cylinder’s quick-return ports allow fluid to rapidly refill behind the piston when the pedal is released. This ensures the clutch can re-engage quickly and smoothly. The reliable operation of the DZ93189230091 is thus fundamental to precise clutch control, driver comfort, and the longevity of the entire clutch assembly.

Early detection of master cylinder failure prevents roadside breakdowns. A soft, spongy clutch pedal that sinks gradually to the floor is a classic symptom. This often indicates internal seal failure, allowing fluid to bypass the piston. Visible fluid leaks on the firewall, pedal area, or under the dashboard are clear signs. The fluid reservoir level may drop consistently without an obvious external leak. Difficulty shifting gears, especially when the vehicle is hot, can point to failing hydraulic pressure.

The clutch pedal may stick to the floor or return very slowly after being depressed. A chattering or vibrating feeling through the pedal during engagement may occur. In some cases, air may be drawn into the system through a faulty seal, causing a spongy feel. If the pedal free-play changes dramatically without adjustment, the cylinder may be failing. Addressing these symptoms promptly by installing a new OEM cylinder like the DZ93189230091 is crucial. Continuing to drive with a failing master cylinder can lead to complete clutch failure and potential damage to the clutch disc due to slippage or improper disengagement.

Replacing the clutch master cylinder DZ93189230091 requires careful procedure. Begin by safely securing the vehicle and locating the cylinder on the firewall. Place a drain pan beneath the work area to catch any spilled hydraulic fluid. Disconnect the hydraulic line from the cylinder’s outlet port, using a flare wrench to avoid rounding. Cap the open line to prevent contamination and excessive fluid loss. Inside the cab, disconnect the pushrod from the clutch pedal clevis or pin. Remove the mounting nuts or bolts securing the cylinder to the firewall or bracket.

Carefully remove the old cylinder, noting the orientation and routing of any lines. Compare the new DZ93189230091 with the old unit to confirm identical specifications. If the new cylinder does not come pre-filled, bench-bleed it before installation. This involves connecting tubes to the outlet and cycling the piston to remove air. Position the new cylinder and hand-tighten the mounting hardware. Reconnect the pushrod to the clutch pedal, ensuring proper free-play adjustment. Reconnect the hydraulic line to the outlet port, tightening to specification. Fill the reservoir with fresh, recommended hydraulic fluid. Bleed the entire clutch hydraulic system starting at the slave cylinder to remove all air. Test the clutch operation with the engine off, then on, checking for leaks, proper pedal feel, and full clutch engagement and disengagement.

Regular maintenance of the clutch hydraulic system is essential for longevity. Check the fluid level in the master cylinder reservoir every 3-6 months. Inspect the fluid color; it should be clear or light amber. Dark or contaminated fluid indicates the need for a complete system flush. Look for any signs of moisture or leaks around the DZ93189230091 cylinder body and connections. Replace the hydraulic fluid every 2 years or as recommended by Shacman. Moisture absorption lowers the fluid’s boiling point and promotes internal corrosion. Protect the master cylinder from physical damage during other maintenance work in the engine bay. Keep the reservoir cap seal clean and ensure it vents properly. Listen for unusual sounds when operating the clutch pedal as an early warning. Following these simple practices extends the service life of the entire clutch actuation system.

The genuine Shacman part DZ93189230091 guarantees exact fitment and engineered performance. Its materials, tolerances, and seal compounds are specified for Shacman’s hydraulic systems. Aftermarket cylinders may use inferior casting alloys or substandard seals to reduce cost. These can lead to premature failure, internal leaks, and inconsistent pedal feel. The bore dimensions and piston stroke of the OEM part are precisely calibrated. This ensures correct fluid displacement and proper clutch operation. Non-genuine parts often have dimensional variances that affect pedal travel and clutch engagement.

The DZ93189230091 is tested for long-term compatibility with Shacman’s specified hydraulic fluids. Aftermarket seals might swell or degrade when exposed to certain fluid types. Using the OEM part maintains your vehicle’s warranty and ensures the safety of a critical control system. For the clutch master cylinder—a component central to vehicle control—the genuine part is the only reliable choice. It protects your investment and delivers predictable, durable performance essential for commercial operations.

Master and slave cylinders wear at similar rates within the same sealed hydraulic system. Replacing only one can lead to premature failure of the old component, contaminating the new part with debris from the old. Installing both the DZ93189230091 master cylinder and its corresponding slave cylinder as a set ensures system integrity, optimal performance, and often proves more cost-effective in the long run by preventing a second repair.

Yes, indirectly. If the master cylinder’s internal seals fail, it may not maintain sufficient hydraulic pressure to fully retract the slave cylinder piston. This can keep slight pressure on the clutch release bearing, leading to partial disengagement and clutch slippage, which generates heat and rapidly wears the clutch disc.

Bench bleeding is the process of removing air from a new master cylinder before installation by cycling its piston while submerged in fluid. It is highly recommended for the DZ93189230091 if it is not supplied as pre-filled. This step significantly reduces the overall system bleeding time and helps achieve a firm pedal feel more quickly.

Refer to the Shacman X3000 service manual for the specified pedal free-play measurement (typically 5-15mm). Adjust the pushrod length so that with the pedal fully released, there is a slight gap between the pushrod and the piston. This free-play is critical; too little can cause clutch drag, and too much can result in incomplete disengagement.

Conclusion

The Shacman Clutch Master Cylinder (OEM: DZ93189230091) is the definitive hydraulic control unit for your X3000’s clutch system. Its precision engineering, durable construction, and exact OEM specifications ensure reliable clutch operation, driver comfort, and drivetrain protection. Choosing the genuine DZ93189230091 guarantees a perfect fit, maintains system integrity, and upholds the safety and performance standards of your Shacman truck. For unwavering reliability in commercial hauling, trust only Shacman OEM components for all your critical system repairs.
