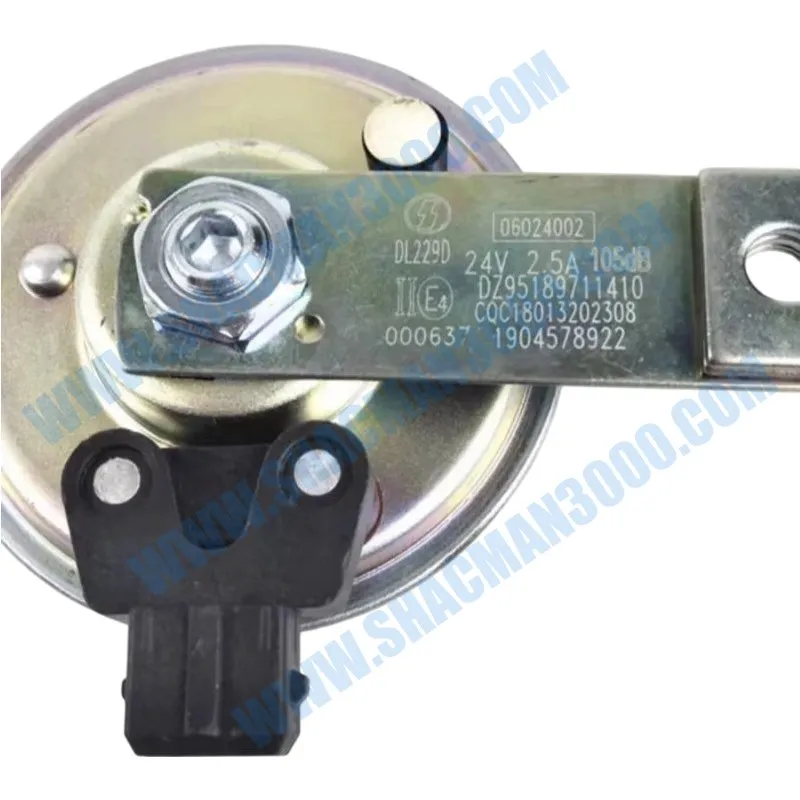

Shacman X5000 Electric Horn (DL229D) DZ95189711410 – Powerful OEM Audible Warning for Maximum Road Safety and Compliance

Technical Specifications – Electric Horn (DL229D) DZ95189711410

Acoustic Design & Engineering

The DZ95189711410 Electric Horn (DL229D) is the result of Shacman’s dedicated acoustic engineering, delivering a powerful and distinctive warning tone that cuts through ambient noise in all driving conditions. The horn produces a deep, resonant frequency in the range of 380–420 Hz, which is specifically chosen for its ability to penetrate wind noise, tire roar, and engine rumble, ensuring that the signal is clearly heard by other motorists and pedestrians. With a sound output exceeding 110 dB at one meter, this horn meets and exceeds international regulatory requirements for automotive audible warning devices, providing the driver with a reliable means of communication in emergency situations or for routine alerts.

The horn’s internal diaphragm and electromagnetic coil are precision-tuned to achieve optimal resonance and efficiency, delivering maximum sound output with minimal current draw. This design not only reduces the load on the vehicle’s electrical system but also extends the lifespan of the horn components. The compact, lightweight construction allows for easy installation in the limited space available in the X5000’s front grille or bumper area, while the durable mounting bracket ensures that the horn remains securely fixed even under severe vibration. The DZ95189711410 horn exemplifies Shacman’s commitment to combining superior acoustic performance with rugged durability, making it an indispensable safety component for any heavy-duty truck.

Material Quality & Environmental Resistance

The Shacman DZ95189711410 horn is constructed from high-quality zinc-plated steel, which provides exceptional strength and corrosion resistance. The steel housing is then coated with a durable powder finish that withstands chipping, scratching, and UV degradation, ensuring that the horn maintains its professional appearance and structural integrity over years of exposure to sun, rain, and road debris. The internal components are sealed against moisture and dust, achieving an IP65 protection rating, which guarantees that the horn remains operational even in heavy rain, snow, or dusty off-road conditions.

The electrical terminals are made from tin-plated copper to ensure excellent conductivity and resistance to corrosion, preventing voltage drops that could reduce the horn’s output. The diaphragm is manufactured from a high-elasticity polymer that retains its properties across a wide temperature range from -40°C to +85°C, delivering consistent tone and volume whether in arctic cold or desert heat. Shacman subjects each production batch to rigorous environmental tests, including thermal shock, humidity cycling, and salt spray exposure, to verify that the horn meets the highest durability standards. By choosing the genuine DZ95189711410, fleet operators can be confident that the horn will provide reliable warning performance throughout the vehicle’s service life.

Critical Role in Vehicle Safety and Communication

The DZ95189711410 Electric Horn is a vital safety device that enables the driver to communicate effectively with other road users, pedestrians, and workers in and around the vehicle. In heavy-duty truck applications, where blind spots are large and maneuverability is limited, a powerful horn is essential for alerting others to the truck’s presence, especially in busy urban environments, construction sites, loading docks, and mining operations. The horn’s penetrating tone can warn pedestrians of an approaching vehicle, signal other drivers of a lane change, or attract attention in an emergency, potentially preventing accidents and saving lives.

Beyond safety, the horn also serves as a practical communication tool for coordinating with ground crews during reversing maneuvers, coupling and uncoupling trailers, or navigating tight spaces. Its reliable operation ensures that the driver can always depend on the horn when needed, fostering confidence and reducing stress. The genuine OEM DZ95189711410 horn is tested to comply with automotive safety regulations and is designed to integrate seamlessly with the X5000’s steering wheel horn switch and electrical system. By maintaining this critical component with a genuine OEM replacement, fleet operators demonstrate their commitment to safety and regulatory compliance, protecting both their personnel and their reputation.

Installation & Compatibility

Installing the DZ95189711410 Electric Horn is a quick and straightforward process, designed as a direct replacement for the original equipment horn on Shacman X5000 trucks. The horn comes complete with the correct mounting bracket and single bolt, aligning perfectly with the factory mounting holes in the front grille or bumper area. The electrical connection is made via standard 6.3mm blade terminals, which match the vehicle’s harness, and the polarity is clearly marked to ensure correct wiring. For vehicles with existing wiring, the installation typically involves unbolting the old horn, disconnecting the wires, and attaching the new horn in its place.

Compatibility is guaranteed for all Shacman X5000 variants, including different cab and engine configurations, as the horn mounting and wiring are standardized across the model range. The horn’s dual-voltage capability (12V/24V) makes it suitable for both standard and heavy-duty electrical systems. However, it is essential to verify that the horn is not obstructed by grille inserts or other accessories, and that the mounting bolt is torqued to the recommended specification to prevent loosening. After installation, a functional test should be performed to confirm proper operation. By following these simple guidelines, technicians can ensure that the DZ95189711410 horn delivers its full warning capability and contributes to the vehicle’s overall safety.

Maintenance & Inspection Recommendations

Although the DZ95189711410 horn is engineered for long-term reliability, periodic inspection and maintenance are recommended to ensure optimal performance. During routine service intervals, technicians should visually inspect the horn for any signs of physical damage, such as cracks, dents, or corrosion on the housing or mounting bracket. The electrical connections should be checked for tightness and any evidence of corrosion or overheating. The horn’s sound output should be tested by pressing the horn button; if the sound is weak, distorted, or intermittent, it may indicate a failing diaphragm or poor electrical contact.

It is also advisable to clean the horn’s exterior to remove dirt, mud, and salt accumulation, which can trap moisture and promote corrosion. The sound outlet should be free from obstructions such as insect nests or debris, as these can muffle the sound. If the horn is exposed to harsh environments, more frequent checks may be warranted. Any damaged or degraded horn should be replaced promptly with a genuine Shacman DZ95189711410 unit to maintain the vehicle’s safety compliance. By incorporating these simple checks into the fleet’s preventive maintenance program, operators can ensure that the audible warning system remains fully functional, protecting drivers, pedestrians, and equipment alike.

Applications & Operational Environments

The Shacman DZ95189711410 horn is built to deliver reliable performance across the full spectrum of heavy-duty truck applications. In mining operations, where trucks operate in vast, noisy environments with limited visibility, the horn’s powerful output ensures that other equipment operators and ground personnel are alerted to the vehicle’s approach, reducing the risk of collision. In construction and logging, where work sites are congested with workers and machinery, the horn provides an essential audible signal for coordinating movements and warning of potential hazards.

For long-haul freight, the horn serves as a critical communication tool on highways, assisting in lane changes, passing maneuvers, and alerting inattentive drivers. Its robust sealing and corrosion resistance make it suitable for use in all climates, from the salty air of coastal routes to the dust and heat of desert highways. Whether the X5000 is used in regional distribution, cross-country logistics, or specialized heavy haulage, the genuine DZ95189711410 horn offers a consistent, dependable warning solution that enhances safety and operational efficiency. Investing in this OEM component ensures that the vehicle’s horn system meets regulatory standards and provides the audible presence necessary for safe and confident driving.

Advantages of Genuine Shacman OEM Component

Choosing the genuine Shacman DZ95189711410 Electric Horn over aftermarket alternatives offers clear advantages in fit, performance, and long-term value. As an OEM-engineered component, this horn is manufactured to the exact specifications of the original part, ensuring that the mounting bracket, terminal positions, and sound output match the requirements of the X5000. Aftermarket horns often use inferior materials, produce lower volume, or have incompatible mounting points, leading to subpar warning capability and potential installation issues. The genuine horn also undergoes Shacman’s rigorous quality assurance, including sound pressure level testing, thermal cycling, and vibration validation, guaranteeing consistent performance.

Furthermore, using the genuine OEM horn helps maintain the vehicle’s warranty status and resale value, as it demonstrates a commitment to proper maintenance using approved parts. Although the initial cost may be slightly higher than generic alternatives, the long-term benefits of reliable warning performance, reduced electrical faults, and extended service life make the genuine DZ95189711410 a sound investment. Fleet operators can also rely on Shacman’s extensive parts support network for rapid availability, ensuring that replacement horns are always on hand when needed. In summary, the genuine OEM horn provides unmatched quality and peace of mind, making it the preferred choice for safety-conscious X5000 owners.

Quality Assurance & Manufacturing Standards

The DZ95189711410 horn is produced under Shacman’s comprehensive quality management system, covering every stage from raw material procurement to final assembly. The zinc-plated steel and powder coating are sourced from certified suppliers and undergo incoming inspection for thickness, adhesion, and corrosion resistance. The electromagnetic coil and diaphragm are assembled in a clean, controlled environment to ensure precise alignment and consistent performance. Each horn is then adjusted to achieve the specified frequency and sound output, using automated acoustic measurement systems.

Finished horns are subjected to a series of rigorous tests, including sound pressure level measurement, current draw verification, insulation resistance checks, and functional endurance testing. Environmental validation includes thermal shock, humidity cycling, and salt spray exposure to confirm IP65 rating and long-term durability. Samples from each batch are also tested for resistance to vibration and mechanical shock. Only products that pass all these criteria are approved for shipment as genuine Shacman DZ95189711410 horns. This unwavering commitment to quality ensures that every horn delivered to customers provides the reliable, attention-grabbing performance that Shacman trucks are known for, contributing to the safety and efficiency of fleet operations worldwide.

Supply Chain & Availability

The genuine Shacman DZ95189711410 Electric Horn (DL229D) is readily available through Shacman’s extensive global network of authorized parts distributors and service centers. This robust supply chain ensures that fleet operators, independent workshops, and dealerships can obtain the horn quickly and conveniently, regardless of their location. The horns are packaged in protective, moisture-resistant packaging to prevent damage during storage and transit, and each package is clearly labeled with the OEM part number DZ95189711410 for easy identification. For large fleets, volume purchasing agreements and just-in-time delivery options can be arranged to align with scheduled maintenance rotations, minimizing inventory costs and ensuring that the right parts are on hand when needed.

Shacman’s commitment to long-term parts support means that the DZ95189711410 horn will remain available for the foreseeable future, providing peace of mind to owners of older X5000 trucks. By sourcing this genuine component through authorized channels, customers benefit from full warranty coverage and access to Shacman’s technical support. This reliable supply chain ensures that maintaining the audible warning system of the X5000 is a straightforward and hassle-free process, helping fleet operators keep their vehicles compliant with safety regulations and ready for the road.
