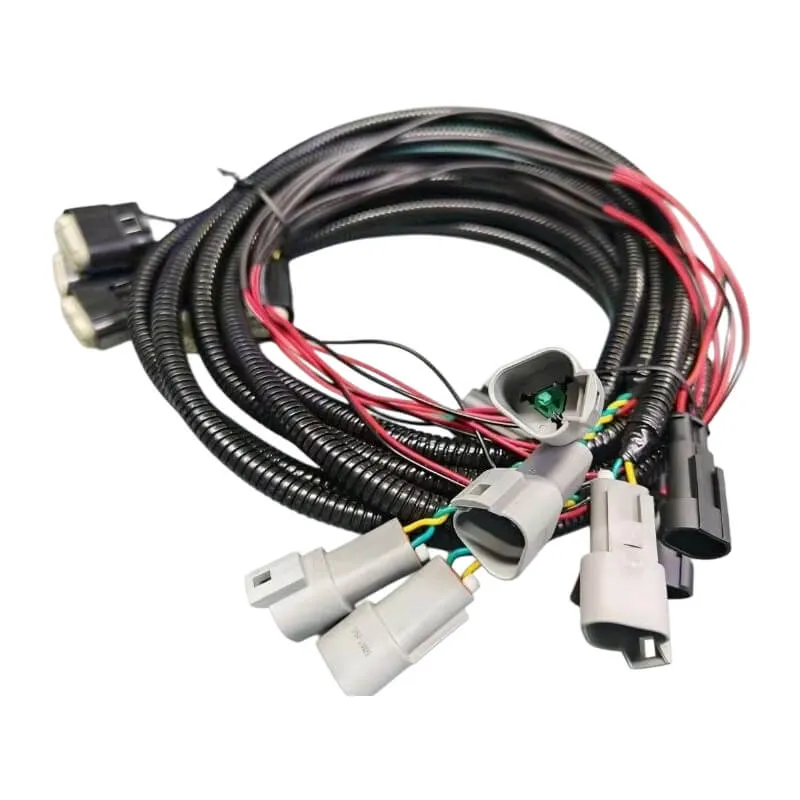

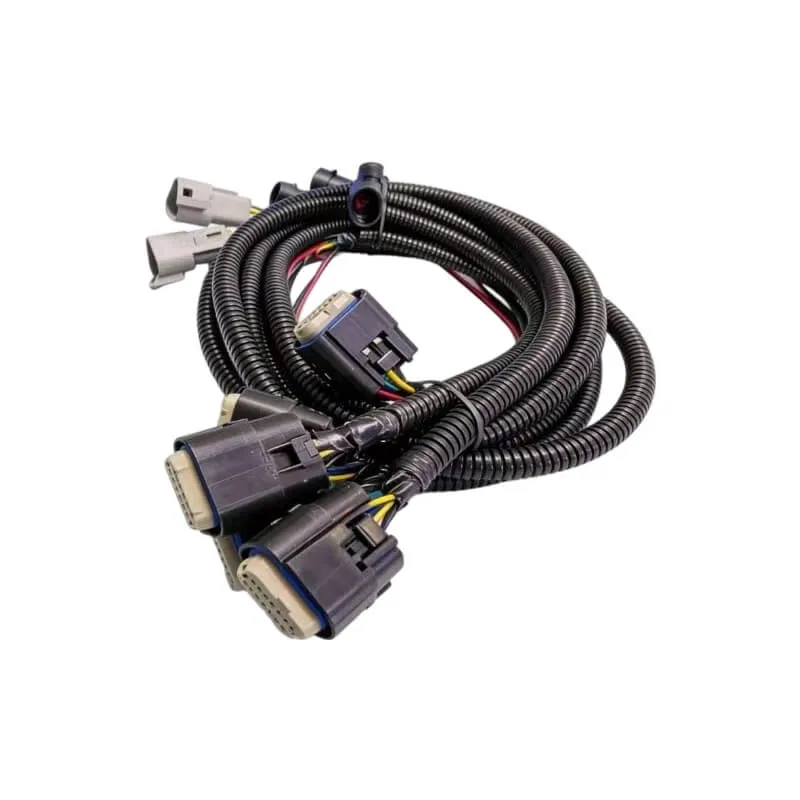

Multifunctional Steering Wheel Instrument Panel Wiring Harness Assembly
Многофункциональный жгут проводов рулевого колеса и приборной панели
Conjunto de arnés de cableado del panel de instrumentos del volante multifuncional
The genuine Shacman X5000 Multifunctional Steering Wheel Instrument Panel Wiring Harness Assembly with OEM number DZ97189776026 is a comprehensive wiring solution designed to integrate the steering wheel controls with the instrument panel and body control module (BCM) on Shacman X5000 heavy‑duty trucks. This harness enables seamless communication between the multifunction steering wheel buttons (audio, cruise control, phone, display) and the vehicle’s central electronics, ensuring that every driver command is accurately transmitted and executed. Manufactured to exact Shacman specifications, DZ97189776026 features high‑grade cross‑linked polyethylene wire insulation, corrosion‑resistant terminals, and OEM‑specific connectors that guarantee a direct, plug‑and‑play installation without splicing or modifications. Every wire length, connector position, and mounting clip location matches the original vehicle layout, ensuring a perfect fit behind the steering wheel and instrument panel. This harness is essential for restoring full steering wheel functionality after harness damage, wear, or during a complete cabin electrical system upgrade on the X5000.
A faulty or degraded wiring harness can cause intermittent or complete loss of steering wheel controls, compromising driver convenience and safety. Installing OEM DZ97189776026 restores full, reliable electrical connectivity, allowing the driver to operate audio, cruise, and phone functions without taking their hands off the wheel. This harness is essential for maintaining the X5000’s driver‑focused ergonomics and safety.
Each DZ97189776026 harness is 100% continuity‑tested, inspected for terminal retention, and verified for correct connector orientation and protective routing. Choose genuine Shacman quality for reliable, long‑lasting cabin connectivity.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ97189776026 |
| Product Name | Multifunctional Steering Wheel Instrument Panel Wiring Harness Assembly |
| Brand | Shacman (Genuine OEM) |
| Application | Shacman X5000 – Steering wheel controls to instrument panel and BCM |
| Harness Type | Multifunction steering wheel interface harness |
| Wire Gauge | 0.35 mm² to 1.5 mm² (various circuits, color‑coded per Shacman standard) |
| Insulation Material | Cross‑linked polyethylene (XLPE), heat‑resistant to 105°C |
| Connector Types | OEM‑specified 6‑pin, 10‑pin, and 12‑pin connectors (Tyco, Delphi, or equivalent) |
| Protective Covering | Anti‑abrasion TESA tape and flexible PVC conduit in high‑wear areas |
| Total Length | Approx. 1.5 m (includes branch sections for switch and indicator connections) |
| Terminal Material | Tin‑plated copper, gold‑plated for signal circuits |
| Temperature Range | -40°C to +105°C |
| Weight (approx.) | 0.42 kg |
| Standards | ISO 9001, IATF 16949, SAE J1128, Shacman Q/SC 790 |
The Shacman multifunctional steering wheel instrument panel wiring harness assembly DZ97189776026 is engineered with exact wire lengths, connector placements, and routing paths that conform to the X5000’s steering column and dashboard architecture. Each circuit is color‑coded according to Shacman’s wiring diagrams, simplifying installation and reducing the risk of errors. The wires are made from oxygen‑free copper with cross‑linked polyethylene insulation, providing excellent conductivity, resistance to abrasion, and high‑temperature stability. The harness is wrapped with anti‑abrasion TESA tape and fitted with flexible PVC conduit in areas where it may come into contact with sharp edges, ensuring long‑term durability behind the steering wheel and instrument panel. The integrated mounting clips are precisely positioned to match the vehicle’s mounting points, eliminating the need for improvisation. The connectors feature positive locking mechanisms that prevent accidental disconnection due to vibration, and the terminals are tin‑ or gold‑plated to resist corrosion and maintain low contact resistance. Each harness is 100% continuity‑tested and subjected to a pull‑test on all terminals to verify retention force. Random samples are subjected to thermal cycling (-40°C to +105°C, 500 cycles), vibration (20G, 10‑2000 Hz), and salt spray (96 hours) to validate the wire insulation, conduit, and connector sealing. These rigorous engineering controls ensure that the DZ97189776026 harness provides reliable, trouble‑free service for the life of the vehicle.
This harness is specifically tailored to interface the multifunction steering wheel buttons with the instrument panel and BCM. The connectors are designed to align perfectly with the clock spring, audio control module, and cruise control interface, ensuring that every button press is accurately relayed. The routing is designed to avoid interference with the steering column movement and airbag components, and the robust construction ensures that the harness can withstand the torsion and vibration typical of steering column operation, preventing intermittent faults and ensuring reliable control.
Modern heavy‑duty trucks rely on multifunction steering wheels to keep the driver’s hands on the wheel while controlling audio, phone, cruise control, and vehicle information displays. The wiring harness DZ97189776026 is the critical link that transmits these signals from the steering wheel to the vehicle’s electronic systems. A degraded or damaged harness can cause buttons to become unresponsive, intermittent, or to send incorrect signals, leading to driver distraction and potential safety hazards. This harness is designed with dedicated circuits for each control function, ensuring reliable, low‑resistance signal paths. The use of high‑quality wire insulation and sealed connectors prevents moisture ingress, which is a common cause of electrical faults in steering column wiring. By restoring full electrical integrity, the DZ97189776026 harness ensures that the driver can operate all steering wheel functions with confidence, keeping their focus on the road. The harness also integrates with the vehicle’s CAN bus system, allowing for diagnostic monitoring and fault detection. In the event of a system fault, a properly functioning harness ensures that the BCM can accurately report the issue, speeding up the repair process. Using the genuine OEM harness also ensures that the wiring is correctly protected by the vehicle’s fuses and relays, preventing damage to the control modules.
Fleet operators who prioritize driver comfort and safety will appreciate the reliability and ease of installation of this harness, which reduces downtime and improves driver satisfaction. The harness’s compact design and flexible routing also simplify its installation behind the dashboard, without interfering with other electronic components. The DZ97189776026 harness is also compatible with both standard and upgraded audio systems, as it is designed to handle the digital and analog signals required for modern infotainment. By using the genuine Shacman harness, operators avoid the common issues of aftermarket wiring, such as poor crimps, incorrect pinouts, and inadequate shielding. The harness’s color‑coded wires and labeled connectors also make it easier for technicians to troubleshoot any future issues, reducing diagnostic time.
A reliable steering wheel harness ensures that every button press is transmitted without delay or error, allowing the driver to adjust volume, change tracks, answer calls, and set cruise control with ease. The DZ97189776026 harness’s low‑resistance conductors and shielded signal lines prevent electromagnetic interference, ensuring that the CAN bus communications remain clean and accurate. This gives the driver full confidence in the vehicle’s controls, enhancing overall driving comfort and safety.
Installing the Shacman multifunctional steering wheel instrument panel wiring harness assembly DZ97189776026 is a straightforward process for trained technicians. Begin by disconnecting the vehicle’s battery. Remove the steering wheel airbag module and the steering column trim to access the clock spring and harness connectors. Disconnect the old harness (if present) by releasing the mounting clips and unplugging the electrical connectors. Route the new harness along the original path, securing it with the integrated push‑in clips. Connect the harness to the steering wheel buttons, the clock spring, the instrument panel, and the BCM, ensuring that all connectors click securely into place. Reconnect the battery and test all steering wheel functions: audio volume, track selection, phone pickup/hang‑up, cruise control set/resume, and instrument cluster display toggles should all respond correctly. The harness is designed to be plug‑and‑play, requiring no wire splicing.
This harness is compatible with all Shacman X5000 models from 2015 onward, including the X5000 M12, heavy‑haul, and construction variants, as well as trucks with both basic and premium audio systems. It directly replaces original part numbers DZ97189776025 and DZ97189776027. Applications include the multifunction steering wheel interface. Always verify the OEM marking DZ97189776026 on the harness label before installation. If the vehicle uses a different steering wheel configuration, ensure that the harness connectors match; if not, consult the vehicle’s wiring diagram for possible adapter requirements.
Keep a spare DZ97189776026 harness in your parts inventory for quick replacement in case of damage. After installation, test all steering wheel functions several times to ensure smooth operation and check for any error codes in the BCM. If any function does not work, check the fuse and relay associated with the steering wheel controls, and verify that the harness is correctly connected to the power and ground sources.
Periodically inspect the harness behind the steering wheel and instrument panel for signs of chafing, loose connections, or damaged insulation. If the steering wheel controls become intermittent, check the harness connectors for corrosion or damage. The harness is designed to be maintenance‑free; however, if any damage is detected, replace the entire harness to avoid potential electrical faults. Ensure that the harness is not pinched by steering column components when the trim is reinstalled.
Shacman X5000 trucks are used in a wide range of demanding applications, from construction and mining to long‑haul freight. The multifunctional steering wheel instrument panel wiring harness assembly DZ97189776026 is designed to withstand the harsh conditions encountered in these environments. The cross‑linked polyethylene insulation resists heat, oil, and abrasion, while the flexible PVC conduit provides additional mechanical protection where needed. The connectors are sealed to prevent moisture and dust ingress, ensuring reliable electrical connections even in dusty or humid conditions. The harness is tested to operate reliably in temperatures from -40°C to +105°C, making it suitable for both arctic and desert climates. In mining operations, where trucks are frequently subjected to vibration and dust, the harness’s secure connectors and robust sheathing prevent intermittent faults. For highway fleets, the harness provides a reliable solution for the steering wheel controls, ensuring that drivers can operate all functions without distraction. The harness’s plug‑and‑play design also simplifies the replacement process for fleet maintenance teams, allowing them to restore steering wheel functionality efficiently.
The harness is also compatible with both standard and heavy‑duty steering wheel configurations, as it is designed to handle the control signals from the buttons. The inclusion of dedicated ground and shield wires ensures that the button presses are transmitted without noise, reducing the risk of false triggers. By using the genuine Shacman harness, fleet operators can avoid the reliability issues associated with aftermarket wiring kits, which often use inferior wire and connectors. The DZ97189776026 harness is also backed by Shacman’s quality guarantee, providing peace of mind for operators who depend on their steering wheel controls for safety and convenience. The harness’s color‑coded wires and labeled connectors also make it easier for technicians to troubleshoot any future issues, reducing diagnostic time.
1. Exact fitment: Designed specifically for X5000 steering column and instrument panel, with correct wire lengths and connector positions. 2. Superior materials: Cross‑linked polyethylene insulation, gold/tin‑plated terminals, and anti‑abrasion tape. 3. Plug‑and‑play installation: No cutting or splicing required, reducing installation time and errors. 4. Integrated mounting features: Includes all necessary clips for secure attachment behind the steering wheel and dashboard. 5. Full traceability: Batch‑coded with electrical test report and material certification. Aftermarket harnesses often use low‑grade wire, lack proper connectors, or have incorrect lengths, leading to intermittent faults and potential damage to the steering wheel controls. The genuine Shacman harness’s premium materials and exact engineering ensure reliable, long‑lasting performance. Investing in DZ97189776026 protects the vehicle’s steering wheel functions, enhances driver safety and convenience, and reduces downtime. For fleets, standardizing on genuine harnesses ensures consistent quality and simplifies troubleshooting across all trucks.
A faulty steering wheel harness can lead to driver frustration, reduced productivity, and potential safety risks. Replacing a worn or damaged harness with the DZ97189776026 restores full functionality at a minimal cost, preventing these issues. The harness’s long life and corrosion resistance also reduce the frequency of replacements, saving labor and parts costs over the vehicle’s lifetime. Improved driver satisfaction and confidence in the controls also contribute to overall operational efficiency.
Shacman’s multifunctional steering wheel instrument panel wiring harness assembly DZ97189776026 is produced in an IATF 16949 certified facility. The wire is sourced from approved suppliers and undergoes strict inspection for conductor resistance and insulation thickness. The harness is assembled using automated crimping machines that ensure consistent terminal crimp height and pull‑off strength. The connectors are tested for insertion and retention forces. Each harness is 100% continuity‑tested, with every circuit verified for correct pin‑to‑pin continuity and proper routing. The harness is then wrapped with anti‑abrasion tape and fitted with protective conduit where required, and a final visual inspection is performed. Random samples are subjected to thermal shock (-40°C to +105°C, 500 cycles), vibration (20G, 10‑2000 Hz), and salt spray (96 hours) to validate durability. Only harnesses that pass all criteria are labeled with the OEM part number and packed in anti‑static bags.
This rigorous quality system ensures every DZ97189776026 harness performs identically to the original factory component. Consistency is critical for maintaining the reliability of the steering wheel controls and preventing electrical faults across your entire fleet. The facility also complies with REACH and RoHS environmental regulations, using only lead‑free, water‑based coatings.
Genuine Shacman multifunctional steering wheel instrument panel wiring harness assembly DZ97189776026 is stocked by authorized distributors worldwide. Parts are supplied in sealed anti‑static bags, individually boxed with installation instructions and a wiring diagram, labeled with OEM part number and batch traceability. Bulk packs of 5 harnesses are available for fleet maintenance depots. Expedited shipping options are available through Shacman’s regional logistics hubs in North America, Europe, Asia, Africa, and the Middle East, with typical delivery within 3‑5 business days. Always purchase from certified dealers and verify the holographic authenticity label. Counterfeit harnesses may have incorrect wire gauges, poor connectors, or lack proper insulation, leading to shorts or fires.
For preventive maintenance programs, automated replenishment ensures your workshop never runs out of essential steering wheel harnesses. Keep a stock of DZ97189776026 on every service truck to handle steering wheel control repairs or harness replacements in the field. Many fleets replace these harnesses as part of a scheduled electrical system inspection to ensure reliable steering wheel functionality and driver safety.
The Shacman Multifunctional Steering Wheel Instrument Panel Wiring Harness Assembly DZ97189776026 is a precision‑engineered wiring solution that provides a secure, reliable electrical connection between the steering wheel controls and the vehicle’s electronic systems. With robust materials, exact fitment, and plug‑and‑play installation, this genuine OEM harness ensures that every button press is transmitted accurately, enhancing driver safety and convenience. By choosing DZ97189776026, you restore full steering wheel functionality and protect your vehicle’s electrical system. Don’t trust generic aftermarket wiring – insist on genuine Shacman quality for every steering wheel harness replacement.
