The Shacman H3000 Tubular Crossbeam Assembly is the backbone of the chassis system, engineered for maximum rigidity and durability. This core component integrates seamlessly with the vehicle frame, providing a stable platform for mounting auxiliary systems and absorbing dynamic loads during heavy-duty operation.
The Pipe Beam Support Bracket/Left is precisely crafted to secure the tubular beam on the left side of the chassis. Its robust design ensures proper alignment and load distribution, reducing stress on mounting points and extending the service life of the entire crossbeam assembly under extreme conditions.
The Pipe Beam Support Bracket/Right complements its left counterpart, offering symmetrical support for the tubular structure. Manufactured to identical high standards, this bracket guarantees balanced force transmission and simplifies installation, ensuring that the crossbeam remains perfectly horizontal and secure at all times.
The Pipe Sorghum (often referred to as a cross-tie or stabilizer bar) plays a vital role in reinforcing the tubular assembly against lateral forces. Its unique shape and material composition provide additional rigidity, preventing unwanted flex and contributing to superior handling characteristics, especially during cornering and off-road maneuvers.
The Bracket is a multi-purpose mounting element that interfaces the tubular crossbeam with other chassis components. Designed with precision-machined holes and surfaces, this bracket facilitates the attachment of ancillary parts such as air tanks, wiring harnesses, or hydraulic lines, making it an indispensable piece for complete vehicle integration.
Every part in the Shacman H3000 Tubular Crossbeam Assembly kit undergoes rigorous quality checks, from material selection to final coating. The combination of these precisely engineered components ensures that the assembly delivers outstanding structural integrity, corrosion resistance, and long-term reliability in the most demanding transport applications.
The Tubular Crossbeam Assembly is designed with weight optimization in mind, using high-strength steel that reduces overall vehicle mass without compromising load capacity. This leads to improved fuel economy and lower emissions, aligning with modern environmental standards while maintaining the ruggedness required for heavy haulage.
Installation of the Shacman H3000 Tubular Crossbeam Assembly is straightforward thanks to the precise fit of each bracket and the sorghum. All mounting holes are drilled to exact coordinates, allowing workshop technicians to replace or upgrade the assembly with minimal downtime, keeping your fleet operational and productive.
Corrosion protection is paramount for chassis components, and our Pipe Beam Support Bracket/Left and /Right are coated with a advanced zinc-phosphate primer followed by a durable topcoat. This dual-layer defense resists salt, moisture, and road debris, ensuring that the brackets retain their structural properties even in harsh winter conditions.
The Pipe Sorghum acts as a lateral stabilizer, effectively distributing side loads between the left and right frame rails. This reduces twisting forces on the main tubular beam, preserving the chassis alignment and improving overall vehicle stability, especially when carrying unevenly distributed loads.
The Bracket included in this assembly is forged from high-grade carbon steel, offering exceptional tensile strength and fatigue resistance. Its design incorporates stress-relief features that minimize crack propagation, ensuring that this critical connection point remains intact throughout the vehicle’s service life.
All components – from the main Tubular Crossbeam Assembly to the support brackets and the sorghum – are manufactured under ISO 9001 certified processes. This guarantees consistent dimensional accuracy and material properties, so you can trust that every replacement part performs exactly as the original equipment.
The Shacman H3000 Tubular Crossbeam Assembly is not just a part; it is a complete system engineered to enhance the durability, safety, and efficiency of your heavy-duty truck. With a focus on precision and longevity, this assembly is the preferred choice for fleet managers who prioritize reliability and minimized lifecycle costs.

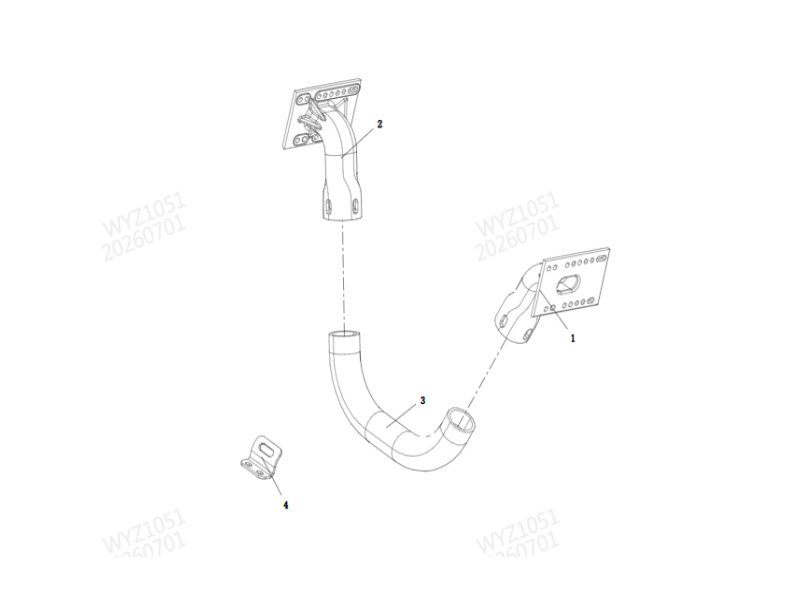

Shacman H3000 Tubular Crossbeam Assembly
Shacman H3000 Tubular Crossbeam Assembly
| Part Number | Part Name |
|---|---|
| DZ96259510390 | Tubular Crossbeam Assembly |
| DZ96259510391 | Pipe Beam Support Bracket/Left |
| DZ96259510392 | Pipe Beam Support Bracket/Right |
| DZ96259510393 | Pipe Sorghum |
| DZ96259510394 | Bracket |
Uncompromised durability – Every component in the Shacman H3000 Tubular Crossbeam Assembly is manufactured from high-strength alloy steel and protected with a multi-layer anti-corrosion coating. This ensures that the assembly withstands the toughest operating environments, from freezing tundra to scorching desert highways, without losing its structural integrity.
Precision engineering for perfect fitment – Our assembly is designed using original OEM specifications, guaranteeing that each bracket, sorghum, and the main beam align flawlessly with the Shacman H3000 chassis. This eliminates the need for modification, reduces installation time, and ensures consistent performance across all vehicle variants.
Enhanced vehicle stability and handling – The combination of the tubular crossbeam with the left and right support brackets, along with the pipe sorghum, creates a rigid yet lightweight structure that minimizes chassis flex. This directly translates to improved directional stability, reduced body roll, and a more comfortable ride for drivers over long distances.
Cost-effective long-term investment – By choosing our Shacman H3000 Tubular Crossbeam Assembly, fleet operators benefit from extended service intervals and fewer breakdowns. The robust design reduces wear on related suspension and drivetrain parts, lowering overall maintenance expenses and increasing vehicle uptime, ultimately delivering a superior return on investment.
Each Shacman H3000 Tubular Crossbeam Assembly undergoes a stringent multi-stage inspection process, including dimensional checks, weld integrity tests, and material hardness verification. This ensures that every part meets the highest standards of quality and reliability.
Designed to fit all Shacman H3000 series trucks produced since 2018, this assembly is fully interchangeable with genuine parts. Whether you operate in Europe, Asia, Africa, or the Americas, our product guarantees seamless integration and dependable service.
Our supply chain ensures that the Shacman H3000 Tubular Crossbeam Assembly and its associated components are readily available for immediate shipment. This minimizes downtime for your workshop and keeps your trucks on the road where they belong.
