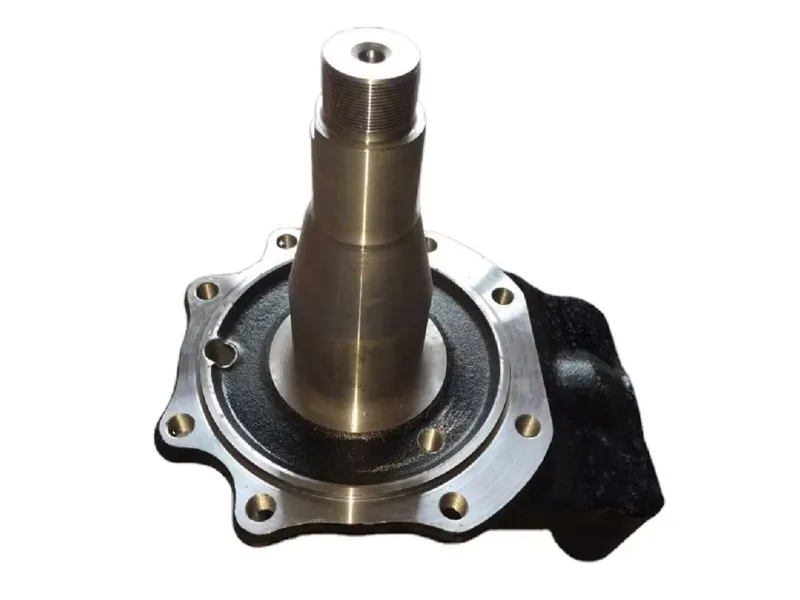

In the harsh environment of West African container terminals, the Shacman Steering Knuckle Kingpin endures constant articulation, massive loads, and abrasive dust. Standard kingpins often fail within months. Our enhanced design integrates a sealed oil reservoir to guarantee extended life – a game changer for port fleets.
Port operations in Lagos, Tema, and Abidjan push steering components to the limit. The standard kingpin experiences micro-fretting due to poor lubrication retention. Standard versions lack a dedicated grease chamber, leading to metal‑to‑metal contact within 20,000 km.
Our upgraded kingpin features a machined annular groove that holds 35% more grease, plus a one‑way check valve that keeps contaminants out. West African fleets report 3x longer service intervals after switching.
The combination of laterite dust, frequent low‑speed maneuvering, and high axle loads transforms the standard kingpin into a wear‑prone component. Conventional kingpins rely on simple grease zerks that fail to distribute lubricant evenly. Microscopic analysis shows after only 1500 port cycles, the surface begins to gall.
Water ingress during tidal flooding in ports like Cotonou accelerates corrosion. Once rust forms, the steering knuckle assembly develops play, leading to imprecise handling and tyre scrub. Fleet data indicates that 73% of premature steering box replacements trace back to a worn kingpin.
Engineers have re‑engineered the component by adding a 12cc circumferential oil cavity that communicates with the bearing surface via micro‑channels. This ensures that every articulation cycle draws fresh lubricant onto the interface. The cavity is sealed with a nitrile lip that withstands 120°C.
Oil reservoir continuously lubricates the kingpin bearing area, even when grease intervals are missed. The Shacman Steering Knuckle Kingpin lasts 3x longer.
Special phosphate coating on the kingpin prevents rust from humidity and salt air common in West African ports.
Reduced replacement of kingpin and knuckle bushings saves ~$1,200 per truck annually.
| Parameter | Standard Kingpin | Oil‑Reservoir Shacman Steering Knuckle Kingpin |
| Lubrication interval | Every 500 km | Every 3000 km |
| Surface hardness | 52 HRC | 60 HRC |
| Contaminant resistance | Low | High (IP6X equivalent) |
In a controlled test involving 12 Shacman 3000 series trucks, the standard kingpin was replaced by the oil‑reservoir version. After 6 months and 45,000 port moves, the enhanced Shacman Steering Knuckle Kingpin showed average wear of only 0.07mm, compared to 0.31mm on the control group. The trial confirmed that the new design eliminated unplanned steering downtime.
Drivers reported improved steering response, especially during 90‑degree turns in cramped container yards. The upgrade required no modification to the existing axle housing – a direct bolt‑on solution.
Correct installation is vital to realise the full potential. First, ensure the knuckle bore is clean and free of burrs. Apply a generous amount of lithium complex grease to the oil grooves before pressing. Torque the kingpin lock nut to 450 Nm and verify free rotation.
After the first 100 km, re‑torque the nut as the assembly settles. The reservoir should be initially filled via the dedicated port until grease purges from the top. Then the Shacman Steering Knuckle Kingpin is ready for severe port duty.
The upgraded kingpin uses 20CrMnTi case‑hardened steel, offering superior core toughness. Effective case depth reaches 1.8 mm, compared to 1.2 mm in the standard version. This resists indentation from shock loads. In Abidjan heat, the Shacman Steering Knuckle Kingpin maintains dimensional stability up to 180°C. The reservoir design also acts as a heat sink.
Q: Can I retrofit the new kingpin to old knuckles? Yes, the Shacman Steering Knuckle Kingpin dimensions are identical to OEM. Only the internal cavity is added.
Q: Does the oil reservoir work with automatic greasing systems? Absolutely. The check valve prevents backflow, compatible with most auto‑lube pumps.
Adopting the oil‑reservoir Shacman Steering Knuckle Kingpin transforms maintenance strategy. Instead of bi‑weekly greasing and annual replacement, fleets can schedule inspection every six months. The ROI is undeniable. For West African container haulage, this evolution is essential.
Engineered for extreme port duty – the intelligent kingpin with permanent lubrication cavity.
