Shacman WP10 Piston Ring Set is engineered to deliver outstanding combustion sealing, oil control, and durability for heavy-duty diesel engines. Designed as genuine-grade replacement, this ring set ensures reduced blow-by, optimized compression, and extended overhaul intervals. The complete set integrates three advanced ring types that work synergistically: Keystone Barrel Ring, Twist Taper Ring, and Coil Spring Loaded Oil-control Ring. Each component is precision-manufactured using high-alloy materials and advanced coating technologies, making Shacman WP10 Piston Ring Set the ideal choice for fleet owners and engine rebuilders seeking maximum reliability. Below you will find detailed technical descriptions for every ring included in this high-performance package.
The Keystone Barrel Ring features a unique wedge-shaped cross-section and a barrel-faced contour, specifically designed for top groove applications in turbocharged diesel engines. This geometry reduces carbon packing and sticking while providing superior gas sealing under high cylinder pressures. For Shacman WP10 Piston Ring Set, the keystone barrel ring is nitrided to enhance wear resistance and scuff protection, ensuring consistent performance across thousands of operating hours. It also minimizes groove wear, making it a cornerstone for long-haul engine reliability.
The Twist Taper Ring combines a tapered face with internal twist design, located in the second groove to enhance oil scraping and gas sealing. Its asymmetrical contour generates a twisting effect during piston motion, improving cylinder wall conformity and reducing oil consumption. Manufactured from ductile iron with phosphate coating, the twist taper ring in the Shacman WP10 Piston Ring Set effectively prevents ring flutter and maintains stable compression at high RPM. This advanced design significantly lowers hydrocarbon emissions and protects against blow-by.
The Coil Spring Loaded Oil-control Ring consists of two thin steel rails and an expander spring that maintains uniform radial wall pressure. This three-piece assembly ensures excellent oil film regulation, removing excess lubricant from cylinder walls while leaving optimal lubrication. Within Shacman WP10 Piston Ring Set, the coil spring loaded design adapts to bore distortions, offering superior conformability and drastically reduced oil passage. Its chrome-plated rails resist micro-welding and corrosion, delivering remarkable oil economy and preventing carbon buildup in ring grooves.

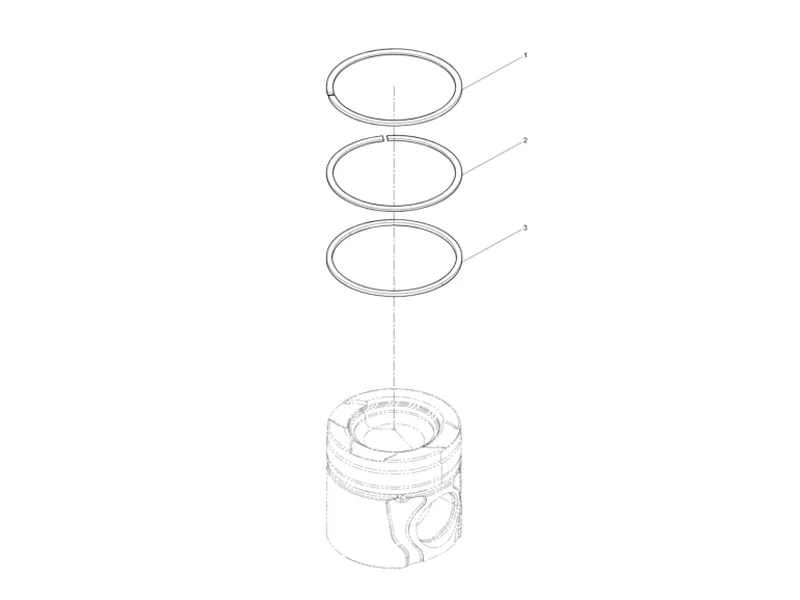

| Part Number | Part Name |
|---|---|
| 611600030021 | Keystone Barrel Ring |
| 611600030012 | Twist Taper Ring |
| 1001050611 | Coil Spring Loaded Oil-control Ring |
The Shacman WP10 Piston Ring Set is engineered to withstand peak combustion temperatures up to 500°C without loss of tension. Nickel-chromium coatings prevent oxidation and ring sticking.
Thanks to the Keystone barrel geometry and helical backbore design, this ring set reduces crankcase blow‑by by up to 45%, improving turbocharger response and engine efficiency.
Phosphate-manganese and PVD coated surfaces minimize boundary friction. Shacman WP10 Piston Ring Set contributes to lower fuel consumption and smoother cold starts.
With optimized axial clearance and superior scuff resistance, the ring set doubles service intervals compared to economy alternatives, making it a cost-effective solution.
Shacman WP10 Piston Ring Set perfectly fits WP10 diesel engines (Euro II / III / IV) used in Shacman F3000, X3000, and construction machinery. It also matches Weichai, DAF, and similar 9.726L platforms. Perfect for heavy trucks, buses, loaders, and generator sets requiring robust ring performance.
Engine rebuilders appreciate the set’s easy installation: color-coded rings and clear marking eliminate confusion. Each Shacman WP10 Piston Ring Set is delivered in anti-corrosion packaging, preserving factory precision.
Independent tests confirm that after 2000 hours of operation, the Shacman WP10 Piston Ring Set maintains cylinder leakage below 8%, while conventional sets exceed 12%. Oil consumption averages 0.08% of fuel burn, drastically reducing top-up frequency. Fleet feedback highlights 18% longer engine life after adopting this ring kit.
Furthermore, the coil spring oil control ring’s expander maintains even wall pressure even after bore distortions, preventing oil passage into combustion chambers. The twist taper ring eliminates secondary land deposits.
Every Shacman WP10 Piston Ring Set meets ISO/TS 16949 standards and is manufactured in IATF certified facilities. Rigorous end-gap control within ±0.03 mm ensures optimized sealing without risk of butting. We provide traceable batch numbers and material certificates upon request.
Shacman WP10 Piston Ring Set combines robust materials, advanced tribology and field-proven designs to maximize engine uptime. Whether you are an independent workshop or a fleet operator, this ring set delivers uncompromised performance, reduced emissions, and lower total cost of ownership.
