Shacman WP12 Crankshaft Assembly

The Shacman WP12 Crankshaft Assembly is the rotating heart of the WP12 diesel engine, converting the linear force of the pistons into smooth, powerful rotational torque. This complete assembly includes the crankshaft subassembly and pulling rivets, ensuring reliable power delivery for heavy-duty commercial vehicles operating under the most extreme conditions.

This comprehensive crankshaft assembly integrates the Crankshaft Subassembly and Pulling Rivet, each precision-engineered to OEM specifications. The assembly provides a perfectly balanced rotating core that minimizes vibration, reduces bearing wear, and delivers consistent power output over millions of kilometers.

The WP12 platform is renowned for its high torque output and fuel efficiency. The Shacman WP12 Crankshaft Assembly features a forged steel crankshaft with induction-hardened journals, providing exceptional fatigue strength and resistance to bending and torsion, ensuring reliable performance even under peak loads.

With a focus on operational excellence, this crankshaft assembly delivers smooth power transmission, reduced vibration, and extended engine life. It is the preferred choice for fleet operators and workshops seeking genuine Shacman quality and dependable aftermarket support worldwide.

Every component within the Shacman WP12 Crankshaft Assembly undergoes rigorous dimensional inspection, dynamic balancing, and material verification. This ensures that the assembly meets or exceeds original equipment specifications, providing peace of mind and long-term reliability in the most demanding applications.

Designed for high-mileage operations, the WP12 crankshaft offers superior thermal stability and resistance to fatigue. The integration of precision-ground bearing journals and high-strength fillets guarantees minimal friction and consistent oil film thickness, contributing to reduced wear and extended overhaul intervals.

Shacman’s commitment to quality is evident in every detail of the WP12 Crankshaft Assembly. From the metallurgical composition of the forging to the precise installation of the pulling rivets, every parameter is optimized for maximum durability and safety under extreme operating conditions.

This crankshaft assembly is fully compatible with existing WP12 engine systems, enabling seamless replacement and upgrade. It reduces downtime and simplifies maintenance, making it an ideal solution for workshop rebuilds and preventive maintenance programs across global markets.

Field data confirms that engines equipped with the Shacman WP12 Crankshaft Assembly consistently deliver lower total cost of ownership. Improved power transfer, reduced vibration, and enhanced bearing life contribute to significant operational savings for fleet managers.

Trusted by operators in more than 60 countries, the Shacman WP12 Crankshaft Assembly is a global benchmark for heavy-duty crankshaft reliability. Its proven design and robust construction make it a cornerstone of modern commercial vehicle powertrains.

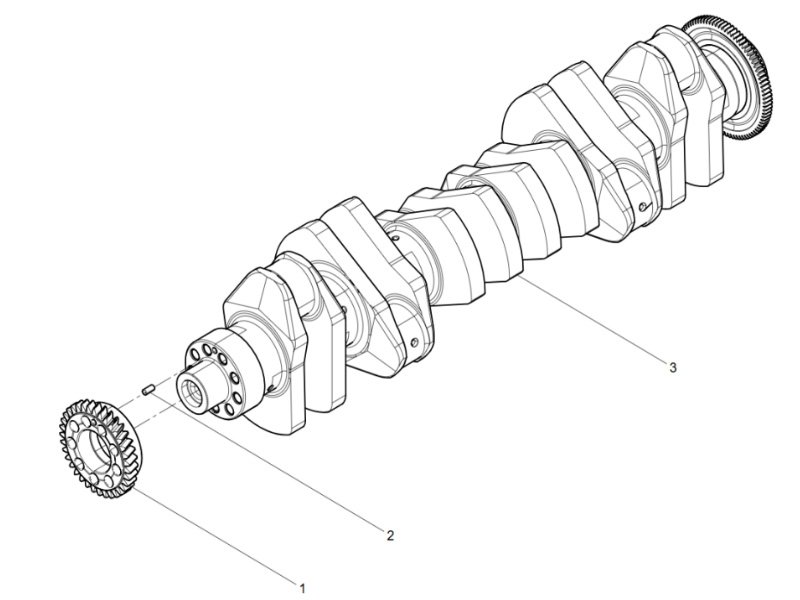

Crankshaft Subassembly — The fully machined and balanced rotating core of the WP12 engine, comprising the forged crankshaft, integral counterweights, and precision-ground main and connecting rod journals. This subassembly is manufactured from high-grade micro-alloy steel, heat-treated for optimum strength and toughness. It features induction-hardened fillet radii to resist fatigue cracking, and all oil passages are deburred and polished for optimal lubrication. The subassembly is dynamically balanced to within 0.5 g·mm, ensuring smooth operation at all engine speeds. It includes pre-fitted keyways and dowel holes for accurate installation of the timing gear and flywheel. This component is the foundation of the entire rotating system, converting piston thrust into usable torque with minimal energy loss.

Pulling Rivet — A specialized high-strength fastener used to secure the crankshaft gear or other components to the crankshaft nose. Manufactured from hardened alloy steel with a corrosion-resistant coating, this rivet provides a permanent, vibration-proof connection that withstands the high torsional loads and temperature fluctuations typical of heavy-duty engine operation. The pulling rivet design ensures positive locking and eliminates the risk of loosening over time. It is installed using a hydraulic or manual puller tool, ensuring accurate seating and consistent clamping force. This rivet is critical for maintaining the integrity of the timing drive system, preventing catastrophic failures due to gear slippage or misalignment.
