Shacman WP12 Fuel Injector Group

The Shacman WP12 Fuel Injector Group is a complete, factory‑matched set of high‑performance fuel injectors and associated hardware for the WP12 diesel engine. This Shacman WP12 Fuel Injector Group comprehensive kit includes the fuel injector, injector clamp, high‑pressure connector, nut, washer with ball face, and mounting bolts, ensuring precise fuel atomisation, optimal combustion, and reliable engine performance for heavy‑duty commercial vehicles.

This Shacman WP12 Fuel Injector Group group integrates the Hexagon Head Bolt, Washer with ball face, Fuel Injector Clamp, Fuel Injector, High‑pressure Connector, and Nut. Each component is manufactured to exacting OEM standards, guaranteeing a perfect fit, leak‑free sealing, and long‑term durability in harsh engine environments.

The Shacman WP12 Fuel Injector Group WP12 platform is known for its high‑pressure common‑rail fuel system. The Shacman WP12 Fuel Injector Group features precision‑engineered injectors with multi‑hole nozzles, a robust clamp, and high‑strength fasteners, providing consistent fuel delivery and atomisation over millions of kilometres.

With a focus on operational reliability, this fuel injector group delivers precise fuel metering, reduced emissions, and extended engine life. It is the preferred choice for fleet operators and workshops seeking genuine Shacman quality and dependable aftermarket support worldwide.

Every component within the Shacman WP12 Fuel Injector Group undergoes rigorous dimensional inspection, material verification, and flow‑testing. This ensures that the assembly meets or exceeds original equipment specifications, providing peace of mind and long‑term reliability in the most demanding conditions.

Designed for high‑mileage operations, the WP12 injector group offers superior resistance to fuel degradation and thermal stress. The integration of hardened steel components, corrosion‑resistant coatings, and precision‑ground sealing surfaces guarantees consistent injection pressure and minimal maintenance, preventing nozzle fouling and power loss.

Shacman’s commitment to quality is evident in every detail of the Shacman WP12 Fuel Injector Group. From the metallurgy of the injector body to the tensile strength of the bolts, every parameter is optimized for maximum durability and safety under extreme operating conditions.

This Shacman WP12 Fuel Injector Group fuel injector group is fully compatible with existing WP12 fuel systems, enabling seamless replacement and upgrade. It reduces downtime and simplifies maintenance, making it an ideal solution for workshop rebuilds and preventive maintenance programs across global markets.

Field data confirms that engines equipped with the Shacman WP12 Fuel Injector Group consistently deliver lower total cost of ownership. Precise fuel atomisation reduces fuel consumption, lowers emissions, and extends the life of the combustion system, contributing to significant operational savings for fleet managers.

Trusted by operators in more than 60 countries, the Shacman WP12 Fuel Injector Group is a global benchmark for heavy‑duty fuel injector reliability. Its proven design and robust construction make it a cornerstone of modern commercial vehicle powertrains.

The fuel injector is a high‑precision component with a multi‑hole nozzle that atomises fuel into a fine mist, enabling complete combustion and maximum power output. Its internal hydraulic circuitry is calibrated to deliver the exact fuel quantity at the precise moment, reducing noise and particulate emissions.

The fuel injector clamp is a precision‑machined steel bracket that securely holds the injector in the cylinder head, ensuring correct orientation and preventing movement under high pressure. Its robust design distributes clamping force evenly, maintaining a leak‑free seal.

The high‑pressure connector is a precision‑machined fitting that joins the injector to the high‑pressure fuel rail, ensuring a leak‑proof connection capable of withstanding rail pressures up to 2000 bar. Its design eliminates fuel leakage and maintains pressure stability.

The nut and washer with ball face are used to secure the high‑pressure connector and the injector clamp. The washer’s ball‑face design allows for angular misalignment, ensuring even clamping force and preventing stress fractures in the connector.

The hexagon head bolts are manufactured from high‑strength alloy steel with a zinc‑plated finish, providing secure mounting of the clamp and other components. Their precise thread pitch and tensile strength ensure reliable clamping force and resistance to loosening under vibration.

Hexagon Head Bolt – A high‑strength fastener that secures the fuel injector clamp and other components to the cylinder head. Manufactured from alloy steel, heat‑treated to grade 10.9, and coated with a zinc‑plated finish for corrosion resistance, this bolt provides consistent clamping force under high vibration and thermal cycling. Its precise thread pitch and length are matched to the specific mounting hole, ensuring a secure and accurate fit. The bolt is supplied with a pre‑applied thread‑locking compound to prevent loosening. Its hexagonal head allows for easy torque application with standard wrenches. This bolt is critical for maintaining the integrity of the injector mounting system, preventing clamp movement that could lead to fuel leaks or injector misalignment. Replacement is recommended when threads are damaged or if signs of corrosion are evident. This bolt is a direct replacement for the original factory part, ensuring identical strength and fitment.

Washer with ball face – A precision‑formed steel washer with a spherical seating surface, used in conjunction with the high‑pressure connector or clamp bolts. Its ball‑face design compensates for minor angular misalignments between the bolt head and the mating surface, ensuring even distribution of clamping load and preventing stress concentrations that could lead to cracking. Manufactured from hardened steel with a corrosion‑resistant coating, this washer maintains its shape under high torque and temperature, providing reliable load transfer. It is typically used with the connector nut to achieve a leak‑free seal. This washer is a direct replacement for the original factory component and is essential for maintaining proper clamp force and preventing fastener failure. Replacement is recommended whenever the connector or clamp is serviced.

Fuel Injector Clamp – A precision‑machined steel bracket that securely holds the fuel injector in the cylinder head bore, maintaining correct orientation and preventing movement under high combustion pressures. Manufactured from high‑strength steel with a corrosion‑resistant coating, this clamp features a precisely shaped saddle that conforms to the injector body, distributing clamping force evenly to avoid distortion. Its design incorporates alignment pins or locating features to ensure accurate positioning relative to the injector nozzle and the combustion chamber. The clamp is secured by hexagon head bolts and is critical for maintaining a leak‑free seal between the injector and the cylinder head. This clamp is a direct replacement for the original factory part, ensuring identical fit and clamping characteristics. Replacement is advised if the clamp shows signs of wear, bending, or corrosion, as any looseness can lead to injector movement and fuel leakage.

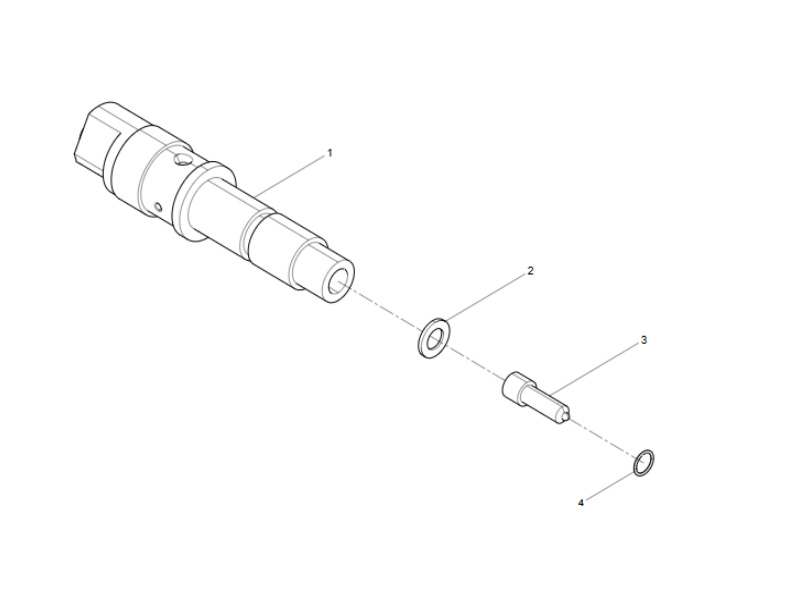

Fuel Injector – The core high‑precision component that atomises and delivers metered fuel into the combustion chamber. Manufactured from high‑grade stainless steel and hardened alloys, this injector features a multi‑hole nozzle with precisely drilled orifices that produce a finely atomised fuel spray for optimal mixing with air. Its internal hydraulic system includes a solenoid or piezo actuator that controls the needle lift with microsecond precision, enabling multiple injection events per cycle for reduced noise and emissions. The injector is calibrated to deliver the exact fuel quantity and timing required for maximum power and fuel efficiency. Its robust construction withstands rail pressures up to 2000 bar and combustion temperatures exceeding 600°C. This injector is a direct replacement for the original factory unit, offering identical flow and spray characteristics. Regular maintenance and replacement at recommended intervals are essential to maintain engine performance and prevent nozzle coking.

High‑pressure Connector – A precision‑machined fitting that connects the high‑pressure fuel rail to the injector, ensuring a leak‑free pathway for fuel at pressures up to 2000 bar. Manufactured from high‑strength steel with a corrosion‑resistant coating, this connector features a precisely machined sealing cone that mates with the injector inlet and a threaded portion for secure attachment. Its design incorporates an internal passage that minimises flow restriction and pressure drop, maintaining rapid pressure build‑up for consistent injection timing. The connector is secured with a specific nut and washer with ball face to ensure even clamping and sealing. This connector is a direct replacement for the original factory part, offering identical flow and sealing performance. Replacement is recommended if the sealing surface is damaged or if signs of fuel leakage are present, as any leak can compromise injection pressure and engine performance.

Nut – A high‑strength hexagon nut used in conjunction with the high‑pressure connector or other fasteners within the injector group. Manufactured from alloy steel with a zinc‑plated finish and heat‑treated to grade 10.9, this nut provides reliable clamping force and is designed to resist loosening under vibration. Its precise thread pitch and class fit ensure consistent torque retention. The nut is often used with a washer with ball face to accommodate angular misalignment. This nut is critical for maintaining the integrity of the fuel connection and should be replaced if threads are damaged or if signs of corrosion are evident. It is a direct replacement for the original factory component, ensuring identical strength and fitment.

Multi‑Hole Nozzle Technology
The injector nozzle features several precisely drilled holes that produce a finely atomised spray, ensuring complete combustion and reduced particulate emissions.

Precision Ground Sealing Surfaces
The high‑pressure connector and injector mating surfaces are ground to a mirror finish, ensuring a leak‑free seal even under extreme pressures.

Corrosion‑Resistant Coatings
All metal components are zinc‑plated or coated to resist fuel, moisture, and road salt, ensuring long‑term reliability even in harsh environments.

Heavy‑duty long‑haul trucks and tractor‑trailers

Construction and mining dump trucks

Intercity and transit buses

Agricultural and forestry machinery

Marine auxiliary power units

Stationary generator sets and pumps

Performance Summary: The Shacman WP12 Fuel Injector Group is designed for engines up to 480 HP and 2200 N·m of torque. With a proven service life exceeding 1.5 million kilometers, it delivers precise fuel atomisation, reliable sealing, and minimal maintenance, contributing to overall engine performance, fuel economy, and emission compliance.

Preparation & Cleaning
Clean the injector bore and mounting surfaces thoroughly. Inspect the new injector, clamp, and seals for damage. Lubricate the O‑rings with clean diesel fuel to ease installation.

Torque & Tightening
Install the injector, clamp, and connector, and tighten the bolts and nut to the specified torque (typically 25‑30 N·m for clamp bolts, 40‑50 N·m for the connector nut). Use a torque wrench and follow a cross‑pattern for even clamping.

Periodic Monitoring
Regularly check for fuel leaks around the injector and connector. Monitor engine performance and listen for abnormal combustion noise. Replace the injector group if any signs of coking, leakage, or performance degradation are observed.

Quality Certifications & Standards
The Shacman WP12 Fuel Injector Group complies with ISO 9001:2015 and IATF 16949 quality management standards. All components are manufactured in facilities certified to ISO 14001 environmental standards, ensuring sustainable production practices.
