Shacman X6000 Cabin Step Assy_Lh

The Shacman X6000 Cabin Step Assembly (LH) is a vital component that enhances accessibility and safety for drivers and passengers. Designed with both functionality and durability in mind, this assembly features several key components that work together to create a reliable stepping solution.

Shacman X6000 Cabin Step Assy_Lh
Shacman X6000 Cabin Step Assy_Lh
Download Catalog
Get Quotation
Whatsapp

Product Parameters of Shacman X6000 Cabin Step Assy_Lh

  • Shacman X6000 Cabin Step Assy_Lh

  • Key Components
  • At the forefront of this assembly is the Cabin Step-LH, which provides a sturdy platform for entering and exiting the vehicle. To ensure stability and security, the step is complemented by multiple Blockages, which help prevent debris from obstructing the step. These blockages are secured using Screws and Washers, ensuring a robust connection that can withstand daily use.
  • Structural Integrity

  • Shacman X6000 Cabin Step Assy_Lh

  • The assembly incorporates various brackets, including the Rear Step Bracket-LH and the Middle Step Bracket Assy, which contribute to the overall structural integrity of the step. These brackets are held in place with Hexagon Flange Bolts and Hexagon Bolts, providing reliable support and alignment for the step assembly.
  • Enhanced Safety Features

  • Shacman X6000 Cabin Step Assy_Lh

  • For added safety, the assembly includes the Stepmat 4th-LH and Stepmat 2nd-LH, which offer traction and prevent slipping during entry and exit. The inclusion of a Fender Bracket Assy-LH and Connecting Bracket Assy ensures that the step remains securely attached to the vehicle, further enhancing safety.
  • Comprehensive Design
  • Completing the assembly is the Front Step Bracket Assy-LH and the Front Step Bracket-LH, which provide additional support and stability. These components are carefully engineered to ensure that the cabin step assembly operates effectively while maintaining the vehicle’s aesthetic appeal.

  • Shacman X6000 Cabin Step Assy_Lh

  • Conclusion
  • The Shacman X6000 Cabin Step Assembly (LH) is an essential feature that enhances both accessibility and safety for the vehicle’s occupants. With a combination of robust components such as Blockages, Screws, Washers, and various brackets, this assembly is designed for durability and reliable performance. Understanding the intricacies of this assembly is crucial for maintenance and upgrades, ensuring that your Shacman X6000 remains in top condition.

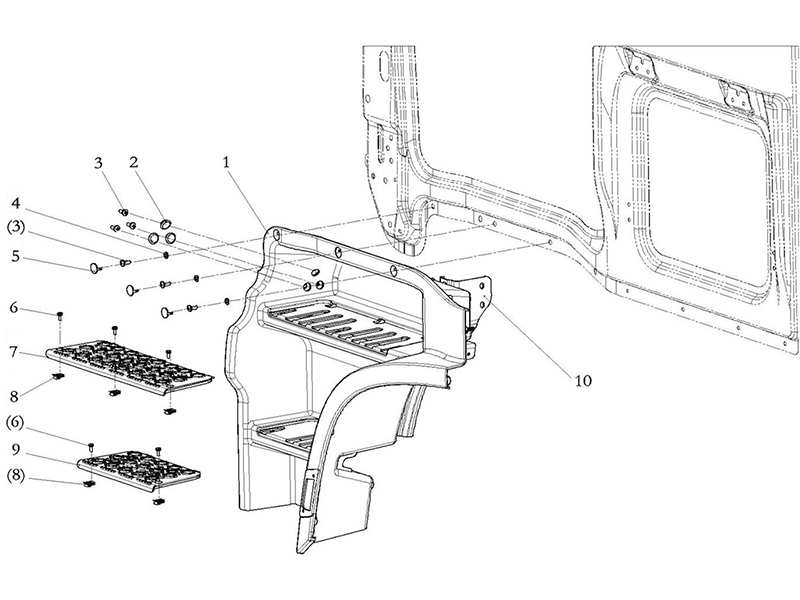

NO Part.No Name Quantity
1 DZ16251240011 Cabin step_LH 1
2 DZ16251240050 Blockages 1 3
3 Q2140820 Screw 6
4 Q401B08 Washer 14
5 DZ16251240049 Blockages 3
6 Q2300616 Screw and washer 5
7 DZ16251240047 Stepmat 4th-LH 1
8 DZ16251870083 Spring nut 5
9 DZ16251240043 Stepmat 2nd-LH 1
10 DZ16251240071 Rear step bracket-LH 1
11 Q1860820 Hexagon flange bolt 11
12 DZ16251240064 Middle step bracket assy 1
13 DZ16251240083 Rear step bracket assy-LH 1
14 Q150B0816 Hexagon bolt 11
15 DZ16251240085 Fender bracket assy-LH 1
16 DZ16251240079 Connecting bracket assy 1
17 DZ16251240081 Front step bracket assy-LH 1
18 DZ16251240061 Front step bracket-LH 1
