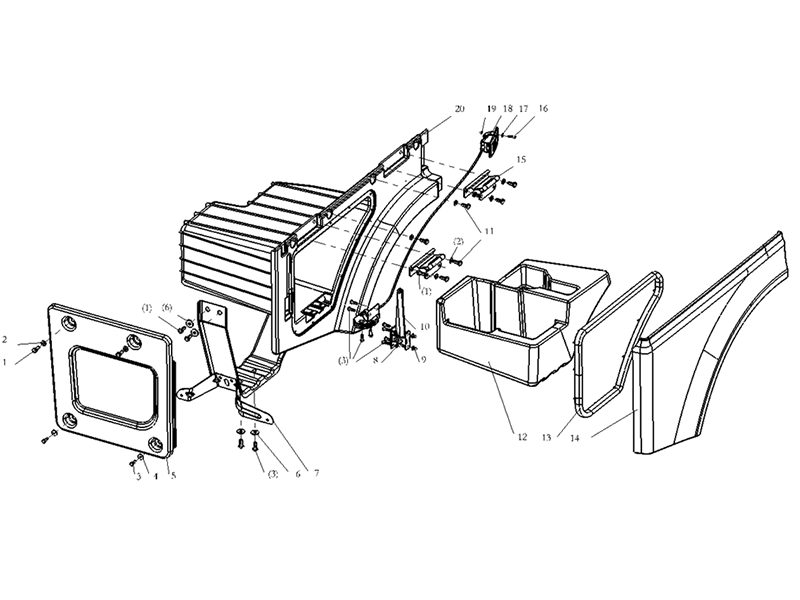

The Shacman X6000 Widen Front Fender is designed to provide both functionality and style for the X6000 series trucks. This fender enhances the vehicle’s appearance while ensuring robust protection for the wheels. It also includes an integrated tool cabinet, offering practical storage solutions for essential tools and equipment.
| NO | Part.No | Name | Quantity |
| 1 | DZ16251230011 | Left hand fender | 1 |
| 2 | DZ16251870083 | Spring nut | 2 |
| 3 | DZ16251230036 | Connecting support board | 1 |
| 4 | Q402B06 | Washer | 4 |
| 5 | Q150B0618 | Hex bolt | 4 |
| 6 | Q401B08F60 | Washer | 5 |
| 7 | Q150B0820T1F3 | Hex bolt | 5 |
| 8 | DZ16251230039 | LH support welding bracket assy | 1 |
| 9 | Q340B08T2F3 | Hex nut | 4 |
| NO | Part.No | Name | Quantity |
| 1 | Q150B0820T1F3 | Hex bolt | 10 |
| 2 | Q401B08F60 | Washer | 8 |
| 3 | Q150B0618 | Hex bolt | 12 |
| 4 | Q402B06F60 | Washer | 12 |
| 5 | DZ16251230038 | Shelter board | 1 |
| 6 | Q402B08F60 | Washer | 6 |
| 7 | DZ16251230035 | Support welding bracket assy | 1 |
| 8 | Q340B06 | Hex nut | 4 |
| 9 | Q2140610 | Cross pan head screw | 2 |
| 10 | DZ16251230030 | Supporting framework | 1 |
| 11 | Q2140820 | Cross pan head screw | 6 |
| 12 | DZ16251230029 | Tool cabinet foam | 1 |
| 13 | DZ16251230015 | Sealing strip | 1 |
| 14 | DZ16251230010 | RH fender cover board assy | 1 |
| 15 | DZ16251230020 | Gemel assy | 2 |
| 16 | Q2140420 | Cross pan head screw | 1 |
| 17 | Q402B04 | Washer | 1 |
| 18 | DZ16251230040 | Tool cabinet lock assy | 1 |
| 19 | Q340B04 | Hex nut | 1 |
| 20 | DZ16251230012 | RH tool cabinet | 1 |
