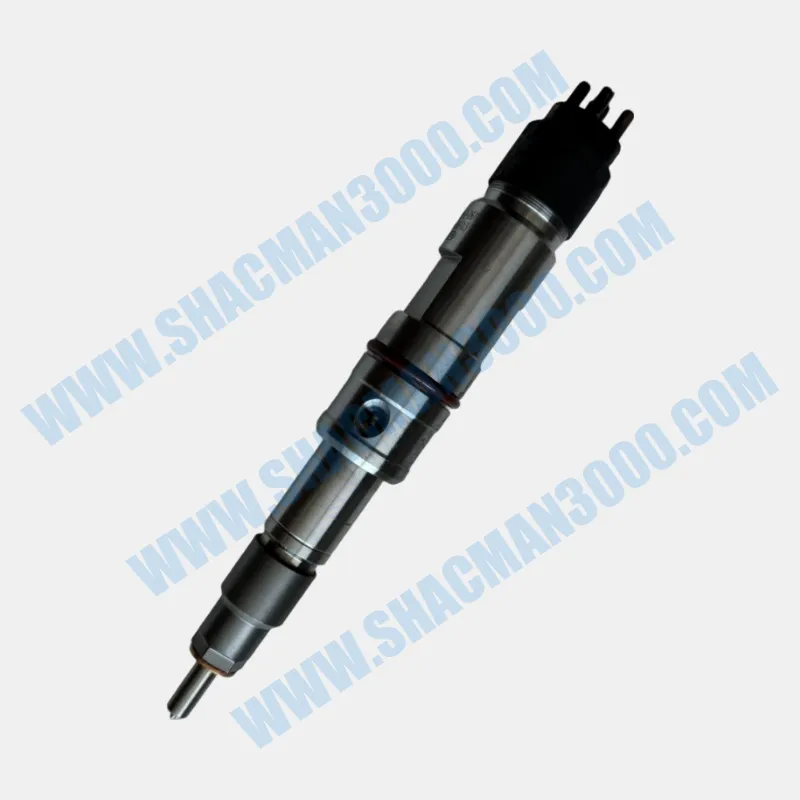

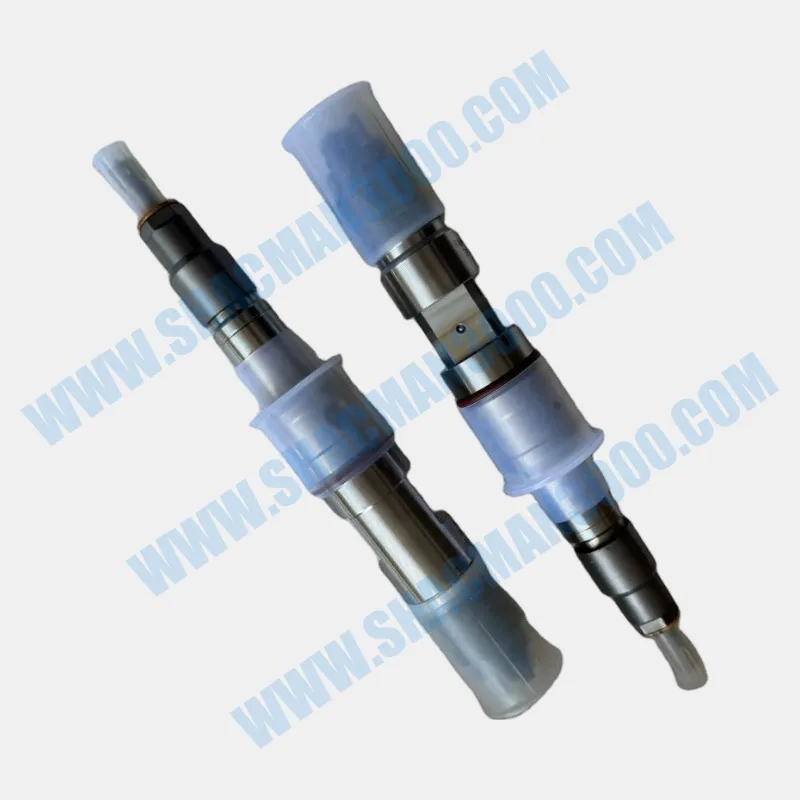

Shacman X5000 OEM 1000023122 Fuel Injector – Precision Common Rail Injection for Maximum Power

Technical Specifications – Fuel Injector 1000023122

Advanced Solenoid & Hydraulic Engineering

The Shacman fuel injector 1000023122 employs a high-speed solenoid valve that controls a servo‑hydraulic system inside the injector. When the ECU energizes the solenoid, a valve ball lifts, allowing high‑pressure fuel to vent from the control chamber. This reduces pressure on the needle’s control piston, allowing the nozzle needle to lift and injection to begin. De‑energizing the solenoid closes the vent path, pressure builds again, and the needle closes. This principle allows very fast switching (less than 0.25 ms) and precise control of injection timing and quantity, enabling multiple injections per cylinder per stroke.

The 7‑hole nozzle is laser‑drilled and hydro‑eroded to produce a perfectly symmetrical spray pattern. Each orifice is finished with a micro‑rounded inlet edge to reduce cavitation and improve flow stability. The needle and seat are lapped to a sub‑micron finish, ensuring zero leakage when closed. The injector body is made from case‑hardened alloy steel and coated with zinc‑nickel to resist corrosion from fuel and engine bay contaminants. The included copper sealing washer provides a gastight seal between the injector nozzle and the cylinder head, preventing combustion blow‑by. The O‑rings are made from FKM (fluoroelastomer) for compatibility with biodiesel blends and high temperatures.

Each injector is 100% flow‑tested on a Hartridge bench at multiple operating points (idle, mid‑range, full load). The flow deviation between injectors in a set is kept within ±2%. The solenoid coil is checked for resistance and insulation, and the injector is run through 10 million cycles on a test engine to verify endurance. These rigorous processes guarantee that the 1000023122 injector delivers consistent, repeatable fuel delivery for the life of the engine.

Pilot Injection & Combustion Noise Reduction

The 1000023122 injector’s ability to perform pilot injection (a small fuel shot just before the main injection) reduces combustion noise and peak cylinder pressures, resulting in smoother engine operation and extended component life. The post‑injection (after main injection) helps raise exhaust temperatures for DPF regeneration. The injector’s rapid switching allows these events to be closely spaced without interfering.

Critical Role in Combustion Efficiency & Emissions Control

The fuel injector is the final actuator in the common rail system. Its precise metering and timing directly affect fuel economy, power output, smoke opacity, and exhaust gas temperature. A degraded injector can over‑fuel one cylinder, causing white smoke, misfire, and washing of cylinder walls (diluting the oil with fuel). Under‑fuelling causes loss of power and increased particulate emissions. OEM 1000023122 ensures that each cylinder receives exactly the correct fuel quantity, calibrated to the engine’s unique injector code (stored in the ECU). This code must be programmed after installation to optimize the injector’s performance.

Modern diesel engines rely on very high injection pressures to atomize fuel into microscopic droplets. The 1000023122 injector’s DLC‑coated nozzle resists wear from high pressure and abrasive particles, maintaining the designed spray pattern for over 800,000 km. The needle and seat hardness (60–64 HRC) prevents leakage that could cause after‑injection dribble and carbon buildup on the nozzle. Fleet data indicates that using genuine Shacman injectors reduces the frequency of DPF ash cleaning by 30% due to cleaner combustion and lower soot production.

Injector return flow (the fuel that leaks past the needle and control piston) is normally less than 50 cc/min at idle. Excessive return flow indicates internal wear and leads to hard starting and low rail pressure. The 1000023122 injector’s precision‑fitted components maintain low return flow for the entire service life, preserving injection pressure stability and ensuring reliable starting even in cold weather.

Preventing Nozzle Carboning & Oil Dilution

A leaking injector can allow fuel to enter the combustion chamber after the exhaust stroke, washing down cylinder walls and contaminating the oil. The 1000023122 injector’s zero‑leak seat design prevents this, protecting bearings and turbocharger from fuel‑thinned oil.

Installation & Compatibility Guide

Replacing a faulty injector with OEM 1000023122 requires cleanliness and care. Relieve the fuel system pressure, remove the valve cover, and disconnect the injector electrical connector and fuel return line. Remove the injector clamp bolt and carefully extract the injector using a puller. Clean the injector bore thoroughly, install a new copper sealing washer onto the new injector, and lubricate the O‑rings with clean diesel. Insert the injector by hand until seated, install the clamp with a new bolt, and torque to 25 Nm. Reconnect the fuel return and electrical connector. Prime the fuel system, start the engine, and check for leaks. Using a diagnostic tool, program the injector’s IMA (individual trim code) into the ECU.

This injector is compatible with all Shacman X5000 models equipped with WP13, WP15, or ISM common rail engines from 2015 onward. It directly replaces original part numbers 1000023121 and 1000023123. Applications include all six or eight injectors per engine. Always verify the OEM marking 1000023122 before installation. Do not attempt to clean a clogged injector with ultrasonic methods; replacement is the only reliable solution.

When replacing one injector, it is recommended to replace all injectors on the same bank if the engine has high mileage, to maintain balanced fueling. Always replace the copper washer and the clamp bolt. Keep a set of six 1000023122 injectors in your parts inventory for complete engine overhauls. After replacement, perform a fuel system leak test and a cylinder balance test to confirm proper operation.

Diagnostic & Maintenance Tips

Monitor injector balance rates (cylinder contribution) using a scan tool. A rate outside ±2 mg/str indicates a worn injector. High return flow (more than 150 cc/min at idle) is another sign of internal wear. Also check for black soot around the injector base – a sign of copper washer or injector seat leakage. Replace injectors every 500,000 km as preventive maintenance on severe‑duty trucks.

Applications & Harsh Environment Performance

Shacman X5000 trucks operate in mining, construction, oilfields, and long‑haul freight – environments where injectors are exposed to fuel contamination, high vibration, and extreme temperatures. The 1000023122 injector is tested to withstand 500 hours of salt spray, 20 G vibration, and 2,000 hours of operation with B20 biodiesel. The DLC‑coated nozzle resists micro‑erosion from abrasive particles (e.g., residual silica from fuel).

In mining dump trucks, injectors operate at near‑full load continuously. The hardened needle and seat maintain leak‑tight closure despite thermal cycling, preventing fuel dilution of oil. In arctic conditions, the fast solenoid response is not affected by cold fuel viscosity because the injector uses high rail pressure to operate. The FKM O‑rings remain flexible down to -40°C, preventing external leaks.

For highway fleets, the injector endures millions of injection cycles. Its fatigue life exceeds 50,000 hours, making it a reliable component for the life of the engine. The precise flow matching between injectors reduces engine vibration and improves drivability. The low return flow also reduces the load on the fuel lift pump.

5 Advantages of Genuine Shacman OEM 1000023122

1. Precision calibration: Flow‑tested and matched to ECU trim codes, ±2% accuracy. 2. Superior materials: DLC‑coated nozzle, case‑hardened body, FKM seals. 3. Fast response: ≤0.25 ms switching for multiple injection events. 4. Low return flow: ≤50 cc/min idle, preserving rail pressure. 5. Full traceability: Serial‑numbered with individual test report and trim code label.

Aftermarket injectors often use lower‑grade nozzle steels or are rebuilt with worn components, leading to premature failure or incorrect flow rates. The genuine Shacman injector’s premium materials and factory calibration ensure reliable performance and fuel economy. Investing in 1000023122 prevents injector sticking, black smoke, and DPF clogging.

For fleet maintenance, standardizing on genuine Shacman injectors ensures every cylinder receives the correct fuel volume, reducing engine vibration and oil dilution. The cost of a single engine overhaul due to a failed aftermarket injector far exceeds the price of OEM injectors.

Return on Investment for Fleets

Using rebuilt injectors that wear quickly leads to repeat downtime, increased fuel consumption, and possible DPF damage. The 1000023122 injector’s long life (up to 800,000 km) provides a lower total cost of ownership. Its precise fueling also improves fuel economy by 3‑5% compared to worn injectors.

Quality Assurance & Manufacturing Standards

Shacman’s fuel injector 1000023122 is produced in an IATF 16949 certified facility under clean‑room conditions. The nozzle is manufactured from high‑speed tool steel, laser‑drilled, and hydro‑eroded to final dimensions. The needle and seat are lapped on precision machines, then DLC‑coated. The solenoid is assembled from high‑purity copper wire, with insulation tested at 500 VDC. The injector body is forged, case‑hardened, and plated. Final assembly is done in a class 10,000 clean room.

Each injector is tested on a Bosch EPS 815 bench to verify static flow, return flow, response time, and spray pattern. The flow at five operating points is recorded and used to assign an IMA (individual trim code), which is laser‑marked on the injector body. The injector is then run through a 10‑minute break‑in cycle. Random samples are subjected to 50 million injection cycles and thermal shock testing (-40°C to 140°C, 1,000 cycles). Only injectors that pass all criteria are released for sale.

This rigorous quality system ensures every 1000023122 injector performs identically to the original factory component. Consistency is critical for maintaining balanced cylinder combustion and emissions compliance across your entire fleet.

Global Supply Chain & Availability

Genuine Shacman fuel injector 1000023122 is stocked by authorized distributors worldwide. Parts are supplied in sealed foam‑lined boxes with desiccant, each injector individually wrapped and labeled with the OEM part number, serial number, and trim code. Bulk packs of 6 injectors (one engine set) are available for fleet maintenance depots.

Expedited shipping options are available through Shacman’s regional logistics hubs in North America, Europe, Asia, Africa, and the Middle East, with typical delivery within 3‑5 business days. Always purchase from certified dealers and verify the holographic authenticity label. Counterfeit injectors often have incorrect flow rates, poor spray patterns, or lack DLC coating, leading to immediate drivability issues.

For preventive maintenance programs, automated replenishment ensures your workshop never runs out of essential injectors. Keep a stock of 1000023122 on every service truck to handle fuel system emergencies in the field. Many fleets replace all injectors at 500,000 km as a proactive measure to maintain fuel economy and reliability.
