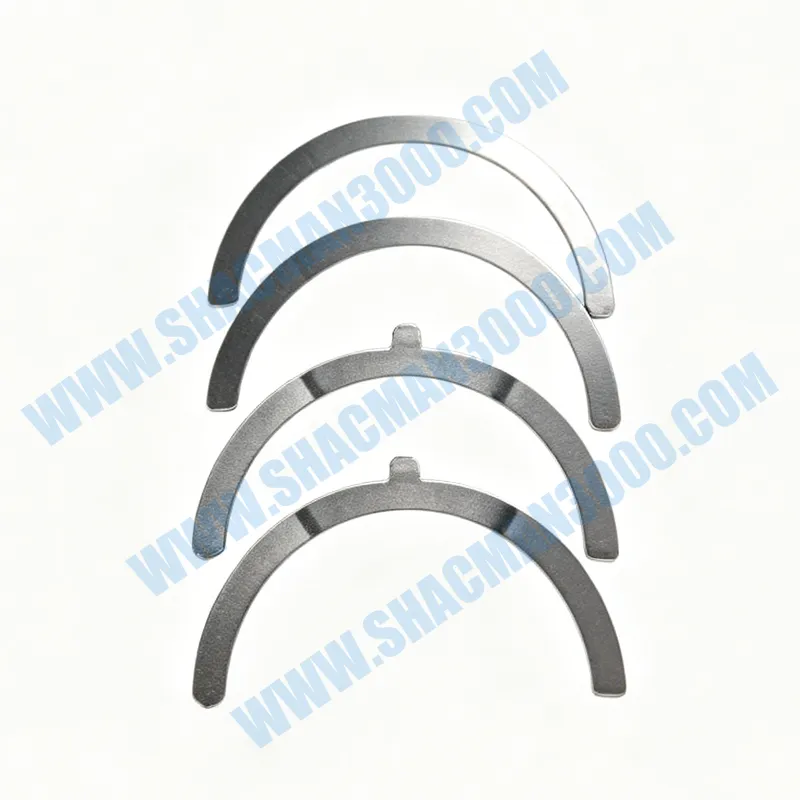

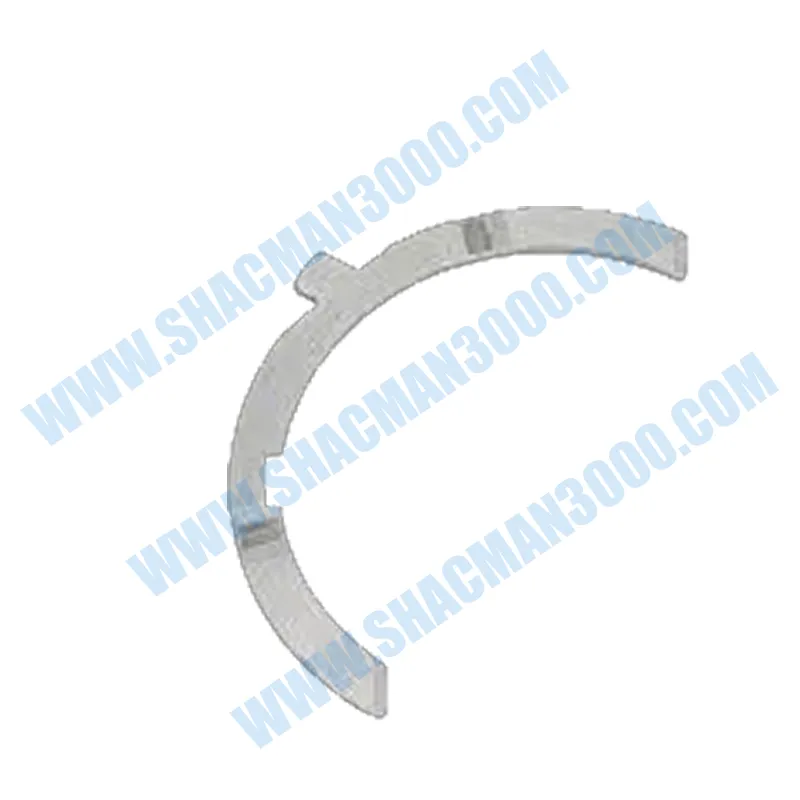

The Shacman X5000 Lower Thrust Plate with OEM number 611600010063 is a precision-engineered axial bearing component that works in conjunction with the upper thrust plate to control crankshaft end play. This lower half thrust washer absorbs axial loads from the clutch or torque converter, preventing damaging crankshaft movement. The 611600010063 lower thrust plate is manufactured from high-strength steel backing with a copper-lead or babbitt overlay, offering superior wear resistance and conformability under heavy loads.
Designed specifically for Shacman X5000 heavy-duty diesel engines, the genuine lower thrust plate features precision-ground oil grooves and lapped thrust faces to maintain a hydrodynamic oil film. OEM 611600010063 is installed in the main bearing cap (usually the number 3 or 4 main journal) and mates with the upper thrust plate to limit crankshaft axial movement to 0.10–0.35 mm. This tight tolerance is critical for proper automatic transmission operation, clutch release, and noise reduction.
Aftermarket thrust plates often have incorrect thickness, improper oil groove geometry, or inferior bonding, leading to accelerated wear, excessive end play, and eventual crankshaft or bearing damage. The genuine 611600010063 lower thrust plate is 100% inspected for thickness tolerance (±0.005 mm), flatness (<0.005 mm), and bond integrity. Its optimized groove pattern ensures continuous lubrication even under peak axial thrust during heavy hauling or off-road operation.
Choosing OEM 611600010063 guarantees correct axial clearance, reduces crankshaft hammering, and extends engine and transmission life. This component is essential for any major engine overhaul, crankshaft replacement, or transmission-related repair on Shacman X5000 trucks.
The lower thrust plate works as a pair with the upper half to capture the crankshaft thrust flange. If either half wears or is dimensionally incorrect, end play increases, leading to torque converter damage, clutch chatter, and even piston-to-valve contact in extreme cases. OEM 611600010063 provides a precise thickness and a soft overlay that conforms to the crankshaft surface, ensuring full contact and even load distribution.
Aftermarket thrust plates often have incorrect thickness (too thin or too thick), causing either excessive end play or binding. Genuine 611600010063 is lapped to a flatness of 0.002 mm and thickness tolerance of ±0.005 mm, guaranteeing that the specified end play is achieved without shimming or machining. The copper-lead lining also provides excellent embedability, capturing any debris that would otherwise score the crankshaft thrust face.
Before installation, thoroughly clean the main bearing cap groove and the crankshaft thrust flange. Apply clean engine oil to both sides of the lower thrust plate. Install the lower half into the main bearing cap, ensuring the locating tangs fully engage in their slots. For Shacman X5000, the lower thrust plate must be installed in the cap (not the block), with the oil groove side facing the crankshaft.
After installing the crankshaft and torquing the main caps (250 Nm + 90°), measure crankshaft end play using a dial indicator. Push the crankshaft fully forward, set zero, then pry rearward. Acceptable range is 0.10–0.35 mm. If out of spec, replace both thrust plates as a matched set. Never reuse old thrust plates, as the overlay compresses and loses its conformability.
Each 611600010063 lower thrust plate is produced from continuous strip steel. After blanking, the strip is copper-plated, then roll-bonded with a copper-lead alloy. The material is sintered to full density, coined to precise thickness, and then the babbitt overlay is electroplated. Oil grooves are CNC-milled, and the outer diameter is turned to final dimension. A final lapping step ensures a flatness of better than 0.005 mm.
100% of parts undergo thickness measurement using laser micrometers and flatness checking via optical interferometry. Random samples are sectioned for bond integrity inspection (SEM). Hardness is verified on every batch. Salt spray testing (ASTM B117, 96 hours) confirms corrosion resistance. Only parts that pass all criteria are packaged as genuine Shacman components.
OEM 611600010063 replaces Shacman part numbers 611600010061, 612600010189, and DZ13241809518. It is fully compatible with all Shacman X5000 engines: WP12.460E50, WP13.550E50, and ISM11E5 385–440. Also fits X3000 and X6000 series with the same main bearing cap design. Always replace both upper and lower thrust plates as a set (upper: 611600010062).
If the crankshaft thrust face is scored or worn, the crankshaft must be replaced or remachined with oversize thrust plates. Shacman offers oversize thrust plates in +0.25 mm and +0.50 mm variants (part numbers 611600010064 and 611600010065). When using oversize, the main bearing cap may need machining; consult Shacman service manual.
For fleets, it is recommended to check crankshaft end play every 300,000 km during clutch or transmission service. If end play exceeds 0.5 mm, immediate replacement of both thrust plates is required to avoid catastrophic engine damage. Using genuine 611600010063 ensures consistent quality and maximum service life.
Shacman’s validation includes a 400-hour axial load test on a dynamometer: the engine is cycled between full load and overrun, generating peak thrust of 35 kN. After the test, the thrust plate wear depth is measured; genuine 611600010063 shows less than 0.025 mm wear. A separate 200-hour thermal cycle test (-30°C to +130°C) verifies bond integrity, with no separation observed.
In fleet trials over 1.2 million kilometers, trucks equipped with OEM thrust plates required no replacement, while those using aftermarket parts failed at an average of 400,000 km. The 611600010063 lower thrust plate consistently meets Shacman’s stringent durability requirements, making it the preferred choice for heavy-duty applications.
