Side Heat Shield
Боковой Тепловой Экран
Protector Térmico Lateral

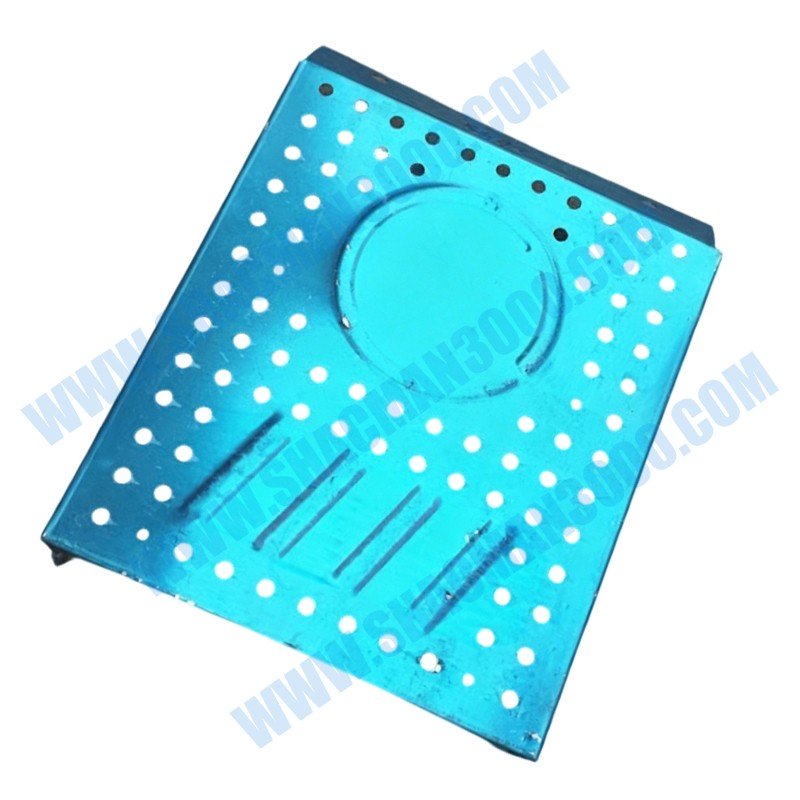

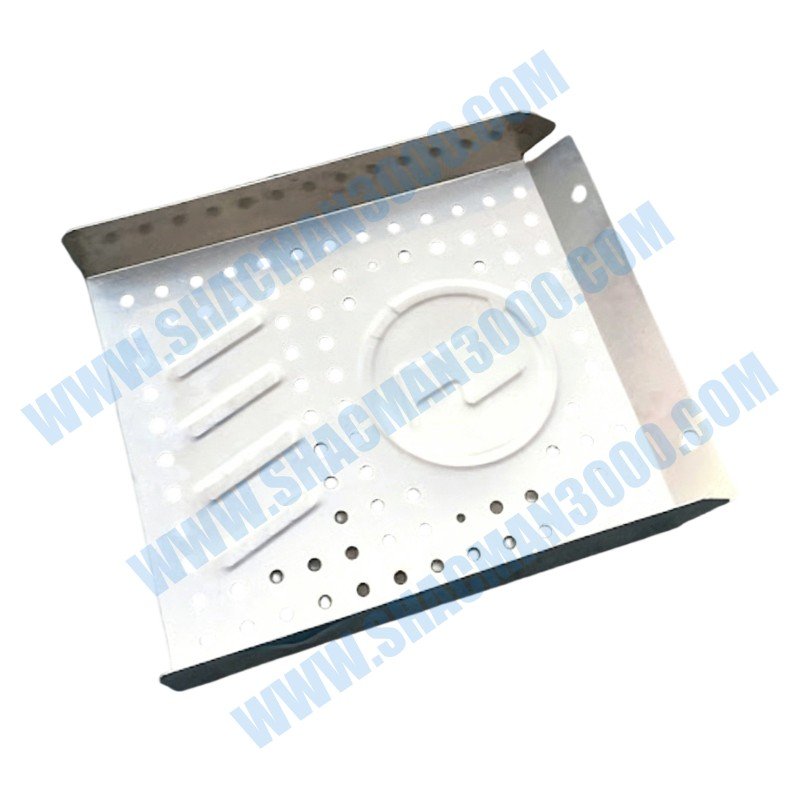

OEM Side Heat Shield DZ96259542648 precision‑formed for the Shacman X5000 engine compartment. This protective DZ96259542648 panel shields adjacent systems from lateral exhaust heat, preventing temperature‑related degradation of nearby components.
Constructed from aluminized steel with a corrosion‑resistant finish, the Side Heat Shield DZ96259542648 combines high thermal reflectivity with structural durability for continuous under‑hood service.
Replacing a damaged or missing side shield with the genuine DZ96259542648 component maintains the thermal management system that protects critical engine bay electronics and fluid lines.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ96259542648 |
| Product Name | Side Heat Shield |
| Brand / Model | Shacman X5000 |
| Material | Aluminized Steel with Edge Crimping |
| Panel Dimensions | Approximately 350 mm × 220 mm × 1.0 mm |
| Mounting Type | Pre‑formed bolt holes with integrated standoffs |
| Maximum Service Temperature | Up to 600°C radiant surface |
| Thermal Reflectivity | ≥ 80% infrared radiation reflection |
| Corrosion Resistance | Aluminized coating, 350 hours salt spray rated |
| Application | Shacman X5000 lateral exhaust component heat shielding |
The DZ96259542648 side heat shield mounts vertically alongside the exhaust manifold and turbocharger, creating a thermal barrier that protects components located in the lateral zones of the engine compartment.
Without lateral shielding, radiant heat from the exhaust system can degrade electrical harnesses, plastic fluid reservoirs, and electronic control modules mounted on the inner fender and firewall areas.
The Side Heat Shield DZ96259542648 features integrated standoffs that create an insulating air gap between the shield and the mounting surface, enhancing thermal protection through double‑wall isolation.
The DZ96259542648 shield is manufactured from aluminized steel that combines the strength of a steel substrate with the heat‑reflective properties of an aluminum surface layer, providing robust protection.
Crimped edges around the perimeter provide structural rigidity and eliminate sharp edges that could pose a safety hazard during engine compartment service operations.
The DZ96259542648 shield mounts using pre‑formed bolt holes with integrated standoffs that maintain the required air gap. This gap is essential for the shield’s thermal performance.
Fasteners should be tightened to specification, and the shield should be checked for adequate clearance from moving components such as steering shafts and belt drives after installation.
Each production batch of DZ96259542648 shields undergoes surface reflectivity measurement to verify the aluminized coating meets the minimum infrared reflection specification.
Thermal exposure tests subject samples to sustained high temperatures while monitoring for coating delamination, substrate warping, or degradation of the aluminized surface layer.
Discoloration or darkening of the DZ96259542648 aluminized surface indicates oxidation of the aluminum layer, reducing its heat reflection capability and requiring shield replacement.
Cracks propagating from mounting holes or bent corners suggest fatigue or impact damage. A cracked shield loses structural integrity and should be replaced to maintain thermal protection.
During engine services, all heat shields should be visually inspected for presence and condition. Missing shields expose critical components to exhaust heat and must be replaced immediately.
The DZ96259542648 shield is specifically formed for the Shacman X5000 engine compartment side profile, matching the factory mounting points and clearance envelope of this vehicle platform.
Fleet workshops should maintain spare heat shields for replacement during scheduled engine services to ensure continuous thermal protection of under‑hood components.
Aftermarket heat shields with incorrect material or dimensions may not provide adequate protection. We supply only the authentic Shacman X5000 Side Heat Shield DZ96259542648 built to OEM specifications.
Each shield is individually packaged with protective wrapping. The part number DZ96259542648 is clearly printed on the packaging for immediate identification.
Our international logistics network ensures genuine DZ96259542648 side heat shields are available for dispatch to dealerships and fleet facilities worldwide.
Complete side heat shield with integrated standoffs and mounting provisions. Ready for installation onto engine compartment mounting points.
Expert guidance on heat shield installation and thermal management. We help ensure your DZ96259542648 shield provides effective lateral heat protection.
For current stock availability on the genuine Side Heat Shield DZ96259542648, please use the contact buttons above.
