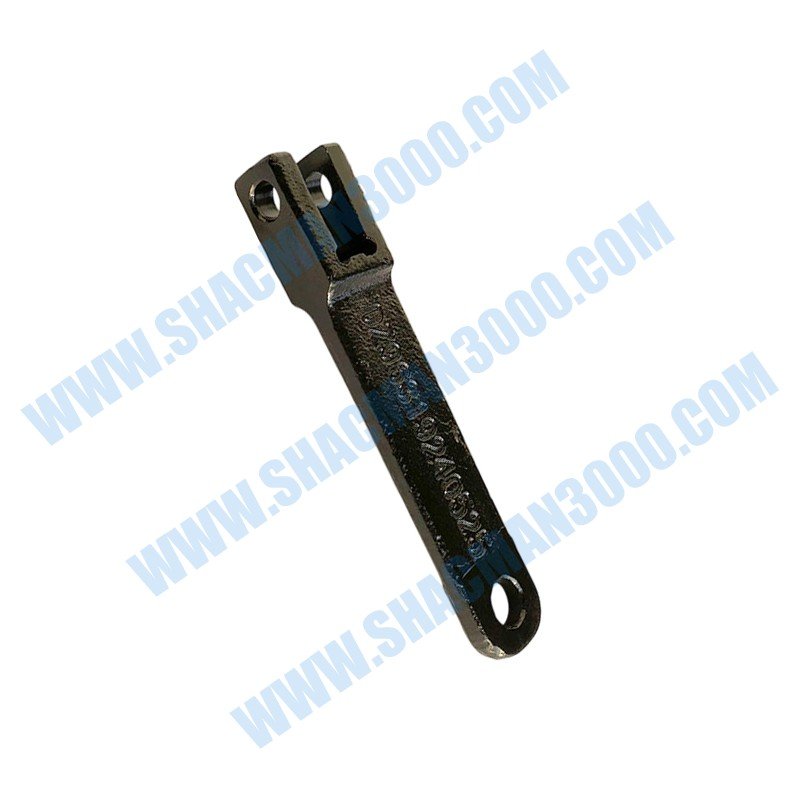

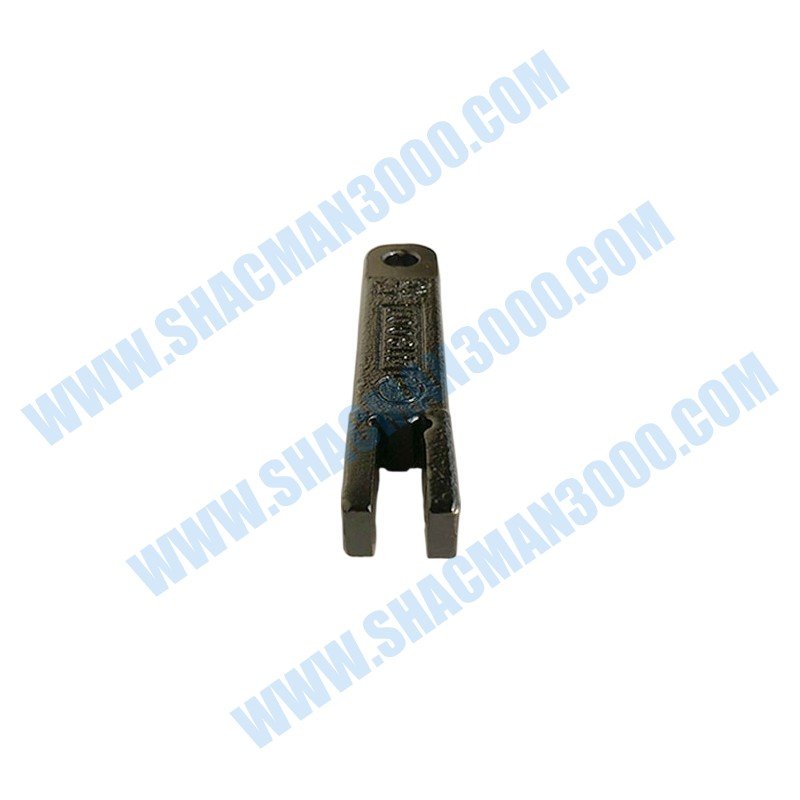

Rocker Arm/Gear Selection
Рычаг Переключения Передач
Palanca de Selección
OEM Rocker Arm/Gear Selection DZ96319240525 precision‑engineered for the Shacman X5000 transmission shift mechanism. This essential DZ96319240525 linkage component converts shift cable motion into precise gear selector shaft rotation for accurate gear engagement.
Manufactured from high‑strength alloy steel with hardened contact surfaces, the Rocker Arm/Gear Selection DZ96319240525 withstands the repetitive loading and vibration of heavy‑duty transmission operation.
Replacing a worn or damaged rocker arm with the genuine DZ96319240525 component restores proper shift function and prevents the gear selection issues that cause transmission damage.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ96319240525 |
| Product Name | Rocker Arm/Gear Selection |
| Brand / Model | Shacman X5000 |
| Material | High‑Strength Alloy Steel with Hardened Contact Faces |
| Component Type | Transmission shift selector linkage arm |
| Pivot Bore Diameter | Approximately 16.00 mm with bushing seat |
| Cable Clevis Hole | 10.00 mm diameter |
| Surface Hardness | HRC 50‑55 on contact surfaces |
| Corrosion Protection | Phosphate coating with oil film |
| Application | Shacman X5000 transmission gear selection mechanism |
The DZ96319240525 rocker arm is a critical link in the Shacman X5000 transmission shift control system. It converts linear motion from the shift cable into rotational movement of the gear selector shaft.
This component operates under repeated loading as the driver moves through the gear pattern. The hardened contact surfaces resist the wear that would otherwise create free play and imprecise gear engagement.
The Rocker Arm/Gear Selection DZ96319240525 is engineered with precise pivot geometry to provide the correct angular displacement of the selector shaft, ensuring each gear is fully engaged when selected.
The DZ96319240525 rocker arm is manufactured from high‑strength alloy steel with hardened contact surfaces, providing excellent resistance to the wear that occurs at pivot and clevis interfaces.
The phosphate coating provides corrosion protection while retaining lubricant on the surface, ensuring smooth articulation at the pivot points throughout the vehicle’s service intervals.
The DZ96319240525 rocker arm mounts onto the transmission selector shaft and is secured with the retaining bolt torqued to specification. The shift cable clevis connects to the arm.
After installation, shift linkage adjustment must be verified to ensure the transmission fully engages each gear. Improper adjustment causes incomplete gear engagement and accelerated synchronizer wear.
Each production batch of DZ96319240525 rocker arms undergoes dimensional inspection to verify pivot bore diameter, clevis hole position, and arm geometry against engineering specifications.
Hardness testing confirms the contact surfaces meet the specified HRC range, ensuring the arm maintains its wear resistance through the demanding duty cycles of commercial vehicle transmission operation.
Excessive free play or sloppiness in the shift linkage may indicate that the DZ96319240525 rocker arm pivot bore or clevis hole has worn beyond acceptable limits.
Difficulty selecting specific gears or gears popping out of engagement can result from a worn rocker arm that no longer provides the correct selector shaft rotation for full gear engagement.
During transmission service, the rocker arm and its bushings should be inspected for wear and secure attachment. Replacing worn components maintains proper shift function and transmission reliability.
The DZ96319240525 rocker arm is specifically configured for the Shacman X5000 transmission shift mechanism, with pivot geometry and cable interface matching this vehicle’s control system.
Fleet workshops should maintain spare rocker arms and bushings for replacement during transmission service, ensuring continued precise gear selection and preventing missed shift damage.
Aftermarket rocker arms with incorrect geometry can cause shifting problems. We supply only the authentic Shacman X5000 Rocker Arm/Gear Selection DZ96319240525 built to OEM specifications.
Each rocker arm is individually packaged with protective coating. The part number DZ96319240525 is clearly printed on the packaging for immediate identification and verification.
Our international logistics network ensures genuine DZ96319240525 rocker arm assemblies are available for dispatch to dealerships and fleet maintenance facilities worldwide.
Single rocker arm with phosphate coating and hardened contact surfaces. Ready for installation onto the transmission selector shaft.
Expert guidance on rocker arm installation and shift linkage adjustment. We help ensure your DZ96319240525 arm provides precise gear selection.
For current stock availability on the genuine Rocker Arm/Gear Selection DZ96319240525, please use the contact buttons above.
