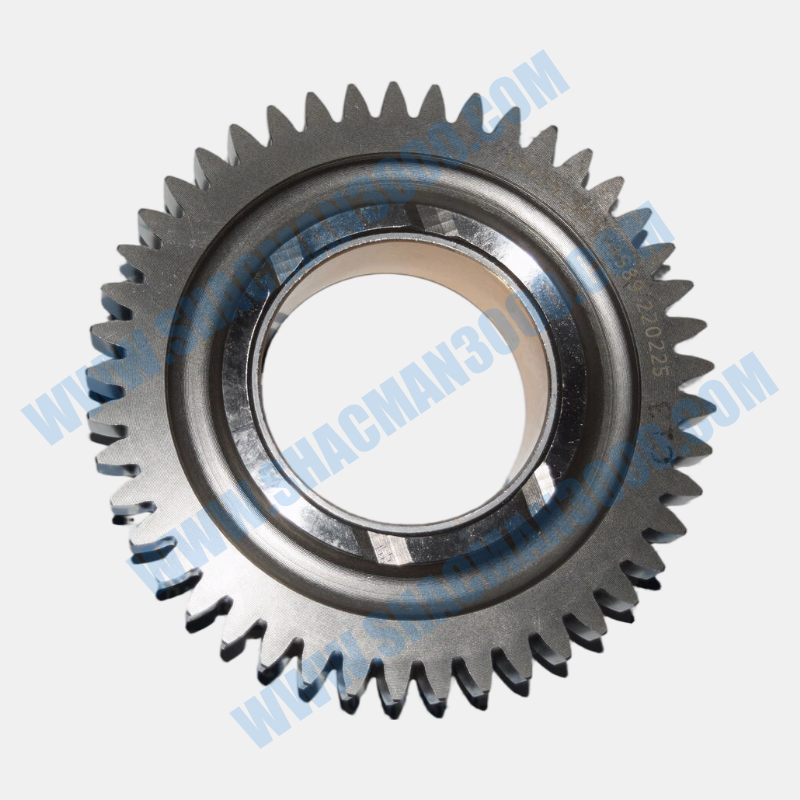

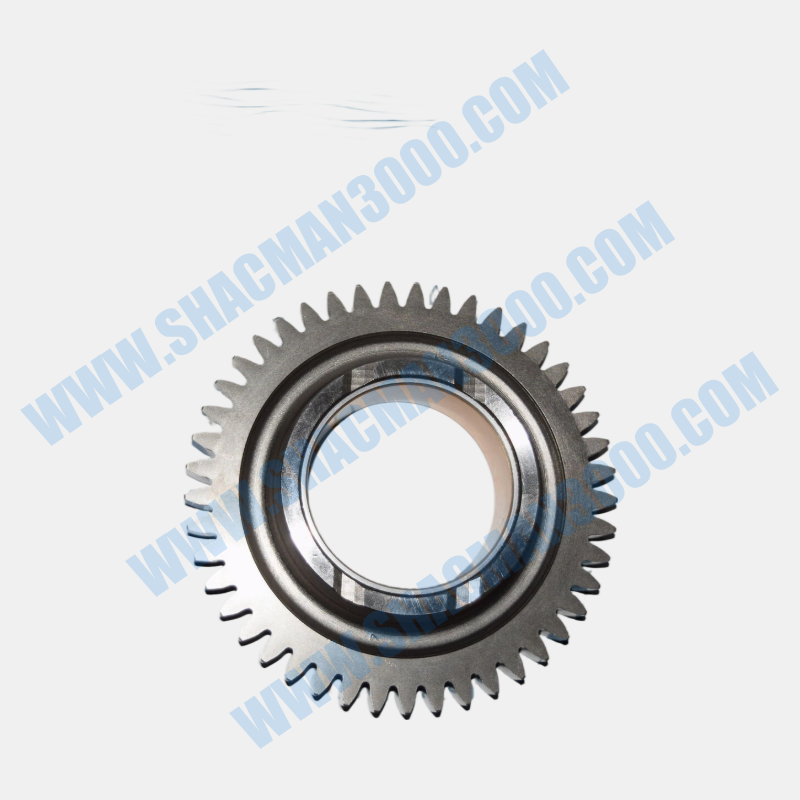

The OEM Idler Gear Assembly 1001529658 is a precision-engineered intermediate timing gear manufactured exclusively for the Shacman X5000 heavy-duty diesel engine. This critical rotating component serves as a vital link within the front gear train, transmitting rotational motion and maintaining exact mechanical synchronization between the crankshaft gear, camshaft gear, and accessory drives under all engine operating conditions.
Fabricated from premium hardened alloy steel with precision-ground helical gear teeth and an integrated bearing bore, the idler gear assembly delivers exceptional tooth strength, quiet operation, and outstanding wear resistance. The 1001529658 part features accurately machined tooth profiles with optimized flank geometry that ensure smooth, continuous contact with mating gears, minimizing backlash and eliminating the timing fluctuations that degrade engine efficiency.
Installing a genuine OEM idler gear assembly preserves the precise valve and fuel injection timing that is fundamental to engine power output and emissions compliance. The 1001529658 identifier provides complete traceability to Shacman’s rigorous metallurgical standards and precision manufacturing quality assurance processes for mission-critical timing drive components.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 1001529658 | Unique Shacman X5000 identifier |
| Product Name | Idler Gear Assembly | Intermediate timing gear with bearing |
| Brand / Engine Model | Shacman X5000 | Heavy-duty diesel engine series |
| Gear Material | Hardened Alloy Steel | High tooth bending and contact strength |
| Tooth Type | Helical gear teeth | Gradual engagement for quiet operation |
| Tooth Surface | Precision ground and super-finished | Smooth mesh and minimal friction |
| Bearing Type | Integrated precision bushing | Low-friction rotation on fixed shaft |
| Timing Marks | Clearly stamped alignment marks | Ensures correct gear train phasing |
| Application | Engine front timing gear train | Bridges crankshaft and camshaft gears |
| Packaging | Rust-preventive oiled wrapping | Shacman genuine labeled packaging |
The idler gear bridges the physical gap between the crankshaft gear and camshaft gear, transmitting rotational motion with absolute fidelity. Its precision tooth profile ensures that the camshaft remains perfectly synchronized with piston movement at all engine speeds.
The 1001529658 gear’s helical teeth engage gradually across the tooth face, dramatically reducing the impact noise associated with spur gears. This design contributes significantly to the refined acoustic signature of the Shacman X5000 engine.
The precision-ground tooth profile maintains the exact specified backlash with mating gears. This tight control prevents the rotational lash that causes timing scatter, ensuring consistent valve and injection events throughout the engine’s service life.
The idler gear assembly 1001529658 is installed in the front timing gear case of the Shacman X5000 engine. It rotates on a fixed idler shaft that is securely bolted to the engine block. Before installation, the shaft journal and the gear’s bushing bore must be thoroughly cleaned and generously lubricated with clean engine oil or assembly lubricant. The gear is slid onto the shaft with its timing mark facing outward for visibility. The crankshaft and camshaft are rotated to position their respective timing marks at the designated alignment points. The idler gear is then rotated until its stamped timing mark precisely aligns with the corresponding marks on both the crankshaft gear and the camshaft gear simultaneously. This three-way alignment is absolutely critical. Once verified, the idler gear is secured axially with its retainer plate and bolt, torqued to specification. The gear train backlash is measured with a dial indicator to confirm it falls within the factory tolerance before the timing cover is installed.
Each idler gear assembly produced under OEM number 1001529658 begins as a certified alloy steel forging. The forging process compresses and aligns the internal grain structure to follow the gear’s form, maximizing its bending fatigue resistance at the critically stressed tooth root areas. The blank is precision-turned, and the helical teeth are generated using a high-precision CNC hobbing machine that produces the exact involute profile and helix angle specified by Shacman engineering.
After hobbing, the gear teeth undergo case hardening through a controlled atmosphere carburizing process that creates a deep, hard, wear-resistant surface layer while maintaining a tough, impact-resistant core. The teeth are then finish-ground using precision gear grinding machines to achieve the final tooth profile accuracy, surface finish, and to eliminate any distortion from heat treatment. The bearing bore is honed to size, and the precision bushing is pressed in place. Timing marks are clearly and permanently stamped on the gear face. Each completed assembly undergoes comprehensive inspection using gear measuring centers that verify tooth profile, helix angle, pitch, and runout. The gear is then preserved with rust-preventive coating and packaged in a Shacman branded box displaying the 1001529658 part number.
The idler gear assembly must be carefully inspected whenever the engine front cover is removed for timing system service. Technicians should examine every tooth flank for signs of pitting, spalling, micropitting, or abrasive wear. A bright flashlight and magnification can reveal early-stage surface fatigue that precedes more serious damage. The tooth contact pattern can be evaluated using machinist’s blue to confirm full-face contact with mating gears.
The integrated bushing must be checked for excessive radial clearance when fitted on its shaft. Any perceptible wobble or measurable clearance beyond the service limit indicates bushing wear. The gear should also be inspected for any evidence of tooth edge chipping or impact damage. If any tooth surface degradation, excessive bushing clearance, or physical damage is detected, the idler gear must be replaced with a new 1001529658 assembly to restore the precise, quiet, and reliable timing drive that is essential for optimal engine performance and longevity.
Procuring the authentic idler gear assembly for your Shacman X5000 engine timing service is a straightforward process. Use the inquiry button above to verify current stock levels and receive a competitive quotation for your required quantity. We maintain strategic inventory of these critical timing gears to support both individual engine overhauls and comprehensive fleet maintenance programs across all international regions.
To ensure you receive the exact factory-specified timing component with full metallurgical and dimensional compliance, always reference the OEM part number 1001529658 in your purchase order. Our logistics team provides complete export documentation and material certifications with every international shipment for efficient customs clearance and inventory verification.
Strategic Stock Available
Ready for immediate global dispatch for Shacman X5000 engines.
Investing in the genuine Idler Gear Assembly 1001529658 is a decision that directly protects the fundamental timing precision and long-term durability of your Shacman X5000 engine. Aftermarket idler gears manufactured from inferior steel or with imprecise tooth profiles can introduce excessive gear train backlash. This mechanical looseness causes timing scatter, where the camshaft and fuel injection pump experience continuous micro-fluctuations in their rotational position relative to the crankshaft, degrading combustion efficiency and increasing exhaust emissions.
The OEM idler gear’s specific tooth profile modifications, helix angle, material composition, and heat treatment were developed through exhaustive computer-aided engineering and validated on Shacman’s engine dynamometers under the most severe load and speed conditions. Every design parameter was optimized to provide the silent, efficient power transmission and the unwavering timing stability that the X5000 engine demands. The 1001529658 assembly delivers the flawless rotational motion transfer that is fundamental to the engine’s power, fuel economy, and regulatory compliance.
Professional engine rebuilders and fleet maintenance technicians worldwide standardize on the 1001529658 idler gear assembly for its guaranteed dimensional accuracy, proven material quality, and consistent performance in the field. This precision gear is an essential link in the mechanical chain that orchestrates the engine’s breathing and combustion events. Trust only the idler gear assembly that Shacman engineered and certified for the demanding X5000 heavy truck platform.
The idler gear assembly 1001529658 operates in a continuous bath of pressurized engine oil that floods the front timing case. This generous lubrication serves a dual purpose: it cools the gear teeth as they mesh under heavy load, and it maintains the essential hydrodynamic oil film within the gear’s bushing that separates it from the stationary shaft. The helical tooth design naturally pumps oil across the contacting tooth faces, ensuring that every square millimeter of the load-bearing flanks receives adequate lubrication even during cold starts when oil viscosity is highest.
The importance of precise timing mark alignment during installation cannot be overstated. A gear train assembled even one tooth out of phase will cause the engine to run poorly, if at all, and can result in valve-to-piston contact that causes catastrophic engine destruction. The stamped timing marks on the 1001529658 gear are placed with absolute precision during manufacturing. After aligning all marks, the engine should always be rotated through two complete revolutions by hand to verify that all timing marks return to their exact alignment positions before the starter motor is engaged.
For our international customers, we take exceptional care in packaging the 1001529658 idler gear assembly to prevent any tooth damage or corrosion during global transit and extended storage. Each gear is individually wrapped in VCI protective film and packed in a custom foam-lined, reinforced carton that completely immobilizes the gear and protects the precision-ground tooth surfaces from any impact or vibration. Partner with our global supply network for a reliable source of genuine Shacman timing drive components, and maintain your fleet’s engines at the pinnacle of timing accuracy, operational smoothness, and long-term dependability.
