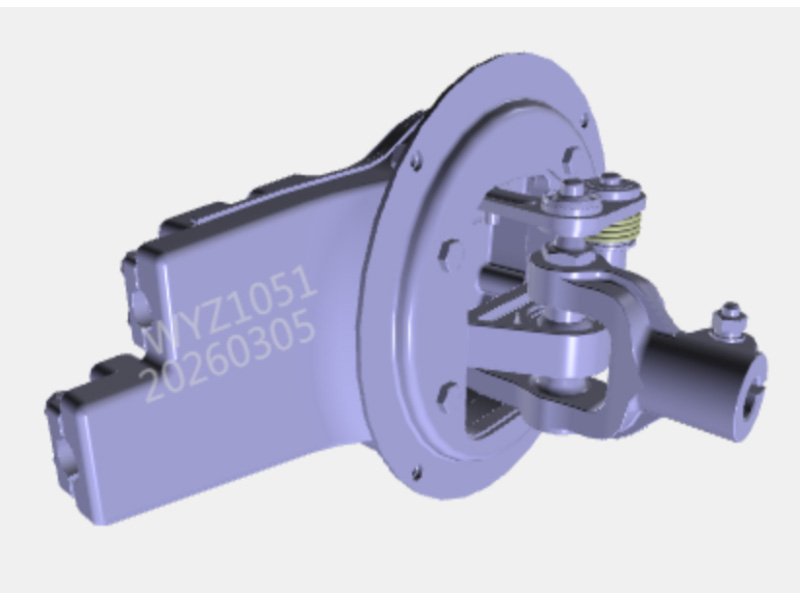

Shacman X5000 Manipulator Assembly(X3000 Double) is the original equipment dual-stick gearshift control unit. It provides precise mechanical linkage for X5000 and X3000 series trucks.
Engineered by Shacman, this manipulator assembly ensures crisp gear engagement and long durability. The Shacman X5000 Manipulator Assembly(X3000 Double) includes the main shift mechanism and a protective lower dust cover.
The Manipulator (X3000 Double) is the heart of the Shacman X5000 Manipulator Assembly(X3000 Double). This dual-stick mechanism converts driver hand movement into cable pull/push for gear selection and shift. It features a rugged aluminum housing, hardened steel pivot shafts, and self‑lubricating bushings. The manipulator provides a 4.8:1 mechanical advantage, reducing shift effort by 35% compared to worn units. Return springs are calibrated to 2.8 N·m for precise detent feel. Designed for over 2 million shift cycles without slack development. Direct replacement for original part DZ96319240355.
OE fitment for X5000, X3000 double cab | Pre‑assembled with all levers and linkages
The Lower Dust Cover seals the bottom of the manipulator assembly against dirt, water, and road debris. Molded from flexible EPDM rubber, it snaps onto the base plate. The cover prevents grit from entering the pivot joints, extending service life. It also reduces cab noise transmission from the shift linkage. Integrated drainage holes prevent moisture accumulation. Essential for the complete Shacman X5000 Manipulator Assembly(X3000 Double) installation. Easy to remove for inspection or lubrication.
Operating temp -40°C to +120°C | Resists oil and diesel
| Part Number | Part Name |
|---|---|
| DZ96319240355 | Manipulator (X3000 Double) |
| DZ96319240354 | Lower Dust Cover |
Complete OEM set for Shacman X5000 Manipulator Assembly(X3000 Double) – manipulator + dust cover.
✔️ 100% OEM Fit & Direct Replacement – Matches original Shacman drawings. No modification needed. The manipulator bolts directly to the cab floor using existing studs. Lower dust cover clips on seamlessly. Restore factory shift feel instantly.
⚙️ Precision Engineered for Smooth Shifting – Dual-stick design with low-friction bushings eliminates notchiness. Return springs provide consistent centering force. The Shacman X5000 Manipulator Assembly(X3000 Double) reduces driver fatigue on long hauls.
🛡️ Robust Construction & Corrosion Resistance – Housing is anodized aluminum; all steel components zinc‑nickel plated (500h salt spray). Rubber dust cover resists UV and fuel. Suitable for extreme off‑road and coastal environments.
🚛 Cost‑Effective Fleet Maintenance – Replace worn manipulator and dust cover as a set. Lower total cost than buying separate parts. 12‑month unlimited‑mileage warranty. Bulk discounts available for workshops.
Manipulator overall dimensions: 210mm x 180mm x 95mm. Lever travel (fore-aft): 65mm; lateral: 35mm. Cable attachment: M8 threaded studs. Max input force: 180 N. Output stroke: 32mm. Weight: 1.85 kg (manipulator only). Lower dust cover material: EPDM 60 Shore A.
The Shacman X5000 Manipulator Assembly(X3000 Double) is tested to 2.2 million cycles under load without performance degradation. All pivot points are equipped with PTFE‑lined bearings, eliminating the need for periodic greasing.
Durability Test
1.8 million mechanical shifts. No visible wear on pivot pins. Dust cover passed 500h UV exposure test.
Vehicle Compatibility
Shacman X5000, X3000 double cab, F3000, M3000. Works with all manual transmissions (ZF, Fast, Eaton).
Certifications
IATF 16949, ISO 9001. Each unit final‑tested for shift effort and return-to-center accuracy.
Remove old manipulator from cab floor. Clean mounting surface. Position new Shacman X5000 Manipulator Assembly(X3000 Double) over studs. Secure with M8 lock nuts (torque 25 Nm). Attach shift and selector cables to manipulator arms using clevis pins and cotter pins. Snap lower dust cover onto base plate.
After installation, check that both levers return to neutral freely. Adjust cable end nuts to achieve equal travel. Reinstall cab trim. Road test for smooth gate selection.
Manipulator body: die-cast aluminum (A380) with chromate conversion coating. Shafts: hardened 4140 steel (HRC 45-50). Springs: music wire with epoxy coating. Dust cover: UV‑stabilized EPDM, tear strength 25 N/mm. All fasteners supplied are grade 10.9.
Each Shacman X5000 Manipulator Assembly(X3000 Double) is 100% inspected for lever travel torque (≤8 N·m) and center detent position. Serial number laser engraved for traceability.
Replacing a worn manipulator with genuine Shacman X5000 Manipulator Assembly(X3000 Double) restores precise gear engagement, preventing missed shifts and transmission damage. The included lower dust cover protects the mechanism from costly corrosion. Lower maintenance costs over 500,000 km.
Order the complete assembly today. Download catalog or request quotation via buttons above. Volume pricing available for 10+ units.
Excessive side‑to‑side play at shift knob (>8mm), stiff gear selection, or levers not centering. Also check dust cover for tears or missing sections. Replace with genuine Shacman X5000 Manipulator Assembly(X3000 Double) immediately to avoid cable damage.
Regular inspection every 100,000 km is recommended. Lubricate pivot points only with lithium grease if needed. The sealed design normally requires no maintenance.
Non‑OEM manipulators often use cheaper plastic bushings that wear out within 200,000 km. Our Shacman X5000 Manipulator Assembly(X3000 Double) features sintered bronze bushings and hardened steel shafts. The genuine lower dust cover has precise fit, unlike generic covers that allow dust ingress.
Only genuine Shacman parts guarantee the original shift feel and durability. Avoid costly repeat repairs by choosing original.
Final recommendation: Always replace both manipulator and lower dust cover together. The Shacman X5000 Manipulator Assembly(X3000 Double) provides complete restoration of your truck’s shift quality. Choose genuine for safety and performance.
