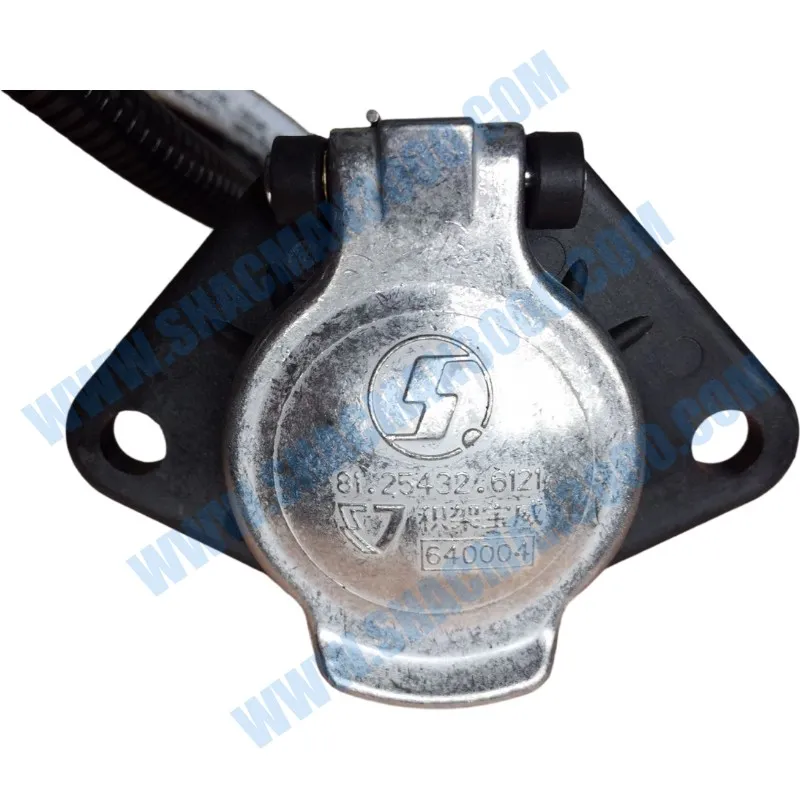

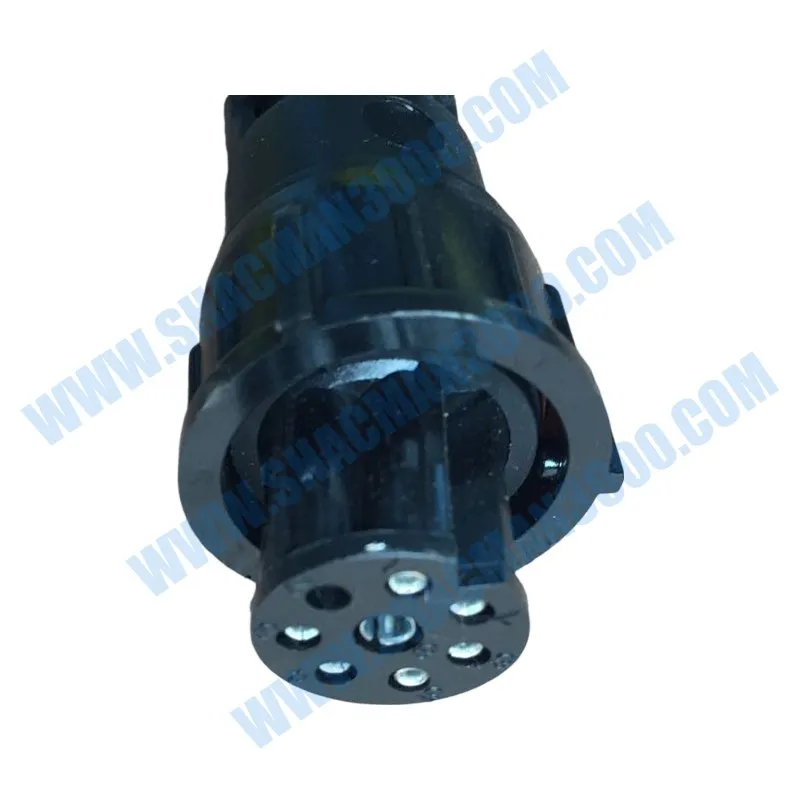

Shacman X5000 7-Hole 24N Type Trailer Socket (With Cable) 81.25432.6121 – Premium OEM Electrical Interface for Secure and Reliable Trailer Connections

Technical Specifications – 7-Hole 24N Trailer Socket 81.25432.6121

Design & Electrical Engineering

The 81.25432.6121 7-Hole 24N Type Trailer Socket is engineered to provide a robust and reliable electrical interface between the X5000 truck and its trailer. The socket follows the 24N standard, which defines the pin assignments for tail lights, brake lights, turn indicators, reversing lights, rear fog lamps, and earth, ensuring compatibility with a wide range of trailers and agricultural or industrial equipment. Each pin is precisely positioned and secured within a rugged housing that prevents misalignment and ensures consistent contact pressure. The pre-wired cable assembly uses high-quality, cross-linked polyethylene insulated conductors with sufficient gauge to handle the current demands of trailer lighting and auxiliary systems, minimizing voltage drop and ensuring bright, reliable illumination.

The socket’s housing incorporates a built-in sealing system that, when mated with a corresponding plug, achieves an IP67 rating, protecting the electrical contacts from water ingress, dust, and corrosion. The cable entry is reinforced with a strain relief boot that prevents the cable from being pulled out or damaged by bending, extending the service life of the assembly. The terminals are designed to accept standard 6.3mm blade connectors, making it easy to integrate with the vehicle’s wiring harness. This thoughtful design ensures that the 81.25432.6121 socket delivers consistent electrical performance, even under severe vibration and thermal cycling, making it an ideal choice for heavy-duty towing applications.

Material Quality & Environmental Resistance

The Shacman 81.25432.6121 trailer socket is constructed from high-grade PBT/GF30, a glass-fiber reinforced thermoplastic that offers exceptional mechanical strength, dimensional stability, and resistance to heat and chemicals. This material is formulated with UV stabilizers to prevent degradation from long-term sun exposure, which is critical for sockets mounted on the rear of the truck. The housing is also resistant to diesel, hydraulic fluid, road salt, and other common contaminants, ensuring that the socket maintains its structural integrity and sealing performance over years of service.

The electrical contacts are manufactured from tin-plated brass, providing excellent conductivity and resistance to corrosion. The tin plating prevents oxidation that could increase contact resistance, while the brass base material offers good spring properties to maintain contact pressure. The pre-wired cable uses XLPE (cross-linked polyethylene) insulation, which is superior to PVC in terms of temperature resistance and chemical resistance, allowing the cable to remain flexible even at -40°C and withstand under-hood heat. Shacman subjects each batch to salt spray testing, thermal cycling, and dielectric withstand tests to verify that the socket meets the highest standards of durability and safety. This commitment to material quality ensures that the 81.25432.6121 socket provides reliable, long-lasting performance in the harshest operating conditions.

Critical Role in Trailer Electrical Safety and Compliance

The 81.25432.6121 trailer socket is a critical component for ensuring that the X5000’s trailer electrical system functions correctly and safely. Proper lighting and signaling on trailers are essential for road safety, as they communicate the vehicle’s intentions to other road users and ensure compliance with national and international regulations. A faulty or corroded socket can lead to intermittent lighting, dim lights, or complete failure of brake lights, indicators, or tail lights, increasing the risk of rear-end collisions. The robust sealing and corrosion-resistant contacts of the genuine OEM socket prevent these issues, maintaining clear and reliable signals at all times.

Furthermore, the socket’s reliable earth connection is crucial for proper operation of all trailer electrical functions. A poor earth can cause erratic behavior, such as indicators flashing at the wrong speed or lights glowing dimly. The 81.25432.6121 socket is designed with a dedicated, low-resistance earth pin and a robust cable to ensure a stable ground, eliminating these problems. Additionally, the pre-wired cable assembly simplifies replacement and ensures that the wiring is properly rated, reducing the risk of overheating or fire. By using this genuine OEM socket, fleet operators ensure that their trailers remain fully functional and legally compliant, reducing the risk of fines, accidents, and liability claims, while also protecting the vehicle’s electrical system from damage caused by faulty trailer wiring.

Installation & Compatibility

Installing the 81.25432.6121 trailer socket is a straightforward process that can be completed by any competent technician with basic electrical skills. The socket comes with a pre-wired cable assembly, typically with color-coded conductors that correspond to the standard 24N pin functions, making it easy to connect to the vehicle’s existing trailer wiring harness. The socket is designed to mount directly onto the X5000’s rear crossmember or bumper bracket, using the supplied mounting hardware. The cable is routed along the chassis and secured with cable ties, and the connections are made using standard automotive crimp connectors or soldering, followed by heat-shrink tubing to ensure insulation and sealing.

Compatibility is guaranteed for all Shacman X5000 variants, as the trailer socket mounting points and wiring are standardized across the model range. The socket is also compatible with most 7-pin 24N trailer plugs, including those used on agricultural trailers, construction equipment, and standard freight trailers. However, it is essential to verify that the trailer’s plug matches the 24N standard, as some older trailers may use other configurations. Always confirm the OEM part number 81.25432.6121 before installation and consult the vehicle’s wiring diagram for correct color matching. By following these guidelines, technicians can achieve a reliable and safe installation that ensures consistent trailer lighting and signaling.

Maintenance & Inspection Recommendations

Although the 81.25432.6121 socket is built for long-term durability, regular inspection and maintenance are essential to ensure continued reliable performance. During routine service, technicians should visually inspect the socket housing for cracks, deformation, or corrosion on the contacts. The cable should be checked for any cuts, abrasions, or insulation damage that could expose conductors and lead to short circuits. The mounting bolts should be verified for tightness, as loose sockets can cause intermittent connections and damage the terminals.

It is also advisable to clean the socket’s internal contacts periodically using a contact cleaner and a soft brush to remove dirt and oxidation. The sealing gasket (if present) should be inspected for wear and replaced if it no longer provides a tight seal. When the vehicle is not towing, it is recommended to use a protective dust cover to prevent dirt and moisture from entering the socket. Any signs of corrosion, burning, or mechanical damage should prompt immediate replacement with a genuine Shacman 81.25432.6121 socket. By incorporating these simple checks into the fleet’s preventive maintenance program, operators can prevent trailer electrical failures that could cause costly downtime and safety hazards.

Applications & Operational Environments

The Shacman 81.25432.6121 trailer socket is designed to deliver reliable performance across a broad spectrum of towing applications. In mining operations, where trucks frequently pull heavy trailers over rough, unpaved roads, the socket’s robust construction and sealed contacts prevent dust and moisture from causing electrical faults that could halt operations. In construction and logging, where trailers carry heavy loads through muddy and debris-filled sites, the socket’s corrosion-resistant materials and secure mounting ensure that lighting and signaling remain functional, enhancing safety.

For long-haul freight, the socket provides a dependable connection for trailer lighting and auxiliary systems, reducing the risk of roadside inspections or repairs due to faulty lights. Its ability to withstand extreme temperatures and road salt makes it a durable choice for fleets operating in diverse climates. Whether the X5000 is used in regional distribution, cross-country logistics, or specialized heavy haulage, the genuine 81.25432.6121 socket offers a consistent, reliable interface that ensures trailer electrical systems perform as intended. Investing in this OEM component reduces the frequency of trailer-related electrical issues, improving overall fleet efficiency and safety.

Advantages of Genuine Shacman OEM Component

Choosing the genuine Shacman 81.25432.6121 trailer socket over aftermarket alternatives offers clear advantages in terms of fit, performance, and long-term value. As an OEM-engineered component, this socket is manufactured to the exact specifications of the original part, ensuring that the mounting hole pattern, cable length, and terminal configuration match perfectly with the X5000’s chassis and wiring. Aftermarket sockets often use inferior plastics, lower-grade contacts, or shorter cables, leading to premature corrosion, poor sealing, or difficulty in installation. The genuine socket also includes the correct cable colors and gauge, simplifying connection and reducing the risk of incorrect wiring.

Furthermore, the OEM socket undergoes Shacman’s rigorous quality assurance, including electrical continuity testing, insulation resistance checks, and environmental chamber validation. By using this component, fleet operators maintain their vehicle’s warranty status and preserve its resale value, as it demonstrates a commitment to genuine parts. Although the initial cost may be slightly higher than generic alternatives, the long-term benefits of reliable trailer lighting, fewer roadside faults, and extended service life make the genuine 81.25432.6121 a more economical choice. Fleet operators can also rely on Shacman’s extensive parts support network for rapid availability, ensuring that replacement sockets are always on hand when needed.

Quality Assurance & Manufacturing Standards

The 81.25432.6121 trailer socket is produced under Shacman’s comprehensive quality management system, which covers every stage from raw material procurement to final assembly. The PBT/GF30 resin is sourced from certified suppliers and undergoes incoming testing for flow, tensile strength, and heat deflection temperature. The injection molding process is controlled with precision to achieve consistent part geometry and surface finish. The contacts are stamped from high-quality brass and tin-plated in a controlled environment to ensure uniform coating thickness. The cable assembly is produced using automated wire stripping and crimping machines, with pull-test verification of every crimp.

Finished sockets are subjected to a series of rigorous tests, including IP67 sealing verification via submersion, thermal shock cycling from -40°C to +105°C, and mechanical impact resistance tests. Electrical tests include contact resistance measurement, dielectric withstand testing, and current-carrying capacity validation. Samples from each batch are exposed to salt spray and UV weathering to confirm long-term durability. Only components that pass all these criteria are approved for shipment as genuine Shacman 81.25432.6121 sockets. This unwavering commitment to quality ensures that every socket delivered to customers provides the reliable, safe connection that X5000 owners expect, contributing to the vehicle’s towing capabilities.

Supply Chain & Availability

The genuine Shacman 81.25432.6121 7-Hole 24N Trailer Socket is readily available through Shacman’s extensive global network of authorized parts distributors and service centers. This ensures that fleet operators, independent workshops, and dealerships can obtain the socket quickly and conveniently, regardless of their location. The sockets are packaged in protective, moisture-resistant packaging to prevent damage during storage and transit, and each package is clearly labeled with the OEM part number 81.25432.6121 for easy identification. For large fleets, volume purchasing agreements and just-in-time delivery options can be arranged to align with scheduled maintenance rotations, minimizing inventory costs and ensuring that the right parts are on hand when needed.

Shacman’s commitment to long-term parts support means that the 81.25432.6121 socket will remain available for the foreseeable future, providing peace of mind to owners of older X5000 trucks. By sourcing this genuine component through authorized channels, customers benefit from full warranty coverage and access to Shacman’s technical support. This reliable supply chain ensures that maintaining the trailer electrical connection of the X5000 is a straightforward and hassle-free process, helping fleet operators keep their vehicles towing safely and productively.
