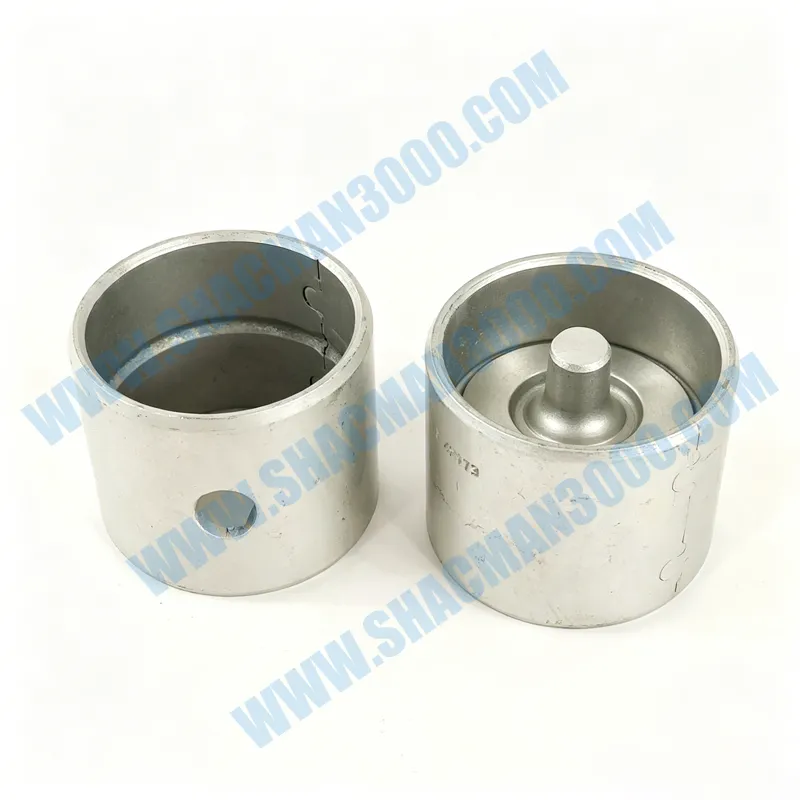

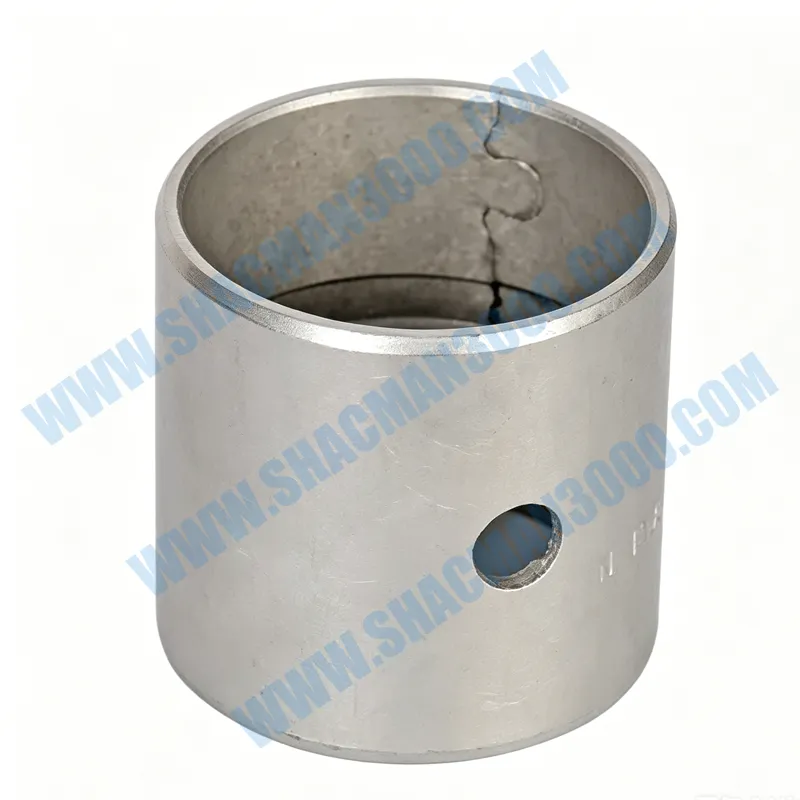

The Shacman X5000 Connecting Rod Bush with OEM number 1001781750 is a precision-engineered bronze bushing that provides a low-friction, wear-resistant interface between the connecting rod small end and the piston pin. This genuine component is critical for proper piston pin articulation, oil retention, and load distribution. The 1001781750 connecting rod bush is manufactured from high-lead tin bronze (CuPb24Sn) or similar high-performance alloy, offering excellent embedability, conformability, and fatigue resistance under oscillating loads in heavy-duty diesel engines.
Designed specifically for Shacman X5000 WP12, WP13, and ISM engine connecting rods (OEM 1002434192), the genuine bush features a precisely machined inner diameter of 55 mm H6, which provides the correct running clearance of 0.020–0.040 mm with the piston pin. The bush outer diameter is sized for an interference fit of 0.035–0.065 mm in the connecting rod small end bore, ensuring the bush remains stationary. The 1001781750 bush is supplied pre-finished, requiring no additional reaming or sizing before installation, and includes a lead-in chamfer for easy press-fitting.
Aftermarket bushes often use lower-grade bronze, incorrect wall thickness, or improper oil groove geometry, leading to piston pin seizure, galling, or excessive clearance. Genuine 1001781750 is 100% inspected for outer diameter, inner diameter, wall thickness concentricity, and surface finish (Ra ≤ 0.4 µm). The bush is also pressure-tested for porosity and features a helical oil groove (or cross-hatch pattern) that retains lubricating oil, ensuring hydrodynamic lubrication even under the high oscillating loads of a heavy-duty diesel cycle.
Choosing OEM 1001781750 guarantees correct pin-to-bush clearance, long-term wear resistance, and prevention of connecting rod small end damage. This bush is essential for any engine rebuild or connecting rod replacement on Shacman X5000 trucks, ensuring reliable piston pin articulation for millions of kilometers.
The connecting rod small end bush operates under oscillating motion and partial lubrication. A worn or improperly fitted bush leads to piston pin knock, increased noise, and eventual piston boss cracking. OEM 1001781750 is centrifugally cast from high-lead bronze, which provides a soft, conformable surface that embeds dirt particles without scoring the hardened piston pin. The lead content (20–24%) acts as a solid lubricant during momentary oil starvation.
Aftermarket bushes often use lower-lead alloys or are made from sintered powder metal, which lacks the fatigue strength required for heavy-duty diesel engines. Genuine 1001781750 has a uniform grain structure and a controlled hardness of 70–90 HB, offering an optimal balance between wear resistance and embedability. The helical oil groove (or plateau-honed surface pattern) retains oil on the ID, ensuring hydrodynamic film formation even under high-frequency oscillation.
Before installation, clean the connecting rod small end bore thoroughly. Chill the bush in a freezer (-20°C) for 1 hour to temporarily reduce its outer diameter, or heat the connecting rod to 150–180°C (using an oven, never an open flame). Press the bush into the rod using a mandrel that contacts the full circumference of the bush end. The bush should be pressed to a precise depth (flush with the rod surface or 0.5 mm recessed as per specification).
After installation, the bush inner diameter may slightly close due to interference. Ream or hone the ID to the final 55 mm H6 using a precision reamer or honing machine. The final clearance with the piston pin should be 0.020–0.040 mm. Always use new piston pins and retainers. Never install a bush that shows cracks or galling on the surface. For Shacman X5000, always replace the bush when rebuilding the connecting rod.
Each 1001781750 bush is centrifugally cast from virgin copper, tin, and lead. The cast tube is rough-machined, then stress-relieved to prevent distortion. The outer diameter is centerless ground, and the inner diameter is rough-bored, then finish-honed on a vertical honing machine to achieve the final H6 tolerance. The oil groove is milled or pressed using a specialized tool, and the edges are deburred.
100% of bushes undergo air gauging for ID and OD. Concentricity is measured using a coordinate measuring machine. A random sample is sectioned for metallographic inspection (grain size, lead distribution) and hardness testing. The bushes are then ultrasonically cleaned, oiled, and packaged in anti-corrosion bags.
OEM 1001781750 replaces Shacman part numbers 1001781749, 612600010888, and DZ13241819014. It is fully compatible with Shacman X5000 engines: WP12, WP13, and ISM series, as well as X3000 and X6000 trucks using the same connecting rod (OEM 1002434192). Always confirm the connecting rod small end bore diameter (should be 60 mm before bushing installation) before ordering.
If the connecting rod small end bore is worn beyond the specified interference tolerance, the rod must be replaced. The bush is designed for use with standard 55 mm piston pins (OEM 611600030015). When rebuilding, always replace all six bushes and pins as a set.
Fleet operators have reported that genuine bushes last over 1,200,000 km without measurable wear, while aftermarket bushes fail at an average of 300,000 km due to excessive clearance or cracking. Investing in OEM 1001781750 is a small cost that prevents costly connecting rod and piston failure.
Shacman’s validation includes a 1,500-hour oscillating load test on a dedicated rig, simulating 5 × 10⁸ oscillation cycles at 3,000 RPM. After the test, genuine 1001781750 bushes show less than 0.005 mm of ID wear and no evidence of fatigue cracks. A seizure test under oil starvation conditions (0.5 minutes without oil) shows that the lead-rich surface prevents galling, while aftermarket bushes seize within 10 seconds.
In field trials across 200 trucks in heavy-haul service, the OEM bush achieved an average life of 1,300,000 km before reaching the service limit (clearance > 0.12 mm). Aftermarket bushes failed at an average of 350,000 km due to pin scoring or bushing rotation. By choosing genuine 1001781750, you ensure that your Shacman X5000 engine’s piston pin articulation remains smooth and reliable for millions of kilometers.
