Exhaust Manifold Gasket

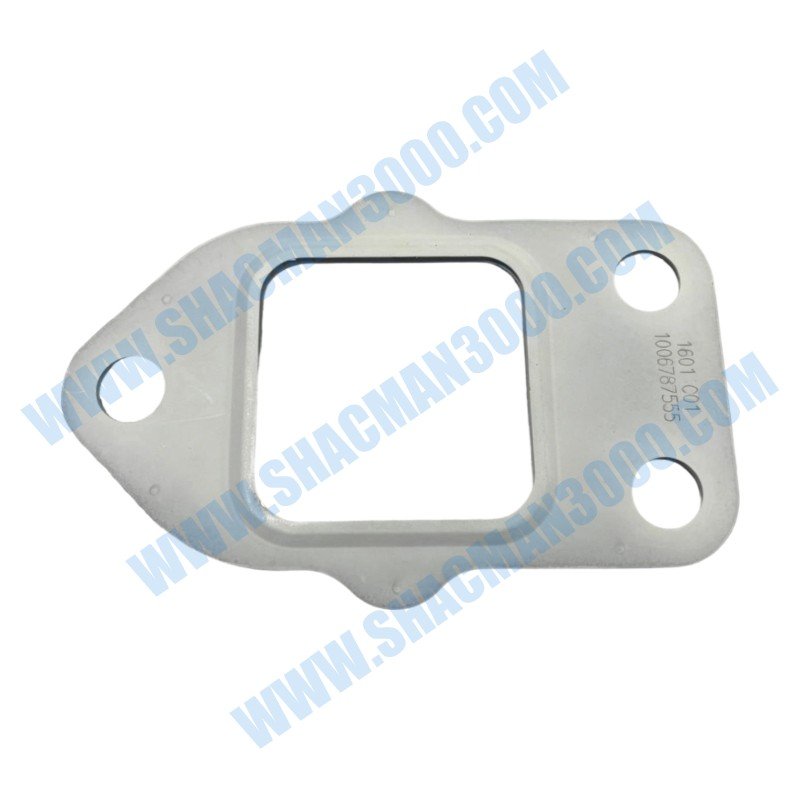

Прокладка выпускного коллектора

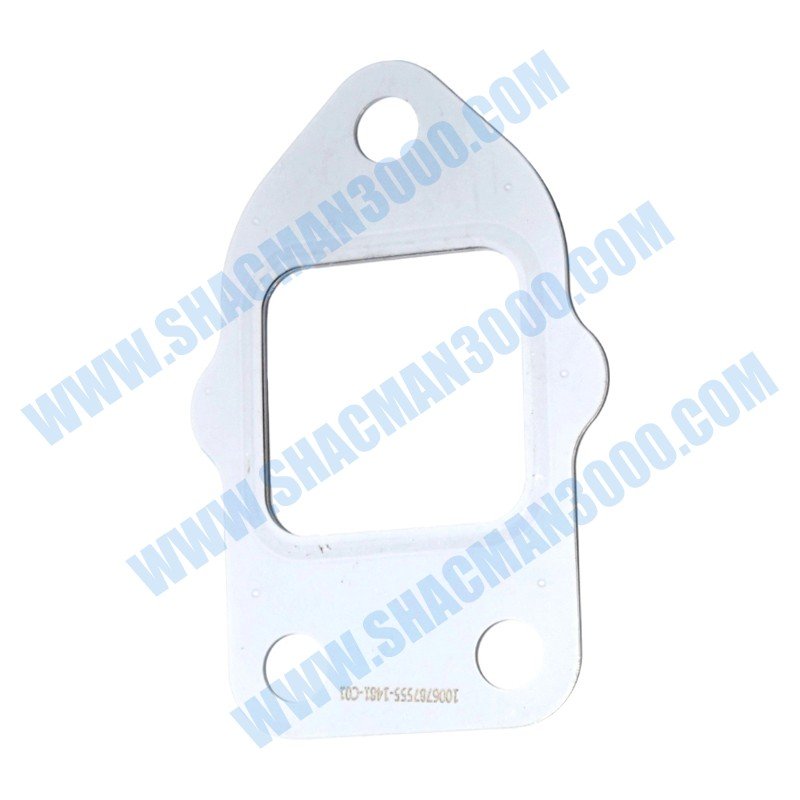

Junta del colector de escape
The OEM Exhaust Manifold Gasket 1006787555 is a precision-engineered high-temperature sealing component manufactured exclusively for the Shacman X5000 heavy-duty diesel engine. This critical gasket is installed between the exhaust manifold and the cylinder head, creating a gas-tight seal that prevents the leakage of extremely hot, high-pressure exhaust gases under the severe thermal cycling, vibration, and mechanical stress conditions of turbocharged diesel engine operation.
Constructed from premium multi-layer stainless steel or graphite composite materials with precisely die-cut port openings and bolt holes, the exhaust manifold gasket delivers exceptional heat resistance, conformability, and long-term sealing reliability at temperatures that can exceed 800 degrees Celsius. The 1006787555 part features embossed sealing beads or integrated fire rings that concentrate clamping force around each exhaust port, ensuring a complete and durable seal across the entire manifold-to-head interface.
Installing a genuine OEM exhaust manifold gasket preserves the designed exhaust system sealing integrity and prevents the exhaust gas leaks that can cause turbocharger performance loss, engine compartment heat damage, and dangerous carbon monoxide intrusion into the vehicle cab. The 1006787555 identifier provides complete traceability to Shacman’s rigorous material specifications and precision manufacturing quality assurance standards for this safety-critical exhaust sealing component.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 1006787555 | Unique Shacman X5000 identifier |
| Product Name | Exhaust Manifold Gasket | Seal between manifold and cylinder head |
| Brand / Engine Model | Shacman X5000 | Heavy-duty diesel engine series |
| Material | Multi-layer stainless steel or graphite composite | Withstands extreme exhaust gas temperatures |
| Manufacturing Process | Precision die-cut or laser-cut | Exact port and bolt hole alignment |
| Sealing Feature | Embossed beads or integrated fire rings | Concentrates clamping pressure around ports |
| Temperature Resistance | Exceeds 800°C continuous | Designed for exhaust manifold conditions |
| Port Configuration | Multi-port as per cylinder count | Matches cylinder head exhaust port layout |
| Application | Exhaust manifold to cylinder head flange | Seals exhaust gas passage at cylinder head |
| Packaging | Protective flat packaging | Shacman genuine labeled packaging |
The gasket prevents high-pressure, high-temperature exhaust gases from escaping at the critical junction between the cylinder head and the exhaust manifold, ensuring that all exhaust energy is directed to the turbocharger for maximum boost production and engine efficiency.
The 1006787555 gasket material is specifically formulated to withstand the rapid and extreme temperature swings from cold start to full-load operation without losing its sealing tension or suffering from thermal fatigue cracking over extended service life.
A leaking exhaust manifold gasket can allow odorless, deadly carbon monoxide gas to enter the vehicle cab through the HVAC fresh air intake, creating a life-threatening situation for the driver that this precision gasket is specifically designed to prevent.
The exhaust manifold gasket 1006787555 is installed between the cylinder head exhaust port flange and the exhaust manifold on the Shacman X5000 engine. Before installation, both mating surfaces must be meticulously cleaned of all old gasket material, carbon deposits, and corrosion using appropriate gasket scrapers and cleaning solvents. The surfaces must be inspected for flatness, pitting, or erosion that could compromise the seal. The new gasket is positioned over the cylinder head studs or aligned with the bolt holes, ensuring that all exhaust ports are centered and unobstructed. The exhaust manifold is carefully positioned over the gasket, and the mounting fasteners are installed and torqued incrementally in the specified sequence to the exact factory torque specification. No additional sealant should be applied to the gasket unless explicitly specified by the Shacman service manual. After installation, the engine should be started and the manifold-to-head joint visually inspected for any signs of exhaust gas leakage, which may appear as soot traces around the flange or an audible exhaust leak noise under load.
Each exhaust manifold gasket produced under OEM number 1006787555 is manufactured from premium gasket materials specifically selected for extreme high-temperature exhaust applications. Multi-layer stainless steel gaskets are formed from precision-rolled stainless steel sheets that are cut to shape and incorporate embossed beads around the port openings. These beads act as controlled stress concentrators that focus the available clamping force around the critical sealing area, creating a high-pressure seal line that resists exhaust gas blow-out even under the most severe operating conditions.
Graphite composite gaskets are manufactured from expanded graphite reinforced with a metal core for structural integrity. The graphite material provides exceptional conformability to surface irregularities and maintains its sealing properties at temperatures that would degrade conventional gasket materials. Each gasket is die-cut or laser-cut to the precise profile required, with port openings and bolt holes positioned to exact tolerances. Each production batch undergoes rigorous dimensional inspection and material verification. The gaskets are packaged in protective flat packaging that prevents bending or surface damage, and each package is labeled with the 1006787555 part number for complete traceability throughout the supply chain.
The exhaust manifold gasket area should be visually inspected during routine engine service for any signs of exhaust gas leakage, which will typically appear as black soot deposits around the manifold-to-head flange joint. An audible ticking or puffing sound that increases with engine load may also indicate a leaking gasket. Exhaust leaks at this location can also cause a noticeable exhaust odor in the engine compartment or cab, which must be investigated immediately due to the serious risk of carbon monoxide poisoning.
The exhaust manifold gasket is a single-use component that must be replaced whenever the exhaust manifold is removed from the cylinder head for any reason. Reusing an exhaust manifold gasket is extremely dangerous because the gasket material has already been compressed and thermally cycled, and it will not provide a reliable seal when reinstalled. Always install a new 1006787555 gasket when servicing the exhaust manifold to ensure the absolute exhaust gas seal that is critical for both engine performance and driver safety from carbon monoxide exposure. The cost of a new gasket is insignificant compared to the potential consequences of a leaking exhaust seal.
Procuring the authentic exhaust manifold gasket for your Shacman X5000 engine exhaust system service is a simple process that ensures sealing reliability and driver safety. Use the inquiry button above to verify current stock availability and request a prompt quotation. We maintain comprehensive inventory of these essential high-temperature sealing components to support both individual manifold repairs and complete fleet exhaust system maintenance programs across all international markets.
To ensure you receive the exact factory-specified gasket with correct material, port configuration, and geometry for your specific application, always reference the OEM part number 1006787555 in your purchase order. Our logistics team provides complete export documentation with every international shipment for efficient customs clearance and inventory verification at your facility.
Safety-Critical Stock Available
Immediate dispatch for Shacman X5000 exhaust manifold service worldwide.
Choosing the genuine Exhaust Manifold Gasket 1006787555 is a decision that directly impacts the exhaust system integrity, engine performance, and driver safety of your Shacman X5000 vehicle. Aftermarket gaskets manufactured from inferior materials can fail rapidly under the extreme heat and pressure of the exhaust manifold environment, causing exhaust gas leaks that reduce turbocharger boost pressure, decrease engine power, and allow deadly carbon monoxide gas to enter the vehicle cab. Carbon monoxide is an odorless, colorless gas that can incapacitate and kill a driver without any warning whatsoever.
The OEM gasket’s specific material composition, embossed bead design, and precise geometry were validated through extensive thermal cycling and vibration testing on Shacman’s engine test stands. Engineers specified this exact gasket design to provide the absolute exhaust gas seal that is critical for turbocharger performance, engine compartment safety, and the prevention of carbon monoxide intrusion into the cab. The 1006787555 gasket delivers the dependable, long-life sealing performance that professional fleet operators require for both vehicle performance and driver well-being across hundreds of thousands of kilometers.
Professional fleet technicians and maintenance managers worldwide insist on the 1006787555 exhaust manifold gasket for its guaranteed material quality, precise fit, and proven sealing reliability under the most punishing thermal conditions. This precision sealing component performs the absolutely vital function of keeping deadly exhaust gases out of the vehicle cab while directing them to the turbocharger to produce boost. Trust only the exhaust manifold gasket that Shacman engineered and certified for the uncompromising safety requirements of the X5000 heavy truck platform.
The exhaust manifold gasket 1006787555 operates in arguably the most thermally hostile environment on the entire vehicle. Exhaust gas temperatures at the manifold flange can reach well over 800 degrees Celsius during sustained full-load operation, causing the gasket and surrounding metal components to glow a visible cherry red. The gasket material must not only withstand this extreme temperature but also maintain its sealing tension as the manifold and cylinder head expand and contract at different rates with each thermal cycle from cold start to full power and back to ambient temperature.
The correct and even torque on the exhaust manifold mounting fasteners is absolutely essential for achieving the designed gasket compression. Fasteners that are unevenly or insufficiently torqued will allow the gasket to leak and may eventually loosen completely from the combined effects of thermal cycling and engine vibration. After the first few thermal cycles following installation, it is a widely accepted best practice to recheck the torque on the exhaust manifold fasteners to compensate for any initial relaxation of the gasket material and to ensure the joint remains tight and leak-free for the long service life ahead.
For our international customers, we take exceptional care in packaging the 1006787555 exhaust manifold gasket to prevent any bending, creasing, or surface damage during global transit and warehouse storage. Each gasket is individually packed in a flat, rigid protective sleeve that maintains its original geometry and protects the embossed sealing beads. Partner with our global supply network for a reliable source of genuine Shacman exhaust sealing components, and ensure that every exhaust manifold joint on your fleet’s engines is sealed with the quality and integrity that protects both performance and driver safety in all operating conditions.
