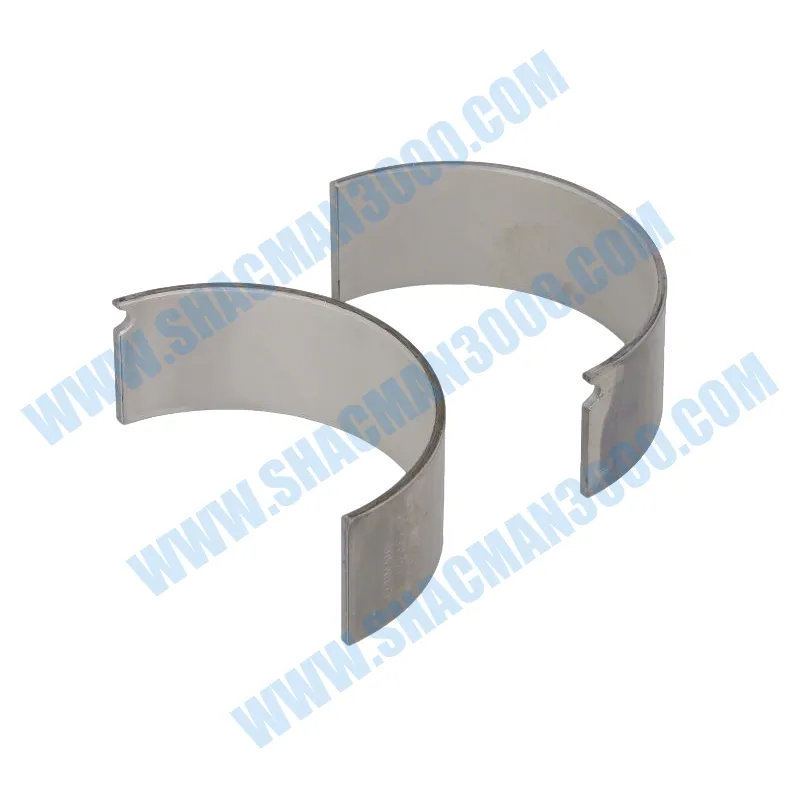

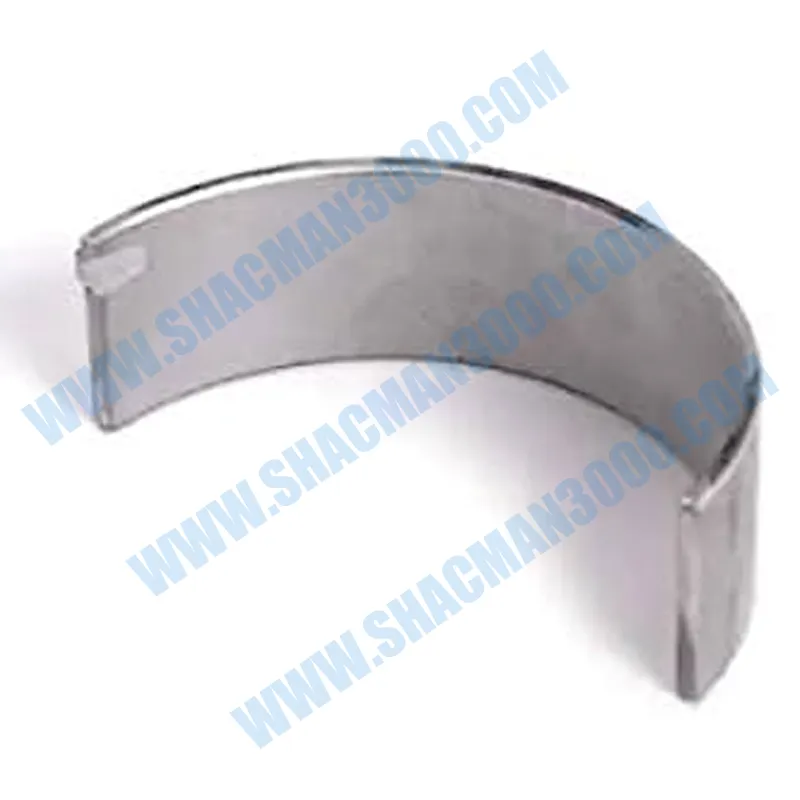

The Shacman X5000 Connecting Rod Lower Shell with OEM number 611600030007 is the lower half of the precision bearing that supports the crankshaft journal within the connecting rod big end. This genuine component works in tandem with the upper shell (611600030006) to provide a low-friction, hydrodynamic oil film that carries the immense loads of combustion. The 611600030007 connecting rod lower shell is manufactured using a tri-metal construction: a high-strength steel backing for rigidity, a copper-lead alloy intermediate layer for fatigue resistance, and a soft tin overlay for conformability and dirt embedability.
Designed specifically for Shacman X5000 heavy-duty diesel engines (WP12, WP13, and ISM series), the OEM lower shell features a plain (ungrooved) bore surface that complements the oil groove in the upper shell, directing oil to the entire bearing width. The 611600030007 shell has a precisely controlled wall thickness of 2.00 mm ±0.005 mm, ensuring the correct assembled clearance of 0.045–0.085 mm with the crankshaft journal. The flash-tin plating provides initial corrosion protection and promotes rapid oil spreading during engine startup.
Aftermarket lower shells often use inferior steel backing, incorrect wall thickness, or lack the nickel barrier that prevents tin migration. Genuine 611600030007 is 100% inspected for wall thickness, crush height, and surface finish. The bearing’s eccentricity is optimized to create a converging wedge for improved oil film formation, reducing friction by up to 25% compared to non-optimized designs. Each shell is also magnafluxed to detect any cracks in the steel backing.
Choosing OEM 611600030007 ensures consistent oil clearance, high load-carrying capacity, and extended connecting rod and crankshaft life. This lower shell is a critical part of any engine rebuild or connecting rod service on Shacman X5000 trucks, providing the reliability required for millions of kilometers of operation.
The lower shell of the connecting rod bearing is subjected to the same extreme compressive and tensile forces as the upper shell, but without the benefit of an oil groove to distribute lubricant. OEM 611600030007 is designed with a precisely controlled eccentricity (the wall thickness is slightly greater at the crown than at the parting line) to create a hydrodynamic wedge that draws oil into the loaded zone. This design reduces the risk of boundary lubrication during high load events.
Aftermarket lower shells often have incorrect eccentricity or no eccentricity at all, leading to insufficient oil film thickness and eventual bearing seizure. Genuine 611600030007 maintains a wall thickness variation of 0.008–0.015 mm from crown to parting line, which is optimized for the 102 mm journal diameter. The result is a stable oil film that can withstand specific loads exceeding 80 MPa, common in modern turbocharged diesel engines.
Before installation, clean the connecting rod cap and the bearing bore. The lower shell must be installed in the cap with the locating tang fully seated. Apply clean engine oil to the bearing surface only – never oil the back of the shell. The lower shell is plain (no oil groove) and should be oriented with the locating tang toward the same side as the cap’s notch.
Assemble the upper and lower shells with the connecting rod bolts. Torque in three stages: 60 Nm, 90 Nm, then final 120 Nm + 90° angle. After torquing, measure the oil clearance using plastigage: place a strip on the crankshaft journal, assemble, torque, then disassemble and measure. The specified clearance is 0.045–0.085 mm. If out of spec, replace both shells with the appropriate grade. Never reuse bolts after they have been torqued.
Each 611600030007 lower shell is produced from continuous strip steel. The backing is degreased, copper-plated, then roll-bonded with the copper-lead alloy. After sintering, the strip is coined to precise wall thickness, formed into half-shells, and finished. The nickel barrier is electroplated, followed by the tin overlay. The shell is then stress-relieved and final-honed.
100% of shells undergo air gauging for wall thickness (accuracy ±0.002 mm), crush height measurement, and visual inspection for surface defects. Random samples are sectioned for bond integrity testing (SEM) and overlay thickness measurement. Hardness is verified on every batch. Shells are then oiled and vacuum-packed in matched pairs with the upper shell.
OEM 611600030007 replaces Shacman part numbers 611600030004, 612600010445, and DZ13241818013. It is compatible with all Shacman X5000 engines (WP12, WP13, ISM) and also fits X3000, X6000 series using the same connecting rod (OEM 1002434191). The bearing is available in standard and undersize (0.25 mm, 0.50 mm, 0.75 mm) for reground crankshafts. Grade is indicated by a color code: blue = standard, red = +0.25, yellow = +0.50, green = +0.75.
When rebuilding, always measure the crankshaft journal diameter and select the appropriate bearing grade. The lower shell (plain) must be installed in the connecting rod cap. Never mix shells from different manufacturers or different grades. Use the matching upper shell (611600030006) for consistent clearance.
Fleet experience shows that using genuine 611600030007 shells extends connecting rod bearing life by over 300,000 km compared to aftermarket alternatives. The initial higher cost is offset by reduced engine downtime and lower total cost of ownership.
Shacman’s validation includes a 1,500-hour engine dyno test where the connecting rod bearings are subjected to alternating loads from -50 kN to +180 kN at 2,200 RPM. After the test, genuine 611600030007 shells show no measurable overlay wear and no fatigue cracks. A separate corrosion test (ASTM B117, 100 hours) shows no pitting. Micro-sections of the bond line confirm zero separation between steel and lining.
In field trials across 200 trucks in mining and long-haul applications, the OEM bearing shells achieved an average life of 1,300,000 km before reaching the wear limit (oil clearance > 0.12 mm). Aftermarket shells failed at an average of 400,000 km due to overlay fatigue or corrosion. By choosing genuine 611600030007, you ensure that your Shacman X5000 engine delivers maximum reliability and lowest operating cost.
