Fuel Injector Harness
Жгут Проводов Форсунок
Arnés de Inyectores
OEM Fuel Injector Harness 611600080197 precision‑assembled for the Shacman X5000 heavy‑duty diesel engine. This dedicated 611600080197 wiring assembly delivers precise electrical signals and power to each fuel injector, enabling accurate fuel metering and injection timing.
Constructed with high‑temperature resistant wiring and sealed connectors, the Fuel Injector Harness 611600080197 withstands the extreme heat and vibration of the engine compartment while maintaining reliable electrical continuity.
Replacing a degraded or damaged harness with the genuine 611600080197 unit restores proper injector operation and prevents the misfire and power loss caused by intermittent electrical faults.
| Parameter | Specification |
|---|---|
| OEM Part Number | 611600080197 |
| Product Name | Fuel Injector Harness |
| Brand / Model | Shacman X5000 |
| Wire Gauge | 1.5 mm² and 0.75 mm² conductors |
| Insulation Material | Cross‑linked Polyethylene with Silicone Over‑jacket |
| Connector Type | Sealed 2‑pin and 3‑pin Deutsch‑style |
| Number of Injector Connections | 6 injector connectors plus ECM interface |
| Operating Temperature | -40°C to +180°C continuous |
| Voltage Rating | Up to 200V peak injector drive voltage |
| Application | Shacman X5000 common rail fuel injection system |
The 611600080197 fuel injector harness is the neural pathway of the Shacman X5000 fuel injection system. It carries precisely timed electrical pulses from the engine control module to each injector solenoid, determining fuel delivery accuracy.
Modern common rail injectors operate at voltages exceeding 100 volts with extremely rapid rise times. The Fuel Injector Harness 611600080197 is engineered with shielded conductors to prevent electromagnetic interference with other vehicle electronic systems.
A single broken wire or corroded connector within the harness can disable one or more injectors, causing cylinder misfire, reduced power output, increased fuel consumption, and potential damage to the catalytic converter.
The 611600080197 harness features cross‑linked polyethylene primary insulation that resists melting and cracking at temperatures up to 180°C. A silicone over‑jacket provides additional protection against hot oil splash.
Each connector is equipped with dual‑seal grommets that prevent moisture and dirt ingress. Gold‑plated terminals ensure low contact resistance and resistance to fretting corrosion over thousands of thermal cycles.
Routing the 611600080197 harness requires following the factory pathway exactly. The harness must be secured with the appropriate brackets to prevent contact with the turbocharger, exhaust manifold, or moving linkages.
Connectors must be fully seated until an audible click confirms locking tab engagement. Any partially connected Fuel Injector Harness 611600080197 connector can cause intermittent operation that generates fault codes.
Every 611600080197 harness undergoes a 100 percent continuity test that verifies each conductor path from the ECM connector to every injector plug. Resistance values are checked against specification limits.
High‑potential testing applies 1500 volts between adjacent circuits to confirm insulation integrity. This test detects microscopic insulation defects that could cause cross‑talk or short circuits in service.
Engine misfire fault codes that move between cylinders when injector connectors are swapped indicate a 611600080197 harness problem rather than a faulty injector. This diagnostic technique isolates harness versus component failures.
Visual inspection may reveal chafed wiring where the harness contacts sharp edges, melted insulation near hot surfaces, or green corrosion at connector terminals indicating moisture ingress past damaged seals.
When replacing injectors, the harness should be carefully inspected. If connectors show signs of heat damage or terminal spreading, a new Fuel Injector Harness 611600080197 should be installed simultaneously.
The 611600080197 harness is specifically designed for the Shacman X5000 common rail injection system. Connector pin assignments and wire lengths are matched to the factory injector layout.
While the harness is designed for extended service, the harsh under‑hood environment means it should be considered a replacement item during major engine overhauls or when injectors are replaced.
Aftermarket harnesses often use inferior insulation that hardens and cracks within months. We supply only the authentic Shacman X5000 Fuel Injector Harness 611600080197 with complete OEM specifications.
Each harness is packaged in a protective sleeve with formed supports that prevent connector damage during transit. The part number 611600080197 is clearly printed on the packaging label.
Our international logistics network ensures that genuine 611600080197 injector harnesses reach workshops and fleet operators promptly, minimizing vehicle downtime from electrical faults.

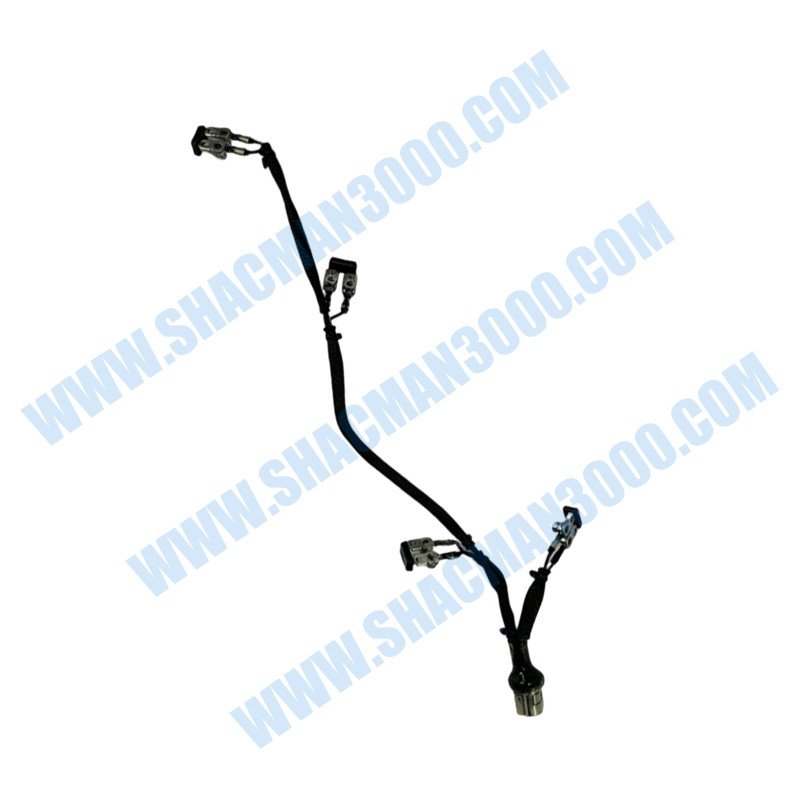

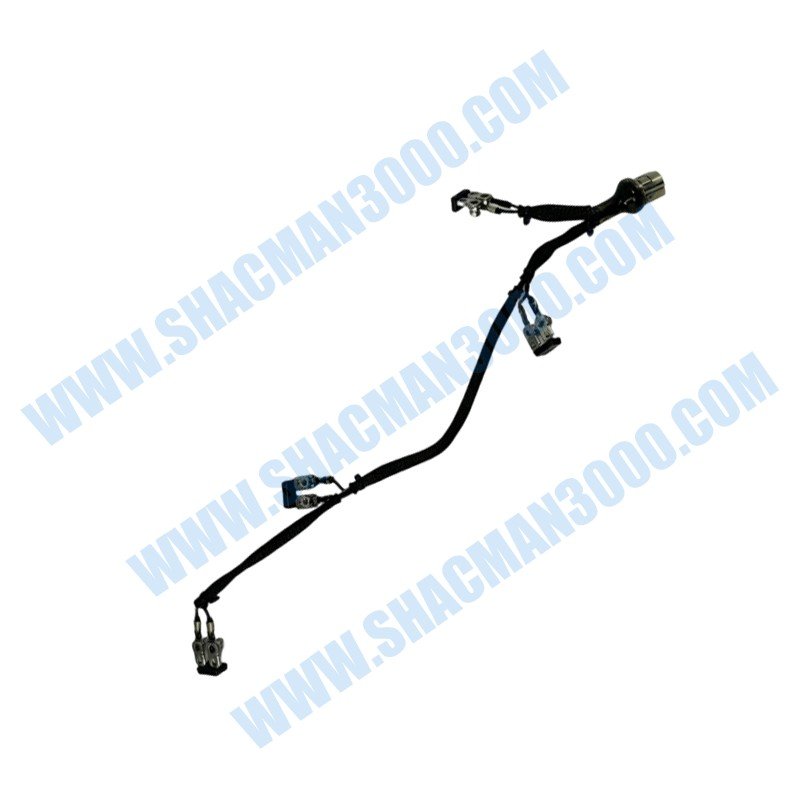

Complete fuel injector harness assembly with all connectors and protective conduit. Ready for installation with factory‑correct routing and lengths.
Expert guidance on injector harness routing and connector installation. We help ensure your 611600080197 harness delivers reliable injector control.
For current stock availability and technical specifications on the genuine Fuel Injector Harness 611600080197, please use the contact buttons above.
