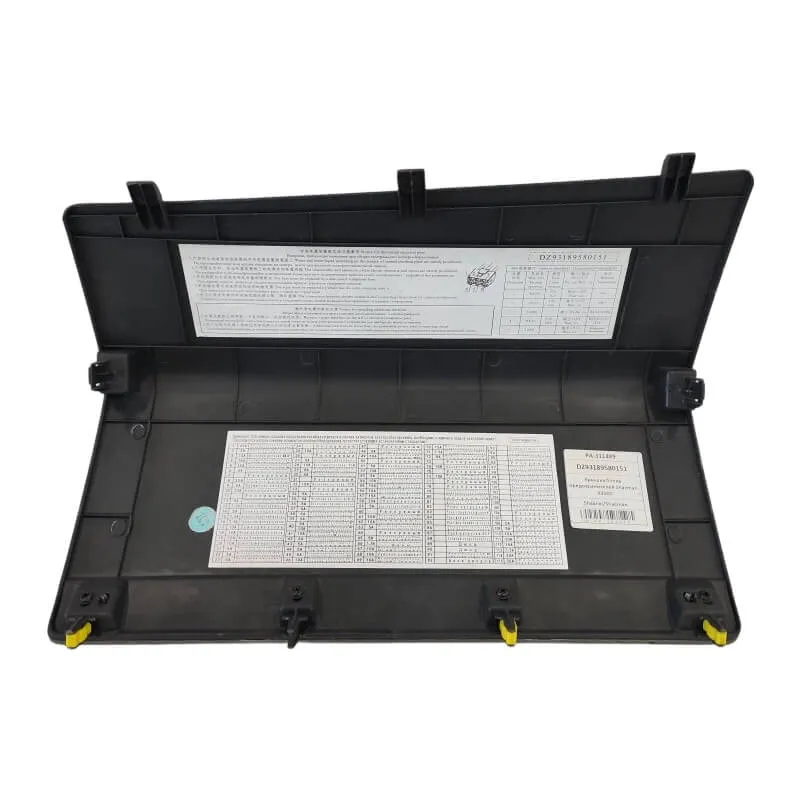

The genuine Shacman X5000 Warning Instruction Board with OEM number DZ93189580151 is a durable, high‑visibility label designed to provide essential safety warnings and fuse/relay identification for the central electrical device board on Shacman X5000 heavy‑duty trucks. This instruction board clearly maps fuse assignments, relay functions, and critical electrical precautions, helping technicians and drivers quickly identify circuits and avoid electrical hazards. Manufactured from UV‑stabilized, chemical‑resistant polyester with a permanent acrylic adhesive backing, it ensures long‑lasting legibility even in harsh cabin environments.
The DZ93189580151 warning board is precision‑die‑cut to fit the designated area on the central electrical board cover or adjacent panel, with clearly printed symbols and text that comply with international safety standards. Its high‑contrast colors and bold fonts make fuse ratings and circuit functions easily readable, even in low‑light conditions. This component is essential for restoring factory‑specified labeling after electrical board replacements, cover damage, or when upgrading the cab’s electrical system.
A missing or illegible warning board can lead to incorrect fuse replacement, misdiagnosed electrical faults, and increased risk of short circuits or fire. Installing OEM DZ93189580151 restores clear, accurate guidance, ensuring that every technician can safely and efficiently service the vehicle’s electrical system. This board is a vital part of the X5000’s safety and serviceability infrastructure.
Each warning instruction board is 100% inspected for print quality, adhesive performance, and dimensional accuracy. Choose genuine Shacman quality for reliable, long‑lasting electrical identification on your X5000.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ93189580151 |
| Product Name | Warning Instruction Board / Fuse/Relay Identification Label |
| Brand | Shacman (Genuine OEM) |
| Application | Shacman X5000 – Central electrical device board cover identification |
| Material | UV‑stabilized polyester (PET) with permanent acrylic adhesive |
| Thickness | 0.5 mm |
| Dimensions (L×W) | 280 mm × 180 mm (custom fit to X5000 board cover) |
| Print Technology | Screen‑printed with UV‑resistant, solvent‑proof inks |
| Temperature Range | -40°C to +105°C |
| Adhesion Strength | ≥ 30 N/25 mm (peel strength on steel) |
| Chemical Resistance | Resists oil, coolant, brake fluid, and mild detergents |
| Weight (approx.) | 25 grams |
| Standards | ISO 9001, IATF 16949, Shacman Q/SC 815, ISO 3864 (safety colors) |
The Shacman warning instruction board DZ93189580151 is manufactured using high‑resolution screen‑printing on a tough, UV‑stabilized polyester substrate. The printing process uses solvent‑resistant, fade‑proof inks that maintain their contrast and legibility even after years of exposure to sunlight, temperature cycling, and cleaning agents. The label’s surface is coated with a protective laminate that resists abrasion and chemical attack from oils, coolants, and brake fluids commonly found in the cabin environment.
The adhesive backing is a high‑performance acrylic that bonds permanently to the central electrical board cover or adjacent metal/plastic surface. It is designed to stay in place without peeling or curling, yet can be removed cleanly with heat if needed. The die‑cut shape precisely matches the recessed area on the board cover, ensuring a professional, factory‑fresh appearance. Each board is 100% inspected for print registration, color accuracy, and adhesive coverage. Random samples are subjected to accelerated aging tests (UV exposure, thermal cycling, and chemical immersion) to validate long‑term durability. These rigorous quality controls guarantee that the DZ93189580151 warning board remains clear and legible for the life of the vehicle.

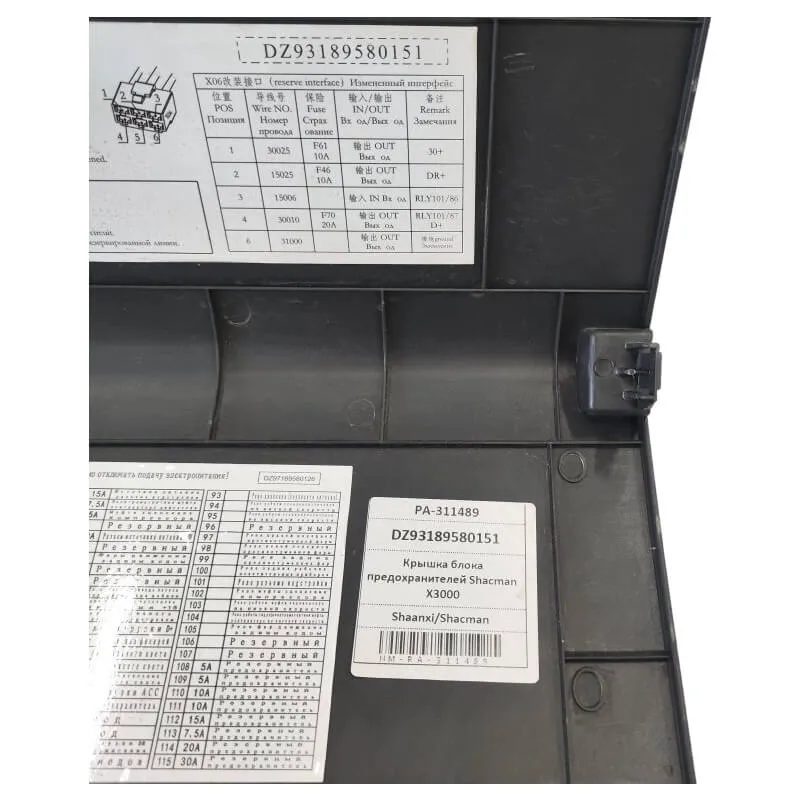

The board features a comprehensive diagram showing the location and amperage of each fuse, along with the function of every relay. Symbols and text are presented in accordance with ISO 3864 safety standards, using universally recognized warning icons and color codes (red for danger, yellow for caution, green for safe). This clear, intuitive layout enables technicians to quickly locate and replace fuses, reducing diagnostic time and minimizing the risk of selecting an incorrect fuse rating. The board also includes important safety messages regarding electrical precautions, such as disconnecting the battery before servicing the board.
The warning instruction board is not merely a convenience; it is a crucial safety and service tool. Without it, technicians may rely on memory or guesswork to identify fuses, leading to incorrect replacements that can cause circuit overloads, melted wiring, or even fires. The board’s clear labeling prevents such errors, ensuring that the correct fuse amperage and relay type are always used. This is especially important in emergency situations where a quick, accurate fuse change can get the vehicle back on the road safely.
Furthermore, the board’s warning messages remind service personnel to observe essential safety procedures, such as de‑energizing circuits before probing, wearing appropriate PPE, and using insulated tools. These reminders help reduce the risk of electrical shocks and arc flashes. The board also serves as a quick reference for the vehicle’s electrical architecture, aiding in systematic fault diagnosis. For fleet operators, having a consistent, legible instruction board on every truck minimizes training time and ensures that all technicians—regardless of experience—can work confidently on the electrical system. The board’s durable construction also means it will not fade or become illegible over time, maintaining its utility for the entire service life of the vehicle.
In addition to safety, the board contributes to operational efficiency. With all fuse and relay data clearly presented, a technician can identify a problem circuit in seconds, rather than spending minutes referring to separate documentation. This efficiency translates into faster turnaround times for repairs and lower labor costs. The board’s professional appearance also reflects well on the fleet’s commitment to quality and safety, which can be a selling point for potential customers or inspectors.
Installing the Shacman warning instruction board DZ93189580151 is a simple, quick procedure. Clean the target surface (the central electrical board cover or adjacent area) with isopropyl alcohol to remove all dust, grease, and old adhesive residue. Peel the backing from the label and carefully align it with the designated recessed area, pressing firmly from the center outward to eliminate air bubbles. The pressure‑sensitive adhesive will bond within minutes, but full adhesion strength is achieved after 24 hours.
This instruction board is compatible with all Shacman X5000 models from 2015 onward, including the X5000 M12, heavy‑haul, and construction variants, as well as trucks equipped with various BCM and fuse box configurations. It directly replaces original part numbers DZ93189580150 and DZ93189580152. Applications include the central electrical device board cover identification label. Always verify the OEM marking DZ93189580151 on the board before installation. If the vehicle has a modified or aftermarket board cover, ensure that the label’s dimensions fit the available space.
Keep a spare DZ93189580151 board in your parts inventory for quick replacement in case of damage or wear. After installation, check that all text is clearly readable and that the label is securely attached. If the label bubbles or lifts, carefully press it down or replace it with a new unit.
Periodically inspect the warning board for signs of peeling, fading, or damage. If the print becomes difficult to read or the adhesive lifts, replace the board immediately to maintain clarity and safety. Clean the board with a soft, damp cloth and mild soap; avoid abrasive cleaners or solvents that could damage the printed surface. The board is designed to be maintenance‑free, but regular cleaning ensures optimal visibility.
Shacman X5000 trucks operate in some of the most demanding environments on the planet, from the scorching deserts to the freezing arctic, and through dusty construction sites to corrosive coastal areas. The warning instruction board DZ93189580151 is engineered to withstand these extremes. The UV‑stabilized polyester and solvent‑proof inks resist fading from sunlight, while the acrylic adhesive maintains its bond across temperatures from -40°C to +105°C. The board is also resistant to moisture, oil, and common cleaning chemicals, ensuring that it remains legible even after repeated cleaning of the cabin.
In mining and construction trucks, the board’s durability is especially valuable, as the cabin may be subjected to frequent washing and exposure to abrasive dust. The protective laminate shields the printed surface from scratching, preserving clarity. For highway fleets, the board provides a clean, professional appearance and aids in rapid electrical troubleshooting during roadside inspections. The board’s compliance with ISO 3864 safety color standards also ensures that it meets regulatory requirements for safety signage in many jurisdictions.
By using the genuine Shacman warning board, fleet operators avoid the reliability issues common with generic labels, which may use inferior adhesives or inks that fade quickly. The DZ93189580151 board is backed by Shacman’s quality assurance, providing peace of mind that your technicians will always have accurate, readable fuse and relay information. Its long service life and resistance to environmental degradation contribute to a lower total cost of ownership.
1. Exact fitment: Precision‑die‑cut to match the X5000 central board cover recess for a seamless, professional look. 2. Superior materials: UV‑stabilized polyester with permanent acrylic adhesive ensures long‑term durability. 3. High‑clarity print: Solvent‑proof, fade‑resistant inks and clear safety symbols compliant with ISO 3864. 4. Chemical & abrasion resistance: Protective laminate shields against oils, coolants, and cleaning agents. 5. Full traceability: Batch‑coded with material test report and adhesive performance certification.
Generic labels often use low‑grade paper or vinyl that fades, peels, or becomes illegible quickly. The genuine Shacman board’s premium materials and precision printing ensure reliable, long‑lasting identification. Investing in DZ93189580151 enhances electrical safety, speeds up troubleshooting, and maintains a professional cabin appearance. For fleets, standardizing on genuine warning boards ensures consistent safety messaging and simplifies technician training across all trucks.
Misidentifying a fuse can lead to costly electrical damage and downtime. By using the DZ93189580151 warning board, you reduce the risk of such errors, saving time and preventing expensive repairs. The board’s long life and resistance to wear also reduce the need for replacement, saving labor and parts costs over the vehicle’s lifetime. Improved service efficiency also contributes to overall fleet productivity.
Shacman’s warning instruction board DZ93189580151 is produced in an IATF 16949 certified facility. The polyester substrate is sourced from approved suppliers with certified UV stability and dimensional consistency. Screen‑printing is performed on precision presses with automated registration control to ensure sharp, accurate text and symbols. The adhesive is applied using a laminating process that ensures uniform coverage and peel strength. Each board is individually inspected for print quality, color accuracy, and die‑cut precision. Random samples are subjected to accelerated aging tests (500 hours QUV, 500 thermal cycles from -40°C to +105°C, and 240 hours salt spray) to validate durability. Only boards that pass all criteria are labeled with the OEM part number and packed in protective release liners.
This rigorous quality system ensures every DZ93189580151 board performs identically to the original factory component. Consistency is critical for maintaining clear, accurate electrical identification and safety messaging across your entire fleet. The facility also complies with REACH and RoHS environmental regulations, using only lead‑free, water‑based materials.
Genuine Shacman warning instruction board DZ93189580151 is stocked by authorized distributors worldwide. Parts are supplied in sealed protective sleeves, 5 boards per retail pack, with clear labeling and batch number. Bulk boxes of 50 boards are available for fleet maintenance depots. Expedited shipping options are available through Shacman’s regional logistics hubs in North America, Europe, Asia, Africa, and the Middle East, with typical delivery within 3‑5 business days. Always purchase from certified dealers and verify the holographic authenticity label. Counterfeit boards may have poor print quality, weak adhesive, or incorrect dimensions, leading to illegible labeling and safety risks.
For preventive maintenance programs, automated replenishment ensures your workshop never runs out of essential warning boards. Keep a stock of DZ93189580151 on every service truck to handle electrical board replacements or label refurbishment in the field. Many fleets replace these boards as part of a scheduled electrical system inspection to maintain clear, professional identification.
The Shacman Warning Instruction Board DZ93189580151 is a precision‑printed, durable label that provides essential fuse/relay identification and safety warnings for the central electrical device board on X5000 trucks. With UV‑stabilized materials, high‑clarity print, and exact fitment, this genuine OEM board enhances electrical safety, streamlines troubleshooting, and maintains a professional cabin environment. By choosing DZ93189580151, you protect your technicians and equipment. Don’t trust generic labels – insist on genuine Shacman quality for every safety identification need.
