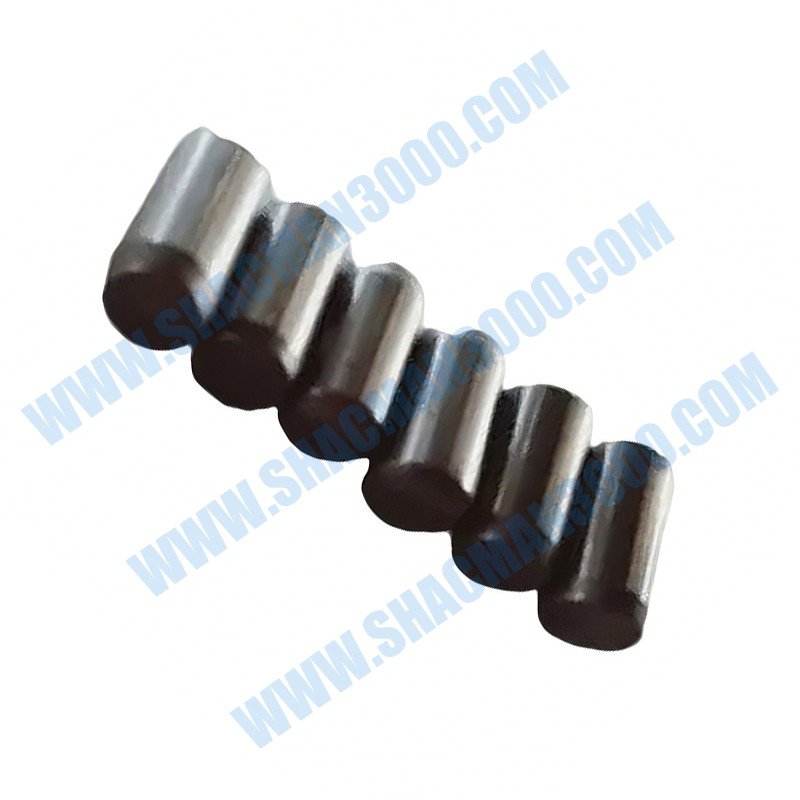

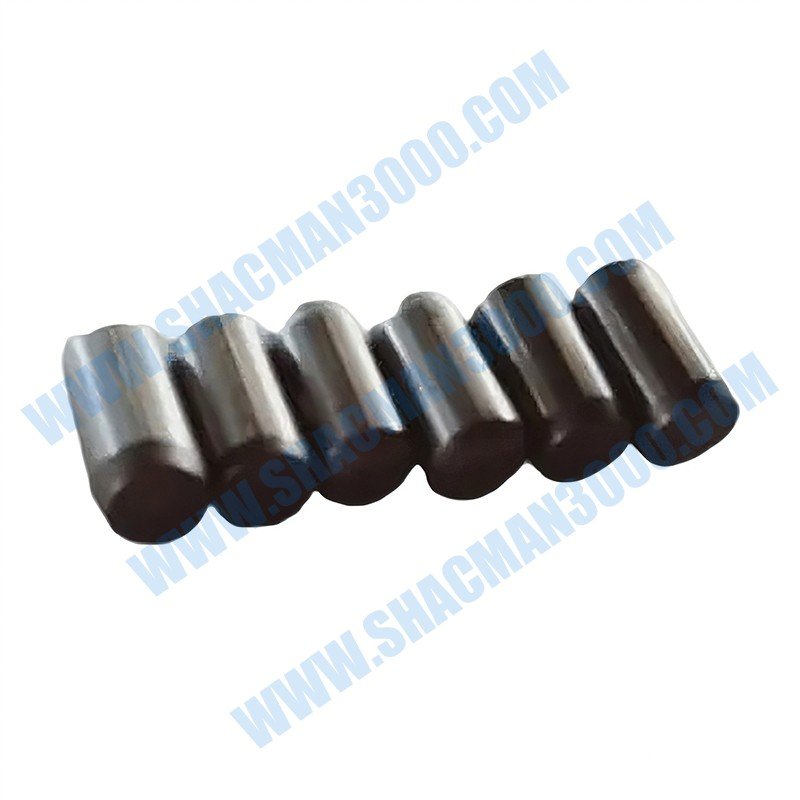

OEM Locating Pin DZ97259520475 precision‑engineered for the Shacman X5000 suspension system. The DZ97259520475 component maintains proper leaf spring alignment and prevents lateral movement under all load conditions.
Manufactured from high‑strength alloy steel with precision‑ground surfaces, the Locating Pin DZ97259520475 withstands the constant shear forces and lateral stresses of leaf spring articulation during heavy‑duty commercial vehicle operation.
Replacing worn locating pins with the genuine DZ97259520475 component restores proper spring alignment and prevents the uneven wear and suspension instability that compromise vehicle safety and ride quality.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ97259520475 |
| Product Name | Locating Pin |
| Brand / Model | Shacman X5000 |
| Material | High‑Strength Alloy Steel |
| Manufacturing Process | CNC Machined with Precision‑Ground Surfaces |
| Function | Leaf Spring Alignment and Positioning |
| Mounting Type | Press‑Fit with Precision Diameter Tolerance |
| Surface Protection | Zinc Phosphate with Anti‑Corrosion Coating |
| Application | Shacman X5000 Leaf Spring Suspension System |
| Packaging | Protective Wrapping with Shacman Genuine Labeling |
The DZ97259520475 locating pin is a critical suspension component that maintains precise positioning of the leaf spring assembly, preventing lateral shifting and rotational movement that would cause alignment problems.
The precision‑ground pin provides an exact fit within the spring seat and mounting bracket, eliminating any play that could lead to spring misalignment under dynamic loading conditions during heavy vehicle operation.
By keeping the spring assembly correctly positioned relative to the axle and chassis, this locating pin ensures consistent suspension geometry and prevents the lateral instability that can cause uneven tire wear and poor handling.
The DZ97259520475 locating pin is manufactured from heat‑treated alloy steel with precision‑ground outer diameters, providing excellent shear strength and wear resistance for the constant forces of leaf spring service.
The zinc phosphate coating with anti‑corrosion treatment protects the pin from rust and environmental degradation, preventing seizure within the mounting bores and ensuring reliable service over extended operational periods.
The DZ97259520475 locating pin installs with a press‑fit into the suspension bracket bore, requiring correct alignment before installation to prevent damage to the precision‑ground surfaces.
Locating pin condition should be inspected during routine suspension service for signs of wear, corrosion, or distortion. Worn or damaged locating pins must be replaced to maintain proper spring alignment and prevent axle shift.
Each DZ97259520475 locating pin undergoes precision CNC grinding and dimensional inspection to ensure correct diameter and surface finish, guaranteeing proper fit and long‑term wear resistance in suspension applications.
Hardness testing and surface roughness verification are performed on every production batch to verify compliance with Shacman engineering specifications for strength, wear resistance, and corrosion protection in heavy‑duty suspension service.
Visible rust or corrosion on the locating pin indicates the protective coating has been compromised, potentially leading to pin seizure within the mounting bore and difficulty during future suspension service or replacement.
Excessive lateral spring movement or audible clunking during turns suggests the DZ97259520475 locating pin has worn undersize, allowing unwanted movement that affects suspension alignment and vehicle stability.
During chassis inspection, locating pins should be checked for wear, corrosion, or deformation. Any compromised pin must be replaced immediately with a new DZ97259520475 to maintain suspension safety and performance.
The DZ97259520475 locating pin is specifically dimensioned for the Shacman X5000 leaf spring suspension system, with exact diameter and length specifications matching this vehicle platform precisely.
Fleet operators should maintain spare locating pins for prompt replacement when suspension wear is diagnosed, minimizing vehicle downtime and maintaining proper spring alignment across their commercial vehicle operations.
Aftermarket locating pins with incorrect dimensions or inferior materials can cause spring misalignment and premature failure. We supply only the authentic Shacman X5000 Locating Pin DZ97259520475 built to exact OEM specifications.
Each pin is individually packaged with protective wrapping. The part number DZ97259520475 is clearly marked on the packaging for immediate identification and verification at any receiving facility worldwide.
Our international logistics network ensures genuine DZ97259520475 locating pins are available for dispatch to dealerships and fleet maintenance facilities worldwide with full material certification provided.
Complete locating pin with precision-ground surfaces and zinc phosphate anti-corrosion coating. Ready for press-fit installation with appropriate suspension mounting specifications.
Expert guidance on locating pin installation and spring alignment. We help ensure your DZ97259520475 pin provides reliable spring positioning under all operating conditions.
For current stock availability on the genuine Locating Pin DZ97259520475, please use the contact buttons above.
