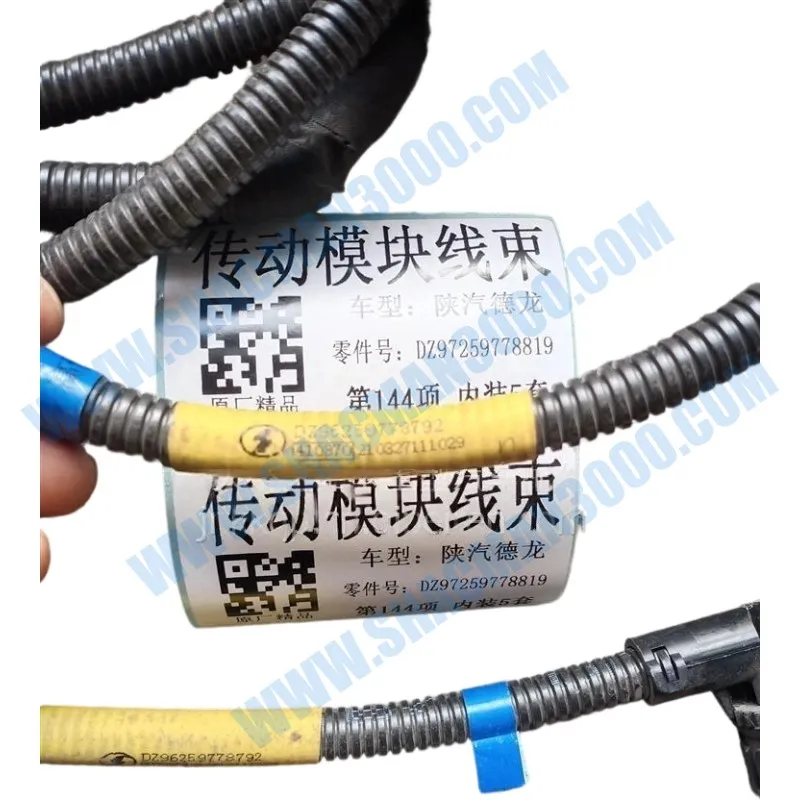

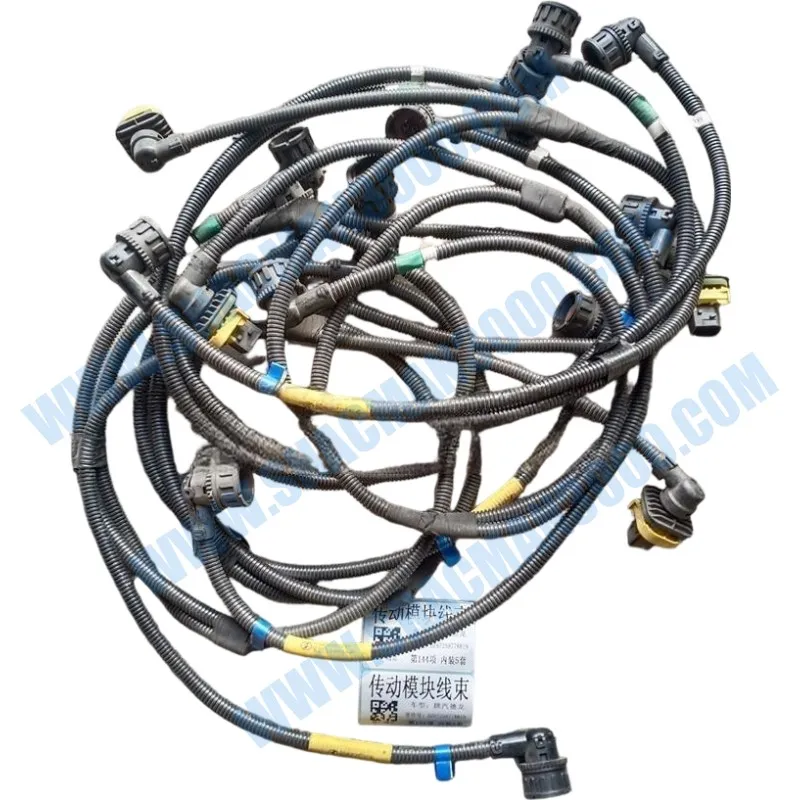

DZ97259778819 Transmission Module Wiring Harness – Precision Connectivity for Shacman X5000

Technical Specifications – Transmission Module Wiring Harness DZ97259778819

Engineering Precision & Signal Integrity

The DZ97259778819 Transmission Module Wiring Harness is engineered with exacting precision to match the proprietary transmission control architecture of the Shacman X5000. Each conductor is carefully routed and terminated to ensure minimal resistance and capacitance, preserving the integrity of high-speed CAN bus signals and PWM control currents. The harness includes twisted-pair sections for critical sensor lines, effectively canceling electromagnetic interference (EMI) from adjacent high-power cables and the vehicle’s alternator.

Terminals are gold-plated on sensitive signal circuits to prevent oxidation and maintain low-contact resistance over the vehicle’s lifetime. All connectors are keyed and color-coded to eliminate installation errors, reducing the chance of cross-wiring that could damage the TCM. The harness is also pre-tested for continuity and isolation before packaging, ensuring that every unit delivers flawless performance out of the box.

Advanced Shielding & EMI Protection

To combat the harsh electromagnetic environment of a heavy-duty truck, the harness incorporates a combination of foil shielding and drain wires on the most sensitive lines, such as the output speed sensor and turbine speed sensor circuits. This shielding is grounded through the TCM connector, providing a low-impedance path for induced noise. The result is a clean, stable signal that allows the transmission to make rapid, accurate shift decisions, even under heavy electrical loads from auxiliary systems.

Durability in Extreme Conditions

Shacman X5000 trucks operate in diverse climates, from scorching deserts to freezing tundras. The DZ97259778819 harness is built to endure these extremes. Its XLPE insulation maintains its flexibility and dielectric strength from -40°C to +125°C, preventing cracking and ensuring reliable signal transmission even when the transmission housing is overheated. The outer sleeve is constructed from a high-abrasion nylon braid that resists chafing against the frame and transmission bell housing, significantly extending the harness’s service life.

All connectors are sealed with integrated silicone grommets and feature locking clips that resist unplugging due to vibration. The harness also includes heat-shrink tubing at stress-relief points, providing additional protection against moisture ingress and flex fatigue. In salt-spray tests, the harness has demonstrated exceptional resistance to corrosion, making it suitable for fleets operating in coastal or winter-salt regions.

Vibration Resistance and Strain Relief

Heavy-duty transmissions generate significant vibration, which can cause wire fatigue and connector fretting. The harness addresses this with a specialized strain-relief design that includes a flexible PVC overmold at each connector exit, absorbing movement and preventing conductor breakage. Additionally, the harness is equipped with mounting clips that secure it to the transmission housing at multiple points, minimizing relative motion and ensuring long-term reliability.

Installation & Vehicle Compatibility

Installation of the DZ97259778819 harness is a direct, plug-and-play process. The harness matches the original routing and connector positions exactly, eliminating the need for splicing or custom fabrication. To replace, simply disconnect the old harness from the TCM, speed sensors, and solenoids, then route the new harness along the factory cable ties, securing it with the provided clips.

This harness is compatible with all Shacman X5000 models fitted with the automated manual transmission (AMT) or conventional automatic transmission, regardless of engine variant (WP13, WP15, etc.). It also supports both 6×4 and 8×4 chassis configurations, as the main trunk length is sufficient for all standard installations. For vehicles with aftermarket modifications, we recommend consulting the OEM wiring diagram to confirm connector pinouts, though the DZ97259778819 is designed to work with the vast majority of factory setups.

Step-by-Step Replacement Guide

Disconnect the battery negative terminal before starting. Remove the old harness by unclipping the retainers and carefully disengaging each connector. Install the new harness by routing it along the same path, ensuring it is clear of moving parts and hot surfaces. Connect each plug to its corresponding sensor or solenoid, listening for the audible click that indicates full seating. Finally, secure the harness with the included cable ties and reattach the battery cable. Test the transmission operation after installation to confirm proper function.

Quality Assurance & Manufacturing Excellence

Every DZ97259778819 harness is manufactured in an IATF 16949 certified facility, adhering to the same quality standards as the original equipment. The production process begins with 100% inspection of incoming wire and connector materials. Automated wire cutting and stripping machines ensure precise lengths, while servo-controlled crimping presses guarantee optimal terminal crimp height and pull-force.

Each assembled harness undergoes 100% electrical testing, including continuity, short-circuit, and insulation resistance checks, using a custom test fixture that simulates the TCM connections. A sample from each batch is also subjected to thermal cycling, vibration, and salt-spray testing to validate durability. The final product is individually packaged with a traceable serial number, allowing full quality traceability back to the production lot.

Genuine OEM vs. Aftermarket

While aftermarket harnesses may offer lower initial cost, they often use substandard wire insulation, thinner conductors, and generic connectors that lack the sealing and locking features of genuine Shacman parts. These inferior components can lead to intermittent faults, false diagnostic codes, and premature failure, ultimately costing more in downtime and repairs. The genuine DZ97259778819 harness provides the exact fit, materials, and performance that your X5000 was designed for, ensuring maximum transmission reliability and resale value.

Supply Chain & Availability

The DZ97259778819 Transmission Module Wiring Harness is stocked by authorized Shacman dealers and major aftermarket distributors globally. It is available in single-piece retail packaging as well as bulk boxes for fleet maintenance. Most distributors offer expedited shipping options to minimize vehicle downtime, and many provide online ordering with real-time inventory status.

For workshop owners and fleet managers, setting up a recurring order for this high-turnover part can streamline inventory management and ensure that you always have a replacement on hand when a harness shows signs of wear. Shacman’s global parts network guarantees that genuine components are accessible, backed by technical support from factory-trained specialists.

Long-Term Cost Benefits

Although a genuine harness may have a higher upfront price, its longer service life and reduced failure rate translate to lower total cost of ownership. By preventing transmission-related breakdowns, you avoid towing fees, lost revenue, and potential damage to the transmission itself, which can cost thousands of dollars to rebuild. Investing in the DZ97259778819 harness is a smart financial decision for any Shacman X5000 operator.
