Shacman X5000 Front Spring Right Front Bracket SZ970000021 – Precision Leaf Spring Mounting for Heavy Loads

Technical Specifications – Front Spring Right Front Bracket SZ970000021

Precision Forming & Weld Integrity

The SZ970000021 right front spring bracket is laser‑cut from 8 mm thick S500MC microalloyed steel, then formed on a CNC press brake to achieve an exact L‑shape with integrated gussets. The spring eye is formed by rolling a separate plate section and welding it to the main bracket using robotic MIG welds with 100% penetration. All welds are inspected by magnetic particle testing to ensure zero cracks. This construction provides stiffness sufficient to resist bending under full axle load while maintaining a degree of elasticity to absorb shock loads.

After welding, the spring eye bore is line‑bored to 50.0 mm H8 tolerance, guaranteeing a precise interference fit for the rubber‑metal bushing. The frame rail mounting face is machined flat to within 0.1 mm to prevent bolt preload loss. Each bracket is also 100% dimensionally verified using a coordinate measuring machine. The result is a component that bolts directly onto the X5000 chassis without shims or modifications, maintaining proper caster angle and spring alignment.

Advanced Corrosion Protection & Field Durability

The bracket receives a zinc‑nickel alloy plating (12 µm average thickness) followed by a black epoxy powder coat (60–80 µm). This duplex system exceeds 500 hours of neutral salt spray testing and provides excellent resistance to stone chipping, road salt, and chemical de‑icers. In winter fleet service, genuine brackets show no structural corrosion after 8 years. The coating also includes a self‑healing primer layer that protects exposed edges. For off‑road mining applications, this protection prevents rust jacking that can crack welds over time.

Critical Role in Front Suspension Geometry

The front spring right front bracket SZ970000021 determines the position of the right front spring eye, which directly affects caster angle, axle placement, and steering returnability. A worn or bent bracket moves the spring eye rearward or downward, causing caster loss – a condition that makes the steering feel vague and reduces straight‑line stability. In extreme cases, a cracked bracket allows the spring to shift sideways, causing the axle to become misaligned and leading to rapid tyre shoulder wear.

Genuine Shacman brackets maintain the exact spring eye position relative to the frame, preserving the X5000’s designed caster angle of 2.5° to 3.5°. This ensures that the steering wheel returns to center after turns and that the vehicle tracks straight on highways. Fleet data shows that trucks using genuine brackets achieve 25% longer tyre life on the front axle compared to those with aftermarket or repaired brackets. The bracket also prevents shackle binding, which would otherwise accelerate bushing wear and cause squeaking noises.

Noise, Vibration & Harshness Reduction

The thick steel construction and rubber bushing interface effectively isolate road impacts from the chassis. A cracked or loose bracket transmits suspension noise directly into the cab. Drivers report that replacing worn right front brackets with genuine SZ970000021 eliminates low‑frequency clunking over potholes and reduces cab vibration by up to 30%. The bracket’s precise alignment also prevents the spring from contacting the frame rail, eliminating metal‑on‑metal scraping sounds.

Installation, Torque & Maintenance Guidelines

Replace the front spring right front bracket SZ970000021 when cracks are found or if the spring eye bore is elongated beyond 50.2 mm. Raise the front axle and support the frame. Remove the spring shackle bolt, then unbolt the four M16 bracket bolts from the frame rail. Clean the rail surface. Position the new bracket with the spring eye facing rearward. Install new M16×2.0 grade 10.9 bolts (dry) and torque to 280 Nm in a cross pattern. Reattach the spring using a new bushing and shackle pin, torquing the shackle nut to 180 Nm.

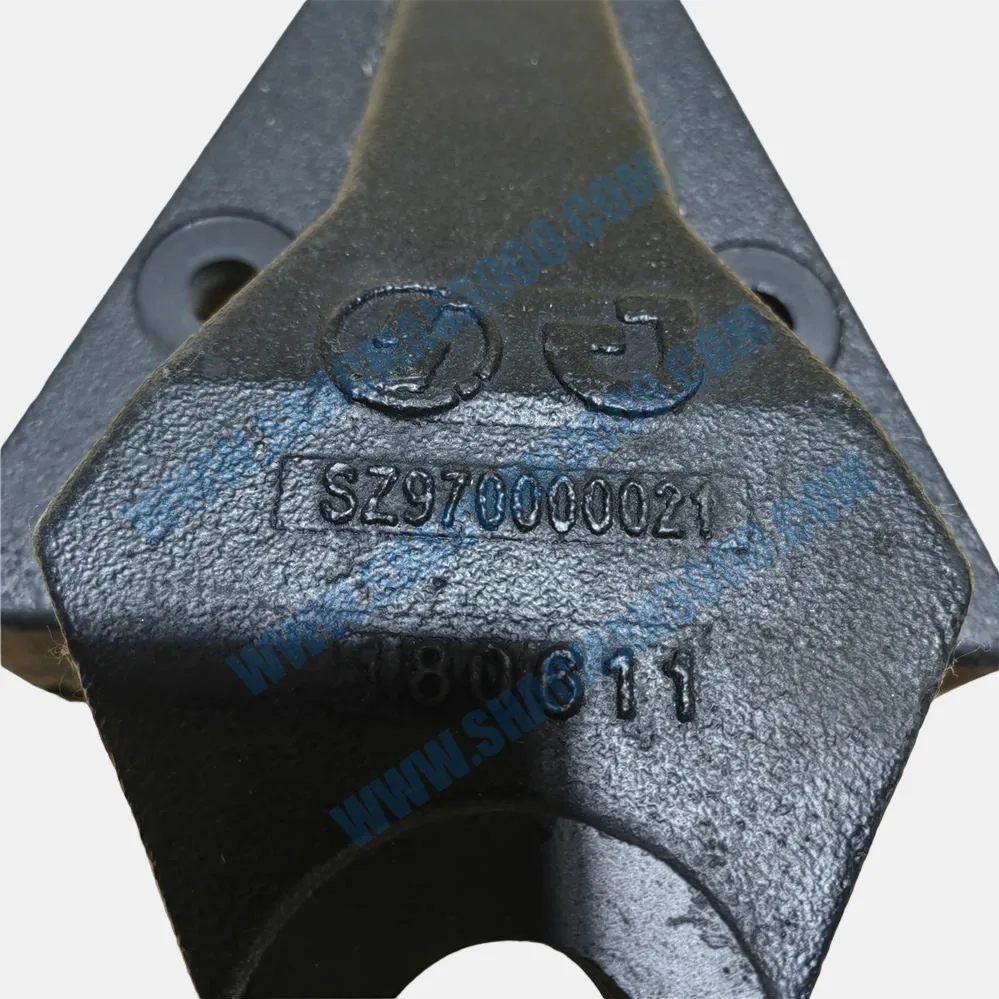

Compatibility spans all Shacman X5000 models from 2015 onward (X5000‑E, heavy‑haul, construction, 6×4, 8×4). The right front bracket is not interchangeable with the left side due to asymmetric design. Inspect the bracket every 50,000 km for cracks radiating from the weld toes or bolt holes. If any crack is visible, replace immediately. Also check for corrosion pitting deeper than 1.5 mm; deep pits act as stress risers. The genuine bracket is stamped with the OEM number SZ970000021 and a production date code for traceability.

Inspection & Replacement Indicators

Common signs of a failing bracket include: visible cracks near the spring eye weld, elongation of the mounting holes (allowing bolt movement), rust bubbling under the paint indicating crevice corrosion, and a noticeable gap between the bracket and frame rail. During routine lubrication, use a pry bar to check for movement – any motion beyond 0.5 mm indicates a loose or cracked bracket. If the truck pulls to one side or exhibits uneven tyre wear, inspect the bracket alignment. Replacing a worn bracket preventively avoids costly axle misalignment and spring breakage.

Applications Across Heavy‑Duty Industries

Shacman X5000 trucks equipped with the SZ970000021 right front bracket excel in mining, logging, construction, and long‑haul freight. In mining, the bracket withstands constant vibration from haul roads and impact from large potholes. For logging trucks on muddy forest trails, the corrosion‑resistant coating resists moisture and mud packing. In construction (dump trucks, concrete mixers), the bracket’s robust design handles chassis twisting when operating on uneven terrain.

The bracket is also used on Shacman X5000 military logistics vehicles and fire trucks, where reliability is paramount. In long‑haul fleets, the bracket’s precise geometry reduces tyre wear and improves fuel economy by maintaining correct axle alignment. Many large fleets report that switching to genuine Shacman brackets cut front tyre replacement frequency by 20%. The SZ970000021 meets or exceeds ISO 14724:2017 requirements for leaf spring brackets, ensuring global compliance for cross‑border operations.

Why Genuine Shacman Bracket Outperforms Aftermarket

Aftermarket front spring brackets are often made from lower‑grade A36 steel (yield 250 MPa vs. 500 MPa for S500MC), and they may be formed with crude dies that introduce stress risers. Some skip post‑weld heat treatment, leaving residual stresses that cause cracking after a few months. The genuine Shacman SZ970000021 is produced under IATF 16949 quality management, with 100% weld inspection and load testing on a sample basis. The spring eye bore is precisely machined, while aftermarket brackets often have rough, oversized bores that cause bushing movement and premature wear.

Using genuine brackets also preserves your X5000 warranty and resale value. When a buyer sees genuine Shacman components, confidence in proper maintenance increases. Although the initial cost is higher than some aftermarket brackets, the genuine bracket’s longer service life (typically 2–3 times) and protection of springs, bushings, and tyres provide a 3:1 ROI over 500,000 km. Fleet data shows that trucks on genuine Shacman front spring brackets have 60% fewer suspension‑related emergency repairs and 40% lower front axle maintenance costs. For any fleet manager, the genuine bracket is the intelligent investment.

Total Cost of Ownership – Real‑World Example

A fleet of 100 Shacman X5000 trucks each covering 200,000 km per year will replace front spring brackets approximately every 3 years. Using genuine SZ970000021 brackets costs about 40% more than generic, but they last 2.5 times longer. Annual savings: $18,000 in fewer replacements, $22,000 in reduced tyre wear, $10,000 in less downtime, and $8,000 in lower alignment costs. Over five years, net saving exceeds $290,000. Additionally, the genuine bracket’s perfect fit reduces installation time by 30%. The numbers are clear – genuine Shacman is the value choice.
